BXZDH8DECT Handset with Bluetooth and BLE

PRELIMINARY Ascom d83 Protector DECT Handset Features Alarm Messaging Location General Wide band audio Shared phone Bluetooth for headset Easy registration Loudspeaking function Procedure calls Advanced user profiles System profiles Programmable soft keys & hot keys Multi-function button Push to talk (PTT) Poll location Voice mail Background noise cancelling Application controlled telephony with Automation calls and Automatic group calls Push button alarm, with ability to send different alarm types Acoustic Location Signal (ALS) Automatic call after alarm Man-down and No-movement alarm Pull cord alarm Priority handling of calls and messages Advanced messaging queueing Color messaging Interactive messaging Multicast / Broadcast messaging Message acknowledgement IR Location DECT Beacon location Base station location BLE location LF location 3.5 mm headset connector Vibrator GAP / CAP compliant DECT handset Dynamic output power Cleanable, IP67 20 languages and 1 customizable Enhanced DECT security Step A and Step B (ETSI EN 300 444, N.35, N.36) TD 93420EN / March 2021 / Ver. PA5 DATA SHEET PRELIMINARY DATASHEET,Ascomd83 ProtectorDECTHandset TechnicalSpecifications Overview Dimensions(l × w × d):150 × 64× 23 mm Weight:164.2g (excl.clip) 180 g (incl. batteryand clip) Material:Case:PC/ABS,Key pad: PC, Clip: PA Color:Handset:Gray/ Black Frontplates:Black(standard),SteelGray,Turquoise,Green,Orange Display:40х50 mm (2.4 in), TFT display Multiplecolorswith high resolution,262 K individualcolors 240 × 320 pixelLCD with whiteLED backlight Clip:Hinge-type(standard)or swivel-typeor no clip User Interface Indicator:MulticolorLED on top for visualindicationof incomingcall / message The LED may also be usedfor visualindicationof normalfunction Vibrator:Incomingcall / Incomingmessage/ Alarm Batteryand Charging All batterytimesare basedon optimalconditions(no roamingor handoverand blackdisplay). Type:Li-ion3.7 V 920 mAh Speechtime:18 h (Bluetoothdisabled/ Locationfeaturesdisabled) 12 h (withBluetoothheadsetin use / Locationfeaturesdisabled) 16 h (Bluetoothdisabled/ Locationfeaturesenabled) 10 h (withBluetoothheadsetin use / Locationfeaturesenabled) Stand-bytime:120 h (Blackscreensaveractivated/ Locationfeaturesdisabled) 60 h (Blackscreensaveractivated/ Locationfeaturesenabled) Chargetime:< 4 h Connectors Multi-purposeconnector:With USB for fast softwaredownload,configurationand batterycharging Headsetconnector:Standard3.5 mm, screwenforced3.5 mm Specificationsare subjectto changewithoutnotice TD 93420EN/ / Ver. PRELIMINARY DATASHEET,Ascomd83 ProtectorDECTHandset Audio Ring signal:Maximumsoundlevel100 dBA @ 10 cm Adjustablein 8 steps Earpiece:Adjustablein 8 stepsof 3dB each Loudspeaker:Duplexloudspeakingfunction Languages Menuand messagelanguages(20):Czech,Danish,Dutch,English,Finnish,Flemish,French,German,Greek, Hungarian,Italian,Norwegian,Polish,Portuguese(Brazilian),Portuguese (European),Russian,Slovakian,Spanish,Swedishand Turkish+ one downloadable Phonebook Centralphonebook:Maximum40 charactersin a nameand 20 digitsin a number Companyphonebook:Maximum24 charactersin a nameand 24 digitsin a number(1 number per name) 1000entries Localphonebook:48 charactername 24 digit worknumber 24 digit mobilephonenumber 24 digit othernumber Selectablering tonesper contact 250 entries Telephony Indication:14 ring signals,illuminateddisplay,vibratorand LED Answercall:Buttonpressor auto answer Call list storagecapacity:50 calls (received,dialledand missed)with time stamp Messaging Maximummessagelength:Up to 140 charactersfrom handset,dependingon languageand system settings Storagecapacity:30 received/sentmessages(> 20 000 characters) MulticastGroupsper handset:The handsetcan be a memberin maximum8 differentMessaging groups Messagecharacterencoding:SMS Standard Latin-1 UTF-8 Specificationsare subjectto changewithoutnotice TD 93420EN/ / Ver. PRELIMINARY DATASHEET,Ascomd83 ProtectorDECTHandset Additional • Highqualityvoice • Centralizedmanagement • Easyaccessto PBX services • Easyreplacementof handset • Programmableheadsetbutton • Site surveytool • Customizablemenus • Programmablehandsetrestrictions • Easilyreplaceablebattery • Mutebutton/ Soundoff key • 180 degreesrotationof message/ call information • Clearmessageand call lists in charger Accessories • Hinge-type/Swivel-typeclip • Coverplatefor no clip • Securitycord • Pull-cord • Leathercasing,incl. swivel-typeclip • Desktopcharger • Desktopprogrammer • Batterypackcharger • Chargingrack • Frontplates(5) • Headsetwith microphoneon cable • Headsetwith microphoneon boom • Headsetadapterfor Mic on boom Bluetooth Bluetoothradiospectrum:ISM 2.4000–2.4835GHz Outputpower:Class2, maximum3 dBm SupportedVersion:5.0 SupportedProfiles:Headsetand Handsfree Radio AutomaticDECTprotocoldetection:Automaticdetectionand configurationfor US DECTand EU DECTat first registration Frequencyrange:EU: 1880–1900MHz US: 1920–1930MHz LA: 1910–1930MHz BR: 1910–1920MHz THA:1900–1906MHz – : 1900–1920MHz Modulation:GFSK Channelspacing:1.728MHz Antenna:2 integralantennasfor antennadiversity Sensitivity:−93 dBm Maximumaveragepower:EU/LA/BR:10 mW US: 4 mW Specificationsare subjectto changewithoutnotice TD 93420EN/ / Ver. PRELIMINARY DATASHEET,Ascomd83 ProtectorDECTHandset Environmental Operatingtemperature:−10°Cto +55°C(+14°Fto +131°F) Storagetemperature 1 :−20°Cto +60°C(−4°Fto +140°F) Chargingtemperature:+5°Cto +40°C(+41°Fto +104°F) Immunityto electromagneticfields:10 V/m (EN 61000-4-3) Immunityto ESD:8 kV contactdischargeand 16 kV air discharge (EN 61000-4-2) Enclosureprotection:IP67,IEC EN 60529 Free fall test:IEC 60068-2-31,procedure1, dropped12 times,specificationextended to 2 m IEC 60068-2-31,procedure2, dropped1 000 timesfrom 0.5 m Chemicalresistancetest:3% HydrochloricAcid M-alcohol(85%methylatedethanol) 60% Chlorhexidin0.5 mg/ml AcceleratedLife Testing Climatestress:Handsetexposedto quicktemperatureand humiditychanges Temperature:-40°Cto +75°C Humidity:0% to 90…

Text truncated - open the document above for the full version.

1 Ascom d83 DECT Handset Safety Instructions Sikkerhedsanvisninger Sicherheitshinweise Instrucciones de seguridad Consignes de sécurité Istruzioni di sicurezza Veiligheidsinstructies Sikkerhetsanvisninger Instruções de Segurança Turvallisuusohjeet Säkerhetsföreskrifter Emniyet Talimatları 2 3 English ...................................................................................... 5 Dansk ........................................................................................ 9 Deutsch ................................................................................... 13 Español.................................................................................... 17 Français ................................................................................... 21 Italiano .................................................................................... 25 Nederlands............................................................................ 29 Norsk....................................................................................... 33 Português .............................................................................. 37 Suomi ....................................................................................... 41 Svenska.................................................................................. 45 Türkçe ..................................................................................... 49 4 Safety Instructions Ascom d83 DECT Handset English5 English Safety Instructions Ascom d83 DECT Handset Intended use Ascom DECT Handset d83 is a user-friendly handset, designed to facilitate efficient and dependable communication. Main features include voice and data communication over DECT. The handset is powered by a rechargeable battery, and is charged by a Desktop Charger, Charging Rack, or a Battery Pack Charger. NOTE: Product Designator for regulatory purposes of the Ascom DECT Handset d83 is DH8. Safety Instructions For safe and efficient operation of the handset, observe all necessary safety precautions when using the handset. Follow the operating instructions and adhere to all warnings and safety precautions located on the product, and in the User Manual. This product shall only be used with the following battery: •P/N: 491121A Battery This product shall only be used with the following chargers: NOTE: The use of charger variant is depending on region. Desktop chargers must be connected with the power supplies provided by the manufacturer in the product box. The power supply is always provided with the charger and cannot be ordered separately. NOTE: To fulfill regulatory requirements, the above accessories must be used. Desktop Charger:DC3-AAAD DC3-AABD Battery Pack Charger: CR4-AAAD Charging Rack:CR3-AAAD CR3-ABAD 3.5 mm Charger:660672 Safety Instructions Ascom d83 DECT Handset 6English Environmental Requirements •Only use the handset in temperatures between -10° C to +55° C (14° F to 131° F). •Avoid exposing the handset for direct sunlight or close to other heat sources. •Avoid volume levels that may be harmful to your hearing. Exposure to excessive sound pressure from a handset's earpiece or headset may cause permanently hearing loss. •Do not expose the handset to open flame. •Keep the handset away from excessive heat and moisture. •Avoid sudden temperature changes to prevent condensation in the handset. It is recommended to put the handset into an air tight plastic bag until the temperature is adjusted, for example, when entering or leaving a cold/heated building on a warm/cold day. •Protect your handset from aggressive liquids and vapors. •Keep the handset away from strong electromagnetic fields. •Do not place a cold handset in a charger. Battery Caution: Risk of fire or explosion if the battery is replaced by an incorrect type. •Do not immerse the battery into water. This could short- circuit and damage the battery. •Do not expose a battery to an open flame or other heat source. This could cause the battery to explode. •Do not allow the metal contacts on the battery to touch another metal object. This could short-circuit and damage the battery. •Do not leave a battery where it could be subjected to extremely high temperatures, such as inside a car on a hot day. •Use the Desktop Charger or the Charging Rack for charging. Charge the battery for at least one hour the first time you use the battery. Note that the Battery Pack Charger has to be used if the battery alone is to be charged. •Do not charge a battery when the ambient room temperature is above 40° C or below 5° C (above 104° F or below 41° F). Safety Instructions Ascom d83 DECT Handset English7 •Do not attempt to take a battery apart or damage it in any way. Regulatory Information Bluetooth QD ID: B016451 Frequency Range and Output Power The handset is a radio transmitter and receiver. When it is on, it receives and sends out radio frequency (RF) energy. The handset operates on different frequency ranges depending on market and employs commonly used modulation techniques. Information about additional frequency bands and associated maximum output power is found in the Data Sheet for the handset. Declaration of Conformity (EU/EFTA) Hereby, Ascom (Sweden) AB, declares that DH8 is in compliance with the essential requirements and other relevant provisions of 2014/53/EU (RED) and RoHS 2015/863 (RoHS3) amending Directive 2011/65/EU (RoHS). The complete Declaration of Conformity is available at the following website: https://www.ascom-ws.com/doc Declaration of Conformity (UK) Hereby, Ascom (Sweden) AB, declares that DH8 is in compliance with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The complete Declaration of Conformity is available at the following website: https://www.ascom-ws.com/doc RegionDECT Allocation (MHz) Max Average Power (mW) Europe1880 …

Text truncated - open the document above for the full version.

Ascom (Sweden) AB Page 1(2) PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: GÖTEBORG TO WHOM IT MAY CONCERN MODEL DIFFERENCE LETTER, IC:3724B-DH8, FCC ID BXZDH8 This letter is to explain the differences between the different variants of Ascom DH8 DECT handset Model* Product Marketing Name (PMN) HVIN Applicable parts DH8-AAAA Ascom d83 Talker DH8- 904752 All basics. Dual colour LED DH8-ABAA Ascom d83 Messenger DH8- 904850 All basics and IR, IF location. Multi colour LED DH8-ACAA Ascom d83 Protector DH8- 904753 All basics, IR, IF location, Accelerometer and alarm button, pull cord. Multi colour LED DH8-ABAB Ascom d83 Messenger EX DH8- 904754 All basics, IR, IF location and current limitation DH8-ACAB Ascom d83 Protector EX DH8- 904851 All basics, IR, IF location, Accelerometer, alarm button, pull cord and current limitation. Multi colour LED DH8-CEAA Avaya DECT 3755 Handset DH8- 904931 All basics, Accelerometer and alarm button, pull cord. Multi colour LED DH8-CEAB Avaya DECT 3759 Handset DH8- 904927 All basics, Accelerometer, alarm button, pull cord and current limitation. Multi colour LED DH8-DDAA Mitel 5617 DH8- 904924 All basics. Multi colour LED DH8-DEAB Mitel 5619 DH8- 904927 All basics, Accelerometer, alarm button, pull cord and current limitation. Multi colour LED *First letter after – in Model is stating the brand, Second letter is stating modell type Talker, Messenger or Protector, fourth letter is stating EX version or standard version. The assessed DH8-ACAA represents the worst case and therefore cover all test requirements and grant compliance also for all other variants. All model variants have the same PCB and RF interface only mounting differencies. There are no differences in shape/appearance, other than the features above. Dated this 4 Day of Aug 20 21 By: Peter Söderberg Signature Printed Title: Regulatory Affairs Engineer Telephone: +4631559148 Ascom (Sweden) AB Page 2(2) PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: GÖTEBORG Applicant: Ascom (Sweden) AB

Ascom (Sweden) AB Page 1(2 ) PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: GÖTEBORG 31 March, 2021 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ascom (Sweden) AB FCC Registration Number (FRN): 0013904214 FCC IO: BXZDH8 Product Name: DECT handset Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Operational Description • Block Diagram • Schematics • Parts Lists • Tune Up Information • HW Design Description These documents contain detailed system and equipment description and related information about the product which Ascom (Sweden) AB considers being proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Ascom (Sweden) AB considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Ascom requests that the Commission withholds the following documents from public viewing for one hundred eighty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Ascom (Sweden) AB as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality confidentiality, and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Ascom (Sweden) AB by giving competitors an unfair market advantage. Ascom (Sweden) AB believes Ascom (Sweden) AB Page 2(2) PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: GÖTEBORG the period of confidentiality requested is necessary to protect the information until the commercial release of a device. If you have any questions, please feel free to contact me at the address shown below. Dated this 31 Day of March 20 21 By: Bodil Tufvesson Signature Printed Title: Regulatory Affairs Engineer Telephone: +46 31559563 Applicant: Ascom (Sweden) AB

Ascom (Sweden) AB Page 1(1) PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: GÖTEBORG 6/1/2021 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Nemko A/S, Institutveien 6, N-2007 Kjeller, Norway, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Printed name: Bodil Tufvesson

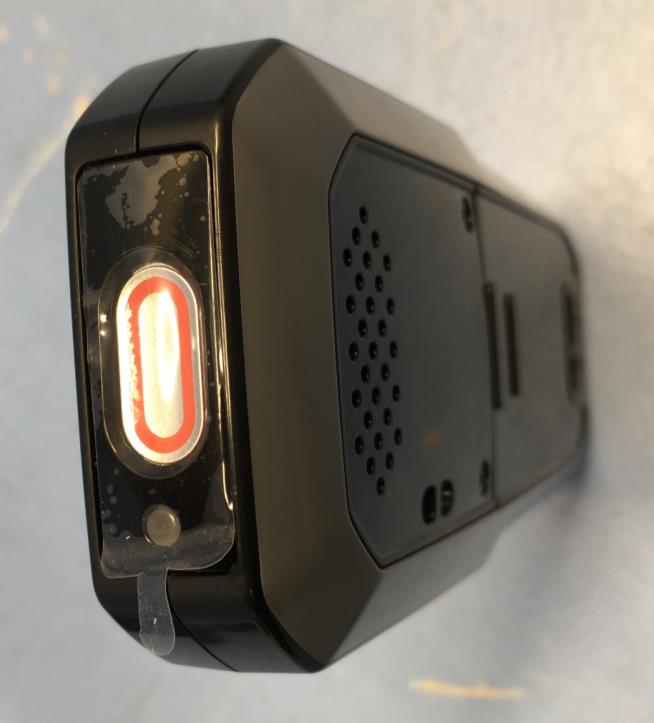

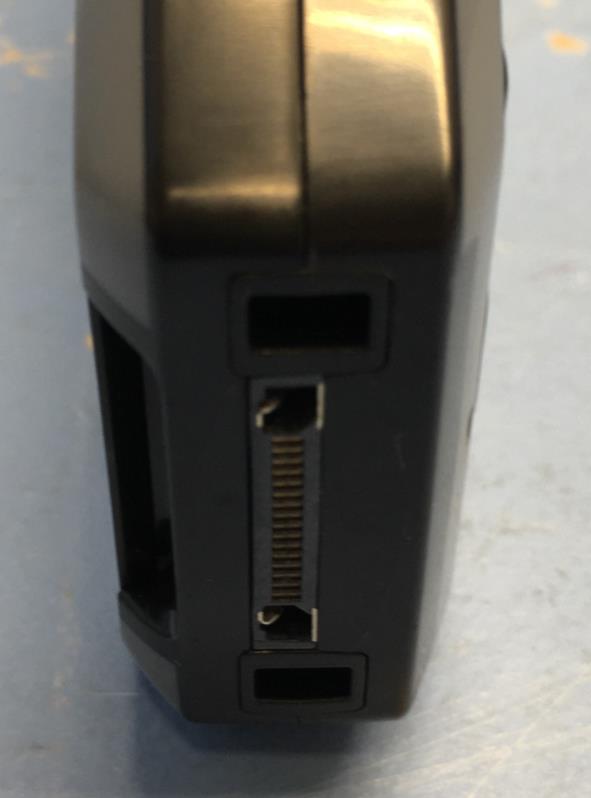

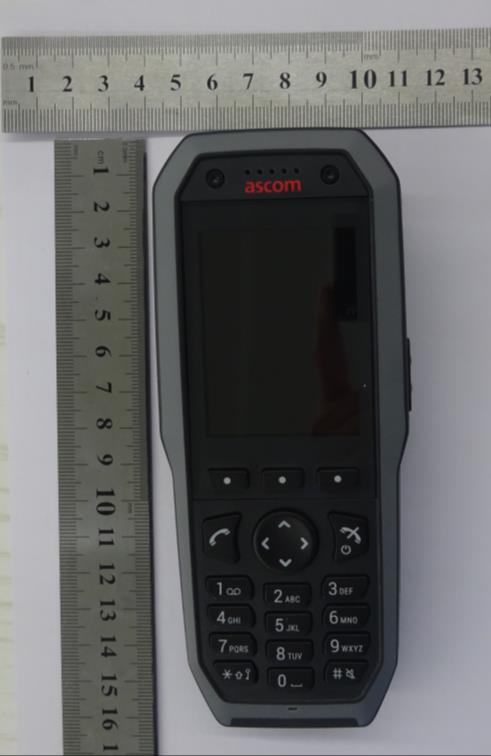

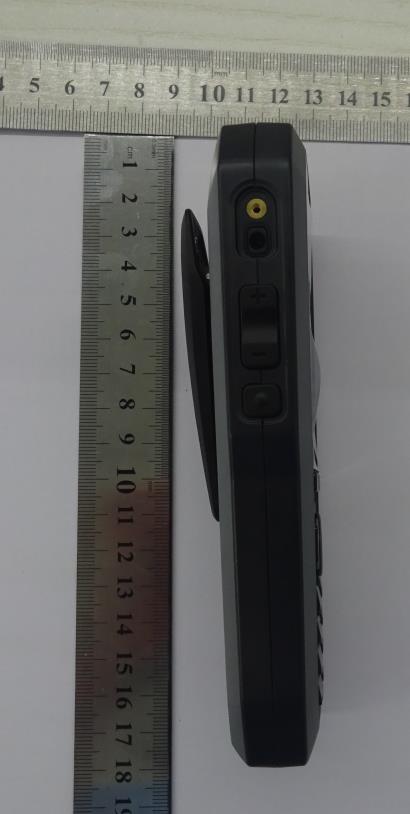

EXTERNAL PHOTOS Project no.: FCC ID: BXZDH8 Page 1 (3) EXTERNAL PHOTOS – DH8 Front Rear EXTERNAL PHOTOS Project no.: FCC ID: BXZDH8 Page 2 (3) Left side Right side EXTERNAL PHOTOS Project no.: FCC ID: BXZDH8 Page 3 (3) Top Bottom

Label specification IPEI: 1234567891021 IPEI: 1234567891021 This document contains confidential and proprietary information of Ascom and may not be copied, used or disclosed without the written permission of Ascom and must be returned upon request. See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires Made in China Fabriqué en Chine DH8-AAAA/xx Made in China Fabriqué en Chine d83 S/N: T26xxxxxxx DH8-AAAA/xx Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden d83 S/N: T26xxxxxxx yyWww yyWww R-NZ mark for NZL for radio products RCM mark Australia: Height > 3mm IPEI: Barcode is code 128 format. Insert date code at time of label printing. The symbol indicating separate collection for EEE consists of the crossed-out wheeled bin. The symbol must be printed visibly, legibly and indelibly. S/N IPEI number Serial number S/N: Barcode is code 128 format. R-NZ IPEI yyWww R-NZ FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904752 HAC FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904752 HAC R-NZ Degree of protection provided by enclosure (IP Code) IP67 IP67 Additional note: All characters to be printed in approximate location shown, with approximate size and style, if nothing else indicated. all dashed lines are for reference only and shall not be printed When used, the UKCA mark must have a height of at least 5mm ≥ 5mm When used, the CE mark must have a height of at least 5mm Bluetooth

Label specification IPEI: 1234567891021 IPEI: 1234567891021 This document contains confidential and proprietary information of Ascom and may not be copied, used or disclosed without the written permission of Ascom and must be returned upon request. See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires Made in China Fabriqué en Chine DH8-ABAA/xx Made in China Fabriqué en Chine d83 S/N: T26xxxxxxx DH8-ABAA/xx Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden d83 S/N: T26xxxxxxx yyWww yyWww R-NZ mark for NZL for radio products RCM mark Australia: Height > 3mm IPEI: Barcode is code 128 format. Insert date code at time of label printing. The symbol indicating separate collection for EEE consists of the crossed-out wheeled bin. The symbol must be printed visibly, legibly and indelibly. S/N IPEI number Serial number S/N: Barcode is code 128 format. R-NZ IPEI yyWww R-NZ FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904850 HAC FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904850 HAC R-NZ Degree of protection provided by enclosure (IP Code) IP67 IP67 Additional note: All characters to be printed in approximate location shown, with approximate size and style, if nothing else indicated. all dashed lines are for reference only and shall not be printed When used, the UKCA mark must have a height of at least 5mm ≥ 5mm When used, the CE mark must have a height of at least 5mm Bluetooth

Label specification IPEI: 1234567891021 IPEI: 1234567891021 This document contains confidential and proprietary information of Ascom and may not be copied, used or disclosed without the written permission of Ascom and must be returned upon request. See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires Made in China Fabriqué en Chine DH8-ACAA/xx Made in China Fabriqué en Chine d83 S/N: T26xxxxxxx DH8-ACAA/xx Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden d83 S/N: T26xxxxxxx yyWww yyWww R-NZ mark for NZL for radio products RCM mark Australia: Height > 3mm IPEI: Barcode is code 128 format. Insert date code at time of label printing. The symbol indicating separate collection for EEE consists of the crossed-out wheeled bin. The symbol must be printed visibly, legibly and indelibly. When used, the CE mark must be easily readable S/N IPEI number Serial number S/N: Barcode is code 128 format. R-NZ IPEI yyWww R-NZ FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-xxxxxx HAC FOR TESTING PURPOSE ONLY FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-xxxxxx HAC R-NZ FOR TESTING PURPOSE ONLY Degree of protection provided by enclosure (IP Code) IP67 IP67

Label specification IPEI: 1234567891021 IPEI: 1234567891021 This document contains confidential and proprietary information of Ascom and may not be copied, used or disclosed without the written permission of Ascom and must be returned upon request. See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires Made in China Fabriqué en Chine DH8-ACAA/xx Made in China Fabriqué en Chine d83 S/N: T26xxxxxxx DH8-ACAA/xx Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden d83 S/N: T26xxxxxxx yyWww yyWww R-NZ mark for NZL for radio products RCM mark Australia: Height > 3mm IPEI: Barcode is code 128 format. Insert date code at time of label printing. The symbol indicating separate collection for EEE consists of the crossed-out wheeled bin. The symbol must be printed visibly, legibly and indelibly. S/N IPEI number Serial number S/N: Barcode is code 128 format. R-NZ IPEI yyWww R-NZ FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904753 HAC FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904753 HAC R-NZ Degree of protection provided by enclosure (IP Code) IP67 IP67 Additional note: All characters to be printed in approximate location shown, with approximate size and style, if nothing else indicated. all dashed lines are for reference only and shall not be printed When used, the UKCA mark must have a height of at least 5mm ≥ 5mm When used, the CE mark must have a height of at least 5mm Bluetooth

Label specification IPEI: 1234567891021 IPEI: 1234567891021 This document contains confidential and proprietary information of Ascom and may not be copied, used or disclosed without the written permission of Ascom and must be returned upon request. See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires See manual for battery and regulatory instructions. Voir le manuel pour la batterie et les instructions règlementaires Made in China Fabriqué en Chine DH8-ACAB/xx Made in China Fabriqué en Chine d83 S/N: T26xxxxxxx DH8-ACAB/xx Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden Ascom (Sweden) AB Grimbodalen 2 SE-417 49 Göteborg Sweden d83 S/N: T26xxxxxxx yyWww yyWww R-NZ mark for NZL for radio products RCM mark Australia: Height > 3mm IPEI: Barcode is code 128 format. Insert date code at time of label printing. The symbol indicating separate collection for EEE consists of the crossed-out wheeled bin. The symbol must be printed visibly, legibly and indelibly. S/N IPEI number Serial number S/N: Barcode is code 128 format. R-NZ IPEI yyWww R-NZ FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904851 HAC FCC ID: BXZDH8 IC: 3724B-DH8 HVIN: DH8-904851 HAC R-NZ Degree of protection provided by enclosure (IP Code) IP67 IP67 Additional note: All characters to be printed in approximate location shown, with approximate size and style, if nothing else indicated. all dashed lines are for reference only and shall not be printed When used, the UKCA mark must have a height of at least 5mm ≥ 5mm Bluetooth When used, the UKCA mark must have a height of at least 5mm

EXTERNAL PHOTOS Project no.: FCC ID: BXZDH8 Page 1 (1) LABEL PLACEMENT – DH8 Note! This placement is similar for all DH8 variants DH8-AAAA Ascom d83 Talker DH8-ABAA Ascom d83 Messenger DH8-ACAA Ascom d83 Protector DH8-ABAB Ascom d83 Messenger EX DH8-ACAB Ascom d83 Protector EX DH8-CEAA Avaya DECT 3755 Handset DH8-CEAB Avaya DECT 3759 Handset DH8-DDAA Mitel 5617 DH8-DEAB Mitel 5619

Note! This drawing shall not be duplicated or used for any purpose other tan that for which provided. The information disclosed here in originated by and is the property of Ascom, and except for rights explicitly granted by written consent, such information shall not be disclosed or disseminated whole or in part. Ascom reserves all rights in the event of the grant of patent, copyright, design, use, sale, manufacturing and reproduction rights there to. 1 SIZE A3 A B C D E F 12345678 F E D C B A 8765432 44.3 0.25 390.25 4.30.25 9 0.2 R 2.8 0.2 (2x R ) 1.5 (6x R ) 1 4.30.25 9.5 0.2 (2x R ) 0.5 4.25 0.2 FUNCTIONAL DIMENSIONING The part described on this drawing is represented in graphic detail to show all of its features for the purpose of engineering documentation. Only those dimensions which affect the fit and function of the overall product assembly have been included for various purposes of inspection. Listed below All dimensions and drw note requirements shown shall be inspected and reported for initial part qualification. Dimensions noted with an " "are critical dimensions and must be inspected according to a control plan in a reoccurring process. Dimensions noted with an" "are process control (cp,cpk) dimensions and must be inspected and stored in a continuous process. All remaining features, not specified by dimension and tolerance, are cosmetic and mostly for the manufacturability of the part, but must still be approved by Ascom Engineering Department prior to initial qualification of the tool and part. The dimensional values for features not dimensioned are to be obtained from the Digital Shape Model (DSM) listed in the title block. The allowable tolerance on these features shall be as stated in the general tolerance chart ISO 2768 or GD &T "Profile of surface" symbol in the text note block. X X Notes: 1. Material: Label, Thermal Transfer Polyester Label Material 3M 7816 2. Digital shape model no.: M80351C.igs and/or .stp is basis where dimensions are omitted 3. Label durability according to EN 62368-1 4. Label layout according to Ascom Agile /PLM-system 5. Color according to Ascom Agile /PLM-system 6. Tolerances according to ISO 2768-c 7. To be supplied with protective liner for adhesive 8. Purchasing cycle max (6) months to avoid adhesive deteriation before use 9. RoHS and REACH compliant 1 RevChange Description:Change Date: Changed By:Approved By: D 1 Label durability standard was EN 60950-1 2021-01-14Ulf Westberg Jon Moedahl Pos.:Cad-Model Nr.:/Type:Cad-Model Name (Common Name):Qty.:Notes: Authoring Application: Creo Parametric Title:General tolerances acc. to ISOScale: Product Label Dimensions acc. to ISO-2768 2:1 DH8 GD and T acc. to ISO 1101 Projection: - Surface roughness std. acc. to ISO 1302 Resp. Engineer:Originally D…
