BXZNUCRCard Reader US

TD 93025US 9 May 2019 / Ver. I System Description teleCARE IP Emergency Call System TD 93025US 9 May 2019 / Ver. I System Description teleCARE IP Copyright © 2019 Ascom (US), Inc. This document may not be copied in whole or in part or otherwise reproduced without prior written consent from Ascom, except where specifically permitted under US and international copyright law. Disclaimer The information in this document is subject to change. Use this product only in accordance with the instructions provided in the installation and user guide manuals. Use this product only in accordance with the purposes for which it is designed. For the latest version of all Ascom teleC- ARE documentation, contact your local supplier or visit the Ascom Partner Website at https:// www.ascom-ws.com. Trademarks and patents The teleCARE name and logo are trademarks of Ascom. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. This publication may contain examples of screen captures and reports used in daily operations. Examples may include fictitious names of individuals and companies. Any similarity to names and addresses of actual businesses or persons is entirely coincidental. HIPAA disclaimer All examples of personal or protected health information in this document are fictitious. Any resemblance to a real person or facility is purely coincidental. The owners and users of this prod- uct are solely responsible for complying with all applicable protected health information privacy laws. The users, by their use of this product, agree to indemnify the manufacturer or seller of this product against all claims, litigation, and suits filed for protected health information violations. European Union directives The European directive “Waste Electrical and Electronic Equipment” (WEEE) aims to minimize the impact of electrical and electronic equipment waste on the environment and human health. To conform to this directive, electrical equipment marked with this symbol must not be disposed of in European public disposal systems. European users of electrical equipment must now return end-of-life equipment for disposal. Further information may be found on the following website: www.recyclethis.info . Battery Disposal This product may use sealed lead-acid batteries. Please refer to manufacturer instructions and all state, provincial, and local codes for information, instructions and requirements regarding proper disposal. Environmental Requirements Refer to the installation guide and product data sheet for complete product ratings and informa- tion. Avoid exposing the device to direct sunlight or other heat sources. Do not expose the device to open flame. Keep the device away from excessive heat and moisture. Protect your device from aggressive liquids and vapors. Keep the device away from strong electromagnetic fields. Terms used in this manual Specialized terms are used throughout this manual. The first time a term is used it is defined in the text. Regulatory Compliance (EU/EFTA) This equipment is intended to be used in the whole EU & EFTA. This equipment is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU. For NIRX/NITX/NILF/NICR/NIRD/ NUWGTW/NUREP/NUWIR/NUUTX/NUWBM3 products: Radio Equipment Directive 2014/53/EU and RoHS Directive 2011/65/EU. The Declaration of Conformity may be consulted at: http://www.ascom-ws.com/doc/ TD 93025US 9 May 2019 / Ver. I System Description teleCARE IP Regulatory Compliance (US/CAN) Copyright Safety Compliance: The equipment described herein complies with: ANSI/UL 2560 Emergency Call Systems for Assisted Living and Independent Living Facilities CAN/CSA C22.2 No. 205 Signal Equipment Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or television technician for help. Information to user: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: i) this device may not cause harmful interference, and ii) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouil- lage est susceptible d'en compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) Modifications: Changes or modifications to the equipment not expressly approved by the p…

Text truncated - open the document above for the full version.

TD 93025US 9 May 2019 / Ver. I56 System Description teleCARE IP 9.4Principle of the Wireless Infrastructure In an environment consisting mainly of wireless devices, a full wireless infrastructure can be achieved using a wireless gateway (NIRC3 + NUREP) in combination with wireless repeaters (NUREP), To create a wireless gateway, a wireless repeater (NUREP) is connected via a USB cable to a room controller (NIRC3). The wireless gateway is located at a location with access to the IP-network. Surrounding this location repeaters (NUREP) will be used to relay the wireless messages towards the wireless gateway in three subnets containing a maximum of four repeaters per subnet. Key advantages of using a wireless infrastructure over a wired infrastructure are: • Reduced installation costs because less cabling and labour are required. • Higher flexibility during system planning. • Easier to expand. • Less or no disturbance of residents in case of renovation. Figure 48. Wireless infrastructure principle Note: The wireless infrastructure is compatible with the teleCARE IP wireless functionality using room controllers (NIRC3) with NIRX mounted. Be aware that wander management requires hard wired devices to function, therefore wander management will not function when using a full wireless infrastructure only. TD 93025US 9 May 2019 / Ver. I57 System Description teleCARE IP 9.5Wireless Infrastructure RF Planning Considerations A wireless device must be seen at all possible locations. To avoid an overload of RF messages from being sent to the wireless server, a message should (preferably) only end up at one wireless gateway segment, which consists of multiple wireless repeaters and a gateway. At certain overlapping segments it could be possible that a message ends up at multiple gateways, but never more than two (maximum three/four in a worse case scenario). In each wireless segment, a wireless repeater must be able to see the next and the previous wireless repeater in the subnet at all times, all the way up to the wireless gateway. The status of the wireless repeaters in a wireless infrastructure are constantly monitored and a peripheral lost message will be generated if a section fails to respond. During configuration, the status of wireless gateway(s) and wireless repeaters are also visible through the system overview tab in the NISM, available under “Diagnostics -> System Overview”, refer to Emergency Call System Configuration Manual TD 93019US for detailed information. If a valid message is received by multiple repeaters in one or more subnets of a single gateway segment, the gateway will directly transfer the first instance of the message it received towards the wireless server for processing. If afterwards an instance with a higher RSSI value is received, it will be transferred to the wireless server for updating the RSSI location. For RSSI location determination, RSSI values are only updated for mobile transceivers like the NITX, this is not required for fixed wireless transceivers like the universal transmitter NUUTX. Although the wireless gateway will filter out most of the duplicate messages in its segment, it is important to carefully plan the locations of the wireless gateways and repeaters throughout a site. For example, avoid placing multiple wireless gateways too close to each other around a central location, there this will generate a lot of traffic towards the wireless server, when a wireless message is received by multiple gateways. Figure 49. Wireless gateways mounted too close to each other TD 93025US 9 May 2019 / Ver. I58 System Description teleCARE IP Setup a wireless segment in such a way that the repeaters are surrounding the gateway. This will result in wireless gateways being mounted further apart, therefore reducing the risk of overloading the wireless server. Figure 50. Correctly mounted wireless gateway segments Multi-storey building configuration A similar approach should be considered for multi-storey buildings. Mounting wireless gateways directly above each other on the individual floors can result in overloading the wireless server when a wireless message is received by too many gateways at the same time. Figure 51. Wireless gateways sections mounted too close to each other TD 93025US 9 May 2019 / Ver. I59 System Description teleCARE IP Spreading the repeaters connected to a single gateway across multiple floors will result in less traffic being forwarded towards the wireless server. Figure 52. Correctly mounted wireless gateway segments Note: Be aware that walls and floor/ceilings will reduce the range of RF transmissions. So make sure that the repeaters in a subnet are able to receive messages from the next and the previous repeater/gateway in the chain. TD 93025US 9 May 2019 / Ver. I60 System Description teleCARE IP 9.6teleCARE IP Wireless Components 9.6.1 NUREP Wireless Repeater The wireless repeater (NUREP) is a surface (wall) mounted teleCARE IP wireless infrastructure building-block. Wireless repeaters receive the signals from the wireless modules from residents and all the wireless modules in the resident room. Wireless repeaters also retransmit these signals to the central equipment (wireless gateway), via other wireless repeaters. Wireless repeaters are dual RF transceivers. One RF transceiver (916 to 921 MHz) is used for the local traffic, events from the resident pendant, wrist transceiver or the fixed wireless modules in the room. A 2.4 GHz IEEE 802.15.4 transceiver (supporting channels 15, 16, 20, 21 and 25) is used for transmitting the events to the other wireless repeaters, thereby creating a wireless backbone that is capable of handling high traffic. Wireless repeaters are used to create a wireless infrastructure that covers the whole site. Wireless repeaters are mainly used indoors, however when using a suitable weatherproof enclosure that meets local electrical code, outdoor use is possible. Repeaters are supervised by the central equipment. Repeaters…

Text truncated - open the document above for the full version.

Ascom (Sweden) AB Page 1(2) PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: GÖTEBORG 28 October, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Ascom (Sweden) AB FCC Registration Number (FRN): 0013904214 FCC IO: BXZNUCR Product Name: Card Reader US Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Operational Description • Block Diagram • Schematics • Parts Lists • Tune Up Information • HW Design Description These documents contain detailed system and equipment description and related information about the product which Ascom (Sweden) AB considers being proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Ascom (Sweden) AB considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. In addition to the above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, Ascom requests that the Commission withholds the following documents from public viewing for one hundred eighty days after the date the grant of equipment authorization is issued: • External Photographs • Internal Photographs • Test Setup Photographs These documents reveal technical and design information that has not been publicly disclosed in marketing materials and is protected by Ascom (Sweden) AB as confidential and proprietary trade secrets. This information has been disclosed to those required to maintain its confidentiality confidentiality, and is not customarily disclosed publicly prior to the commercial release of the device. As a result, disclosure of this information by the Commission prior to commercial release would harm Ascom (Sweden) AB by giving competitors an unfair market advantage. Ascom (Sweden) AB believes Ascom (Sweden) AB Page 2(2) PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: GÖTEBORG the period of confidentiality requested is necessary to protect the information until the commercial release of a device. If you have any questions, please feel free to contact me at the address shown below. Dated this 28 Day of October 20 20 By: Bodil Tufvesson Signature Printed Title: Regulatory Affairs Engineer Telephone: +46 31559563 Applicant: Ascom (Sweden) AB

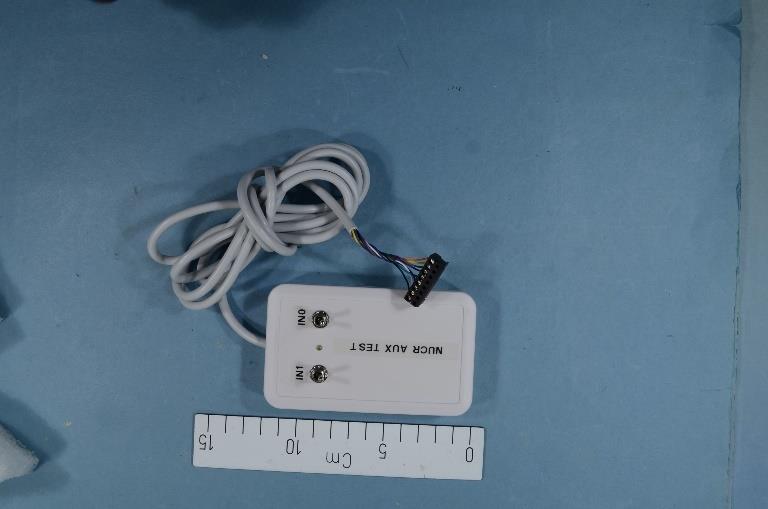

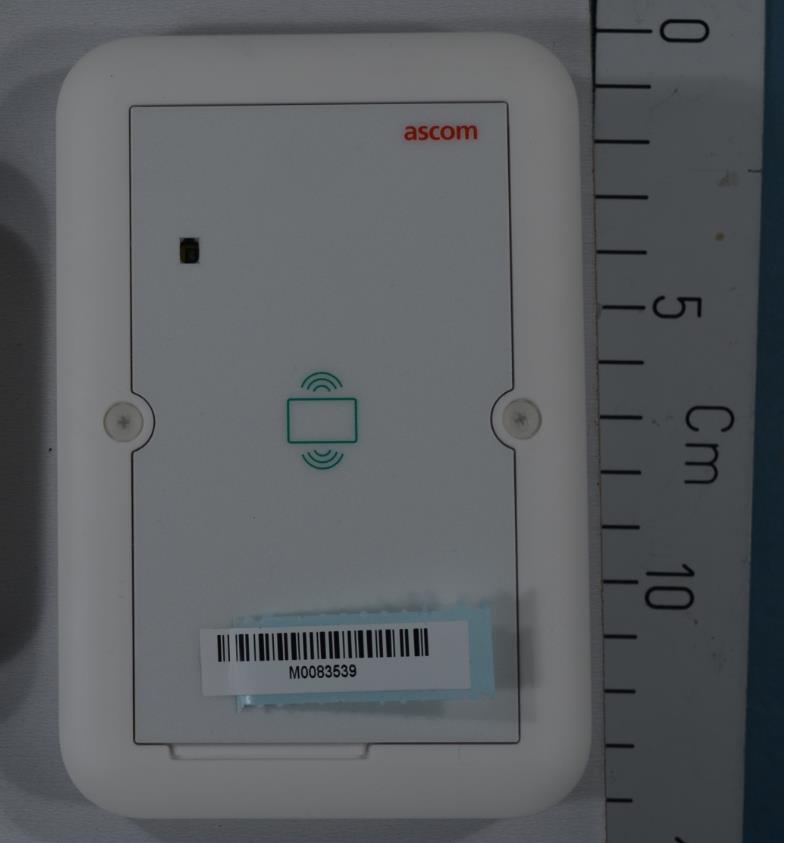

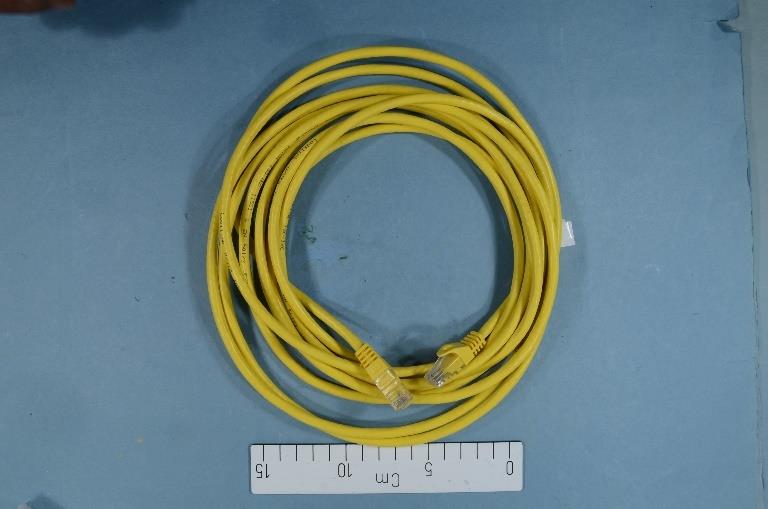

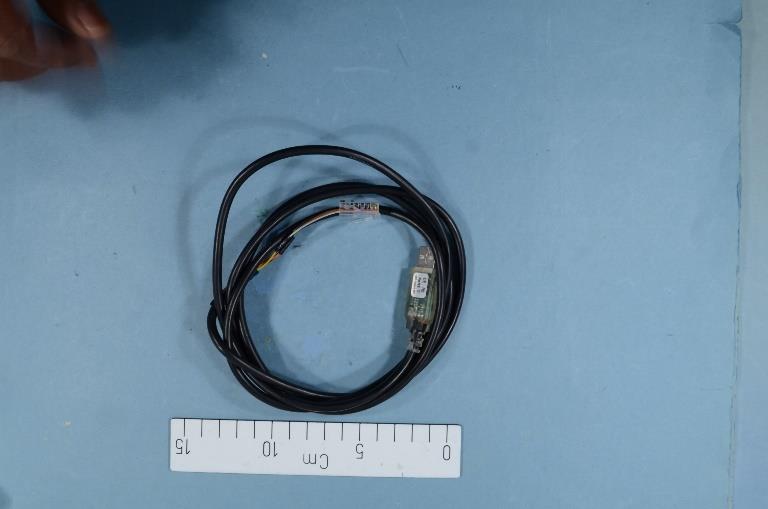

EXTERNAL PHOTOS Project no.: 407218 FCC ID: BXZNUCR Page 1 (2) EXTERNAL PHOTOS – NUCR-HU Front view (NUCR-HU) Rear view (NUCR-HU) EXTERNAL PHOTOS Project no.: 407218 FCC ID: BXZNUCR Page 2 (2) Accessories Input/output auxiliary relay and switched interface box USB seriel cable Auxilary device NIRC4 as power supply to the bus AC/DC adapter to NIRC4 Bus cable (both DC and RS485) RFID card

LAYOUT PRODUCT LABEL TOTAL SIZE: 40*10 MM Here shown NUCR-HU LAYOUT BOX LABEL TOTAL SIZE: 89*51 MM, DRAWING M68480C Here shown NUCR-HU Label specification This document contains confidential and proprietary information of Ascom and may not be copied, used or disclosed without the written permission of Ascom and must be returned upon request. The compliance label shall be legible and visible to the unaided eye and the compliance mark shall be no smaller than three millimetres (3 mm) in height. The label may be reproduced in any colour, provided that visibility is assured through either contrast with the background colour or marking in relief (for example, moulding or engraving). Where supplier identification characters are used the characters must be no less than one millimetre (1 mm) in height. Insert date code at time of label printing. The minimum height of the UL Registered trademark ® symbol shall be 1.2 mm. When the overall diameter of the UL Mark is smaller than 9.5 mm, the trademark symbol may be omitted if it is not legible to the naked eye. This applies for all UL Marks. Made in Mexico All element to of the enhanced UL Certification Mark must be printed exactly as shown wrt. color, orientation, content etc. The enhanced UL Certification Mark cannot be reproduced any smaller than 8mm when it is selfstanding. Fabrique aux Mexique The symbol indicating separate collection for EEE consists of the crossed-out wheeled bin. The symbol must be printed visibly, legibly and indelibly. yyyy-mm-dd Serial number, 8 characters. S/N: Barcode is code 128 format. S/N NUCR-HU/XX When used, the CE mark must have a height for a good visibility ≥ 3mm yyyy-mm-dd Ascom (Sweden) AB Grimbodalen 2 417 49 Göteborg Sweden Mxxxxxxx yyyy-mm-dd Ascom (US) Inc. 300 Perimeter Park Dr. Morrisville, NC 27560 NUCR-HU/XX Made in Mexico Fabrique aux Mexique ≥ 8mm Card Reader US (01)17350088670955(11)200819(21)Mxxxxxxx (01)17350088670955(11)200819(21)Mxxxxxxx Unique Device Identification (UDI) for Medical Devices. Consists of three parts: Fixed DI (Device Identifier) per product, prefixed by (01), what DI to use is supplied by Ascom A variable PI (Product Identifier) consisting of production date prefixed by (11) (format YYMMDD) and the unique device serial number prefixed by (21) Example of a complete UDI: (01)17350088671075(11)150909(21)Mxxxxxxx UDI: For the complete UDI use the barcode in GS1 DataMatrix format > 5x5 mm (According to the GS1 Data matrix standard the UDI is here without parantheses) UDI: UDI: Unité Lecteur de Carte RFID US FCC ID: BXZNUCR IC: 3724B-NUCR HVIN: NUCR-904508 R-NZ Mark for NZL for radio products Complies with IMDA Standards DA107674 China RoHS 50 years SN: Mxxxxxxx R-NZ FCC ID: BXZNUCR IC: 3724B-NUCR HVIN: NUCR-904508 R-NZ Symbol for manufacturer

Note! This drawing shall not be duplicated or used for any purpose other tan that for which provided. The information disclosed here in originated by and is the property of Ascom, and except for rights explicitly granted by written consent, such information shall not be disclosed or disseminated whole or in part. Ascom reserves all rights in the event of the grant of patent, copyright, design, use, sale, manufacturing and reproduction rights there to. 1 SIZE A3 A B C D E F 12345678 F E D C B A 8765432 0.05 0.02 10 0.02 400.02 5 RevChange Description:Change Date: Changed By:Approved By: A TBD Pos.:Cad-Model Nr.:/Type:Cad-Model Name (Common Name):Qty.:Notes: Authoring Application: Creo Parametric Title:General tolerances acc. to ISOScale: LABEL BLANK 10X40MM Dimensions acc. to ISO-2768 2:1 GD and T acc. to ISO 1101 Projection: Surface roughness std. acc. to ISO 1302 Resp. Engineer:Originally Drawn By:Originally Approved:Drawing no.Revision: Nermin Hromic M BodiNermin Hromic M69302A Gothenburg Sweden Creation Date: Format: A3Sheet: 1/1 Model version: B.1 Drawing version: A.1 Model modified? NO Drawing modified? *** CAD Model Name: M68630 Safety & Compliance Ex (!C):NO El.safety (!S):NO MDD:NO FAR SIDE (ADHESIVE): Perforate paper backing here to allow removal in two sections Each section should have easy pull tab for removal 2016-12-02 FUNCTIONAL DIMENSIONING The part described on this drawing is represented in graphic detail to show all of its features for the purpose of engineering documentation. Only those dimensions which affect the fit and function of the overall product assembly have been included for various purposes of inspection. Listed below All dimensions and drw note requirements shown shall be inspected and reported for initial part qualification. Dimensions noted with an " "are critical dimensions and must be inspected according to a control plan in a reoccurring process. Dimensions noted with an" "are process control (cp,cpk) dimensions and must be inspected and stored in a continuous process. All remaining features, not specified by dimension and tolerance, are cosmetic and mostly for the manufacturability of the part, but must still be approved by Ascom Engineering Department prior to initial qualification of the tool and part. The dimensional values for features not dimensioned are to be obtained from the Digital Shape Model (DSM) listed in the title block. The allowable tolerance on these features shall be as stated in the general tolerance chart ISO 2768 or GD &T "Profile of surface" symbol in the text note block. X X Notes: 1. Material: Self Adhesive Film, PET50K2411 PA-T1 8K 2. Digital shape model no.: M69302_A.igs and/or .stp is basis where dimensions are omitted 3. Label durability according to PGDQ2 or PGJI2 4. Label layout according to Ascom Agile /PLM-system 5. Color according to Ascom Agile /PLM-system 6. Tolerances according to ISO 2768-c 7. To be supplied with protective liner for adhesive 8. Purchasing cycle max 6 months to avoid adhesive deteriation before use 9. RoHS and REACH compliant

INTERNAL PHOTOS Project no.: 407218 FCC ID: BXZNUCR Page 1 (1) INTERNAL PHOTOS – NUCR-HU Top view – main board Rear view – main board

FCC ID: BXZNUCR SAR Exclusion Justification Test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm Guidance document reference: 447498 D01 General RF Exposure Guidance v05r02, page 11, paragraph 4.3.1(1). The 1-g and 10-g SAR test exclusion thresholds for 100 kHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 kHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. SAR test exclusion analysis: Assumptions: Since the exact separation distance may vary from sensor to sensor, the minimum separation distance of 5 mm is assumed per the guidance document. Max. power of channel: 0.0005 mW Min. separation distance: 5 mm Max. frequency: 0.00014 GHz [(Pwr/Dist)* √ Freq.] = 0.0 Max. power is source-based time-averaged maximum conducted output power, adjusted for tune-up tolerance. The result of the above SAR threshold calculation demonstrates that the result is less than the 1-g numeric threshold of 3 and the 10-g numeric threshold of 7.5. Conclusion: The above analysis shows that the evaluated device qualifies for exemption from SAR testing. Signed: , Senior Enginner 10/30/2020

Report No. 407218-01-R01 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2027 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product RFID Card Reader Name and address of the applicant Ascom Sweden AB Grimbodalen 2, Goteborg, SE-40276, Sweden Name and address of the manufacturer Ascom Sweden AB Grimbodalen 2, Goteborg, SE-40276, Sweden Model NUCR-HU Rating 5.5Vdc Trademark Ascom Serial number See page 3 Additional information RFID Card Reader operates in 13.56MHz Tested according to FCC Part 15.225 Low Power Transmitter 13.110 - 14.010 MHz Band Industry Canada RSS-210, Issue 10 Low Power Licence-Exempt Radiocommunications Devices Order number 407218 Tested in period 2020-10-21 – 2020-10.23 Issue date 2021-01-06 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway www.nemko.com CAB Number: FCC: NO0001 ISED: NO0470 TEL: +47 22 96 03 30 FAX: +47 22 96 05 50 An accredited technical test executed under the Norwegian accreditation scheme Prepared by [G.Suhanthakumar] Approved by [Frode Sveinsen] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15.225 Report no.: 407218-01-R01 FCC ID: BXZNUCR Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (22) CONTENTS 1 INFORMATION ......................................................................................................................... 3 1.1 Test Item .................................................................................................................................... 3 1.2 Normal test condition ................................................................................................................. 4 1.3 Test Engineer(s) ........................................................................................................................ 4 1.4 Test Equipment .......................................................................................................................... 4 2 TEST REPORT SUMMARY ...................................................................................................... 5 2.1 General ...................................................................................................................................... 5 2.2 Test Summary ........................................................................................................................... 6 2.3 Description of modification for Modification Filing ...................................................................... 7 2.4 Antenna Requirement ................................................................................................................ 7 2.5 Worst-Case Configuration and Mode ......................................................................................... 7 2.6 Comments ................................................................................................................................. 7 2.7 Family List Rational ................................................................................................................... 7 3 TEST RESULTS ........................................................................................................................ 8 3.1 Power Line Conducted Emissions ............................................................................................. 8 3.2 99% Occupied Bandwidth .......................................................................................................... 9 3.3 Fundemental Field Strength .................................................................................................... 11 3.4 Spurious emissions (radiated) ................................................................................................. 13 3.5 Transmitter Frequency Stability ............................................................................................... 18 4 Measurement Uncertainty ..................................................................................................... 19 5 LIST OF TEST EQUIPMENT................................................................................................... 20 6 System set up ........................................................................................................................ 21 6.1 System set up for radiated measurements .............................................................................. 21 7 BLOCK DIAGRAM .................................................................................................................. 22 7.1 Power Line Conducted Emission ............................................................................................. 22 7.2 Test Site Radiated Emission .................................................................................................... 22 TEST REPORT FCC Part 15.225 Report no.: 407218-01-R01 FCC ID: BXZNUCR Nemko Norway, Instituttveien 6, Kjeller, Norway Page 3 (22) 1 INFORMATION 1.1 Test Item Name : Ascom FCC ID : BXZNUCR Industry Canada ID : 3724B-NUCR Model/version : NUCR-HU Serial number : M0083539 Hardware identity and/or version: Revision B Software identity and/or version : 1.02 Operating frequency: 13.56MHz Assigned Frequency Band : 13.110-14.010 MHz Tunable Bands : None Number of Channels : 1 Operating Modes : TX/RX Type of Modulation : ASK Data rate: 106 kbit/s User Frequency Adjustment : None Type of Power Supply : 5Vdc Antenna Connector : Integral loop antenna Antenna Diversity Supported : None Desktop Charger : None Description of Test Item RFID card readers enable the logging, storage and retrieval of staff movement into and out of individual locations, such as…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Project no.: 407218 FCC ID: BXZNUCR Page 1 (1) PHOTOS OF TEST SET-UP Conducted emissions Radiated emissions < 30MHz, Longitudinal Radiated emissions < 30MHz, Transverse Radiated emissions , below 1GHz Radiated emissions , front view
