BXZIPBS1Part 15 Unlicensed PCS Base Station

PRELIMINARY TD 92370GB 2006-02-01/ Ver. PA3 IP-DECT Base Station (IBS1) Features • Connection to IP PBX via LAN • DECT GAP/CAP radio interface • Supports H.323 protocol over IP • Plug-and-Play installation • On-air synchronisation • Web interface for configuration and software upgrade • Power over Ethernet or local power supply • Compact lightweight design • Easy installation in minimal space to flat or round surfaces • External LED status indication • Roaming and handover • Messaging, Alarm and Interactive Messaging • Broadcast messaging • Can handle 8 simultaneous calls Technical Specifications Versions IPBS Standard for use with DECT in the 1880-1900 MHz frequencies IPBS LA (Latin America) for use with DECT in the 1910-1930 MHz frequencies IPBS US (North America) for use with DECTin the 1920-1930 MHz frequencies Physical Dimensions (l × w × d):165 × 200 × 56 mm (including mounting bracket) Weight:450g Material:ABS moulded plastic Colour:Beige External connectors2 × RJ45 Power Power over Ethernet IEEE 802.3af or local power supply Operating voltage:21 to 56 Vdc Power consumption:typical 3W, maximum 5W Radio DECT standard:EN 301 406:2001 (DECT) EN 300 444:2001 (TBR22 GAP) Antenna:Internal PRELIMINARY TD 92370GB 2006-02-01/ Ver. PA3 Network Ethernet:10/100baseT Voice over IP Voice over IP:H. 323 version 4 incl. H.225, H235, H.245 and H.450. Voice Encoding:G.711 A-law / μ-law (64kbps) G.723.1 (5.3 and 6.3 kbps) G.729A (16 kbps) Environmental Operating temperature:-10°C to +55°C Storage temperature:-40°C to +70°C Relative operating humidity : 15 to 90%, non condensing Relative storage humidity : 5 to 95%, non condensing Immunity to electromagnetic fields:5V/m (EN61000-4-3) Immunity to ESD:4 kV contact discharge and 8 kV air discharge (EN61000-4-2) Options Available with external antenna - IBS2 Compliance to European regulations and standards EU directives:95/5/EEC, Radio and telecommunications terminal equipment Directive 73/23/EEC, Low Voltage Directive 89/336/EEC and 92/31/EEC, Electromagnetic Compatibility Directive (EMC) 93/68/EEC, CE Marking Directive Product marking: DECT:EN301406:2001, EN 300444:2001 SAR (Specific Absorption Rate):EN50385:2002 Safety:IEN 60950:2001 class III EMC:EN 301 489-6:2002 Compliance to other regulations and standards FCC approval (USA):FCC part 15 DECT standard (AUS):ACA TS028 Product marking (AUS): Safety:IEC60950:2001 Specifications are subject to change without notice.

3rd April, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland MilIs Road Columbia, MD 21046 Request for Confidentiality Ascom Tateco AB FCC Registration Number (FRN): 0013904214 FCC ID: BXZIPBSl FCC Part 15 Certification Madam/Gentlemen, In accordance with 0.459 of CFR 47, Ascom Tateco AB hereby requests confidentiality of all: attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Ascom Tateco AB considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Ascom Tateco AB considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, ~ l~~~112"'L \ Tania Ottebrink Approval & Certification Engineer Ascom Tateco AB Signature Name Title Company Ascom, Wireless Solutions PO Box 8783, SE402 76 Gothenburg, Sweden T +46 31 55 93 00, F +46 31 55 20 31 www.ascom.com/ws Org.nr./F-skatt 556336-6292, V AT No. SE556336629201, REG. Office: GÖTEBORG

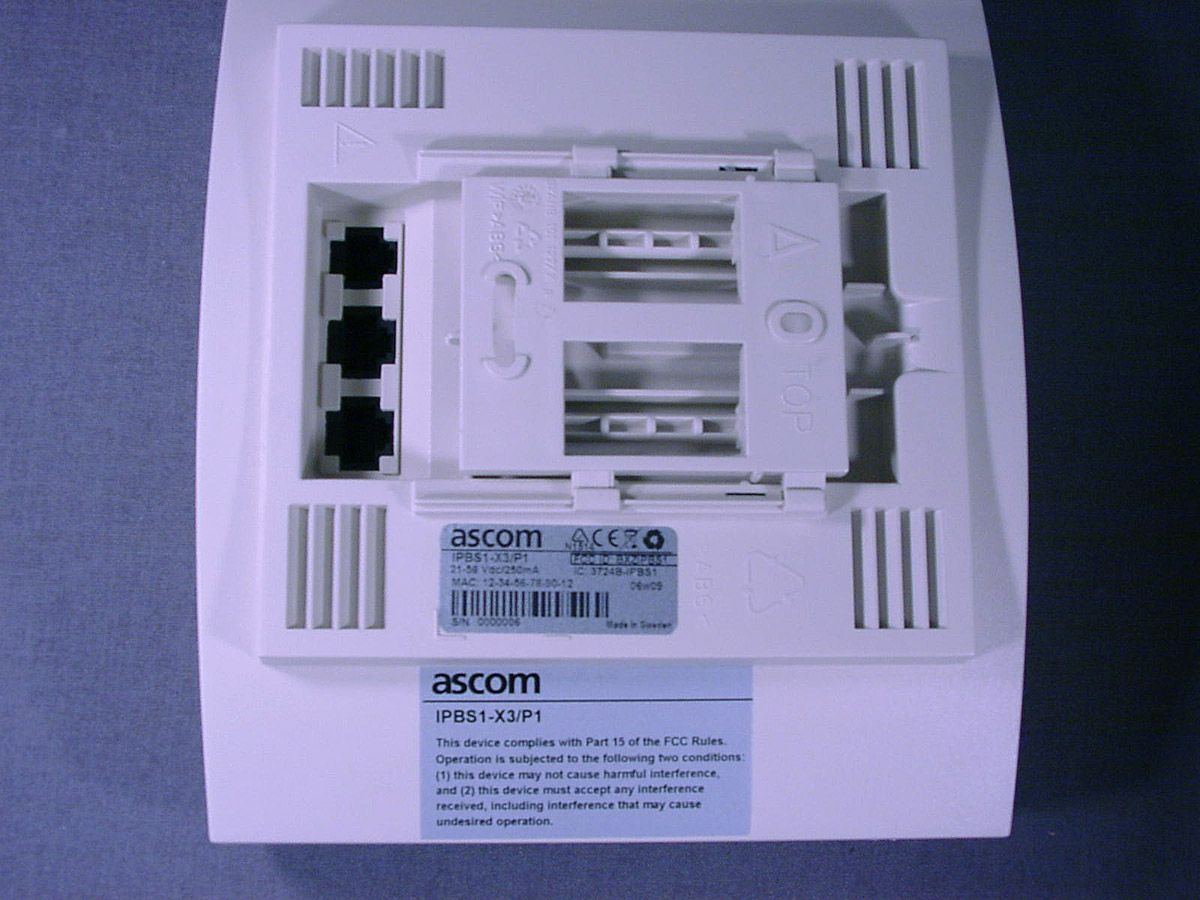

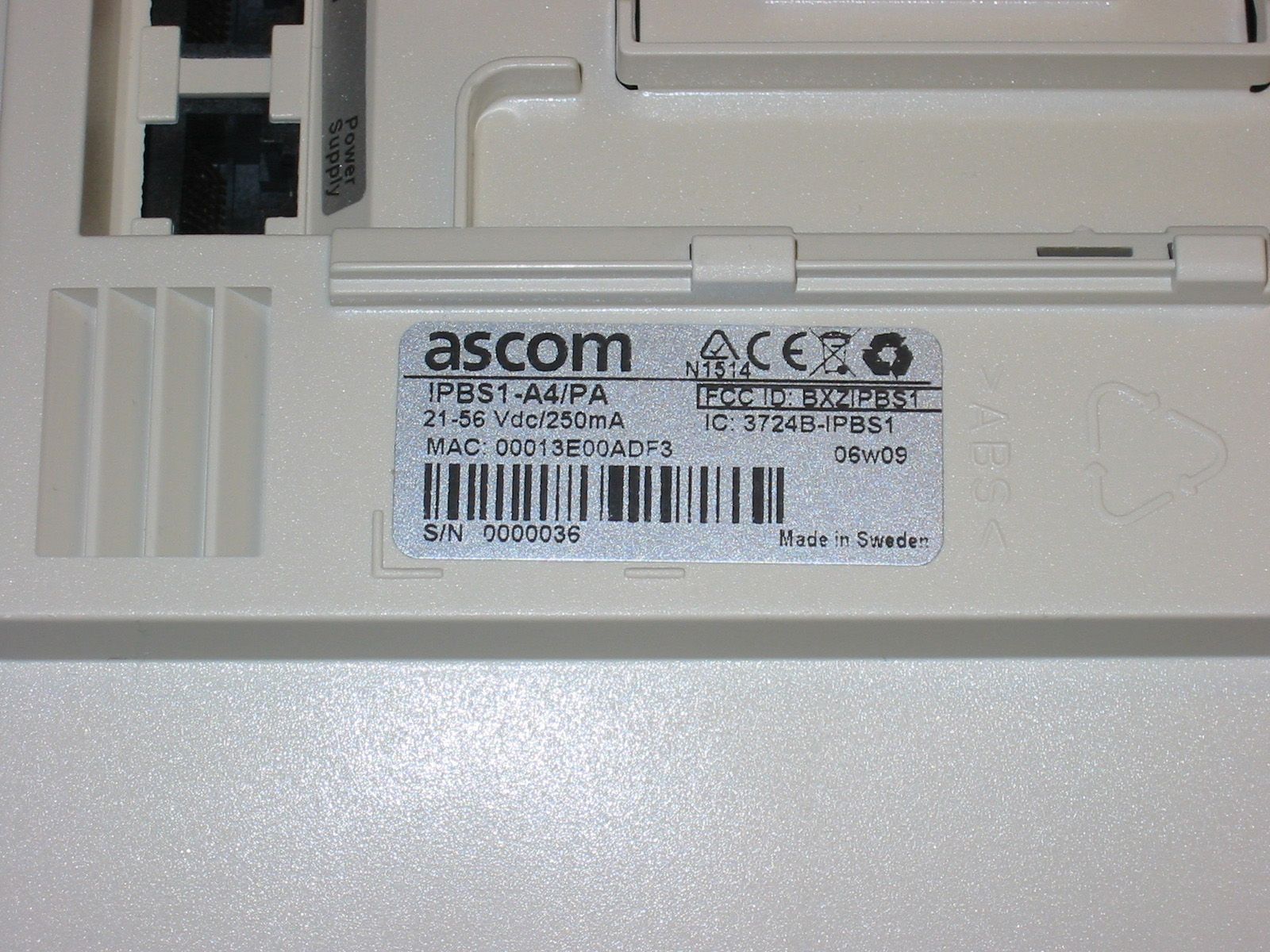

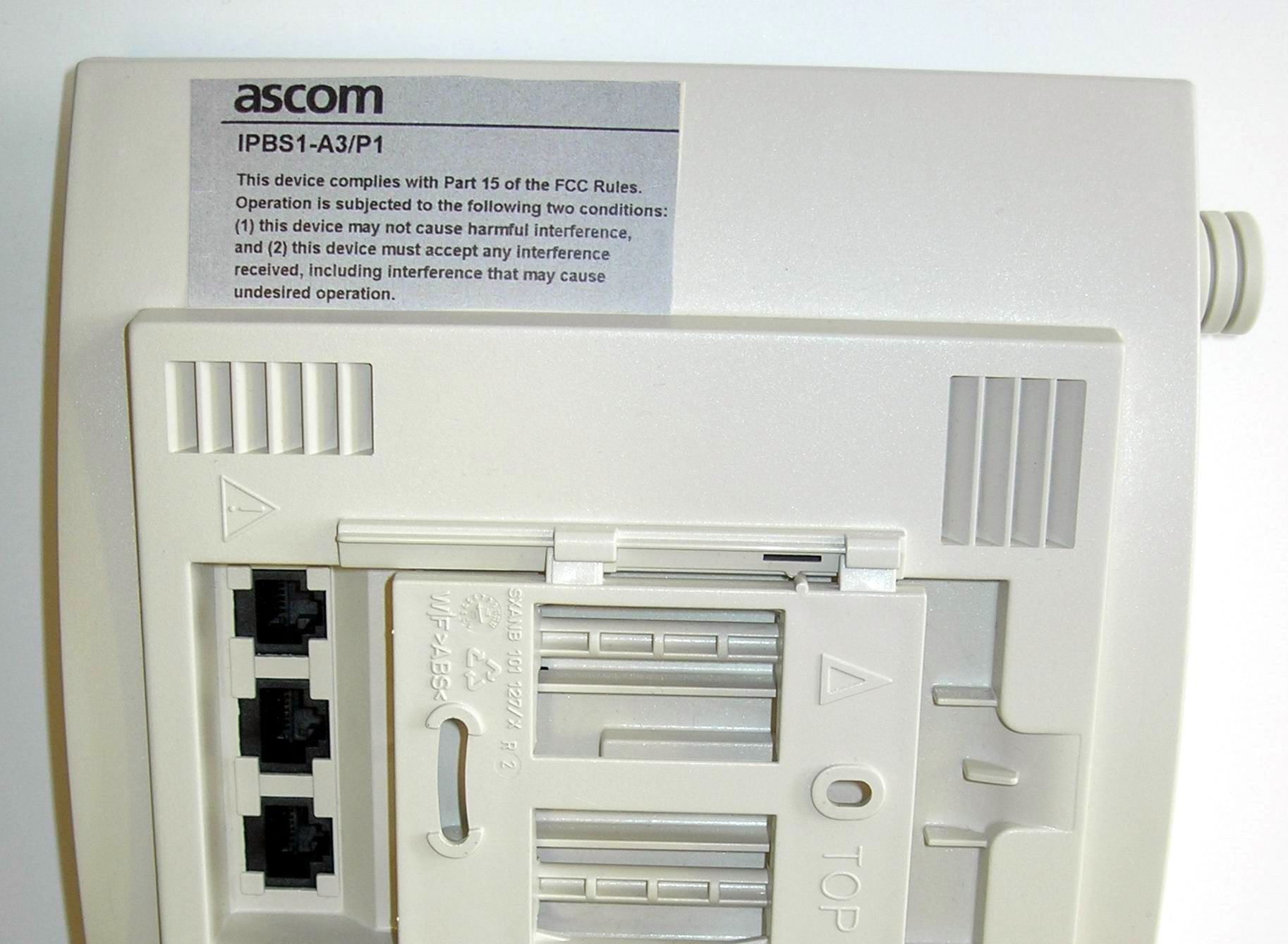

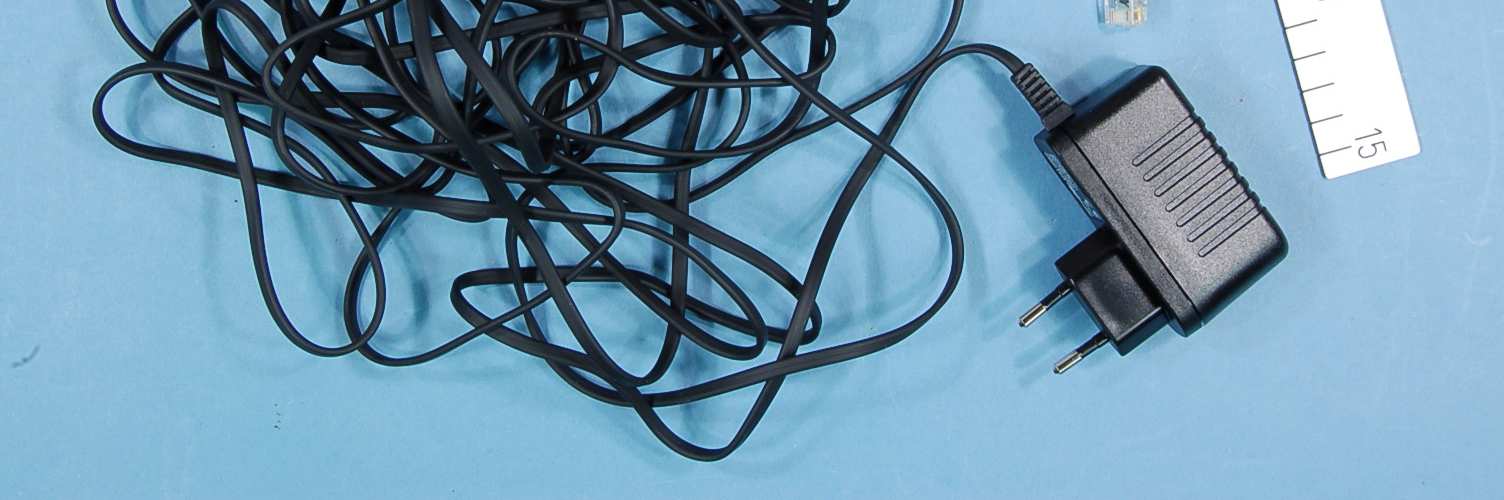

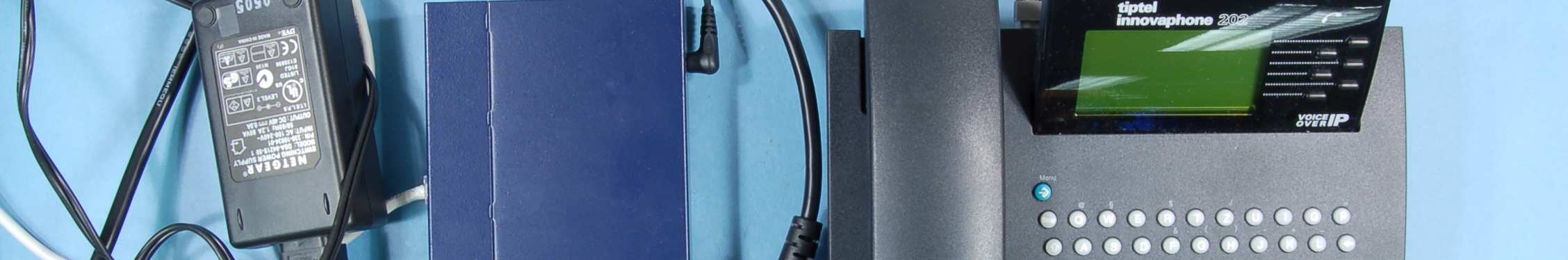

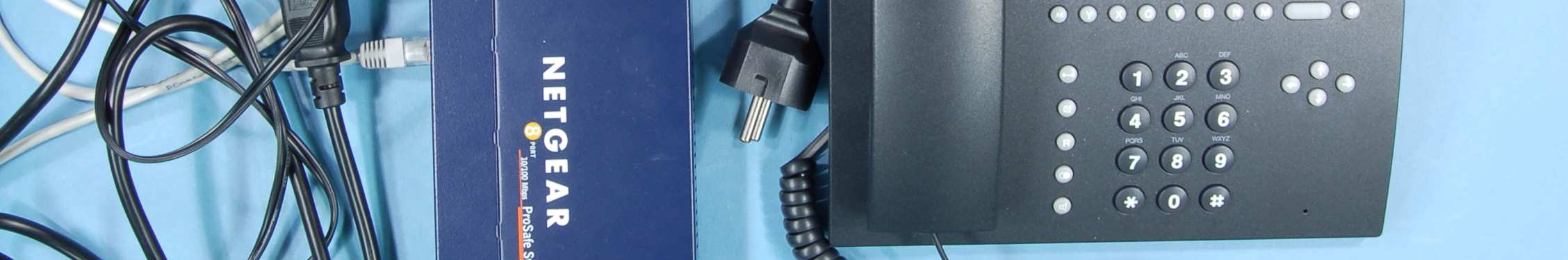

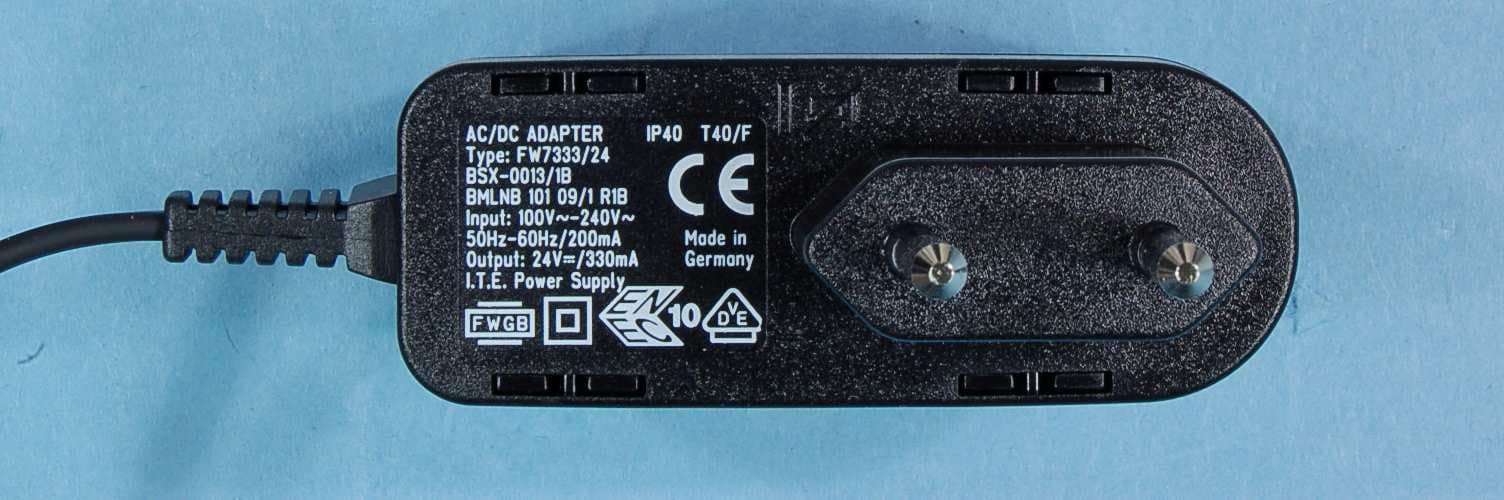

FCC ID: BXZIPBS1 Project no.: 56774 Page 1 of 3 Nemko Comlab AS, N-2027 Kjeller EXTERNAL PHOTOS - ASCOM IPBS1 DECT BASE STATION ASCOM IPBS1 FCC ID: BXZIPBS1 Project no.: 56774 Page 2 of 3 Nemko Comlab AS, N-2027 Kjeller PHOTOS OF ACCESSORIES Power Adaptor for Conducted tests FCC ID: BXZIPBS1 Project no.: 56774 Page 3 of 3 Nemko Comlab AS, N-2027 Kjeller Ethernet Switch with Power over Ethernet Test Cable

FCC ID: BXZIPBS1 Project no.: 56774 Page 1 of 2 Nemko Comlab AS, N-2027 Kjeller INTERNAL PHOTOS - ASCOM IPBS1 DECT BASE STATION ASCOM IPBS1, With Shields Off FCC ID: BXZIPBS1 Project no.: 56774 Page 2 of 2 Nemko Comlab AS, N-2027 Kjeller ASCOM IPBS1

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab, Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 56774-7 Item tested : IPBS1 Type of equipment : Isochronous UPCS Device FCC ID : BXZIPBS1 Client : Ascom Tateco AB FCC Part 15, subpart D Isochronous UPCS Device 1920 - 1930 MHz Industry Canada RSS-213, Issue 2 2 GHz Licence-exempt Personal Communications Service Devices (LE-PCS) 2 May 2006 Authorized by : .............................................. Egil Hauger Technical Verificator TEST REPORT FCC part 15D Project no.: 56774 FCC ID: BXZIPBS1 Nemko Comlab, N-2027 Kjeller Page 2 (49) CONTENTS 1 GENERAL INFORMATION .........................................................................................3 1.1 Tested by .....................................................................................................................3 1.2 Client Information .........................................................................................................3 1.3 Manufacturer ( if other than client) ...............................................................................3 2 Test Information .........................................................................................................4 2.1 Tested Item ..................................................................................................................4 2.2 Test Environment .........................................................................................................5 2.3 Test Period ...................................................................................................................5 2.4 Test Engineer ...............................................................................................................5 2.5 Test Equipment ............................................................................................................5 2.6 Other Comments..........................................................................................................5 3 TEST REPORT SUMMARY ........................................................................................6 3.1 General ........................................................................................................................6 3.2 Test Summary ..............................................................................................................7 4 TEST RESULTS ..........................................................................................................8 4.1 Powerline Conducted Emissions .................................................................................8 4.2 Coordination with fixed microwave ............................................................................11 4.3 Digital Modulation Techniques...................................................................................11 4.4 Labelling Requirements .............................................................................................11 4.5 Antenna Requirement ................................................................................................12 4.6 Channel Frequencies .................................................................................................12 4.7 Peak Power Output ....................................................................................................13 4.8 Emission Bandwidth B ...............................................................................................15 4.9 Power Spectral Density..............................................................................................18 4.10 In-band Unwanted Emissions, Conducted.................................................................20 4.11 Out-of-band Emissions, Conducted ...........................................................................22 4.12 Carrier Frequency Stability ........................................................................................24 4.13 Frame Repetition Stability ..........................................................................................25 4.14 Frame Period and Jitter .............................................................................................25 4.15 Monitoring Threshold, Least Interfered Channel .......................................................28 4.16 Threshold Monitoring Bandwidth ...............................................................................30 4.17 Reaction Time and Monitoring Interval ......................................................................31 4.18 Time and Spectrum Window Access Procedure .......................................................34 4.19 Acknowledgements and Transmission Duration .......................................................36 4.20 Dual Access Criteria Check .......................................................................................37 4.21 Alternative Monitoring Interval ...................................................................................37 4.22 Duty Cycle Correction Factor Calculation ..................................................................38 4.23 Spurious Emissions (Radiated)..................................................................................39 5 Test Setups ...............................................................................................................46 5.1 Frequency Measurements .........................................................................................46 5.2 Timing Measurements ...............................................................................................46 5.3 Conducted Emission Tests ........................................................................................46 5.4 Radiated Emission Tests ..................................................................................…

Text truncated - open the document above for the full version.

FCC ID: BXZIPBS1 Project no.: 56774 Page 1 of 2 Nemko Comlab AS, N-2027 Kjeller PHOTOS OF TEST SET-UP ASCOM IPBS1 - Radiated emission 30 - 200 MHz ASCOM IPBS1 - Radiated emissions 1 GHz – 8.5 GHz FCC ID: BXZIPBS1 Project no.: 56774 Page 2 of 2 Nemko Comlab AS, N-2027 Kjeller ASCOM IPBS1 - Radiated emissions 18 – 20 GHz ASCOM IPBS1 – Power line Conducted Emissions Test
