BXZNIRDRoom Display

TD 93021US Rev A 10 FEB 2014 / Ver A Installation Guide teleCARE IP Emergency Call System TD 93021US Rev A 10 FEB 2014 / Ver Ai Installation Guide teleCARE IP Copyright © 2014 Ascom (US), Inc. This document may not be copied in whole or in part or otherwise reproduced without prior written consent from Ascom, except where specifically permitted under US and international copyright law. Disclaimer The information in this document is subject to change. Use this product only in accordance with the instructions provided in the installation and user guide manuals. Use this product only in accordance with the purposes for which it is designed. For the latest version of all Ascom teleCARE documentation, contact your local supplier or visit the Ascom Partner Website at https://www.ascom-ws.com . Trademarks and patents The teleCARE name and logo are trademarks of Ascom. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. This publication may contain examples of screen captures and reports used in daily operations. Examples may include fictitious names of individuals and companies. Any similarity to names and addresses of actual businesses or per- sons is entirely coincidental. HIPAA disclaimer All examples of personal or protected health information in this document are fictitious. Any resemblance to a real person or facility is purely coincidental. The owners and users of this product are solely responsible for complying with all applicable protected health information privacy laws. The users, by their use of this product, agree to indemnify the manufacturer or seller of this product against all claims, litigation, and suits filed for protected health informa- tion violations. European Union directives The European directive “Waste Electrical and Electronic Equipment” (WEEE) aims to minimize the impact of electrical and electronic equipment waste on the environment and human health. To conform to this directive, electrical equipment marked with this symbol must not be disposed of in European public disposal systems. European users of electrical equipment must now return end-of-life equipment for disposal. Further information may be found on the fol- lowing website: www.recyclethis.info . Battery Disposal This product may use sealed lead-acid batteries. Please refer to manufacturer instructions and all state, provincial, and local codes for information, instructions and requirements regarding proper disposal. Environmental Requirements ·Refer to the installation guide and product data sheet for complete product ratings and information. ·Avoid exposing the device to direct sunlight or other heat sources. ·Do not expose the device to open flame. ·Keep the device away from excessive heat and moisture. ·Protect your device from aggressive liquids and vapors. ·Keep the device away from strong electromagnetic fields. Terms used in this manual Specialized terms are used throughout this manual. The first time a term is used it is defined in the text. Regulatory Compliance (EU/EFTA) This equipment is intended to be used in the whole EU & EFTA. This equipment is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC and RoHS Directive 2011/65/EU. For NIRX/NITX/NILF/NICR/NIRD products: R&TTE Directive 1999/5/EC and RoHS Directive 2011/65/EU. The Declaration of Conformity may be consulted at: http://www.ascom-ws.com/doc/ TD 93021US Rev A 10 FEB 2014 / Ver Aii Installation Guide teleCARE IP Regulatory Compliance (US/CAN) Safety Compliance The equipment described herein complies with: ·ANSI/UL 2560 Emergency Call Systems for Assisted Living and Independent Living Facilities ·CAN/CSA C22.2 No. 205 Signal Equipment Note: This equipment has been tested and found to comply with the limits for a Class B digi- tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ·Reorient or relocate the receiving antenna. ·Increase the separation between the equipment and receiver. ·Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ·Consult the dealer or an experienced radio or television technician for help. Information to user This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: i) this device may not cause harmful interference, and ii) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada license-exempt RSS standard(s). Operation is sub- ject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired opera- tion of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) Modifications Changes or modifications to the equipment not expressly approved by the party responsible for …

Text truncated - open the document above for the full version.

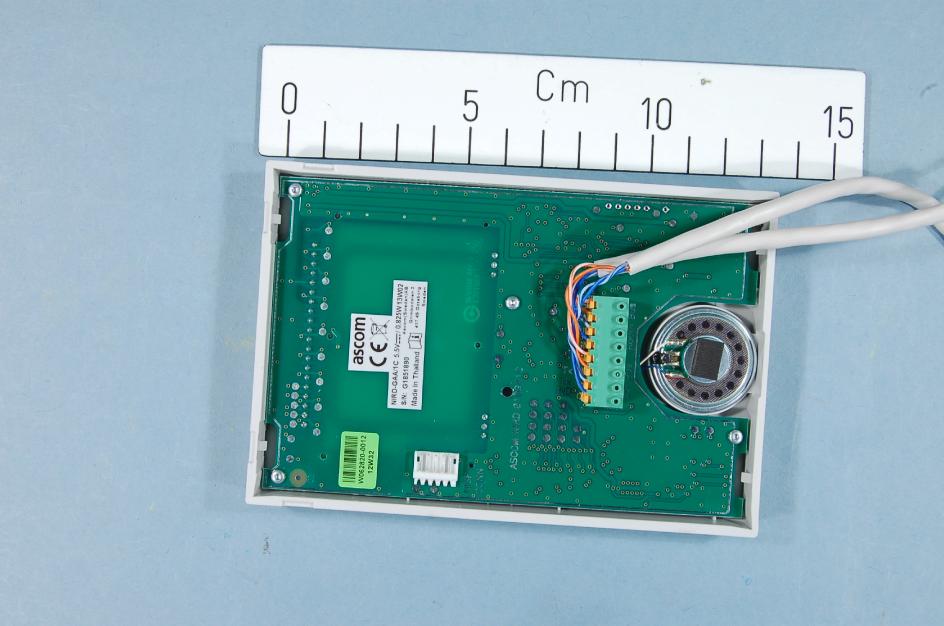

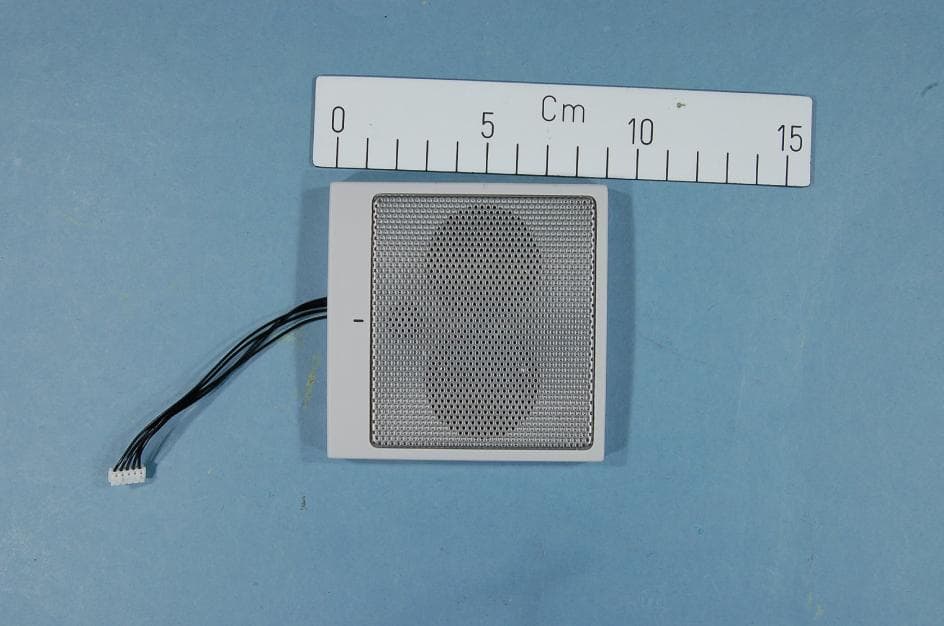

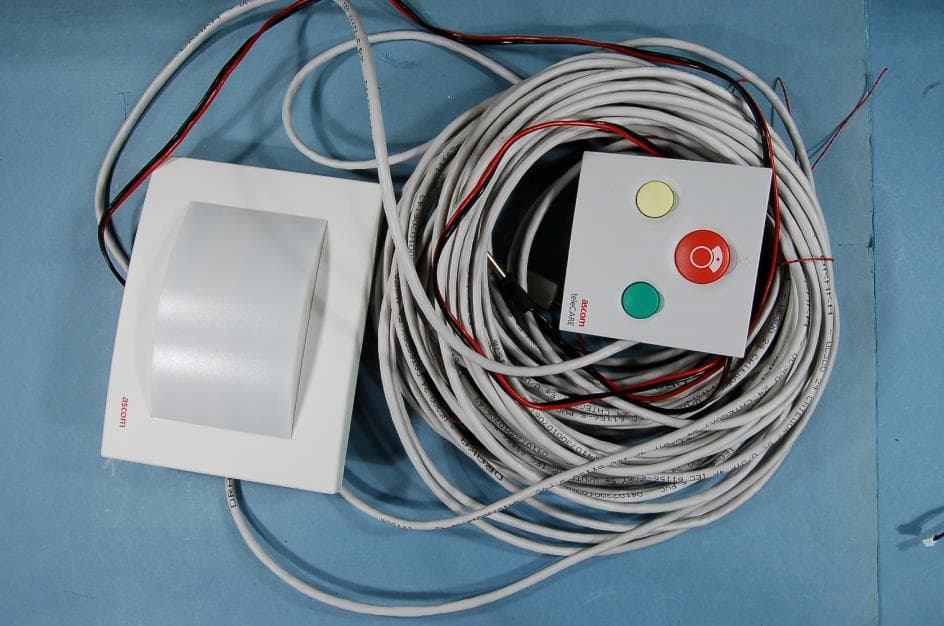

EXTERNAL PHOTOS Projectno.:244847-2 FCC ID:> Page1(3) EXTERNALPHOTOS-NIRD NIRD–Front view NIRD–Rear View EXTERNAL PHOTOS Projectno.:244847-2 FCC ID:> Page2(3) AUXILARYUNITS Auxilary unit-NISP(speaker module) Auxilary unit–NIPC(Passive pull cord) EXTERNAL PHOTOS Projectno.:244847-2 FCC ID:> Page3(3) Auxilary units-NIRC3(Room Controller)& NIDM(Door Side unit)

Label placement NIRD

INTERNAL PHOTOS Projectno.:244847-2 FCC ID:> Page1(1) INTERNALPHOTOS-NIRD NIRD–displayside NIRD–Loop antenna side

RF Technical Brief Cover Sheet RF Exposure Compliance (Annex A & B of RSS-102) Nemko AS, Instituttveien 6, 2007 Kjeller, Norway Tel: +47 22 96 03 30, Fax: +47 22 96 05 50 Email : [email protected] RSS 102 Annex A/B July 2013 Annex C – Declaration of RF Exposure Compliance for Exemption from Routine Evaluation Limits ATTESTATION: I attest that the radio communication apparatus meets the exemption from the routine evaluation limits in Section 2.5 of this standard; that the Technical Brief was prepared and the information contained therein is correct; that the device evaluation was performed or supervised by me; that applicable measurement methods and evaluation methodologies have been followed; and that the device meets the SAR and/or RF field strength limits of RSS-102. Signature: Date: 28-Jan-2014 NAME: (Please print or type): Frode Sveinsen TITLE: (Please print or type): Chief engineer COMPANY: (Please print or type): Nemko AS Company Number: 3724B Model Number(s): NIRD-GAA, NIRD-WAA Manufacturer: Ascom Sweden AB Operating frequency: 13.56 MHz Maximum Field Strength: 46.1 dBμV/m @10m (Peak) Maximum Radiated Output Power: 0.136 μW (Calculated, Peak) Values above are from Nemko test report no. 244867-2 RSS-102, clause 2.5.2: Routine Evaluation Exemption limit for equipment used at a distance greater than 20cm - at frequencies below 1.5 GHz: 2.5 Watts EIRP

Report No. 244847-2 Template version: B Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2027 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product RFID Room Display Name and address of the applicant Ascom Sweden AB Grimbodalen 2, P.O. Box 8783, Goteborg, SE-40276, Sweden Name and address of the manufacturer Ascom Sweden AB Grimbodalen 2, P.O. Box 8783, Goteborg, SE-40276, Sweden Model NIRD Rating 24 V DC Trademark Ascom Serial number / Additional information / Tested according to FCC Part 15.225 Low Power Transmitter 13.110 - 14.010 MHz Band RSS-210, Issue 8 Low-Power Licence-exempt Radiocommunications devices 13.110 - 14.010 MHz Band Order number 244847 Tested in period 2013-09-24 to 2013-10-08 Issue date 2013-10-14 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [G.Suhanthakumar] Approved by [Frode Sveinsen] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15.225 Report no.: 244847-2 FCC ID: BXZNIRD Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (20) CONTENTS Test Report .......................................................................................................................................... 1 1 TEST INFORMATION ............................................................................................................... 3 1.1 Test item .................................................................................................................................... 3 1.2 Test environment ....................................................................................................................... 4 1.3 Test period ................................................................................................................................. 4 2 TEST REPORT SUMMARY ...................................................................................................... 5 2.1 General ...................................................................................................................................... 5 2.2 Test summary ............................................................................................................................ 6 2.3 Description of modification for modification filing ....................................................................... 6 2.4 Comments ................................................................................................................................. 6 2.5 Family list rationale .................................................................................................................... 6 3 TEST RESULTS ........................................................................................................................ 7 3.1 Power Line Conducted Emissions ............................................................................................. 7 3.2 Occupied Bandwidth ................................................................................................................ 10 3.3 Peak power output ................................................................................................................... 12 3.4 Spurious emissions (radiated) ................................................................................................. 14 3.5 Transmitter Frequency Stability ............................................................................................... 17 4 LIST OF TEST EQUIPMENT................................................................................................... 18 5 BLOCK DIAGRAM .................................................................................................................. 19 5.1 System set up for radiated measurements .............................................................................. 19 5.2 Test site radiated emission ...................................................................................................... 20 5.3 Power Line Conducted Emission ............................................................................................. 20 5.4 Test Site Radiated Emission .................................................................................................... 20 TEST REPORT FCC Part 15.225 Report no.: 244847-2 FCC ID: BXZNIRD Nemko Norway, Instituttveien 6, Kjeller, Norway Page 3 (20) 1 TEST INFORMATION 1.1 Test item Name : Ascom Model/version : NIRD-GAA NIRD-WAA FCC ID: BXZNIRD IC ID: 3724B-NIRD Serial number : - Hardware identity and/or version: - Software identity and/or version : - Operating frequency: 13.56 MHz Assigned frequency band : 13.553 – 13.567 MHz Tuneable Bands : None Number of Channels : One Operating Modes : TX & RX Type of Modulation : FSK User Frequency Adjustment : None Rated Output Power : N/A Type of Power Supply : External power 24 V DC via Auxilary device Antenna Type : Integral loop antenna Description of Tested Device(s) The teleCARE IP Room Display (NIRD) combines a doorside module, a room display and an RFID card reader in a wall mounted module which is suitable for patient rooms and staff rooms. TEST REPORT FCC Part 15.225 Report no.: 244847-2 FCC ID: BXZNIRD Nemko Norway, Instituttveien 6, Kjeller, Norway Page 4 (20) 1.2 Test environment 1.2.1 Normal test condition Temperature: 20.6 – 23.3 °C Relative humidity: 33 – 47 % Normal test voltage: 24 V DC The values are the limit registered during the test period. 1.3 Test period Item received date: 2013-09-24 Test period : from 2013-09-24 to 2013-10-08 TEST REPORT FCC Part 15.225 Report no.: 244847-2 FCC …

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Projectno.:244847-2 FCC ID:> Page1(2) PHOTOS OF TEST SET-UP-NIRD XZ plane-Radiated Emissions Radiated emissions-< 30MHz, 10 meter TEST SET-UP PHOTOS Projectno.:244847-2 FCC ID:> Page2(2) RadiatedEmissions30-1000 MHz, 3 meter 24Vdc Conductedemissions150kHz–30MHz
