BXZOFFICEMOfficeM-High end UPCS handset

TD 92288GB 2005-09-03/ Ver. B User Manual OfficeM Cordless Telephone TD 92288GB 2005-09-03/ Ver. B User Manual OfficeM Cordless Telephone Contents 1 Introduction............................................................................................................. 1 2 Guideline for Safety and Efficiency ....................................................................... 1 2.1 Chemical Resistance ........................................................................................... 2 2.2 Exposure to Radio Frequency Signals .................................................................. 2 2.3 RF Exposure ....................................................................................................... 3 2.4 Potentially Explosive Atmospheres ...................................................................... 3 2.5 Operation Procedures ........................................................................................ 3 2.6 FCC Requirements ............................................................................................. 4 2.7 IC requirements ................................................................................................. 4 2.8 Warranty notification ......................................................................................... 4 2.9 Battery care ....................................................................................................... 4 2.10 Battery disposal ................................................................................................ 4 2.11 Modifications ................................................................................................... 4 2.12 FCC compliance statements ............................................................................. 5 3 Descriptions ............................................................................................................. 6 3.1 The OfficeM Telephone ...................................................................................... 6 3.2 Icons and Text in the Display .............................................................................. 7 3.3 Keys and Buttons ............................................................................................. 11 3.3.1 Volume button ........................................................................................ 11 3.3.2 Off hook, and YES key ............................................................................. 12 3.3.3 On hook, NO, and On/Off key .................................................................. 12 3.3.4 C (Clear), and MUTE key .......................................................................... 12 3.3.5 MENU Key ............................................................................................... 12 3.3.6 R/Message Key ......................................................................................... 12 3.3.7 Handsfree Key ......................................................................................... 12 3.3.8 Navigation Key ......................................................................................... 12 3.4 Enter Text and Numbers ................................................................................... 13 3.5 Accessories ...................................................................................................... 14 3.5.1 Desktop Charger ...................................................................................... 14 4 Operation............................................................................................................... 15 4.1 Switch the telephone on/off ............................................................................. 15 4.2 Calling ............................................................................................................. 15 4.2.1 Receive/end a call ..................................................................................... 15 4.2.2 Make a Call ............................................................................................. 15 4.2.3 Transfer a Call .......................................................................................... 15 4.3 Charge the Battery ........................................................................................... 16 4.4 Lock/Unlock the keypad ................................................................................... 16 4.5 Volume/Mute Control ...................................................................................... 16 TD 92288GB 2005-09-03/ Ver. B User Manual OfficeM Cordless Telephone 4.5.1 Adjust the Earpiece Volume during a Call ................................................. 16 4.5.2 Turn Loudspeaking Function On/Off ......................................................... 16 4.5.3 Turn the Ring Signal On/Off ..................................................................... 16 4.5.4 Turn the Microphone On/Off during a Call ............................................... 16 4.6 Change the Dialling Mode ............................................................................... 16 4.7 Send a Dial Tone Pause .................................................................................... 17 4.8 Messaging ....................................................................................................... 17 4.8.1 Receive a Text Message ............................................................................ 17 4.8.2 Read a Stored Text Message ..................................................................... 17 4.8.3 Write and send a Text message ................................................................ 17 4.9 Tips when writing Text/Numbers ...................................................................... 17 4.10 Voice Mail ...................................................................................................... 18 4.10.1 Receive a Voice mail ..........................................…

Text truncated - open the document above for the full version.

SECTION 15.307(b) AFFIDAVIT , Michael Stima. Managing Director of UTAM, Inc.. hereby swear and affirm that: ASGaM WIRELESS SOLUTIONS. [NG. is a participating member of UT AM, Inc. in good standing for purposes of Section 15.307(b) of the FCC rules. Subscribed to and sworn this 30th day of August, 2005 I fl Michael Stima, Managing Director UTAM, Inc. 1170 U.S. Hwy 22 P.O. Box 8126 Bridgewater, New Jersey 08807 Tel: (508) 526-3636 Affidavit #: ASCOO92005

ascom 29h September, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1 046 Request for Confidentiality Ascom Tateco AB FCC Registration Number (FRN): 0013904214 FCC ID: BXZOFFICEM l?CC Part 15 Certification MadamlGentlemen, In accordance with 0.459 of CFR 47, Ascom Tateco AB hereby requests confidentiality of all: Operational Description Block diagrams Schematics Parts List attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Ascom Tateco AB considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Ascom Tateco AB considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name Title Company Approval & Certification Engineer Ascom Tateco AB Ascom, Wireless Solutions PO Box 8783, SE402 76 Gothenburg, Sweden T +46 3 1 55 93 00, F +46 3 1 55 20 3 1 www.ascom.com/ws Org.nr./F-skatt 556336-6292, VAT No. SE556336629201, REG. Office: WTEBORG

1) if applicable rev. 1.2 Maxima - UPCS_DECTbased_ICS v2.doc page 1 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH UPCS (DECT based) – Implementation Conformance Statement Description : US-DECT Portable Part Model : DT590 Use : FP PP Repeater System Type HW version PCB V7.0 RC SW version SW version 3.0 RFPI / PIN 0000000010 Decl. emission BW 1,4 MHz Decl. lower threshold DUT Decl.upper threshold 1) -62.4 dBm Product information Standard: FCC part 15D other: Frequency band: 1920 – 1930 MHz other: Number of RF channels: 5 Number of logical channels: 60 (time and spectrum windows) Used slot type: single double Used slot(s): even odd Operating mode: simplex duplex other: 1) if applicable rev. 1.2 Maxima - UPCS_DECTbased_ICS v2.doc page 2 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Antennas: Antenna Type Gain [dBi] internal external 1 2 3 FP: Do Tx and Rx use the same antenna(s)?: Yes No Antenna Type Gain [dBi] internal external 1 PCB 0 2 PCB 0 3 PP: Do Tx and Rx use the same antenna(s)?: Yes No Antenna diversity: 1) Diversity supported Antenna Tx Rx 1 2 FP 3 1 2 Product information PP 3 1) if applicable rev. 1.2 Maxima - UPCS_DECTbased_ICS v2.doc page 3 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Supply and supported temperature ranges (Manufacturer declaration): FP PP Repeater U normal [V] 3.7V DC (Li-Ion) U min [V] 3.2V DC U max [V] 4.2V DC T min [°C] 10 (Class E1) T max [°C] 40 Power Source Type Manufacturer FP or WRS PP (charger) DT590 Charger Data connection: PSTN other Used radio module 1) : Type : Manufacturer : Ancillary equipment 1) : Description : Type : Manufacturer : Product information Host device 1) : Description : Type : Manufacturer : 1) if applicable rev. 1.2 Maxima - UPCS_DECTbased_ICS v2.doc page 4 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Control software 1) : Name : Version : Manufacturer : Product information Additional remarks: 1) if applicable rev. 1.2 Maxima - UPCS_DECTbased_ICS v2.doc page 5 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH FCC 15.323 (c) (5): This device or group of co-operating devices located within 1 meter of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively more than one third of the time and spectrum windows defined by the system. Manufacturer agrees: Yes No FCC 15.323 (c) (12): This device shall not use the provisions of (c) (10) or (c) (11) to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Manufacturer agrees: Yes No FCC 15.307 (b): The applicant is a participating member of UTAM, Inc. and will provide a related affidavit from UTAM, Inc. in course of certification. Confirmation by applicant: Yes No FCC 15.319 (f) Automatic discontinuation of transmission: This device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. Automatic break off the transmissions means break off of connection and break of transmissions which are not control and signalling information or repetitive codes of complete frame or burst intervals. In case of devices using basics of DECT technology at least fixed parts and repeaters are using control and signalling information without direct connection without direct connection to their remote station. Please fill in the table below with the reaction of the EUT (FP and/or PP) using A, B or C. Reaction of EUT Situation FP PP Verdict 1 Switch-off counter part 2 Hook-off by counter part 3 Switch-off by EUT 4 Hook-off on EUT side 5 Remote power from EUT 6 Remote power from counterpart Manufacturer declarations A – Connection break down, cease of transmit B – Connection break down, EUT transmits signalling information C – Connection break down, counter part transmits signalling information 1) if applicable rev. 1.2 Maxima - UPCS_DECTbased_ICS v2.doc page 6 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Supplement Additional remarks: Declared by: Date: Name (print): Signature:

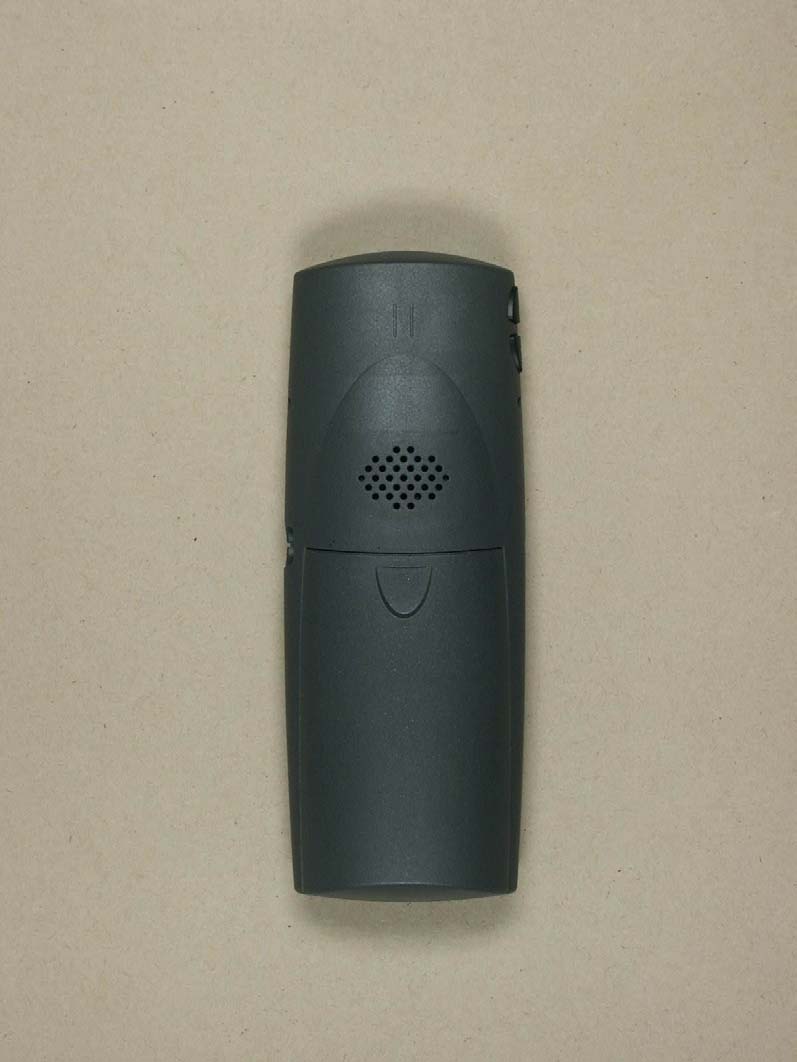

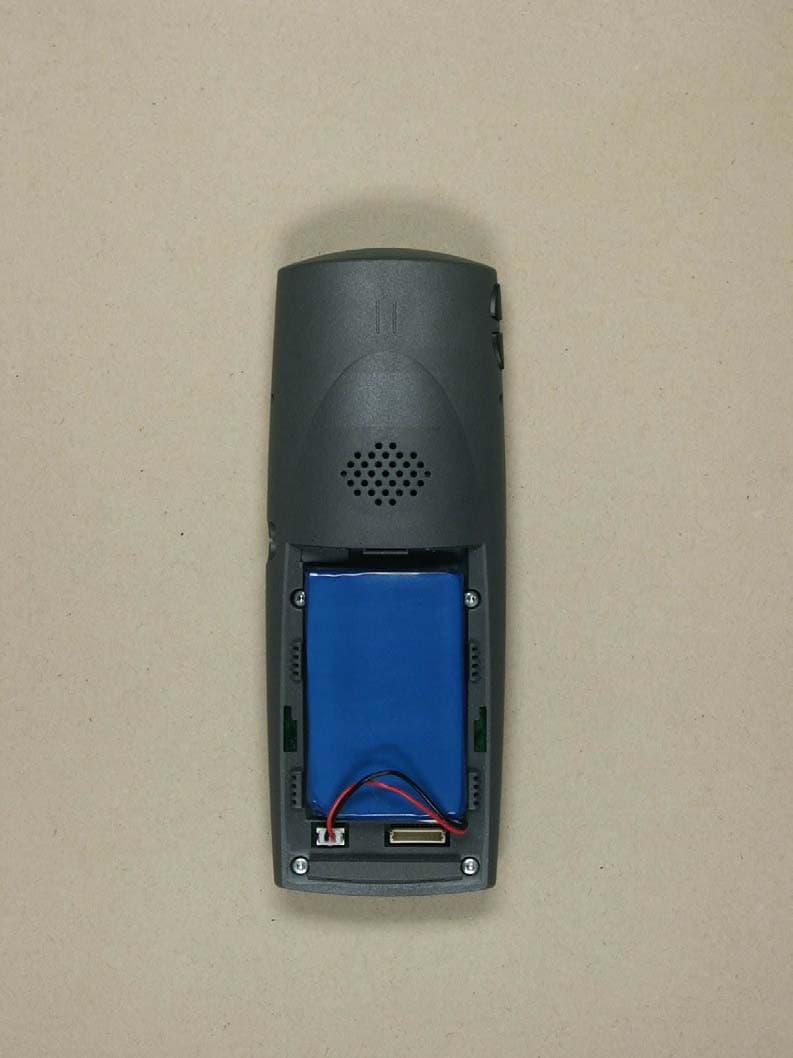

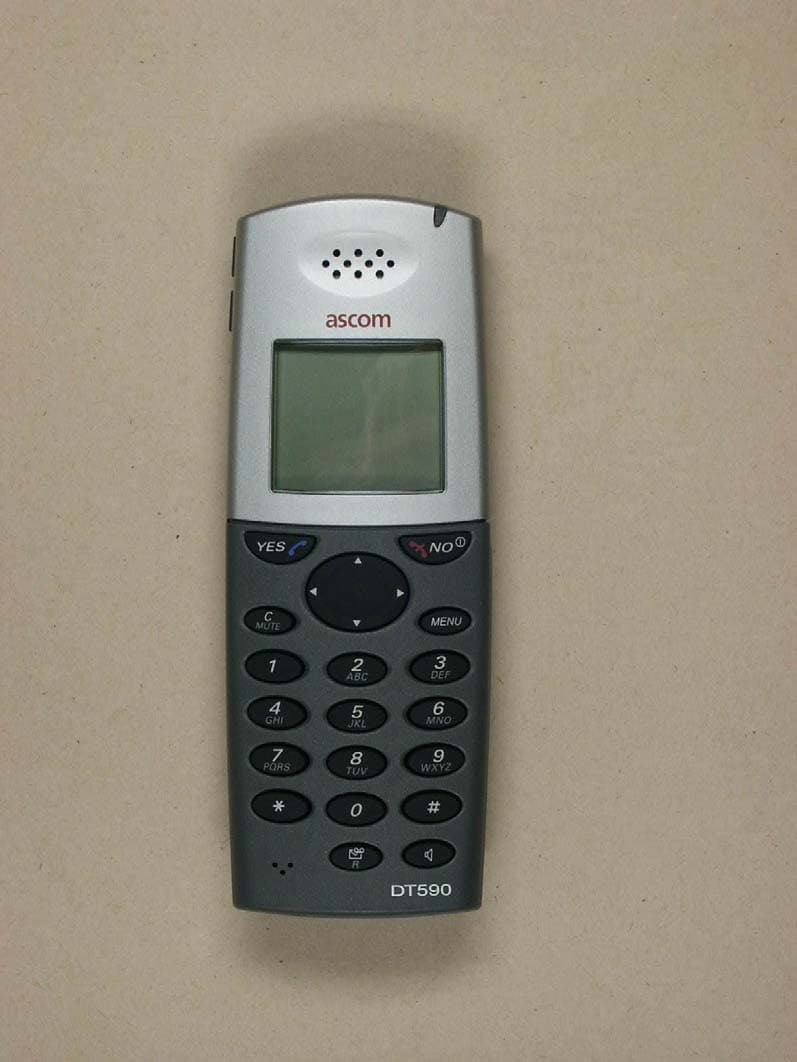

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 1 of 12 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 2 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 3 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 4 of 12

Open information MARKING DRAWING 1 (2) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other) Nr - No. Mats Johansson DOC000364 Dokansv/Godk - Doc respons/Approved Kontr - Checked Datum - Date Rev File 2005-09-27 D LABEL TEXT (GIFT BOX LABEL) FOR DT590-0008 Contents This document describes the information that shall be printed on the labels used for the marking of the Handset (OfficeM) for US, Item number DT590-0008. Label and Text The text on the labels shall be parallel to the long side. Label 1 shall be placed on the left long side of the box and readeable from the back to the front. Label 2 shall be placed on the top cover of the box and in the same readability as label 1 Format The format of the label is based on 1301 - SVF 930 114 Uen. Where nothing else specified, Zebra printer Scaleable Smooth Font, “0” (CG Triumvirate Bold Condensed) is imposed. When needed, the text size is adjusted to fit the label. When needed, the alignment is adjusted to fit the label. Content Label 1 On (2,21): Ascom Item number including R-state <Ascom Item number>RRR Text, height 3 mm. On (2,17): FCC ID with surrounding border On (2,9): S/N number of the included handset in bar code, (only actual number). Bar code, height 7 mm, Code 128 symbology. On (2,5): “S/N nnnnnnnnnn”, Text, height 2 mm. On (2,2): “Made by Ascom Tateco AB, China”. Text, height 2 mm. On (38,9): IPEI number of the included handset in bar code, (only actual number). Bar code, height 7 mm, Code 128 symbology. On (38,5): “IPEI: nnnnnnnnnnnnn”, Text, height 2 mm. On (50,2): Year and week of packing. Text, height 2 mm. “yyyy’W’ww”, (“yyyy”=year, “ww”=week). On (72,12): WEEE logo. On (72,2): Recycling logo. Label 2 On (3,3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. According to 1424 - SVF 930 52 Ux. Open information MARKING DRAWING 2 (2) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other) Nr - No. Mats Johansson DOC000364 Dokansv/Godk - Doc respons/Approved Kontr - Checked Datum - Date Rev File 2005-09-27 D Example DT590-0008/xx FCC ID: BXZOFFICEM 38 2 5 9 17 21 IPEI: XXXXXXXXXXS/N XXXXXXXXXX M a de by As c om Ta te c o AB, ChinayyyyWw w 2 50 72  OfficeM This device complies with Part 15 of the FCC Rules. Operation is subject to the follow ing tw o conditions: (1) this device may not cause harmful interference, and (2) this de vice m us t acce pt any inte rfe re nce received, including interference that m ay cause undesired operation. 3 3

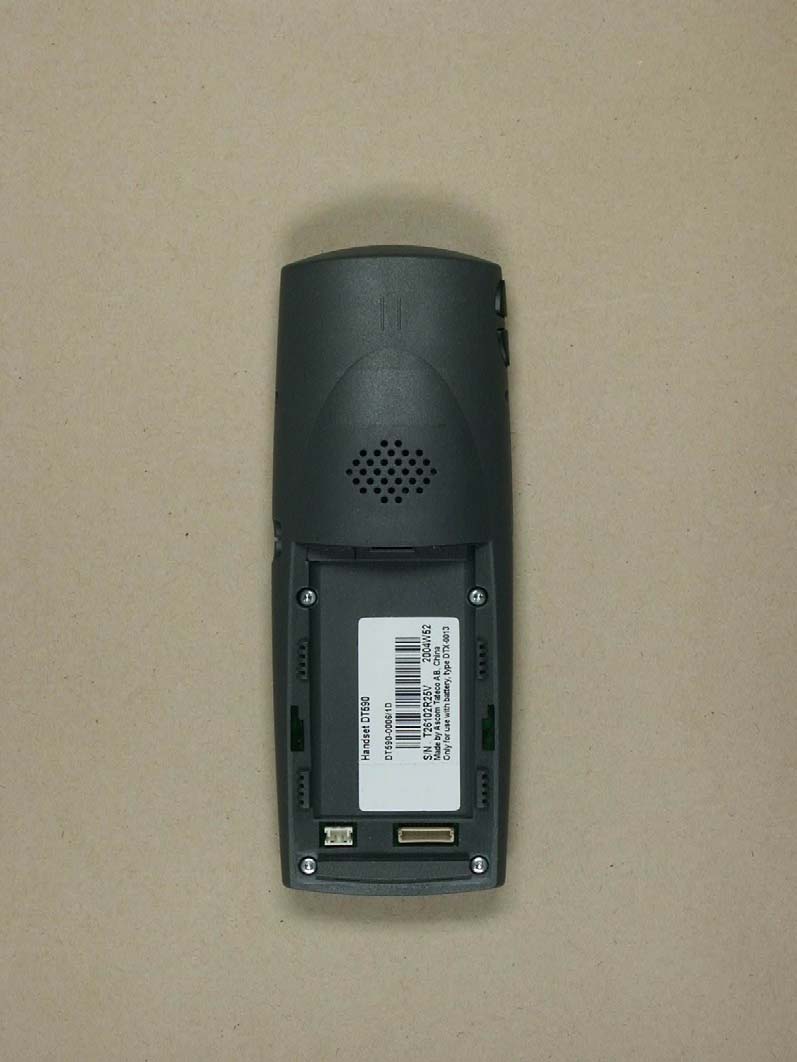

Open MARKING DRAWING 1 (2) Prepared (also subject responsible if other) No. Mats Johansson DOC000363 Approved Checked Date Rev Reference 2005-09-27 D LABEL TEXT (BACK COVER LABEL) FOR DT590-0008 1 CONTENTS This document describes the information that shall be printed on the label used for the marking of the Handset (OfficeM) for US, Item number DT590-0008. 2 LABEL AND TEXT - The document number of the blank label used is 1301 - SVHNB 101 152/2 Uen. - The printing shall be clearly readable and shall be permanent. - The printing shall be Black. - For layout suggestion see Example 1. Use only large un-perforated section of label. Do not print information on small side of perforation. - The text to be printed on the label is noted in Table 1.: Line Text size (pt = point size of text) Placement on label 1 <Item number> RRR * 1 6 pt left 2 FCC ID: BXZOFFICEM 6 pt left with surrounding border 3 WEEE *2 right 3 S/N code * 3 R_logo* 4 6 mm height left / right 4 S/N digits * 5 yyyyWww * 6 6 pt left / right 5 Made by Ascom Tateco AB, _____* 7 6 pt left 6 Only for use with battery, type DTX-9013 6 pt left Table 1. Notes: Text in bold shall be replaced by the following information. *1 RRR = Valid R-state, e.g. “/1B” (Ascom) *2 WEEE = Trash can logo for compliance to the WEEE directive. *3 S/N code = Serial Number (S/N). The code shall be printed in barcode (128) and readable formats. Place the barcode above the human readable text. *4 R_logo = Recycling logo. *5 S/N digits = Serial Number (S/N). *6 yyyy and ww = The time of assembly of the product in the format of year (yyyy) and week (ww) as calendar week. *7 _____ = Country of Origin of the Product, e.g. China. Open MARKING DRAWING 2 (2) Prepared (also subject responsible if other) No. Mats Johansson DOC000363 Approved Checked Date Rev Reference 2005-09-27 D 3 EXAMPLE DT590-0008/xxOfficeM FCC ID: BXZOFFICEM 1 2 3 4 5 6 7 LinePerforation S/N XXXXXXXyyyyW ww Made by Ascom Tateco AB, China Only for use with battery, type DTX-9013  4 REFERENCES Product Specification 1301 - SVHNB 101 152/2 Uen

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 5 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 6 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 7 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-C-1 Page 8 of 12

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20506-9559-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-S-8 Page 1 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-S-8 Page 2 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 08.07.2005 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 08.07.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-S-8 Page 3 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Ascom Tateco AB Street : P.O. Box 8783 Town : SE-402 76 Gothenburg Country : Sweden Telephone : +46 31 559300 Fax : +46 31 552031 Contact : Mr. Mats Johansson E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-S-8 Page 4 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 07.06.2005 Date of receipt of test item : 07.06.2005 Date of test : 14.06.2005 - 23.6.2005 1.6 Test item FCC ID : BXZOfficeM Description of test item : High end UPCS handset Type identification : DT590-OfficeM Serial number : without; Identical prototype Device category : PUE (Part 15 unlicensed PCS portable TX held to ear) Technical data Frequency range : 1921,5 - 1928,5 MHz Max. Conducted RF output power : PCS 1900 / 20,34 dBm (108,14 mW) Power supply : 3,7 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. 1.7 Test Results Max. SAR Measurement : 0.067 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9559-S-8 Page 5 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation) and those that characterize the i…

Text truncated - open the document above for the full version.

Date/Time: 06/14/05 08:22:32 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_left_ch2_cheek DUT: RTX TelecomA/S; Type: Maxima; Serial: DT590 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Head 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.42 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT590/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.048 mW/g DT590/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.27 V/m; Power Drift = 0.009 dB Peak SAR (extrapolated) = 0.064 W/kg SAR(1 g) = 0.042 mW/g; SAR(10 g) = 0.028 mW/g Maximum value of SAR (measured) = 0.045 mW/g 0 dB = 0.045mW/g Date/Time: 06/14/05 08:55:21 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_left_ch2_tilted DUT: RTX TelecomA/S; Type: Maxima; Serial: DT590 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Head 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.42 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT590/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.024 mW/g DT590/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.45 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.033 W/kg SAR(1 g) = 0.022 mW/g; SAR(10 g) = 0.015 mW/g Maximum value of SAR (measured) = 0.024 mW/g 0 dB = 0.024mW/g Date/Time: 06/23/05 09:53:16 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant0_flat_ch2_front DUT: RTX TelecomA/S; Type: Maxima; Serial: DT590 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.57 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT590/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.047 mW/g DT590/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.98 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 0.075 W/kg SAR(1 g) = 0.041 mW/g; SAR(10 g) = 0.021 mW/g Maximum value of SAR (measured) = 0.046 mW/g 0 dB = 0.046mW/g Date/Time: 06/23/05 10:53:59 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant0_flat_ch2_back DUT: RTX TelecomA/S; Type: Maxima; Serial: DT590 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.57 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT590/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.053 mW/g DT590/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.91 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 0.089 W/kg SAR(1 g) = 0.043 mW/g; SAR(10 g) = 0.020 mW/g Maximum value of SAR (measured) = 0.051 mW/g 0 dB = 0.051mW/g Date/Time: 06/23/05 09:07:14 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_flat_ch2_front DUT: RTX TelecomA/S; Type: Maxima; Serial: DT590 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.57 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT590/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.053 mW/g DT590/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.12 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.092 W/kg SAR(1 g) = 0.044 mW/g; SAR(10 g) = 0.024 mW/g Maximum value of SAR (measured) = 0.050 mW/g 0 dB = 0.050mW/g Date/Time: 06/23/05 11:28:03 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_flat_ch2_back DUT: RTX TelecomA/S; Type: Maxima; Serial: DT590 Communication System: 1.9 GHz DECT; Frequenc…
