2005-09-30/ Ver. B Cover Page Graphic Place the graphic directly on the page, do not care about putting it in the text flow. Select Graphics > Properties and make the following settings: •Width: 15,4 cm (Important!) •Height: 11,2 cm (May be smaller) •Top: 5,3 cm (Important!) •Left: -0,3 cm (Important!) This text should then be hidden. TD 92282GB User Manual Cordless Telephone OfficeT Cordless telephone OfficeT 0 1 Cordless telephone OfficeT 2005-09-30/ Ver. B TD 92282GB Table of Contents Table of Contents Table of Contents .............................................1 Guideline for safety and efficiency .....................2 Description .......................................................8 Getting Started ...............................................11 Te l e p h o n i n g ....................................................29 Advanced Telephoning ...................................41 Phonebook ....................................................45 Blocking Keys/Extra Security ..........................52 Settings ..........................................................58 Networking ....................................................70 Tips and Tricks ...............................................81 Reference ......................................................83 Index ..............................................................90 Guideline for safety and efficiency Cordless telephone OfficeT 2005-09-30/ Ver. B 2 TD 92282GB Guideline for safety and efficiency Please observe all necessary safety precautions when using the OfficeT Cordless telephone. Save this manual. It includes important safety information and operating instructions. Save all instructions for future reference. Before using the telephone, please follow the operating instructions and adhere to all warnings and safety precautions located on the product and in the user guide. Do not expose the telephone to open flame. Do not expose the telephone to and charger to direct sunlight for long periods. Keep the telephone and charger away from excessive heat and moisture. Do not allow heavy objects to fall on the telephone. Do not use auxiliary equipment with the telephone which is not exclusively recommended by the manufacturer, see section “Spare parts and accessories” on page 89. The use of any auxiliary equipment not recommended by the manufacturer may result in fire, electric shock, or injury, and will void the warranty. Connect AC (power supply) to the desktop battery charger only to designated power sources as marked on the product. Remove the electrical cord from an outlet by pulling gently on the AC adapter, not by pulling the cord. Position the electrical cord to the AC power supply where it is least likely to be subjected to damage or stress. Unplug the battery charger from a power source before cleaning the telephone to reduce risk of electric shock. Danger Never alter the AC cord or plug. If the plug will not fit into the outlet, have a proper outlet installed by a qualified electrician. Improper connection increases the risk of electric shock. Do not attempt to disassemble the telephone. Doing so will void the warranty. Service should be performed only by authorized service centers. The OfficeT cordless telephone does not contain consumer serviceable components. 3Cordless telephone OfficeT 1005-09-30/ Ver. B TD 92282GB Guideline for safety and efficiency Do not allow children to play with the product packaging material. Product packaging material is often small and may present a choking hazard. Do not allow children to play with your telephone. It is not a toy. Children could hurt themselves or others. Children could also damage the telephone. Chemical resistance The alpha and numeric characters printed on the exterior of the OfficeT Cordless telephone have been tested and found resistant to chipping, fading or wearing off when the telephone is treated with common cleaners and disinfectants or perspiration. The following chemicals have shown no harmful effect: •3% Hydrochloric Acid •M-alcohol (70% Methylated Ethanol) •60% Chlorhexidin 0.5mg/ml Important: Read this information before using your OfficeT Cordless telephone. The cordless telephone is one of the most innovative products ever developed. With it, you can maintain connectivity to traditional telephone services while remaining mobile around the work environment. For the safe and efficient operation of your telephone, observe the guidelines in this manual. Your cordless telephone is a radio transmitter and receiver. When it is on it receives and sends out radio frequency (RF) energy. The telephone operates in the frequency range of 1921.5 to 1928.5 MHz and employs commonly used modulation techniques. Note: Acetone can be damaging to the plastic casing of the cordless telephone and should not be used. Potentially explosive atmospheres Turn the cordless telephone off when in an area with a potentially explosive atmosphere. It is rare, but the telephone or its accessories could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. They include fueling areas, (such as gas stations), below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles (such as grain, dust, or metal powders). Guideline for safety and efficiency Cordless telephone OfficeT 2005-09-30/ Ver. B 4 TD 92282GB Do not transport or store flammable gas, liquid, or explosives in any compartment of a vehicle which also contains the telephone and accessories. In the U.S., vehicles powered by lique.ed petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Battery march Park, Quince, Massachusetts 02269, Attention: Publication Sales Division. Operati…

Text truncated - open the document above for the full version.

SECTION 15.307(b) AFFIDAVIT , Michael Stima. Managing Director of UTAM, Inc.. hereby swear and affirm that: ASGaM WIRELESS SOLUTIONS. [NG. is a participating member of UT AM, Inc. in good standing for purposes of Section 15.307(b) of the FCC rules. Subscribed to and sworn this 30th day of August, 2005 I fl Michael Stima, Managing Director UTAM, Inc. 1170 U.S. Hwy 22 P.O. Box 8126 Bridgewater, New Jersey 08807 Tel: (508) 526-3636 Affidavit #: ASCOO92005

29h September, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 Request for Confidentiality Ascom Tateco AB FCC Registration Number (FRN): 0013904214 FCC ID: BXZOFFICET FCC Part 15 Certification MaddGentlemen, In accordance with 0.459 of CFR 47, Ascom Tateco AB hereby requests confidentiality of all: attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Ascom Tateco AB considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which fbture technological products will evolve, Ascom Tateco AB considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature Name Title Company Tania Ottebrink Approval & Certification Engineer Ascom Tateco AB Ascom, Wireless Solutions PO Box 8783, SE402 76 Gothenburg, Sweden T +46 3 1 55 93 00, F +46 31 55 20 31 www.ascom.com/ws 0rg.nr.R-skatt 556336-6292, VAT No. SE556336629201, REG. Office: MTEBORG

1) if applicable rev. 1.2 Carol - UPCS_DECTbased_ICS v2.doc page 1 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH UPCS (DECT based) – Implementation Conformance Statement Description : US-DECT Portable Part Model : DT292 Use : FP PP Repeater System Type HW version PCB V5.0 RB SW version V30 RFPI / PIN 0000000010 Decl. emission BW 1,4 MHz Decl. lower threshold DUT Decl.upper threshold 1) -62.4 dBm Product information Standard: FCC part 15D other: Frequency band: 1920 – 1930 MHz other: 1921.536 KHz - 1928.448 KHz Number of RF channels: 5 Number of logical channels: 60 (time and spectrum windows) Used slot type: single double Used slot(s): even odd Operating mode: simplex duplex other: 1) if applicable rev. 1.2 Carol - UPCS_DECTbased_ICS v2.doc page 2 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Antennas: Antenna Type Gain [dBi] internal external 1 2 3 FP: Do Tx and Rx use the same antenna(s)?: Yes No Antenna Type Gain [dBi] internal external 1 PCB 0 2 PCB 0 3 PP: Do Tx and Rx use the same antenna(s)?: Yes No Antenna diversity: 1) Diversity supported Antenna Tx Rx 1 2 FP 3 1 2 Product information PP 3 1) if applicable rev. 1.2 Carol - UPCS_DECTbased_ICS v2.doc page 3 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Supply and supported temperature ranges (Manufacturer declaration): FP PP Repeater U normal [V] 3.6V DC (NiMH) U min [V] 3.35V DC U max [V] 4.3V DC T min [°C] 10 (Class E1) T max [°C] 40 Power Source Type Manufacturer FP or WRS PP (charger) DT292 Charger Data connection: PSTN other Used radio module 1) : Type : Manufacturer : Ancillary equipment 1) : Description : Type : Manufacturer : Product information Host device 1) : Description : Type : Manufacturer : 1) if applicable rev. 1.2 Carol - UPCS_DECTbased_ICS v2.doc page 4 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Control software 1) : Name : Version : Manufacturer : Product information Additional remarks: 1) if applicable rev. 1.2 Carol - UPCS_DECTbased_ICS v2.doc page 5 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH FCC 15.323 (c) (5): This device or group of co-operating devices located within 1 meter of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively more than one third of the time and spectrum windows defined by the system. Manufacturer agrees: Yes No FCC 15.323 (c) (12): This device shall not use the provisions of (c) (10) or (c) (11) to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. Manufacturer agrees: Yes No FCC 15.307 (b): The applicant is a participating member of UTAM, Inc. and will provide a related affidavit from UTAM, Inc. in course of certification. Confirmation by applicant: Yes No FCC 15.319 (f) Automatic discontinuation of transmission: This device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. Automatic break off the transmissions means break off of connection and break of transmissions which are not control and signalling information or repetitive codes of complete frame or burst intervals. In case of devices using basics of DECT technology at least fixed parts and repeaters are using control and signalling information without direct connection without direct connection to their remote station. Please fill in the table below with the reaction of the EUT (FP and/or PP) using A, B or C. Reaction of EUT Situation FP PP Verdict 1 Switch-off counter part 2 Hook-off by counter part 3 Switch-off by EUT 4 Hook-off on EUT side 5 Remote power from EUT 6 Remote power from counterpart Manufacturer declarations A – Connection break down, cease of transmit B – Connection break down, EUT transmits signalling information C – Connection break down, counter part transmits signalling information 1) if applicable rev. 1.2 Carol - UPCS_DECTbased_ICS v2.doc page 6 (6) -ETS- Dr. Genz GmbH, Germany Storkower Straße 38c D-15526 Reichenwalde b. Berlin Telephone: +49.33631.888.00 Fax: +49.33631.888.640 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Supplement Additional remarks: Declared by: Date: Name (print): Signature:

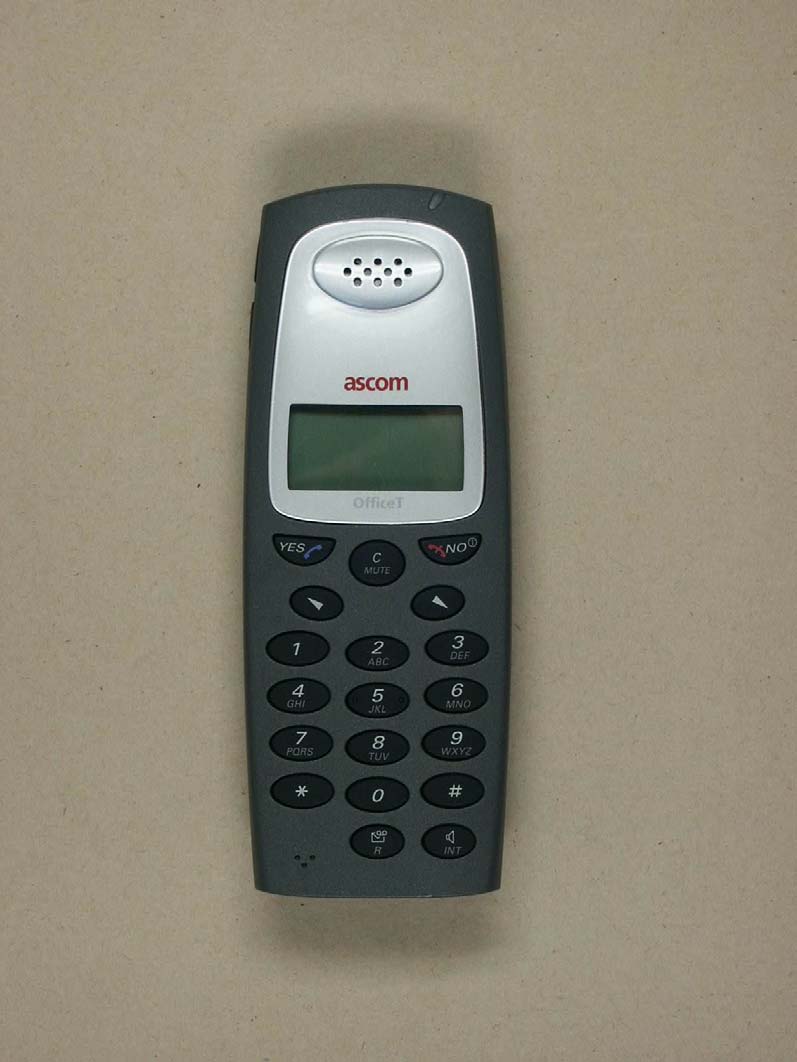

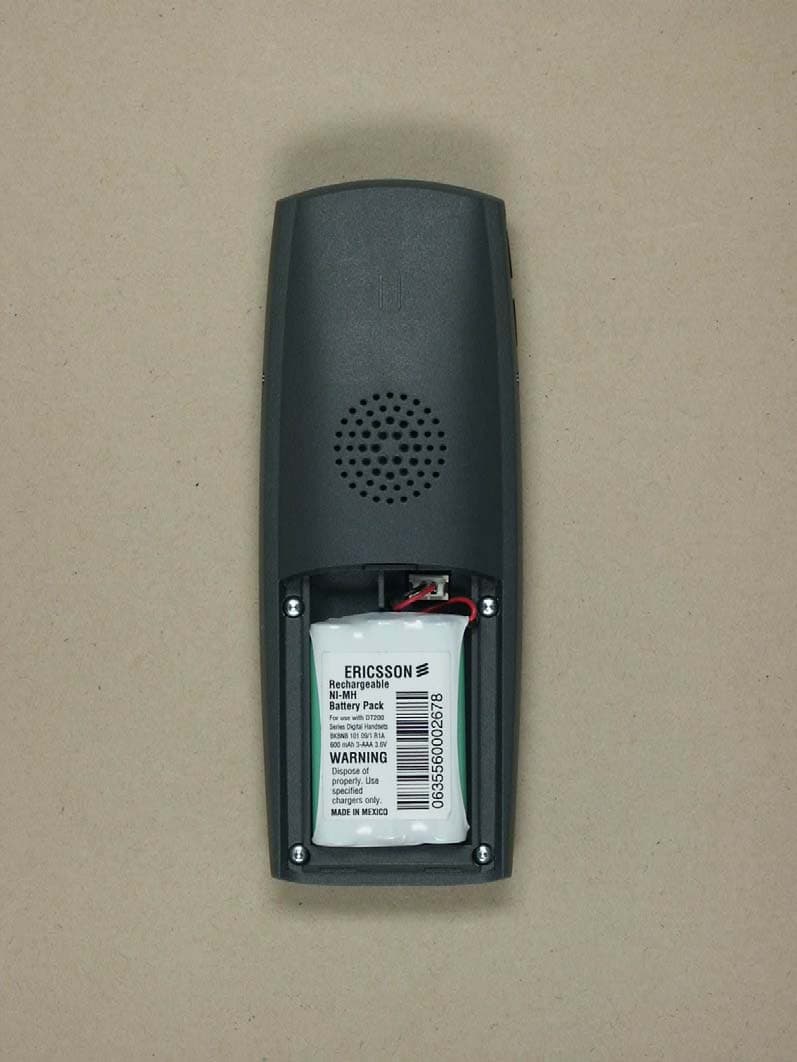

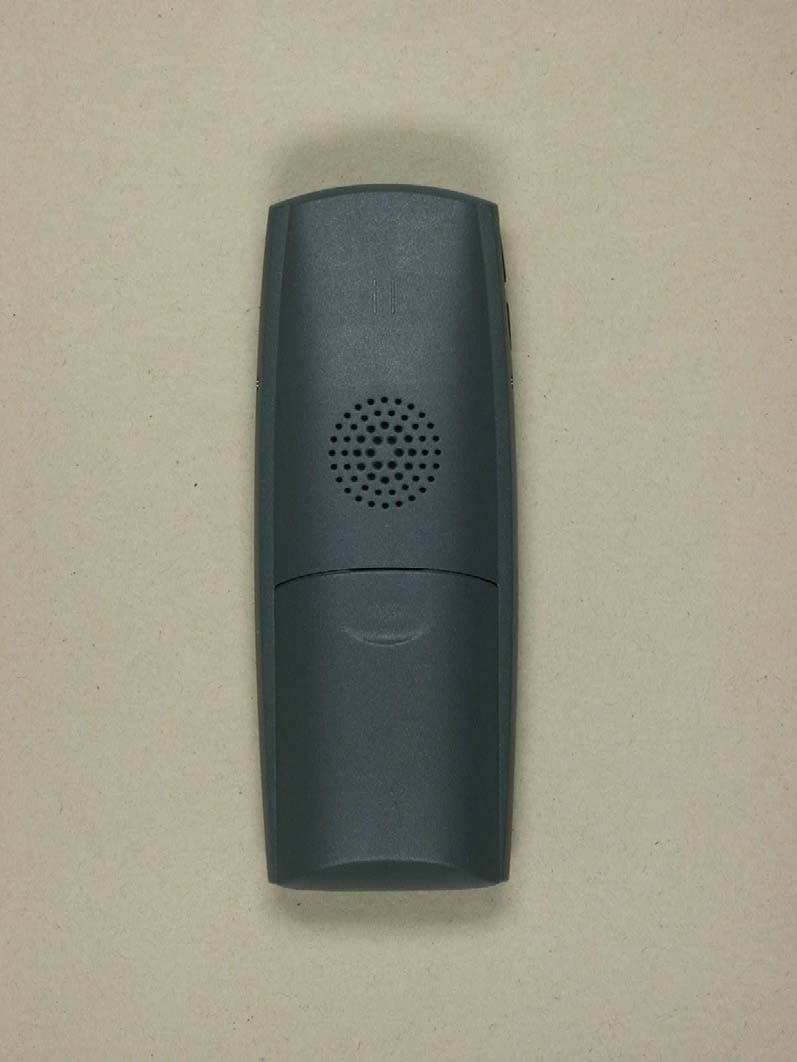

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 1 of 12 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 2 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 3 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 4 of 12

Open information MARKING DRAWING 1 (2) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other) Nr - No. Mats Johansson DOC000362 Dokansv/Godk - Doc respons/Approved Kontr - Checked Datum - Date Rev File 2005-09-27 D LABEL TEXT (GIFT BOX LABELS) FOR DH1-0008 Contents This document describes the information that shall be printed on the labels used for the marking of the Handset (OfficeT), Item number DH1-0008. Label and Text The text on the labels shall be parallel to the long side. Label 1 shall be placed on the left long side of the box and readeable from the back to the front. Label 2 shall be placed on the top cover of the box and in the same readability as label 1 Format The format of the label is based on 1301 - SVF 930 114 Uen. Where nothing else specified, Zebra printer Scaleable Smooth Font, “0” (CG Triumvirate Bold Condensed) is imposed. When needed, the text size is adjusted to fit the label. When needed, the alignment is adjusted to fit the label. Content Label 1 On (2,21): Ascom Item number including R-state <Ascom Item number>RRR, Bold text, height 3 mm. On (2,17): FCC ID with surrounding border On (2,9): S/N number of the included handset in bar code, (only actual number). Bar code, height 7 mm, Code 128 symbology. On (2,5): “S/N nnnnnnnnnn”, Text, height 2 mm. On (2,2): “Made by Ascom Tateco AB, China”. Text, height 2 mm. On (38,9): IPEI number of the included handset in bar code, (only actual number). Bar code, height 7 mm, Code 128 symbology. On (38,5): “IPEI: nnnnnnnnnnnnn”, Text, height 2 mm. On (50,2): Year and week of packing. Text, height 2 mm. “yyyy’W’ww”, (“yyyy”=year, “ww”=week). On (72,12): WEEE logo. On (72,2): Recycling logo. Label 2 On (3,3): This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. According to 1424 - SVF 930 52 Ux. Open information MARKING DRAWING 2 (2) Uppgjord (även faktaansvarig om annan) - Prepared (also subject responsible if other) Nr - No. Mats Johansson DOC000362 Dokansv/Godk - Doc respons/Approved Kontr - Checked Datum - Date Rev File 2005-09-27 D Example DH1-0008/xx FCC ID: BXZOFFICET 38 2 5 9 17 21 IPEI: XXXXXXXXXXS/N XXXXXXXXXX M a de by As c om Ta te c o AB, ChinayyyyWw w 2 50 72  OfficeT This device complies with Part 15 of the FCC Rules. Operation is subject to the follow ing tw o conditions: (1) this device may not cause harmful interference, and (2) this de vice m us t acce pt any inte rfe re nce received, including interference that m ay cause undesired operation. 3 3

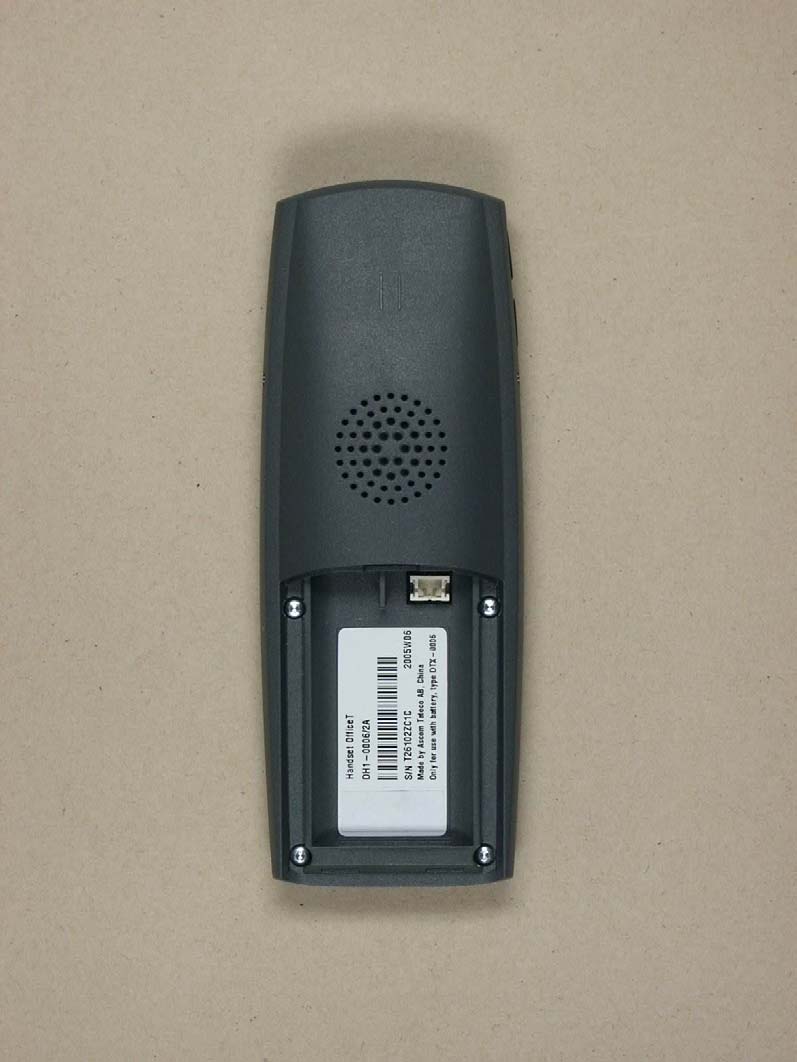

Open MARKING DRAWING 1 (2) Prepared (also subject responsible if other) No. Mats Johansson DOC000361 Approved Checked Date Rev Reference 2005-09-27 D LABEL TEXT (BACK COVER LABEL) FOR DH1-0008 1 CONTENTS This document describes the information that shall be printed on the label used for the marking of the Handset (OfficeT) for US, Item number DH1-0008. 2 LABEL AND TEXT - The document number of the blank label used is 1301 - SVHNB 101 152/2 Uen. - Installation, printing direction and placement information is located on the assembly drawing 151 88 - DPANB 301 06. - The printing shall be clearly readable and shall be permanent. - The printing shall be Black. - For layout suggestion see Example 1. Use only large unperforated section of label. Do not print information on small side of perforation. - The text to be printed on the label is noted in Table 1. Line Text size (pt = point size of text) Placement on label 1 <Item number> RRR * 1 6 pt left 2 FCC ID: BXZOFFICET 6 pt left with surrounding border 3 WEEE *2 right 4 S/N code * 3 R_logo* 4 6 mm height left / right 5 S/N digits * 5 yyyyWww * 6 6 pt left / right 6 Made by Ascom Tateco AB, _____* 7 6 pt left 7 Only for use with battery, type DTX-0006 6 pt left Table 1. Notes: Text in bold shall be replaced by the following information. *1 RRR = Valid R-state, e.g. “/1A” (Ascom) *2 WEEE = Trash can logo for compliance to the WEEE directive. *3 S/N code = Serial Number (S/N). The code shall be printed in barcode (128) and readable formats. Place the barcode above the human readable text. *4 R_logo = Recycling logo *5 S/N digits = Serial Number (S/N). *6 yyyy and ww = The time of assembly of the product in the format of year (yyyy) and week (ww) as calendar week. *7 _____ = Country of Origin of the Product, e.g. China. Open MARKING DRAWING 2 (2) Prepared (also subject responsible if other) No. Mats Johansson DOC000361 Approved Checked Date Rev Reference 2005-09-27 D 3 EXAMPLE DH1-0008/xxOfficeT FCC ID: BXZOFFICET 1 2 3 4 5 6 7 LinePerforation S/N XXXXXXXyyyyW ww Made by Ascom Tateco AB, China Only for use with battery, type DTX-0006  4 REFERENCES Product Specification 1301 - SVHNB 101 152/2 Uen Assembly Drawing 151 88 - DPANB 301 06 Uen

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 5 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 6 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 7 of 12 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-C-1 Page 8 of 12

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20506-9558-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-S-8 Page 1 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-S-8 Page 2 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 08.07.2005 M. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 08.07.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-S-8 Page 3 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : Ascom Tateco AB Street : P.O. Box 8783 Town : SE-402 76 Gothenburg Country : Sweden Telephone : +46 31 559300 Fax : +46 31 552031 Contact : Mr. Mats Johansson E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-S-8 Page 4 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 07.06.2005 Date of receipt of test item : 07.06.2005 Date of test : 14.06.2005 - 23.06.2005 1.6 Test item FCC ID : BXZOfficeT Description of test item : Mid range UPCS handset Type identification : DT292-OfficeT Serial number : without; Identical prototype Device category : PUE (Part 15 unlicensed PCS portable TX held to ear) Technical data Frequency range : 1921,5 - 1928,5 MHz Max. Conducted RF output power : DECT 1900 / 20,05 dBm (101,16 mW) Power supply : 3,6 V DC rechargeable battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. 1.7 Test Results Max. SAR Measurement : 0.081 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9558-S-8 Page 5 of 25 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) X Headset (Head) Body Worn Equipment EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation) and those that characterize th…

Text truncated - open the document above for the full version.

Date/Time: 06/13/05 08:18:51 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_left_ch2_cheek DUT: RTX TelecomA/S; Type: Carol; Serial: DT292 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Head 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.42 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT292/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.064 mW/g DT292/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.98 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.104 W/kg SAR(1 g) = 0.057 mW/g; SAR(10 g) = 0.030 mW/g Maximum value of SAR (measured) = 0.064 mW/g 0 dB = 0.064mW/g Date/Time: 06/13/05 09:02:09 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_left_ch2_tilted DUT: RTX TelecomA/S; Type: Carol; Serial: DT292 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Head 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.42 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT292/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.044 mW/g DT292/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.59 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.065 W/kg SAR(1 g) = 0.039 mW/g; SAR(10 g) = 0.021 mW/g Maximum value of SAR (measured) = 0.044 mW/g 0 dB = 0.044mW/g Date/Time: 06/13/05 14:37:48 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_left_ch0_cheek DUT: RTX TelecomA/S; Type: Carol; Serial: DT292 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Head 1900 MHz Medium parameters used: f = 1908 MHz; σ = 1.42 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT292/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.089 mW/g DT292/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.82 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.118 W/kg SAR(1 g) = 0.081 mW/g; SAR(10 g) = 0.057 mW/g Maximum value of SAR (measured) = 0.087 mW/g 0 dB = 0.087mW/g Date/Time: 06/13/05 14:01:08 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant1_left_ch4_cheek DUT: RTX TelecomA/S; Type: Carol; Serial: DT292 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Head 1900 MHz Medium parameters used: f = 1901 MHz; σ = 1.42 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(5.2, 5.2, 5.2); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT292/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.066 mW/g DT292/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.01 V/m; Power Drift = 0.1 dB Peak SAR (extrapolated) = 0.073 W/kg SAR(1 g) = 0.062 mW/g; SAR(10 g) = 0.048 mW/g Maximum value of SAR (measured) = 0.065 mW/g 0 dB = 0.065mW/g Date/Time: 06/23/05 07:14:30 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant0_flat_ch2_front DUT: RTX TelecomA/S; Type: Carol; Serial: DT292 Communication System: 1.9 GHz DECT; Frequency: 1905 MHz;Duty Cycle: 1:12.3 Medium: Muscle 1900 MHz Medium parameters used: f = 1905 MHz; σ = 1.57 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 9/11/2002 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 DT292/Area Scan (91x151x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.047 mW/g DT292/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.68 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.082 W/kg SAR(1 g) = 0.043 mW/g; SAR(10 g) = 0.023 mW/g Maximum value of SAR (measured) = 0.048 mW/g 0 dB = 0.048mW/g Date/Time: 06/21/05 14:37:14 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH ant0_flat_ch2_back …
