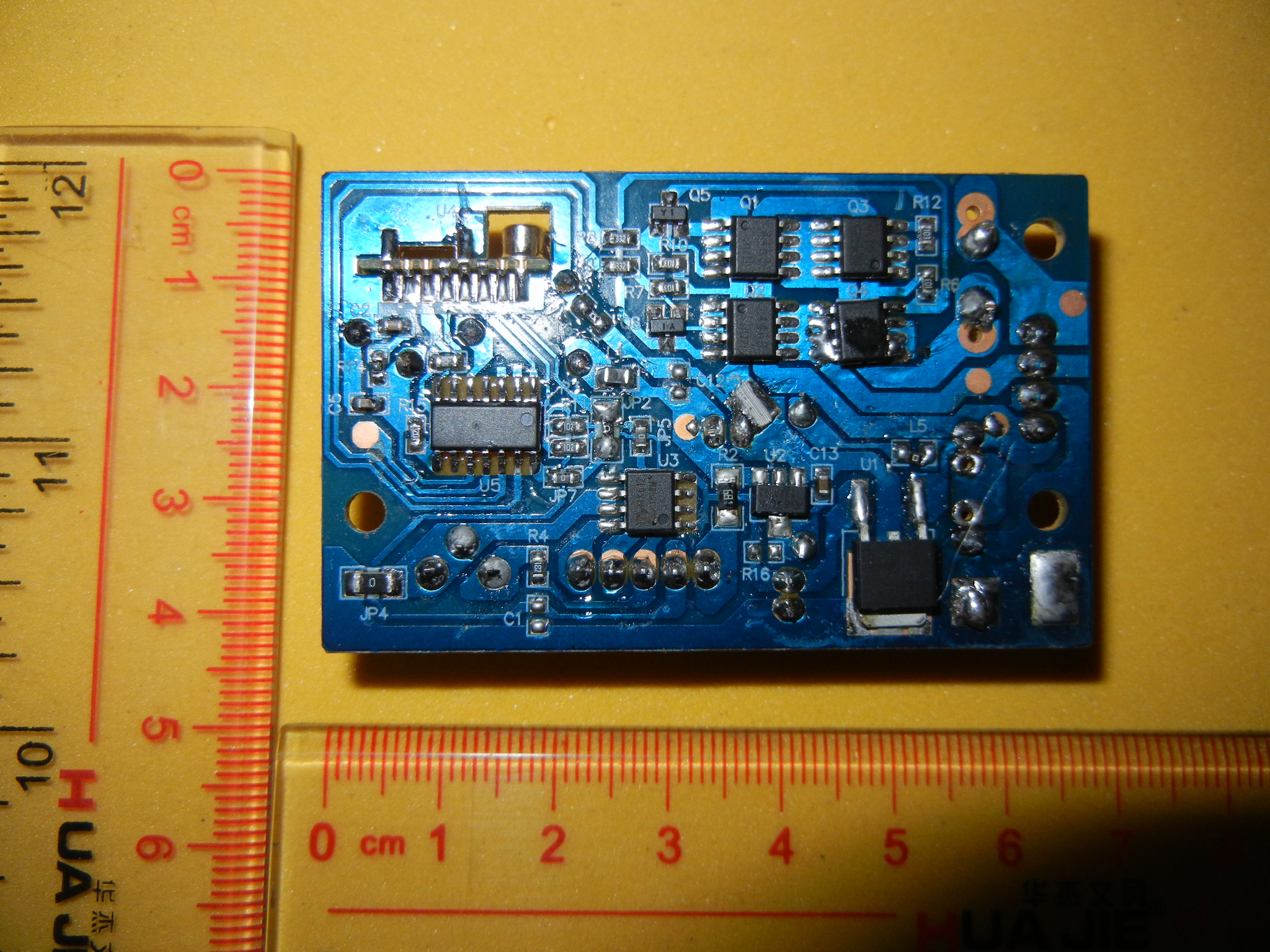

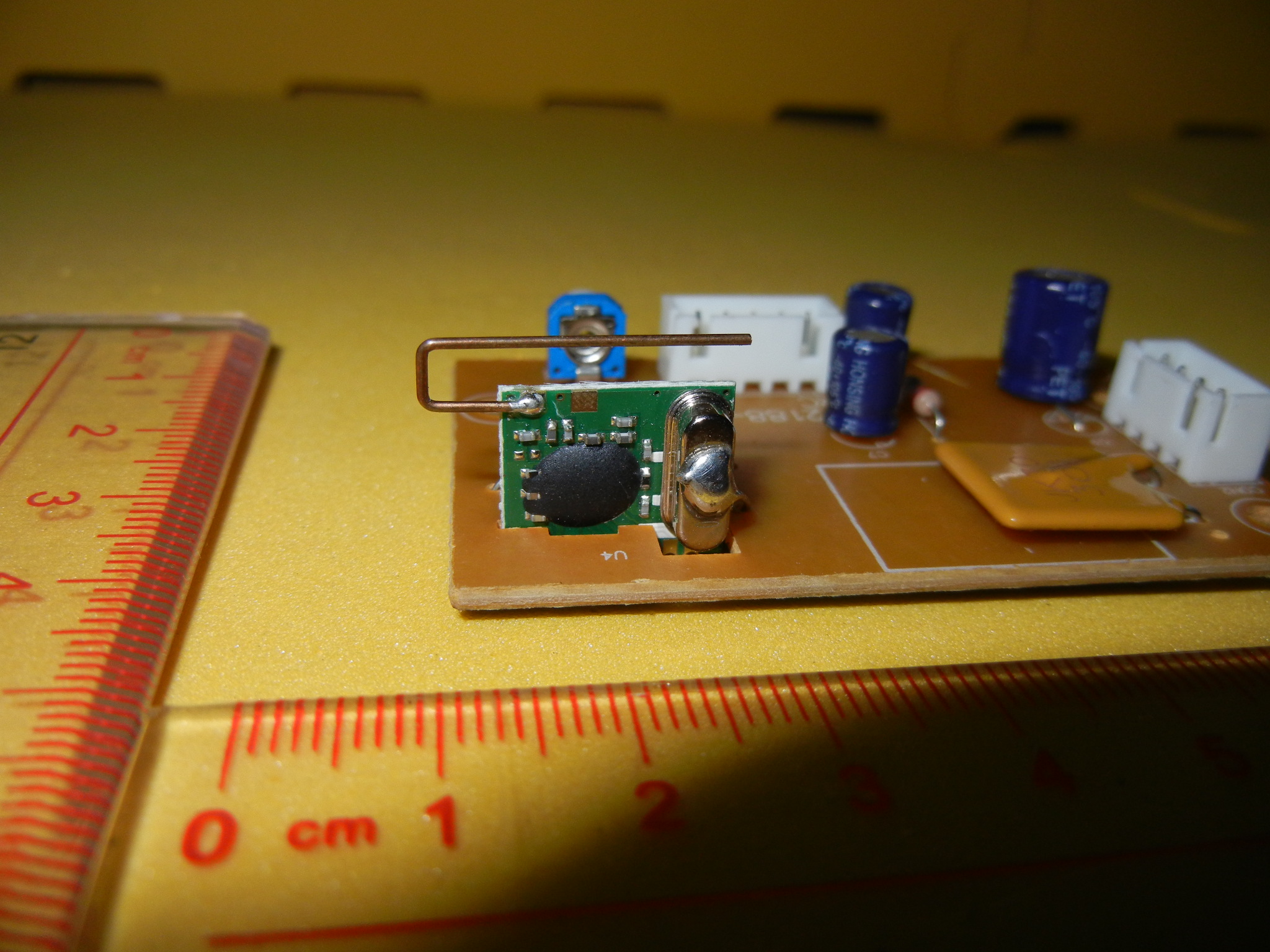

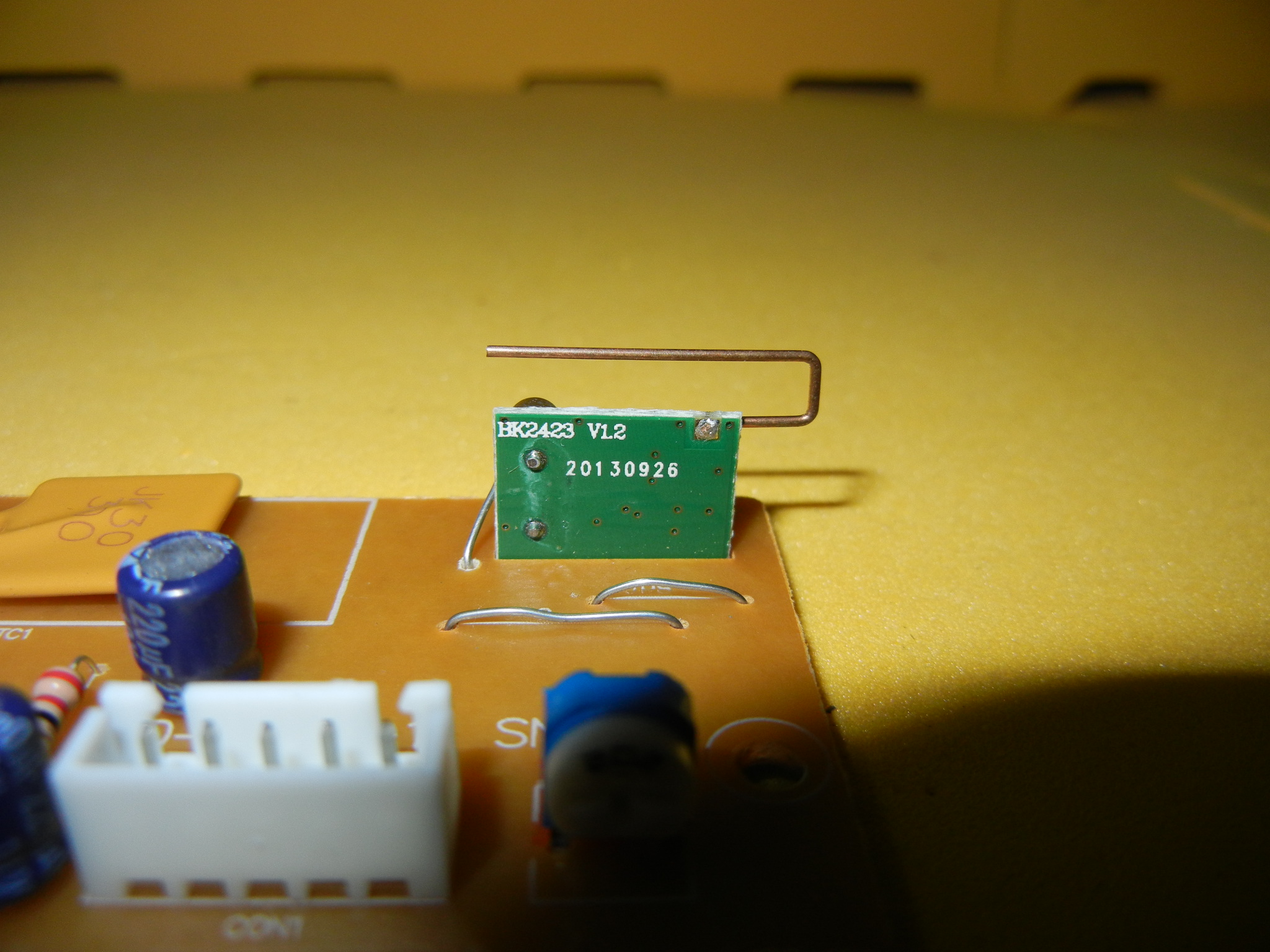

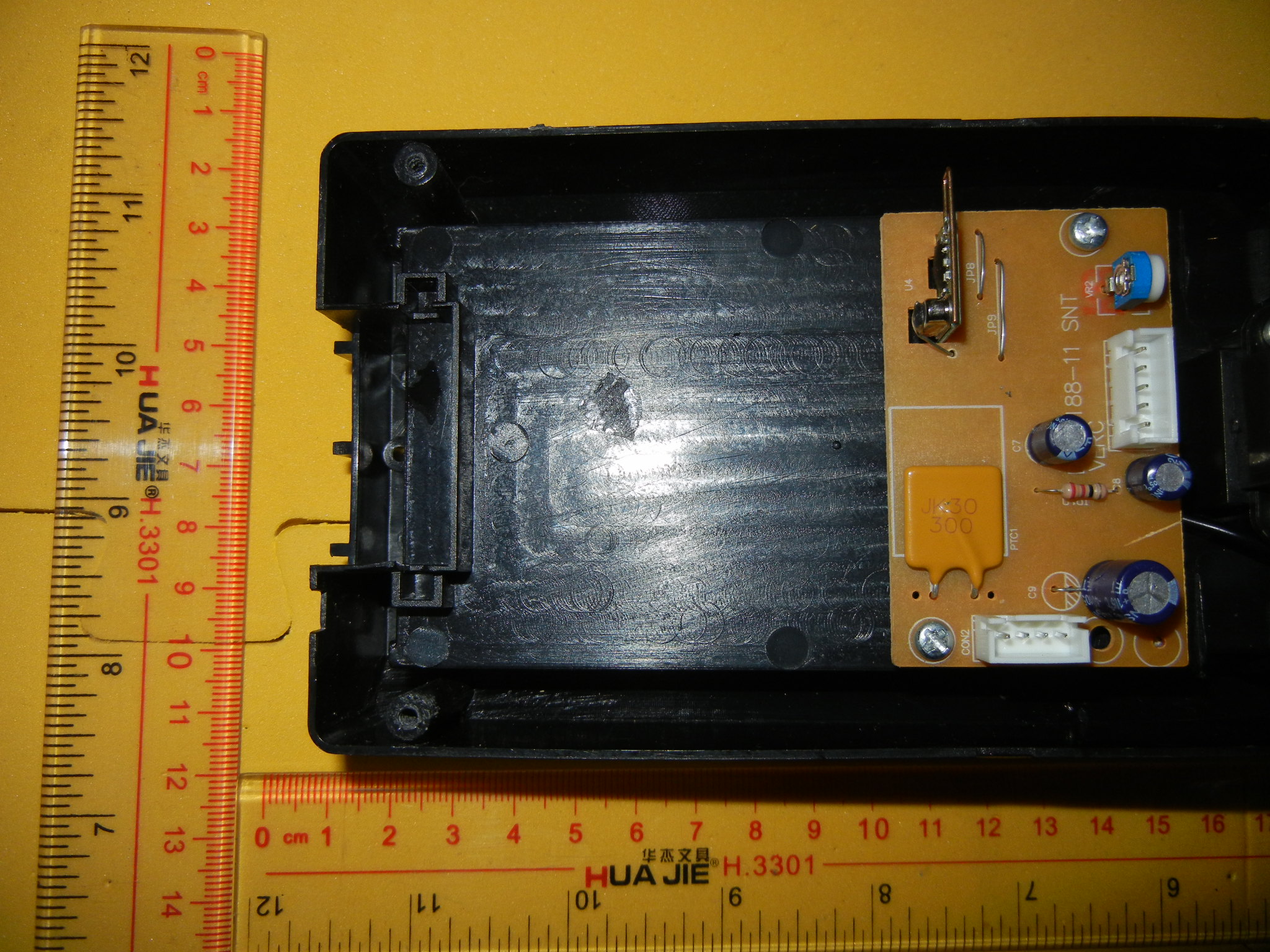

BY32188-24GR2.408-2.460 GHz WIRELESS R/C DEVICE-TX PORTION

©2014 RadioShack Corporation. All rights reserved. RadioShack is a trademark used by RadioShack Corporation. Printed in China 06A14 6001056, 6001071 General Motors trademarks used under license to Scientific Toys,Ltd. Install Battery in the Transmitter 1. Turn off the transmitter. 2. Use a screwdriver to open the battery compartment cover. 3. Insert one 9V battery (not included), matching the polarity symbols (+ and –) marked inside the battery compartment. Replace the battery cover and secure it with the screw. Install Battery Pack in the Vehicle 1. Turn off the vehicle. 2. Use a screwdriver to open the battery cover, then plug the jack of the 9.6V battery pack into the battery socket. Make sure you fit the battery and battery cables neatly inside. 3. Replace the battery cover and secure it with the screw. 1:12 RC Dune Warrior We hope you enjoy your RC Dune Warrior from RadioShack. Please read this user’s guide before setting up and using your vehicle. What’s Included • RC Dune Warrior • Transmitter • Battery Pack • Charger • User’s Guide Features • Digital Proportional Steering and Speed control • Up to 1000 feet (305m) per minute CHOKING HAZARD! Small parts. Not for children under 3 years. Age 6+ ON/OFF 6001056,6001071_UG_EN_051214.indd 16/19/2014 10:14:26 AM Specif ications Battery Charger ......................................................................... .............................................6001056 only: 120V AC, 60 Hz .........................6001071 only: 100 – 240V AC, 50 – 60 Hz Output ........................................................12 V DC, 350 mA Speed ..................................up to 1000 ft/min (305m/min) Control Distance ...........................................130 ft (39.6m) Climbing Angle ....................................................................20° Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Safety and Care • Not recommended for children under 6 years of age. Adult supervision is recommended at all times. • A nearby CB radio can interfere with your vehicle’s control. If this happens, move the vehicle away from the CB radio. • Never play with your vehicle in the street. • Avoid high-impact collisions with people and objects. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Limited Warranty RadioShack warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase from a RadioShack-owned store or an authorized RadioShack franchisee or dealer. RADIOSHACK MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the RadioShack sales receipt as proof of purchase date to any RadioShack store in the U.S. RadioShack will, at its option, unless otherwise provided by law (a) replace the product with the same or a comparable product, or (b) refund the purchase price. All replaced products, and products on which a refund is made, become the property of RadioShack. RADIOSHACK EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, RADIOSHACK SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIM…

Text truncated - open the document above for the full version.

Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, 518101, Guangdong, China Letter for Confirmation of the Test Date of Test: 2014‐06‐25 Applicant Name: Scientific Toys Ltd. FCC ID Number: FCC ID: BY32188‐24GR Name of Engineer to perform the Test: Lahm Peng (Engineer) Statement for Confirmation of the Test: Gakkiku Technology Company hired us to perform the test. We declare that tested sample has been tested in accordance with the test method identified on the test report and our test engineer was performing the test. We also declare that sample complied with the relevant limits. All instrumentation and accessories were used to test that sample for compliance to the indicated test method and those were calibrated regularly in accordance with ISO 17025: 2005 requirements by laboratories accredited by A2LA, NVLAP or ACLAS for the measurement parameters. The measurements were made at: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, 518101, Guangdong, China Representative of the organization performing the test: Jandy So (Manager) Signature: Email Address: [email protected] Tel No.: +86755‐33663308‐808

Scientific Toys Ltd. Model Number(s)/Catalog Number(s): 21882 REPORT NUMBER: GKK201406240C PAGE 1 OF 25 PART 15.249 OF THE FCC RULES Test Report Applicant Scientific Toys Ltd. Address Rm. 1108, 11/F., Block B, New Mandarin Plaza, 14 Science Museum Road, TST East, Kowloon, Hong Kong FCC ID Number FCC ID: BY32188-24GR Brand Name(s) None Model Number(s)/ Catalog Number(s) 21882, 6001056, 6001071, BY32188-24GR Product Description 2.408-2.460 GHz Wireless R/C Device - TX Portion Operating Frequency 2.408-2.460 GHz Rules/Standards Part 15.249 of the FCC Rules Received Date 24th June, 2014 Tested Date 25th June, 2014 Approved by Dick Chan (Director of Gakkiku) Tested by Lahm Peng (Engineer of Shenzhen SEM.Test) Signed by Jandy So (Manager of Shenzhen SEM.Test) Report Number GKK201406240C Test Results PASSED FAILED Gakkiku Technology Company Flat B, 5/F., Selwyn Factory Building, No. 404 Kwun Tong Road, Kwun Tong, Kowloon, Hong Kong Tel: (852) 8113 2281 Fax: (852) 2797 0192 Email: [email protected] Scientific Toys Ltd. Model Number(s)/Catalog Number(s): 21882 REPORT NUMBER: GKK201406240C PAGE 2 OF 25 PART 15.249 OF THE FCC RULES GENERAL The report is written by Gakkiku Technology Company. The tested device complies with the general approval requirements of the FCC Rules and the Industry Canada as identified in this test report. TEST LOCATION The tested device was tested at the test site of the Shenzhen SEM.Test Technology Co., Ltd., 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, 518101, Guangdong, China. The FCC Recognized 2.948 Listed Test Firm Registration Number is 934118. The Industry Canada IC OATS Filing Number/Assigned Code is 11464A. Scientific Toys Ltd. Model Number(s)/Catalog Number(s): 21882 REPORT NUMBER: GKK201406240C PAGE 3 OF 25 PART 15.249 OF THE FCC RULES TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................... 4 1.2 TEST STANDARDS ....................................................................................................................................... 4 1.3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................. 5 1.4 TEST METHODOLOGY .................................................................................................................................. 5 1.5 TEST FACILITY ............................................................................................................................................. 5 1.6 EUT EXERCISE SOFTWARE .......................................................................................................................... 5 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS ............................................................................................... 5 1.8 EUT CABLE LIST AND DETAILS ................................................................................................................... 6 2. SUMMARY OF TEST RESULTS ......................................................................................... 7 3. PART 15.203 - ANTENNA REQUIREMENT ....................................................................... 8 3.1 STANDARD APPLICABLE .............................................................................................................................. 8 3.2 TEST RESULT ............................................................................................................................................. 8 4. PART 15.249(A), 15.205 & 15.209 - RADIATED EMISSION ................................................ 9 4.1 MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4.2 STANDARD APPLICABLE .............................................................................................................................. 9 4.3 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................... 10 4.4 TEST PROCEDURE ..................................................................................................................................... 10 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .................................................................................... 11 4.6 ENVIRONMENTAL CONDITIONS.................................................................................................................. 11 4.7 SUMMARY OF TEST RESULTS/PLOTS .......................................................................................................... 11 5. PART 15.249(B) - OUT OF BAND EMISSIONS ................................................................. 20 5.1 STANDARD APPLICABLE ............................................................................................................................ 20 5.2 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................ 20 5.3 TEST PROCEDURE .................................................................................................................................... 20 5.4 ENVIRONMENTAL CONDITIONS ................................................................................................................. 20 5.5 SUMMARY OF TEST RESULTS/PLOTS .......................................................................................................... 21 6. EMISSION BANDWIDTH ............................................................................................... 23 6.1 STANDARD APPLICABLE ............................................................................................................................ 23 6.2 TEST EQUIPMENT LIST AND DETAILS .......…
