INSTRUCTION SHEET & PACKAGING MUST BE RETAINED SINCE IT CONTAINS IMPORTANT INFORMATION. BATTERY INSTALLATION (For maximum performance, use alkaline batteries) Remember to take out all batteries from vehicle and transmitter after playing. 1. Do not mix old and new batteries. 2. Do not mix alkaline, standard (Carbon-Zinc), or rechargeable batteries. ATTENTION PARENTS It is recommended that this toy and all accessories be periodically examined for potential hazards and that any potentially hazardous parts be repaired or replaced. HOW TO INSTALL BATTERY IN VEHICLE 1. Turn over the vehicle and push the ON/OFF to "OFF" position. (See Diagram #1) 2. Open the battery cover. (See Diagram #1) 3. Follow the "arrow" sign and insert the battery pack into the battery compartment. Make sure the (+) (–) polarity is correct. (See Diagram #2) 4. Replace the battery cover. HOW TO INSTALL BATTERY IN TRANSMITTER 1. Remove battery cover and install 2 x AA batteries by matching + and – poles as indicated in the battery compartment. (See Diagram #3) 2. Replace the battery cover. Note: Remove battery after you have finished using your vehicle. CAUTIONS 1. Do not charge battery pack that is hot, wet or shows leakage or corrosion. 2. May explode if disposed of in fire! 3 Do not disassemble the battery pack. 4. Non-rechargeable batteries are not to be recharged. 5. Rechargeable batteries are to be removed from the toy before being charged. 6. Rechargeable batteries are only to be charged under adult supervision. 7. Different types of batteries or new and used batteries are not to be mixed. 8. Battery charger must be operated by adults only. 9. Only batteries of the same or equivalent type as recommended are to be used. 10. Batteries are to be inserted with the correct polarity. 11. Exhausted batteries are to be removed from the toy. 12. The supply terminals are not to be short-circuited. 13. The antenna wires are not to be inserted into socket outlet. 14. Dispose of batteries responsibly. 15. Do not dispose of in fire. FCC NOTE: THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED ANTENNA TO THIS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. WARNING: NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE, DUE TO SMALL PARTS. FCC Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DIAGRAM 5 DIAGRAM 1 DIAGRAM 2 6 x AA Batteries On Unscrew to open Battery cover 1 3 1+B1+A 3+B3+A 2 Stop DIAGRAM 6 DIAGRAM 7 HOW TO PLAY OPERATION 1. Operate the vehicle with the transmitter (See Diagram #6). 2. Turn OFF the vehicle after playing and remove all batteries from the transmitter and the car. 3. To adjust steering alignment, adjust the "Steering Alignment Lever" on the underside of the vehicle when the vehicle does not run straight forward (See Diagram #7). DIAGRAM 3DIAGRAM 4 Trigger LED Steering alignment lever © 2020 SCIENTIFIC TOYS LTD. 1108, TOWER B, 14 SCIENCE MUSEUM ROAD, TSIMSHATSUI, HONG KONG. PRINTED IN CHINA O.I. NO.6561 On/Off switch Battery cover Back Panel of transmitter 2 x AA batteries

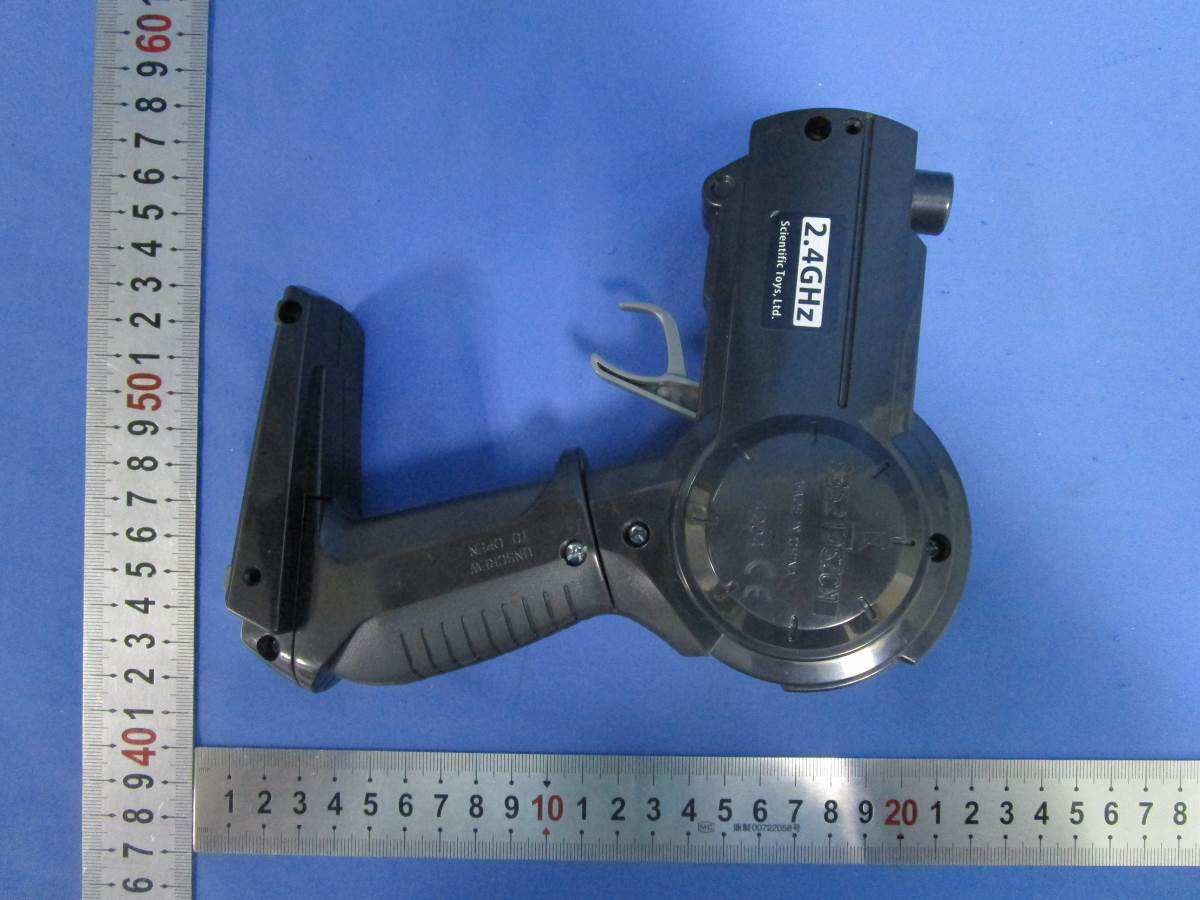

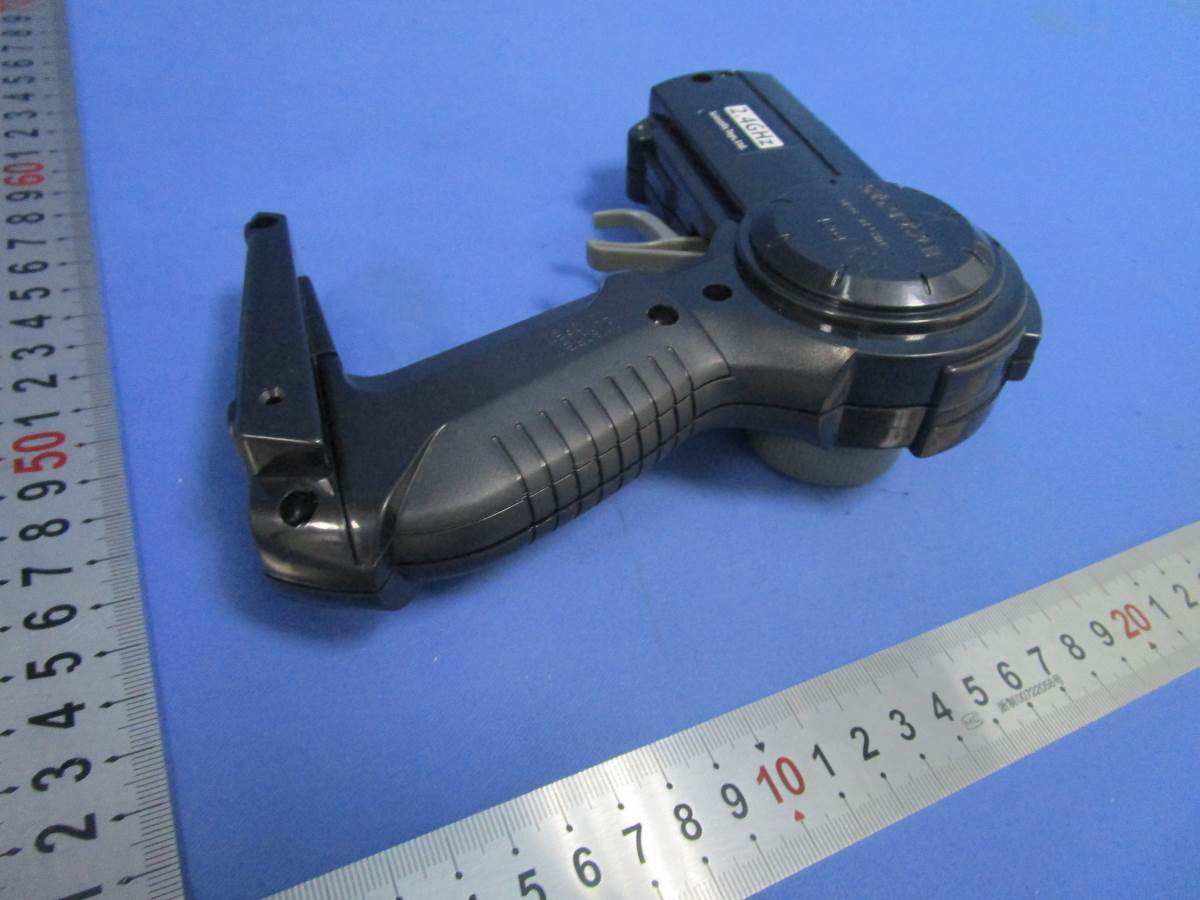

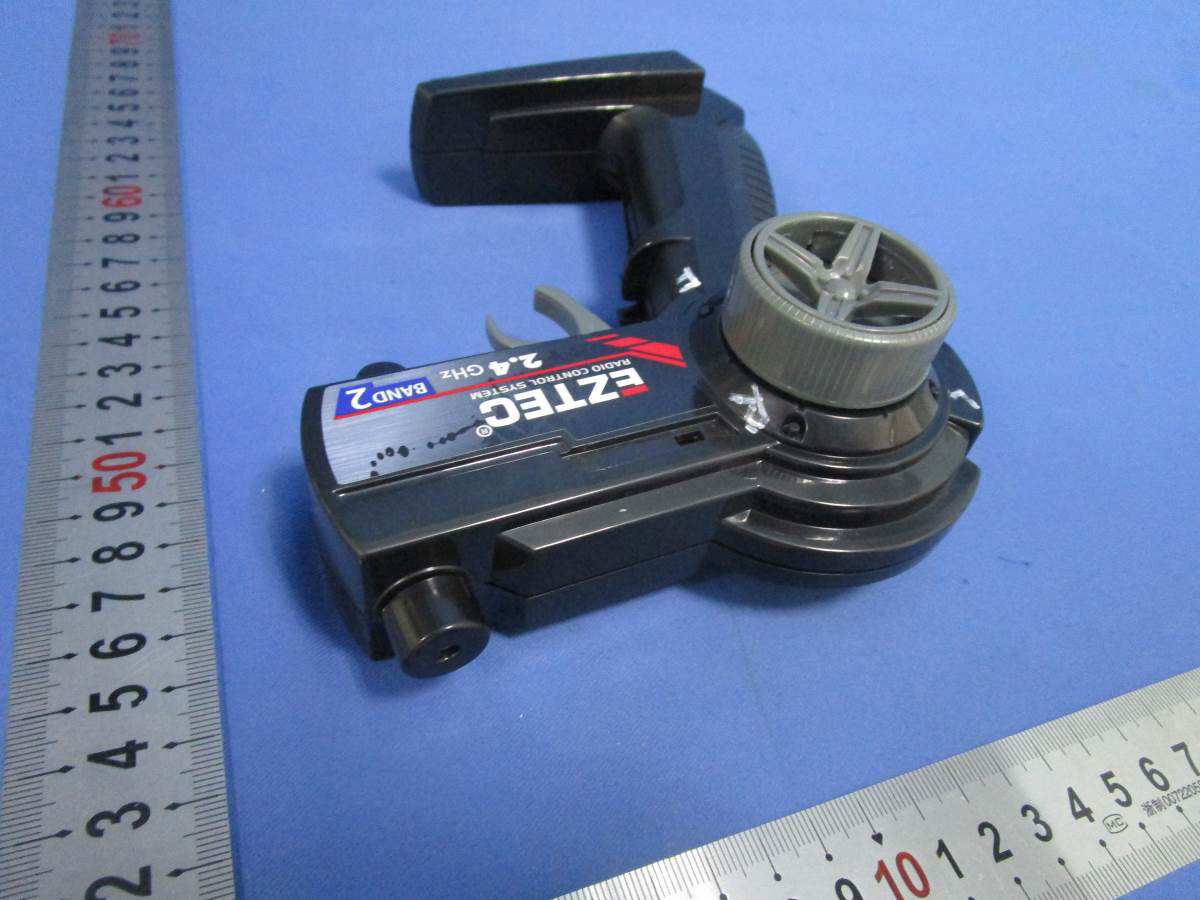

Page 1 of 2 External Photos Page 2 of 2

Page 1 of 4 Internal Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a R/C Car operating at 2.4G Band. The EUT can be powered by DC 3.0V (2 x 1.5V AA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: -3.0dBm (tolerance: +/- 3dB). The normal conducted output power is -3.0dBm (tolerance: +/- 3dB). Modulation Type: GFSK. According to the KDB 447498: The Maximum peak radiated emission for the EUT is 92.0dBμV/m at 3m in the frequency 2420MHz The EIRP = [(FS*D) ^2 / 30] mW = -3.23dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 90.6 dBμV/m at 3m in the frequency 2445MHz The EIRP = [(FS*D) ^2 / 30] mW = -4.63dBm which is within the production variation. The maximum conducted output power specified is 0dBm= 1.000mW The source- based time-averaging conducted output power =1.000* Duty cycle mW <1.000 mW(Duty cycle <100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.460) mW = 9.56 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 2.0000ms Effective period of the cycle = 1.0145ms DC =1.0145ms / 2.0000ms =0.5073 or 50.73% FCC ID: BY34204-24B2

Scientific Toys Ltd TEST REPORT SCOPE OF WORK FCC TESTING– MODEL: BY34204-24B2 REPORT NUMBER SZHH01460934-001 ISSUE DATE June 9, 2020 PAGES 26 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: SZHH01460934-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 26 FCC ID 249_C Test Report Scientific Toys Ltd Application for Certification FCC ID: BY34204-24B2 R/C Car Model: BY34204-24B2 Additional Models: See page 5 to 7 2.4GHz Transmitter Report No.: SZHH01460934-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-19] Prepared and Checked by: Approved by: Sign on file Terry Tang Senior Engineer Kidd Yang Technical Supervisor Date: June 9, 2020 Intertek Report No.: SZHH01460934-001 Version: 01-November-2017 Page: 2 of 26 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-19 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-8601 6288/86-755-8601 6751 Intertek Report No.: SZHH01460934-001 Version: 01-November-2017 Page: 3 of 26 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result .......................................................................................... 4 2.0 General Description ................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Related Submittal(s) Grants .................................................................................... 7 2.3 Test Methodology .................................................................................................... 7 2.4 Test Facility ............................................................................................................ 7 3.0 System Test Configuration ...................................................................................... 8 3.1 Justification ............................................................................................................. 8 3.2 EUT Exercising Software ......................................................................................... 8 3.3 Special Accessories ................................................................................................ 8 3.4 Equipment Modification ........................................................................................... 8 3.5 Measurement Uncertainty ....................................................................................... 8 3.6 Support Equipment List and Description .................................................................. 8 4.0 Emission Results ..................................................................................................... 9 4.1 Radiated Test Results ............................................................................................. 9 4.1.1 Field Strength Calculation ..................................................................................... 9 4.1.2 Radiated Emission Configuration Photograph ..................................................... 10 4.1.3 Radiated Emissions ............................................................................................ 10 4.1.4 Transmitter Spurious Emissions ......................................................................... 13 5.0 Equipment Photographs ........................................................................................ 17 6.0 Product Labelling ................................................................................................... 17 7.0 Technical Specifications ........................................................................................ 17 8.0 Instruction Manual ................................................................................................. 17 9.0 Miscellaneous Information .................................................................................... 18 9.1 Bandedge Plot ...........................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Radiated Photos Up to 1GHz (The EUT placed at the center of the turntable) Page 2 of 2 Above 1GHz (The EUT placed at the center of the turntable)
