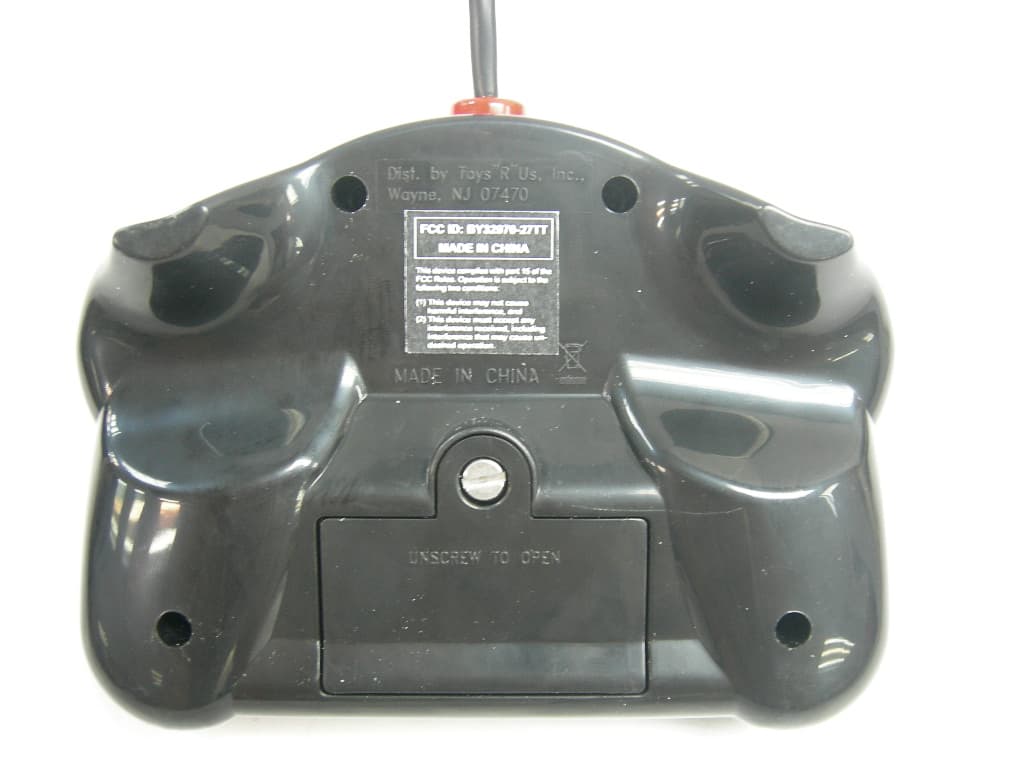

BY32970-27TT26.96-27.28 MHz WIRELESS R/C TOY-TX

ATTENTION PARENTS: IT IS RECOMMENDED THAT THIS TOY AND ALL ACCESSORIES BE PERIODICALLY EXAMINED FOR POTENTIAL HAZARDS AND THAT ANY POTENTIALLY HAZARDOUS PARTS BE REPAIRED OR REPLACED. (DIAGRAM 1) OPERATING INSTRUCTIONS: BATTERY PACK CARE / CAUTIONS: 1. If battery pack and/or connectors are wet, thoroughly dry before charging. 2. Unplug the battery pack if it is not going to be used for several days. 3. Do not charge battery pack that is hot, wet or shows signs of leakage or corrosion. 4. Do not expose to fire, as explosion may result. 5. Do not disassemble the battery pack. BATTERY INSTALLATION: THE RECHARGEABLE NI-MH BATTERY PACK IS NOT CHARGED. PLEASE CHARGE IT FOR 4 HOURS PRIOR TO USE. 1. Plug the wall pack battery charger into wall outlet. 2. Connect the battery pack and charger cables by snapping together the jack and the socket tightly. (See Diagram 1) 3. After charging for 4 hours, the battery pack will be warm. This condition is normal for fully charged batteries. If the speed of the car slows down suddenly, it is time to recharge. 4. To disconnect cables, press down on the clip and pull apart. (See Diagram 1) 5. After use, the battery pack will be hot! Wait at least 20 minutes until it cools before recharging. 6. Recharging a warm or hot battery pack will greatly shorten battery life. PERFORMANCE TIPS FOR VEHICLE • Do not drive car on grass, sand or carpet. • Do not drive car through water. • Be sure to rest your vehicle for at least 30 minutes after every 15 minutes of operation. • Make sure ON/OFF switch on your vehicle is in the “OFF” position when it is not in use. • Do not bend the antenna. • Electrical, CB interference, mobile phones, air conditioning, elevators and steel girders in buildings will affect the operation of your vehicle. • Do not leave the vehicle or transmitter near sources of heat or in direct sunlight for long periods of time. • Remove the batteries from the vehicle and transmitter when they are not in use. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. TRANSMITTER: 1. Unscrew to open the battery cover at the back and install a 9V battery by matching the + and – signs as indicated in the battery compartment. (See Diagram 4) 2. Replace the battery cover and tighten the screw to secure the battery cover. SIZE: 390MM X 241MM PN#65-4757-000-0100 INCLUDED Do not mix old and new batteries. Do not mix alkaline, standard(carbon-zinc), or rechargeable batteries. FAST LANE is a mark of Geoffrey, LLC, a subsidiary of Toys“R”Us, Inc. © 2010 Geoff rey, LLC Made in China Distributed in the United States by Toys“R”Us, Inc., Wayne, NJ07470 Distributed in Australia by Toys“R”Us (Australia) Pty Ltd., Regents Park NSW 2143 www.toysrus.com ITEM #99937 O.I. NO. 4757 CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963. Part of the “R” US Family of Brands. VEHICLE: A. Make sure the “ON/OFF” switch at the underside of the vehicle is at the “OFF” position. (See Diagram 2) B. Unscrew to open the battery cover. (See Diagram 2) C. Plug the jack of the 9.6 rechargeable battery pack into the socket of the battery compartment, and put the battery pack inside properly. (See Diagram 3) D. Replace the battery cover and tighten the screw to secure the battery cover. FORWARD FORWARDFORWARD BACKWARDBACKWARD DRIVING CONTROL STICK DRIVING CONTROL STICK (DIAGRAM 7) (DIAGRAM 8) REVERSE FORWARDBACKWARD RIGHT LEFT FORWARDBACKWARD STOP (DIAGRAM 11) (DIAGRAM 12) (DIAGRAM 13) DRIVING CONTROL STICK DRIVING CONTROL STICK STEERING OPERATION 5. Push only the Left Driving Control Stick forward to turn Right. (See Diagram 9) 6. Push only the Right Driving Control Stick forward to turn Left. (See Diagram 10) FORWARD RIGHT LEFT FORWARD (DIAGRAM 9) (DIAGRAM 10) DRIVING CONTROL STICK DRIVING CONTROL STICK 360 DEGREE SPINS 7. Push the Left Driving Control Stick forward while pulling the Right Driving Control Stick backward at the same time. (See Diagram 11) 8. Push the Right Driving Control Stick forward while pulling the Left Driving Control Stick backward at the same time. (See Diagram 12) STOP OPERATION 9. Release both Driving Control Sticks, the vehicle will Stop. (See Diagram 13) (DIAGRAM 4) (DIAGRAM 2) UNSCREW TO OPEN (DIAGRAM 3) PRESS HERE WHEN OPENING 9.6V RECHARGEABLE BATTERY PACK PRESS HERE WHEN OPENING BATTERY CHARGER 9.6V Ni-MH BATTERY PACK HOW TO PLAY 1. Build up the antenna by passing the cable through the antenna tube provided and plug into the vehicle tightly. Otherwise, the vehicle will not work. (See Diagram 5) 2. Push the ON/OFF switch to the “ON” po…
