BY33104-24GRR/C VEHICLE

RL RLRL © 2015 SCIENTIFIC TOYS LTD. 1108, TOWER B, 14 SCIENCE MUSEUM ROAD, TSIMSHATSUI, HONG KONG. PRINTED IN CHINA O.I. NO.5874 INSTRUCTION MANUAL ATTENTION PARENTS It is recommended that this toy and all accessories be periodically examined for potential hazards and that any potentially hazardous parts be repaired or replaced. IMPORTANT: Please note the vehicle uses a 9.6V Rechargeable Battery Pack and the Battery Pack is charged by a Charger . BATTERY LOADING (The rechargeable battery pack is not charged, please charge it for 2 hours prior to use) 1. Plug the wall pack battery charger into wall outlet. (See Diagram 1) 2. Click the battery pack into the charger. Make certain the battery pack is secure in charger. 3. To disconnect, push the button of the charger (See Diagram 1) and simultaneously slide battery pack out. 4. You should charge the battery pack for 2 hours. 5. If the speed of the car slows down suddenly, it is time to recharge. 6. After use, the battery pack will be hot! Wait at least 20 minutes until it cools before recharging. Recharging a warm or hot battery pack will greatly shorten the battery life. 7. The toy must be used with the recommended transformer. 8. The transformer is not a toy. SIZE: 210 X 297MM PN#65-5874-000-0100 DIAGRAM #2 HOW TO PLAY START TO PLAY PAIRING TRANSMITTER WITH VEHICLE 1. Turn ON the vehicle (See diagram #5). 2. Install 2 x AA battery in the transmitter, the pairing LED light on the transmitter will flash (See diagram #4). 3. If pairing success, the pairing LED light will turn OFF 4. You must pairing the transmitter with the vehicle within 45 seconds, after 45 seconds you must push the control on the transmitter to pair again. 5. You must repeat pairing again when the transmitter needs to replace new batteries. HOW TO INSTALL BATTERY IN TRANSMITTER 1. Unscrew to open the battery lid. Insert a new 2 x AA batteries. (See diagram #4). 2. Replace battery cover. Note: Remove battery after you have finished using your vehicle. BATTERY INSTALLATION HOW TO INSTALL BATTERY IN VEHICLE 1. Make sure the “ON/OFF” switch at the underside of the vehicle is at the “OFF” position. (See Diagram #2) 2. Unscrew to open battery cover.(See Diagram #2) 3. Place the 9.6V battery pack inside securely and replace the battery cover. (See Diagram #3) 4. Replace the battery cover and tighten the screw to secure the battery cover. ON/OFF switch Unscrew to open DIAGRAM #1 Battery Charger 9.6V battery pack DIAGRAM #6 6. Operate the vehicle with the transmitter. (See Diagram #6) 7. After playing, slide the ON/OFF switch to the "OFF" position of the vehicle. FRONT WHEELS STEERING ADJUSTMENT 8. If the vehicle does not run straight forward, adjust the Steering Alignment Lever on the underside of the vehicle. (See Diagram #7) 9. If the vehicle runs towards left, turn Steering Alignment Lever towards "R". 10. If the vehicle runs towards right, turn Steering Alignment Lever towards "L". Press button on side of charger To release the battery pack Wall outlet DIAGRAM #4 Unscrew to open the battery cover 2 x AA batteries LED DIAGRAM #5 DIAGRAM #7 BATTERY CAUTIONS 1. Do not charge non-rechargeable batteries. 2. Remove rechargeable batteries from the toy before recharging. 3. Rechargeable batteries are to be recharged under adult supervision. 4. Different types of batteries, new and used batteries are not to be mixed. 5. Only batteries of the same or equivalent type as recommended are to be used. 6. Batteries are to be inserted with the correct polarity. 7. Exhausted batteries are to be removed from the toy. 8. The supply terminals are not to be short-circuited. 9. The transformer is not a toy. 10. The toy must be used with the recommended transformer. 11. This toy is not intended for children under 3 years old. 12. Do not charge battery pack that is hot, wet or shows leakage or corrosion. 13. The battery pack may explode if disposed of in fire. 14. Do not disassemble the battery pack. 15. If the battery pack and connectors are wet, thoroughly dry before charging. 16. Overcharging can damage the battery pack. Charge according to recommended time. 17. This toy and all accessories must be periodically examined for potential hazards, and that potentially hazardous parts must be repaired and replaced before use. WARNING: CHOKING HAZARD - SMALL PARTS, NOT FOR CHILDREN UNDER 3 YEARS. FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that you stop using your equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ON DIAGRAM #3 9.6…

Text truncated - open the document above for the full version.

May 7, 2015

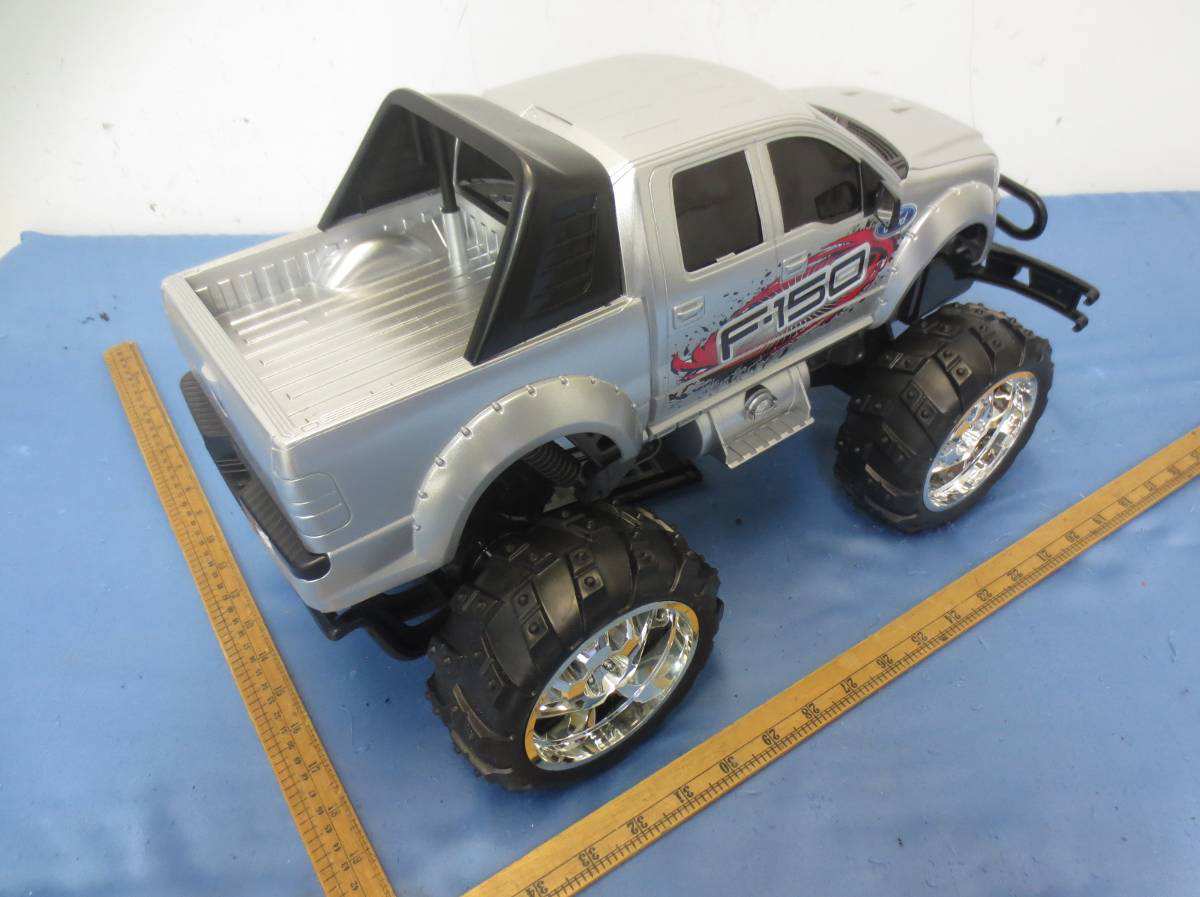

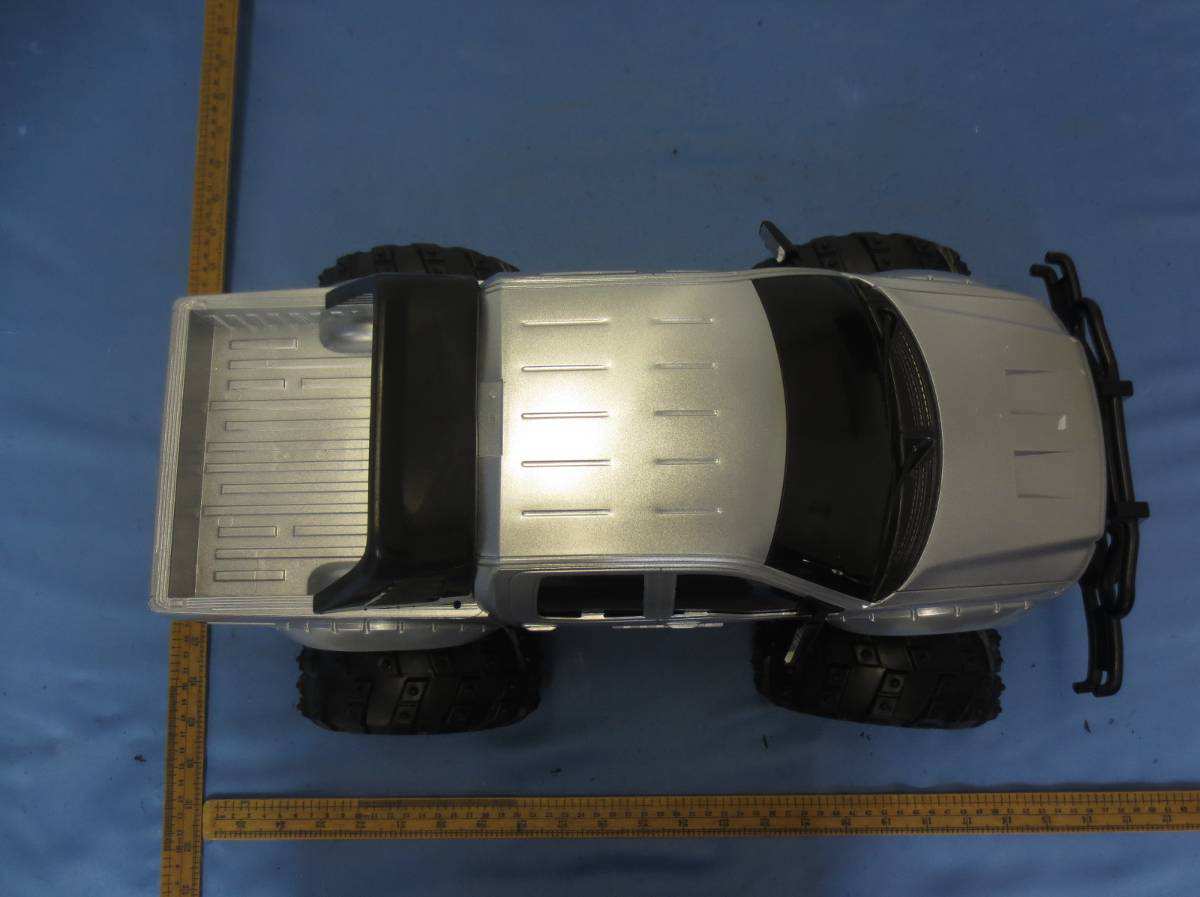

External Photos

Internal Photos

1 INTERTEK TESTING SERVICES RF Exposure The Equipment under Test (EUT) is a Car unit for R/C VEHICLE model: BY33104-24GR operating at 2.4GHz band. It is powered by 1 x DC 9.6V rechargeable battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: -15.0dBm (tolerance: +/- 3dB). The normal conducted output power is -1 5.0 dBm (tolerance: +/- 3dB). M od ulation Type: GFSK. According to the KDB 447498: The Maximum peak radiated emission for the EUT is 80.5dB μV/m at 3m in t he frequency 2480MHz and 2440MHz The EIRP = [(FS*D) ^2 / 30] mW = -14.73dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 79.0dB μV/m at 3m in t he frequency 2402MHz The EIRP = [(FS*D) ^2 / 30] mW = -16.23dBm which is within the production variation. The maximum conducted output power specified is -12d Bm = 0.063mW The source- based time-averaging conducted output power = 0.063* Duty cycle mW <0.063 mW(Duty cycle <100%) The SAR Exclusion Threshold Level: = 3 .0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 14.9565ms Effective period of the cycle = 2.5507ms DC = 2.5507ms / 14.9565ms = 0.1705 or 17.05% FCC ID: BY33104-24GR

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com SCIENTIFIC TOYS LTD Application For Certification FCC ID: BY33104-24GR R/C Vehicle Model: BY33104-24GR Additional models: See Page 2 & 3 2.4GHz Transmitter Report No.: SZHH00960433-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-13] Prepared and Checked by: Approved by: Sign on file Terry Tang Engineer Andy Yan Senior Project Engineer Date: June 12, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: BY33104-24GR Report No.: SZHH00960433-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality Request EXHIBIT 10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: BY33104-24GR Report No.: SZHH00960433-001 ii MEASUREMENT/TECHNICAL REPORT SCIENTIFIC TOYS LTD Model: BY33104-24GR FCC ID: BY33104-24GR This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0629 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_b FCC ID: BY33104-24GR Report No.: SZHH00960433-001 iii Table of Contents 1.0 General Description ............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 3 1.3 Test Methodology ............................................................................................... 2 1.4 Test Facility ........................................................................................................ 2 2.0 System Test Configuration ................................................................................. 6 2.1 Justification ........................................................................................................ 6 2.2 EUT Exercising Software .................................................................................... 4 2.3 Special Accessories ........................................................................................... 6 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 4 3.0 Emission Results ................................................................................................ 8 3.1Radiated Test Results............................................................................7 3.1.1 Field Strength Calculation ................................................................................ 9 3.1.2 Radiated Emission Configuration Photograph .................................................. 8 3.1.3 Radiated Emissions ......................................................................................... 8 3.1.4 Transmitter Spurious Emissions (Radiated)............................................ 10 4.0 Equipment Photographs ................................................................................... 15 5.0 Product Labelling .............................................................................................. 17 6.0 Technical Specifications ................................................................................... 19 7.0 Instruction Manual .................................................................…
