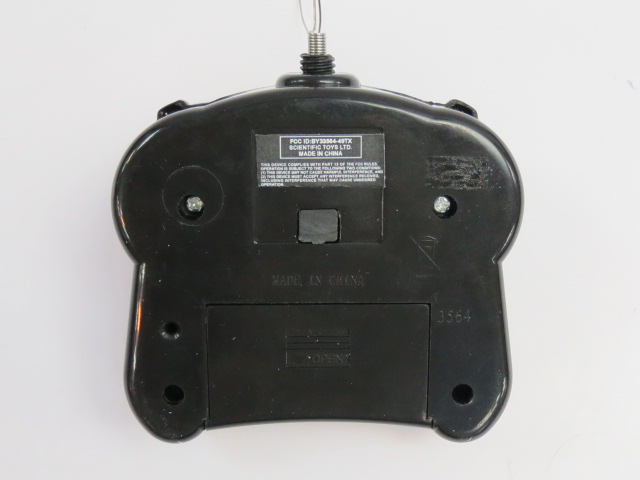

BY33564-49TX49.82-49.90 MHz WIRELESS REMOTE CONTROL TOY - TX

OPERATING INSTRUCTIONS: Remember to take out all batteries from Tarantula and transmitter after playing. 1. Do not mix old and new batteries. 2. Do not mix alkaline, standard (Carbon-Zinc), or rechargeable batteries. BATTERY INSTALLATION (FOR MAXIMUM PERFORMANCE, ONLY USE ALKALINE BATTERIES) SPIDER 1. Make sure the ON/OFF switch of the Tarantula is at the OFF position (See Diagram 1) 2. Unscrew to open the battery cover (See Diagram 1) 3. Insert batteries by matching (+) and (–) sign as indicated in the battery compartment (See Diagram 2) 4. Replace the battery cover and screw tightly. WARNING: CHOKING HAZARD- Small parts, Not for chidren under 3 years HOW TO PLAY START TO PLAY 1. Push the ON/OFF switch to the "ON" position of the spider (See Diagram 4) TRANSMITTER 1. Slide the battery cover and install a 9'V' battery by matching (+) and (–) sign as indicated in the battery compartment. (See Diagram 3). 2. Replace the battery cover. FORWARD RUNNING 2. Push both the Driving Control Sticks forward for forward motion. (See Diagram 5) REVERSE RUNNING 3. Pull both the Driving Control Sticks backward for reverse motion. (See Diagram 6) 360 DEGREE SPINS 4. Push the Right Driving Control Stick forward while pulling the Left Driving Control Stick backward at the same time. (See Diagram 7) 5. Push the Left Driving Control Stick forward while pulling the Right Driving Control Stick backward at the same time. (See Diagram 8) STEERING OPERATION 6. Push only the Left Driving Control Stick forward to turn Right. (See Diagram 9) 7. Push only the Right Driving Control Stick forward to turn Left. (See Diagram 10) STEERING OPERATION 8. Pull only the Right Driving Control Stick backward to turn Right. (See Diagram 11) 9. Pull only the Left Driving Control Stick backward to turn Left. (See Diagram 12) STOP OPERATION 10. Release both Driving Control Sticks, the Tarantula will Stop. PERFORMANCE TIPS: - Don't drive in grass, sand or carpet. - Don't go through water. - Use fresh alkaline batteries. - Be sure to rest your spider for at least 30 minutes after every 15 minutes of operation. - Make sure ON/OFF switch on your spider is OFF when not in use. - Don't bend antenna. - Electrical, CB interference, mobile phones, air conditioning, elevators and steel girders in building will affect the operation of your spider. - Don't leave the spider or transmitter near sources of heat or under direct sunlight for long periods of time. - Remove the batteries from the spider and transmitter when not in use. BATTERY CAUTIONS 1. For maximum performance, use alkaline batteries. 2. Do not mix old and new batteries. 3. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries. 4. Do not recharge non-rechargeable battery. 5. Ensure batteries are inserted with the correct polarity. 6. Remove batteries when toy is not in use. 7. Remove exhausted batteries from toy and dispose of in accordance with the makers recommendation. 8. Rechargeable batteries should only be charged under adult supervision. 9. Remove rechargeable batteries from toy before charging. 10. The supply terminals are not to be short-circuited. 11. The antenna wires are not to be inserted into socket outlet. NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE, DUE TO SMALL PARTS. FCC NOTE: THE ANTENNA PROVIDED IS A UNIQUE ANTENNA. BY INSTALLATION OF UNAUTHORIZED ANTENNA TO THIS EQUIPMENT. SUCH UNAUTHORIZED INSTALLATION COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. ATTENTION PARENTS: IT IS RECOMMENDED THAT THIS TOY AND ALL ACCESSORIES BE PERIODICALLY EXAMINED FOR POTENTIAL HAZARDS AND THAT ANY POTENTIALLY HAZARDOUS PARTS BE REPAIRED OR REPLACED. 4 x ‘AAA/LR03’ SIZE BATTERY O.I. NO. 5267

Scientific Toys Ltd. Model: 92150 REPORT NO.: GKK201204260A PAGE 1 OF 14 PART 15.235 & RSS-310 ISSUE 3 Test Report Applicant Scientific Toys Ltd. Address Rm. 1108, 11/F., Block B, New Mandarin Plaza, 14 Science Museum Road, TST East, Kowloon, Hong Kong FCC ID Number FCC ID: BY33564-49TX Brand Name None Model Number(s) 92150 Product Description 49.82-49.90 MHz Wireless Remote Control Toy - TX Operating Frequency 49.860 MHz Rules/Standards Part 15.235 of the FCC Rules, RSS-310 Issue 3 and RSS-Gen Issue 3 of the Industry Canada Received Date 26th April, 2012 Tested Date 26th April, 2012 Approved by Dick Chan (Director of Gakkiku) Tested by Lahm Peng (Engineer of SEM.Test) Signed by Jandy So (Manager of SEM.Test) Report Number GKK201204260A Test Results PASSED FAILED Gakkiku Technology Company Flat B, 5/F., Selwyn Factory Building, No. 404 Kwun Tong Road, Kwun Tong, Kowloon, Hong Kong Tel: (852) 8113 2281 Fax: (852) 2797 0192 E-mail: [email protected] Scientific Toys Ltd. Model: 92150 REPORT NO.: GKK201204260A PAGE 2 OF 14 PART 15.235 & RSS-310 ISSUE 3 GENERAL The report is written by Gakkiku Technology Company. The tested device complies with the general approval requirements of the FCC Rules and the Industry Canada as identified in this test report. TEST LOCATION The tested device was tested at the test site of the SEM.Test Compliance Service Co., Ltd., 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, 518101, Guangdong, China. The FCC Recognized 2.948 Listed Test Firm Registration Number is 994117. The Industry Canada IC OATS Filing Number/Assigned Code is 7673A. Scientific Toys Ltd. Model: 92150 REPORT NO.: GKK201204260A PAGE 3 OF 14 PART 15.235 & RSS-310 ISSUE 3 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................................... 4 1.4 TEST METHODOLOGY ............................................................................................................................................. 5 1.5 EUT EXERCISE SOFTWARE .................................................................................................................................... 5 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS ....................................................................................................... 5 1.7 EUT CABLE LIST AND DETAILS ............................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. PART 15.203 - ANTENNA REQUIREMENT ........................................................................................................ 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. PART 15.205, 15.209, 15.235 & RSS-310 ISSUE 3 §3.8 - RADIATED EMISSION ............................................ 8 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................................. 8 4.2 STANDARD APPLICABLE ......................................................................................................................................... 8 4.3 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 8 4.4 TEST PROCEDURE ................................................................................................................................................... 9 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION .............................................................................................. 9 4.6 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 4.7 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 5. PART 15.235(B) - OUT OF BAND EMISSIONS ................................................................................................. 12 5.1 STANDARD APPLICABLE ....................................................................................................................................... 12 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 12 5.3 TEST PROCEDURE ................................................................................................................................................. 12 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 Scientific Toys Ltd. Model: 92150 REPORT NO.: GKK201204260A PAGE 4 OF 14 PART 15.235 & RSS-310 ISSUE 3 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Scie…
