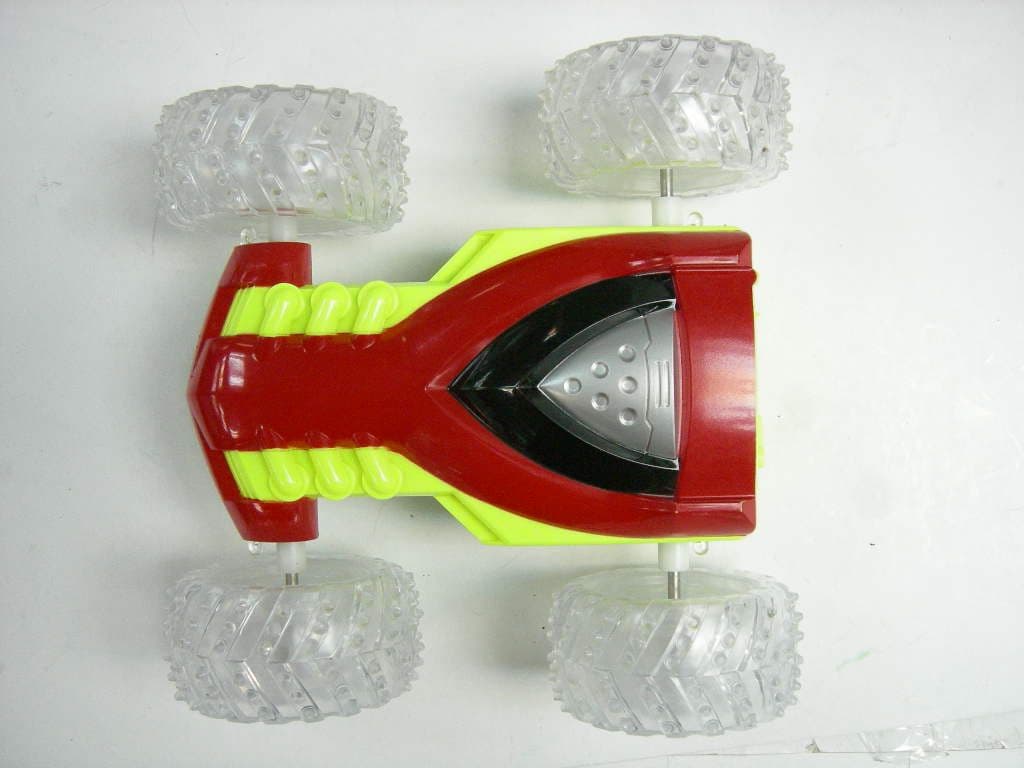

BY34547-49PP49.82-49.90 MHz WIRELESS R/C TOY-RX

FCC PART 15 B SUBPART B RECEIVER TEST REPORT Applicant SCIENTIFIC TOYS, LTD. Address RM.1108, 11/F., BLOCK B, NEW MANDARIN PLAZA 14 SCIENCE MUSEUM ROAD TST EAST KOWLOON HONG KONG FCC ID BY34547-49PP Product Description 49 MHZ REMOTE CONTROL RECEIVER Date Sample Received 6/20/2011 Date Tested 6/23/2011 Tested By Nam Nguyen Approved By Mario de Aranzeta Report Number 1363HT11TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: SCIENTIFIC TOYS, LTD. FCC ID: BY34547-49PP REPORT: S\SCIENTIF\1363HT11\1363HT11TestReport.doc Page 2 of 10 rev 2 mdea 09.20.2008 TABLE OF CONTENTS GENERAL REMARKS ........................................................................................................................... 3 REPORT SUMMARY............................................................................................................................. 4 TEST ENVIRONMENT .......................................................................................................................... 4 TEST SETUP SUMMARY ...................................................................................................................... 4 DUT SPECIFICATION .......................................................................................................................... 5 TEST EQUIPMENT LIST ...................................................................................................................... 6 TEST PROCEDURES ........................................................................................................................... 7 RADIATED SPURIOUS EMISSIONS ..................................................................................................... 8 POWER LINE CONDUCTED INTERFERENCE ..................................................................................... 9 RADIATED EMISSIONS TEST SETUP PHOTO ................................................................................... 10 APPLICANT: SCIENTIFIC TOYS, LTD. FCC ID: BY34547-49PP REPORT: S\SCIENTIF\1363HT11\1363HT11TestReport.doc Page 3 of 10 rev 2 mdea 09.20.2008 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: June/23/2011 APPLICANT: SCIENTIFIC TOYS, LTD. FCC ID: BY34547-49PP REPORT: S\SCIENTIF\1363HT11\1363HT11TestReport.doc Page 4 of 10 rev 2 mdea 09.20.2008 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) Pt 15.109, Pt 15.107, ANSI C63.4: 2003 Related Report None TEST ENVIRONMENT Test Facility Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition in the laboratory Temperature: 26ºC Relative humidity: 50% TEST SETUP SUMMARY Test Setup Diagram/ Description The DUT was placed on the turntable per setup per ANSI C63.4: 2003. A test set up photo is provided for clarification. Deviation from the standard/procedure No deviation Modification of DUT No modification APPLICANT: SCIENTIFIC TOYS, LTD. FCC ID: BY34547-49PP REPORT: S\SCIENTIF\1363HT11\1363HT11TestReport.doc Page 5 of 10 rev 2 mdea 09.20.2008 DUT SPECIFICATION DUT Description 49 MHZ REMOTE CONTROL RECEIVER FCC ID BY34547-49PP DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Laboratory Test Conditions Temperature: 26ºC Humidity: 55% Modifications to DUT: No Yes (explanation below) APPLICANT: SCIENTIFIC TOYS, LTD. FCC ID: BY34547-49PP REPORT: S\SCIENTIF\1363HT11\1363HT11TestReport.doc Page 6 of 10 rev 2 mdea 09.20.2008 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 3/10/10 3/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 3/23/09 3/23/12 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 6/10/09 6/10/12 Frequency Counter HP 5385A 3242A07460 CAL 5/26/09 5/26/12 Hygro- Thermometer Extech 445703 0602 CAL 1/30/09 1/30/12 Modulation Analyzer HP 8901A 3435A06868 CAL 5/26/09 5/26/12 Digital Multimeter Fluke FLUKE-77-3 79510405 CAL 5/18/09 5/18/12 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: SCIENTIFIC TOYS, LTD. FCC ID: BY34547-49PP REPORT: S\SCIENTIF\1363HT11\1363HT11TestReport.doc Page 7 of 10 rev 2 mdea 09.20.2008 TEST PROCEDURES Power line conducted Emission: The test procedure used was ANSI C63.4-2003. The spectrum was scanned from 0.15 to 30 MHz. Radiation …
