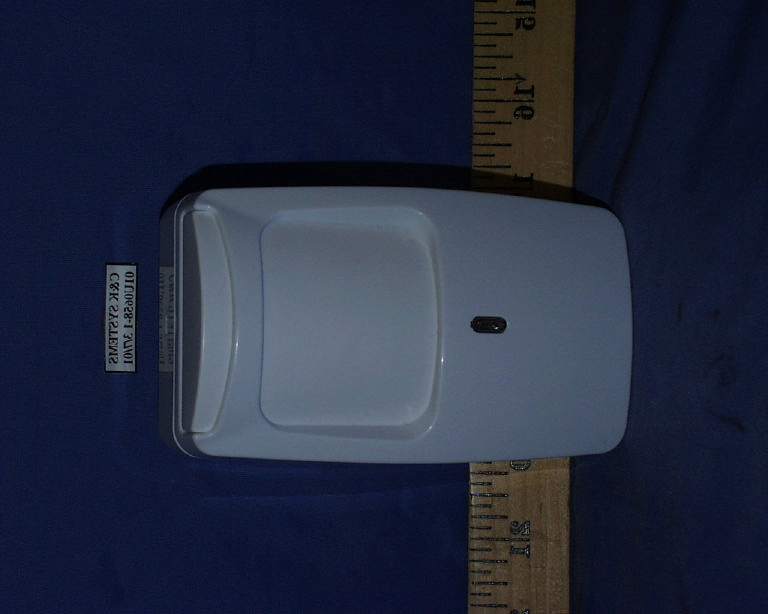

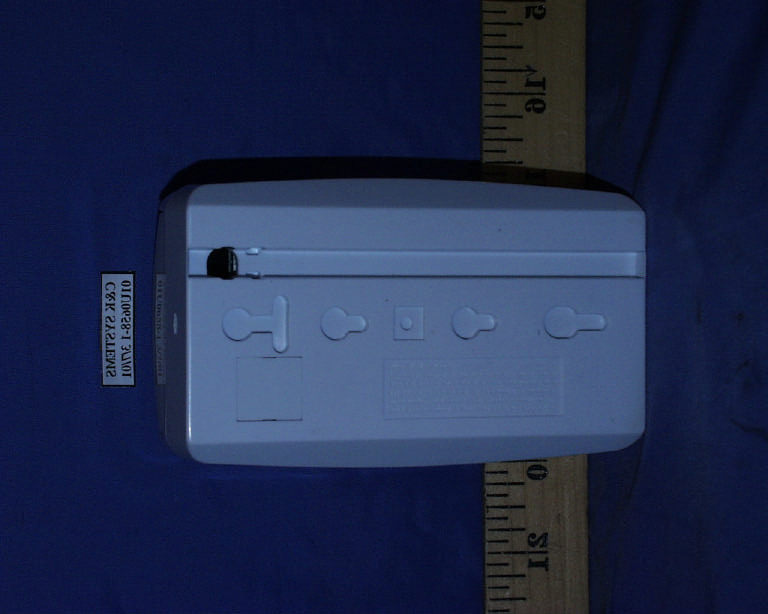

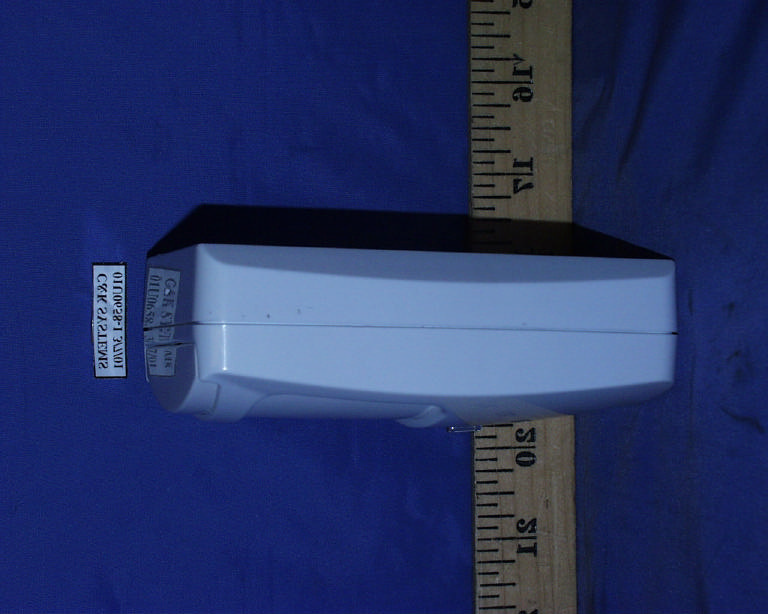

C2D7KULPMicrowave/Passive IR Monitor Detector

❶ Select the mounting location. ❹ Wire the unit. ❸ Mount the unit. ❺a Walk-test the sensor. Mounting Location Guidelines • 2.3 m (7’6”) mounting height • Avoid direct or reflected sunlight • Aim sensor away from windows or heating/ cooling devices • Sensor must have a clear line-of-sight to protected area • Use a small screwdriver to unfasten the housing latch. Gently pull apart the housings. • Push outward on the PCB latch and lift the PCB out of the housing. • Slide the wire through the wire channel in the back housing. • Mount the back housing flat against a wall or in a corner. • Replace the PCB. • Connect wires as shown using 0.3 - 1.0 mm 2 (18 to 22 gauge) wire size. Observe proper polarity. • Set Switch 3 to select the appropriate fluorescent light filter (see Dip Switch chart on the next page). • Apply power to the unit. Initialization and mask detection are complete when the LED stops flashing slowly. • Adjust the microwave range to minimum setting (25%) by turning the range adjustment counterclock- wise using a small screwdriver. • Replace the front housing. • Begin walking through the detection area. - The LED will turn red, indicating an alarm detection. • Increase the microwave range as necessary. • Repeat the items in step 5a until proper detection range is obtained. ❺b Optional: Walk-test using Zone inder • Use a screwdriver to short the test pads. • During the Zone =inder walk-test mode, the LED turns: - green for one second for every PIR detection; - yellow for two seconds for every microwave detection. • Adjust the microwave range as necessary. • Zone finder mode times out after ten minutes. Corner Mount Wire Channel Wall Mount 75% 100% 25% 50% DT-7550C DUAL TEC ® Motion Sensor Installation Instructions V+V- NC C Alarm 125 mA 25 VDC Power 40 mA 7.5-16 VDC (For UL 8.0-16 VDC) NO T T Trouble 125 mA 25 VDC Tamper 50 mA 24 VDC TBLTBL EOL Use the Zone =inder mode to identify the PIR and/or microwave pattern. In Zone =inder mode the red LED is disabled. ❷ Separate the sensor housings and remove the printed circuit board (PCB). =or improved anti-mask performance the look-down mirror is disabled. To enable look-down remove the mask. PRODUCT SPECIICATIONS Range: 15 m x 18 m (50' x 60') Alarm relay: Energized =orm C 125 mA, 25 VDC, 20 Ohm series resistor Trouble relay: De-energized =orm B (NC) 125 mA, 25 VDC Tamper switch: (NC) 50 mA, 24 VDC Power requirements: 7.5 - 16 VDC (UL 8.0 - 16 VDC) 25 mA typical, 40 mA maximum, 12 VDC AC Ripple: 3 V peak-to-peak at nominal 12 VDC Microwave frequencies: 24.125 - 24.200 GHz PIR white light immunity: 6,500 Lux typical luorescent light filter: 50 Hz or 60 Hz selectable RI immunity: 30 V/m,10 MHz - 1000 MHz Operating temperature: 0 o to +55 o C (-10 o to +112 o =) 5 - 95% relative humidity (non-condensing) Self-test intervals: Microwave Supervision Continuous PIR self-testOnce every hour Temp. Comp.Every 30 seconds PIR fields-of-view: Standard Wide Angle Lens 22 long range edges 12 intermediate edges 6 lower edges * 4 Look-down edges Dimensions: 11.9 cm H x 7.1 cm W x 4.2 cm D (4.685" H x 2.795" W x 1.654" D) Sensitivity: Standard 3 - 4 steps Intermediate 2 - 3 steps Approvals/listings: =CC Copyright 2001, IntelliSense ® All rights reserved. 5-051-642-00 Rev B DUAL TEC is a registered trademark of Honeywell International, Inc. All other trademarks are the properties of their respective owners. www.cksys.com LED INDICATORS DIP SWITCH SETTINGS (SW1) =actory default settings are shown in grey. DETECTION PATTERNS DT-7550C DUAL TEC ® Motion Sensor Product Information DT-7550C Side View Wide Angle Lens 2 3 1 ON TROUBLE SHOOTING Problem: Red LED is flashing rapidly, trouble relay is actuated. Explanation: The sensor is in one of three conditions: Microwave supervision failure: The sensor continues operating using PIR as the only detection method. When detection occurs on the PIR channel, the alarm relay will latch open until the Microwave trouble is removed. PIR self-test failure: Alarm relay does not actuate. Temperature compensation failure: When alarm occurs, the alarm relay will latch open until the trouble is cleared. Solution: Power down the sensor or enter zone finder mode which will perform self-test. If the trouble does not clear, replace the sensor. Problem: Trouble relay is actuated without red LED flashing. Explanation: Anti-mask condition is detected. Solution: Verify that the sensor is not masked or blocked. Walk through the detection pattern. Replace the sensor if it does not clear. MASK UNCTIONS The DT-7550C detects a variety of masking materials and objects. When it determines the presence of a mask, the DT-7550C sensor signals a trouble condition. Mask materials may be detected up to one foot from the sensor. A visual inspection and walk-test is recommended for all trouble signals. The sensor clears a mask condition when it detects motion on the PIR and microwave technologies. Refer to the Trouble =unction chart for sensor operation. LED Red Yellow Green Normal ON Alarm ON Microwave ON PIR Power Up Slow Blink O== O== Trouble =ast Blink O== O== Zone =inder O== ON Microwave ON PIR OPERATION MODE Switch 1 2 3 O Standard Sensitivity LED disabled 60 Hz =luorescent =ilter ON Intermediate Sensitivity LED enabled 50 Hz =luorescent =ilter POWER UP ANTI-MASK (Patent Pending) At power up, the DT-7550C looks for PIR activity. It signals the presence of a mask if the PIR does not respond when microwave activity is detected. NORMAL OPERATION The DT-7550C signals a mask condition when reflective objects are placed up to a foot in front of the sensor. =ollow the mounting guidelines as shown in Step 1. DT-7550C Top View Wall Mounted Wide Angle Lens Sensor Status Normal Self-test =ailure Mask Trouble Relay Closed Open Open LED Normal Trouble =lash Normal TROUBLE UNCTION * Look-down fingers are enabled only when the look-down mask is removed (see Step 2).
CC Notice: This equipment has been tested and found to comply with the limits for a fi…

Text truncated - open the document above for the full version.

12VDC in + - PIR Detector MW Detector Anti-Mask Detection Circuitry Primary Detection Circuitry PIR Amplifer Circuit MW Amplifer Circuit Microcontroller Tamper Switch Output Circuitry TB1 TB1 LED DT-75xx Block Diagram Alarm OutTamper Out Trouble Out TB1 Power Regulation

From: Steve Cheng Sent: Thursday, April 26, 2001 7:50 PM To: Mike Kuo; CERTADM Subject: FW: C & K SYSTEMS, INC., FCC ID:C2D7KULP, AN01T1153 Resend -----Original Message----- From: Steve Cheng Sent: Wednesday, April 25, 2001 5:33 PM To: CERTADM Subject: RE: C & K SYSTEMS, INC., FCC ID:C2D7KULP, AN01T1153 Dear Mike, Thanks very much for you to point out the issues we have in the submitted report. Below are the answers to each of the question (Answer is right below each question). -----Original Message----- From: certadm [mailto:[email protected]] Sent: None To: [email protected] Cc: [email protected] Subject: C & K SYSTEMS, INC., FCC ID:C2D7KULP, AN01T1153 Notice_content ------------- Question #1: Test report is written for FCC Class II permissive change. However, the proposed FCC ID number has not been certified by the Commissions . Please revise the test report and confirm the application is intended for Original Application. --- Yes, This report is intended for Original Application. And we already revise the report to reflect this factor. Question #2: Several emission plots were provided with this application. They are ( Pulse repition rate ), (Transmission period plots) and ( output power measurement). Please explain the purpose of these data in relation to FCC technical requirements. --- The extra plots is intended to be use for Pulse signal duty cycle correction purpose, but since the original data already passed the limit, we decided not to claim for this extra relieve and the attached data plots is for your reference only. Question #3: Page 7 of test report, please indicate the detector function used. --- The detector function used is peak detector with RBW=1M and VBW=1M as specified on page 5. Question #4: Please provide spectrum plots to demonstrate 15.245(b)(3) compliance. --- According to 15.245(b)(3), emissions radiated outside of the specified bands, except for harmonics, shall be attenuated by at least 50dB below the level of the fundamental or to the general radiated emission limits in 15.209 whichever is the lesser attenuation. Because of the high frequency nature, the noise floor is quit high compare to the low level fundamental and 50 dBc dynamic range is not able to be maintained with our test setup. Hence we decided to measure the field strength and compared it to 15.209 instead of compare to -50dBc spec. The test result from 30M to 2G was reported in attached file "radiated emissions.PDF" and frequency from 2G to 100 G had been manual checked and only the fundamental emission was founded and recorded in page 7. As mentioned above, we did this part by radiated method( not direct conducted measurement method), so there is no plot we can show you. However, from the tabulated data attached we believe you shall have enough information to prove the compliance. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can cont inue on the above referenced application. Failure to provide the reques ted information within 60 days of the original e-mail date may result i n application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence shoul d be directed to the e-mail address listed below the name of the sender .

PROPOSED FCC ID LABEL AND LOCATION C & K SYSTEMS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: C2D7KuLP FCC ID LABEL LOCATION

Description of Operation Model: DT-7550C Variant Models: DT-7450C, DT-7450, DT-7435C, DT-7435, and DT-7425. DT-7500 The DT-7500 series intrusion detection units are motion detection devices which incorporate both Microwave & Passive Infrared detection technologies to sense volumetric motion within a given area. The design is microprocessor based. Functions supported by the microprocessor include Anti-Mask/Anti-Sabotage, Queue Event Logic, Diagnostics, Selectable Sensitivity, Single-Tec Operation, Digital Microwave Interference Filter, Digital Adaptive Microwave Threshold, Adaptive baselines, and “True Temperature Compensation”. The design exhibits exceptional catch performance and false alarm immunity. Overview The Microwave detection transceiver device operates in the “K” band (24.125 or 24.200 GHz). Motion is sensed when the frequency of the reflected return signal, within the volumetric area of view, is different from that of the transmitted waveform. Internal filtering components are included to reject / ignore reflected frequency changes above 500Hz. Range adjustment is provided via potentiometer R8, the Microwave detection pattern increases when adjusted clockwise. Passive Infrared detection occurs when the pyroelectric detector circuitry senses a change in temperature of a target versus background within the optical field of view. Temperature compensation circuitry is provided to vary the sensitivity of the PIR detection component, sensitivity is greatest when ambient temperature at the detector is 93° F to 95° F. PIR detection / trigger adjustment is provided via dual option pulse count control located at SW1-1. Optical resolution of the PIR detection area is viewed via a Fresnel lens. The output of the M.W. & PIR detection elements is input into a micro-controller-based signal processing circuit. Detection by either sensing technology will initiate a timer at the signal processing circuit, if the opposite detection technology senses movement with in this detection window an alarm condition is issued. Filtering & timing parameters within the signal processing unit analyses the detection input to verify that the energy level of the detected stimulus matches the characteristics of human movement Upon alarm condition, the signal processor output de-energizes the alarm relay circuit & energizes the alarm LED indicator. A Normally Closed Tamper switch is provided to indicate separation of the Top / Front housing component from the Base / Rear (mounted) housing Component. Automatic and installer self-test functions are integrated into the micro-controller operation Anti-masking Features The DT-7500 series sensor triggers a trouble signal if covered by an object that reflects a microwave signal up to 24” from the detector. These are the technologies that make this feature work: Power-up Anti-mask The sensor checks for normal activity on both technologies following the Start-up Test Mode (110 seconds). This activity is not timed, once both technologies have been verified for normal operation, the Power-up anti-mask test is complete. If the power-up anti-mask fails the sensor activates the trouble relay. Standard Anti-mask The sensor activates the trouble relay when a mask condition is detected. A mask condition is cleared by subsequent PIR and microwave activity. Diagnostic Self Testing The DT-7500 incorporates three internal self-test functions; these self-test functions are performed at detector power-up, manually via shorting of “Installer Test” pads located below R8, and at the intervals listed below. Microwave Supervision: Monitors the MW circuit functions continuously. PIR Self-Test: Injects a transient pulse into the PIR circuit to verify the amplifier channel once an hour. Temperature: Monitors thermistor circuit “True-Temperature Compensation” function every 30 seconds. The following responses are initiated upon detection of a self-test failure Test Failure Sensor Response Microwave Supervision Failure The sensor opens the trouble relay, continues operating using PIR as the only detection method, and the RED LED flashes rapidly. When detection occurs on the PIR channel, the alarm relay will latch open until the Microwave trouble is removed. If the trouble is not cleared by an internal self-test, the unit will need to be replaced. PIR Self-test Failure The sensor opens the trouble relay and flashes RED LED rapidly. If the trouble is not cleared by an internal self-test, the unit will need to be replaced. During this failure the sensor cannot signal an alarm event. Temperature Failure The sensor will open the trouble relay and flash the RED LED rapidly. When an alarm occurs, the alarm relay will latch open until the trouble is cleared. If the trouble is not cleared by an internal self-test, the unit will need to be replaced. Control Functions Switch SW1 Sensitivity – SW1 position 1 Switch 1 Off, sets the PIR is set to low sensitivity, pulse count 2. This setting is optimized for harsh environments. When switch 1 is On, the PIR is set to high sensitivity, pulse count 1. This setting allows for optimum catch performance. LED Enable/Disable – SW1 position 2 When switch 2 is Off, the LED is completely disabled except for the following conditions: during the power-up sequence, when a diagnostic failure occurs, or during a manually initiated self-test and zone finder. That is, if the switch is off and zone finder mode is used, the LED will automatically be disabled after 10 minutes. When switch 2 is On, the LED displays sensor status. The RED LED will light for 5 seconds on every Alarm trigger; the GREEN LED will light for 1 second on every PIR trigger; and the YELLOW LED will light for 2 seconds on every Microwave trigger. A rapidly flashing RED LED indicates a self-test failure. 50 Hz / 60 Hz Fluorescent Light Filter – SW1 position 3 When switch 3 is Off, the sensor signal processing is set to reject 60 Hz fluorescent light interference. When switch 3 is On, the sensor signal processi…

Text truncated - open the document above for the full version.

3700514006.sch-1 - Mon Feb 19 15:23:57 2001

COMPLIANCE REPORT TO FCC PART 15 REQUIREMENTS for 24.125 GHz FIELD DISTURBANCE SENSOR MODEL NO: DT-7550C FCC ID: C2D7KuLP REPORT NO: 01U0658-1 JAN 31, 2001 Prepared for C & K Systems, Inc. 625 Coolidge Dr. Folsom, CA 95630 U.S.A Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. 561 F. MONTEREY ROAD, ROUTE 2 MORGAN HILL CA, 95037-9001 USA TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE.......................................................................................................1 2. MEASUREMENT STANDARDS...............................................................................................................2 3. TEST METHODOLOGY...........................................................................................................................2 4. POWERLINE RFI LIMIT.........................................................................................................................2 5. RADIATED EMISSION LIMITS..............................................................................................................2 6. GENERAL REQUIREMENTS TABLE (SECTION 15.209)....................................................................2 7. RESTRICTED BANDS OF OPERATION TABLE (SECTION 15.205)...................................................3 8. OPERATION WITHIN THE BANDS 902-928, 2435-2465, 5785-5815, 10500-10550 AND 24075-24175 MHZ.............................................................................................................................................................4 9. TEST FACILITY........................................................................................................................................4 10. MEASUREMENT EQUIPMENT..............................................................................................................4 11. INSTRUMENT SETTING..........................................................................................................................5 12. EQUIPMENT MODIFICATIONS.............................................................................................................5 13. TEST REQUIREMENT 15.245(B) FUNDAMENTAL EMISSION & (B)(1)(I) HARMONIC EMISSIONS LIMIT....................................................................................................................................6 14. TEST REQUIREMENT: 15.245(3) EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS. EXCEPT FOR THE HARMONICS....................................................................8 15. AC LINE CONDUCTED EMISSIONS......................................................................................................9 TEST DATA Attachment #1 EUT Photograph Attachment #2 Authorization Letter Attachment #3 Proposed FCC ID Label and Location Attachment #4 Application Note/ User Manual Attachment #5 Schematic Diagram Attachment #6 Theory of Operation REPORT NO: 01U0658-1 DATE: FEBRUARY 6, 2001 EUT: 24.125 GHZ FIELD DISTURBANCE SENSOR COMPLIANCE CONSULTING SERVICES DOCUMENT NO: CCSUP4007B 561F MONTEREY ROAD, MORGAN HILL, CA 95037 TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1 1. VERIFICATION OF COMPLIANCE COMPANY NAME : C & K SYSTEMS, INC. 625 COOLIDGE DR. FOLSOM, CA 95630 USA CONTECT PERSON : DAVID MAHAN / MANAGER TELEPHONE : (916) 353-5375 EUT DESCRIPTION : 24.125 GHz FIELD DISTURBANCE SENSOR MODEL NAME/NUMBER : DT-7550C FCC ID : C2D7KuLP DATE TESTED : FAB 06,2001 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 24.125 GHz FIELD DISTURBANCE SENSOR MEASUREMENT PROCEDURE ANSI 63.4 / 1992 PROCEDURE CIRTIFICATION FCC RULE CFR 47 SECTION 15.245 Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 15. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Released For CCS By: Test By: MIKE KUO STEVE CHENG VICE PRESIDENT EMC SENIOR ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0658-1 DATE: FEBRUARY 6, 2001 EUT: 24.125 GHZ FIELD DISTURBANCE SENSOR COMPLIANCE CONSULTING SERVICES DOCUMENT NO: CCSUP4007B 561F MONTEREY ROAD, MORGAN HILL, CA 95037 TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2 2. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 3. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the fifth harmonic of the highest fundamental frequency or to 100 GHz, whichever is lower. (CFR 47 Section 15.33) 4. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 Device that connect to the AC power lines directly or obtaining their power through another device which is connected to the AC power lines, shall be tested to demonstrate compliance with the conduction limit. The conducted emission within the band 450 kHz to 30 MHz shall not exceed the 250 microvolts. 5. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 OPERATION WITHIN THE BANDS 902-928 MHz, 2435-2465 MHz, 5785-5815 MHz, 10500- 10550 MHz AND 24075-24175 GHz SECTION 15.245 6. GENERAL REQUIREMENTS TABLE (SECTION 15.209) Frequency (MHz) Field strength (…
