C3D-AZ1000022Basic Gateway 2x2

1 Specifications: Specifications Wireless Standard: 802.11b/g/n Frequency Band: 2.4GHz Wireless Speed: 2.4GHz 300Mbps(Tx) Amplifiers: 2x2 MIMO Antennas: (2) 2.4GHz, (2) 4G LTE Antennas Wireless Security: WEP,WPA, WPAA2, WPA mixed Sim Card Port: Standard SIM (25mm x 15mm x .076mm) Port: (1) RJ45 10/100/1000 Power Rating: Switching, DC Input 12V,1.5A WARNINGS: • Read this manual carefully and completely before attempting to assemble, install or operate this product. Winegard® recommends the installation of this equipment be done by a professional technician. • Save these instructions. • Do not paint any portion of the Winegard Connect® Home™. Painting the system could damage the system and will void the warranty. • When first setting up the Winegard ConnecT it is recommended to check for software updates the first time the system is connected to an internet signal. It is also recommended to check for updates every couple months for fixes and added features. WINEGARD WG06-Basic Gateway 2X2 2 3 4 5 6 FCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and devices. • Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Channels 1-11 can only be operated in the 2.4GHz band. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. IC Regulatory Compliance This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Compliance This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. FCC ID: C3D-AZ1000022 Contains FCC ID:C3D-201808EC25AF Disclaimer: Although every effort has been made to ensure that the information in this manual is correct and complete, no company shall be held liable for any errors or omissions in this manual. Information provided in this manual was accurate at time of printing. If t he antenna does not function as expected, please contact Winegard Co. Winegard is a registered trademark of Winegard Company. LLC. Apple & the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play & the Google Play logo are trademarks of Google LLC. All trademarks, registered trademarks and logos are the property of their respective owners and are not affiliated with Winegard Company

Form# : 03-1 (QP-4.4-2) Print content font：Arial 12 (The product sticker printing information is as follows) (carton sticker number)Number：241-A00013-001 WGD-840FG011-BR WG06 MAIN BOARD BASIC GATEWAY 2X2 INDT PACK MYS 3962113 MADE IN MALAYSIA LAN MAC:XXXXXXXXXXXX S/N: WG06204300001 S/N S/N:WG06204300001 WG：Product name; 06Type Year Week Serial Number (Change over �me) (Change with PO) (Arial 4) FCC ID FCC ID:C3D-AZ1000022 Contains FCC ID:C3D-201808EC25AF FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location: please see external photo on page 4.

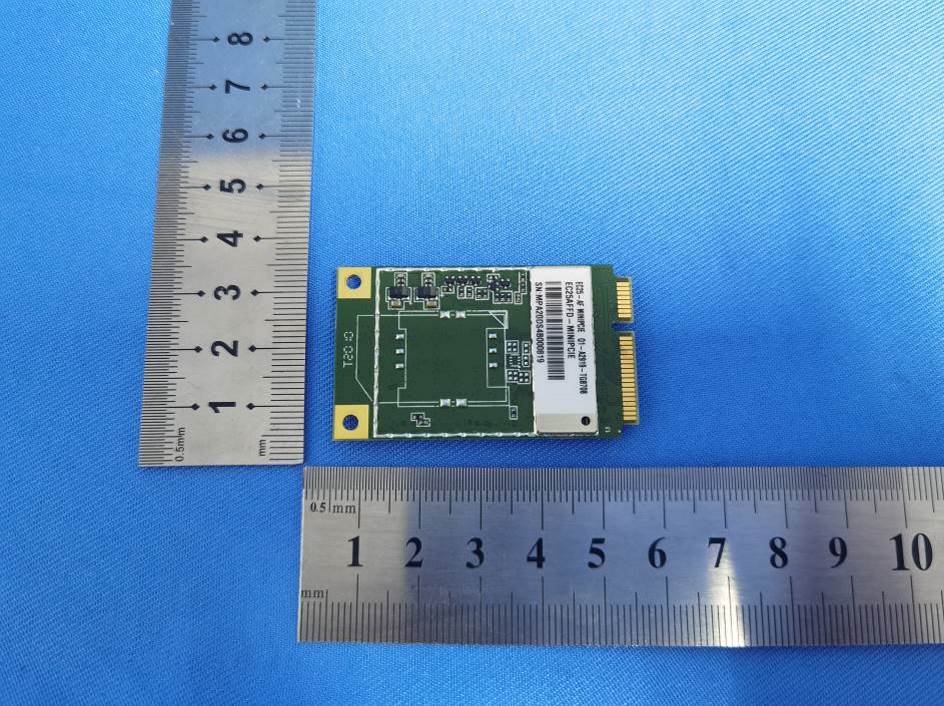

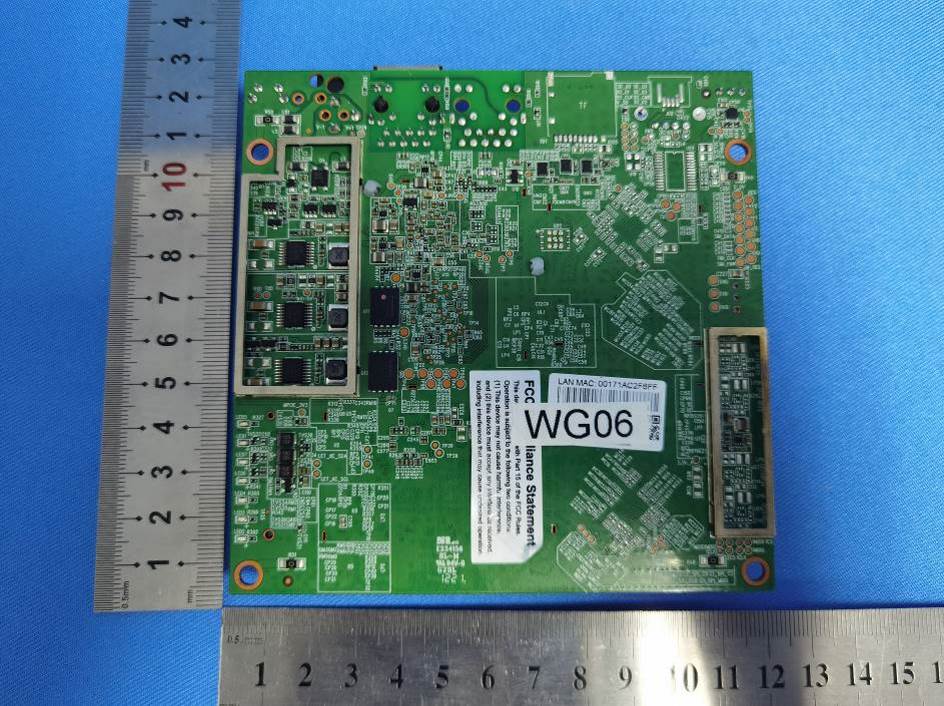

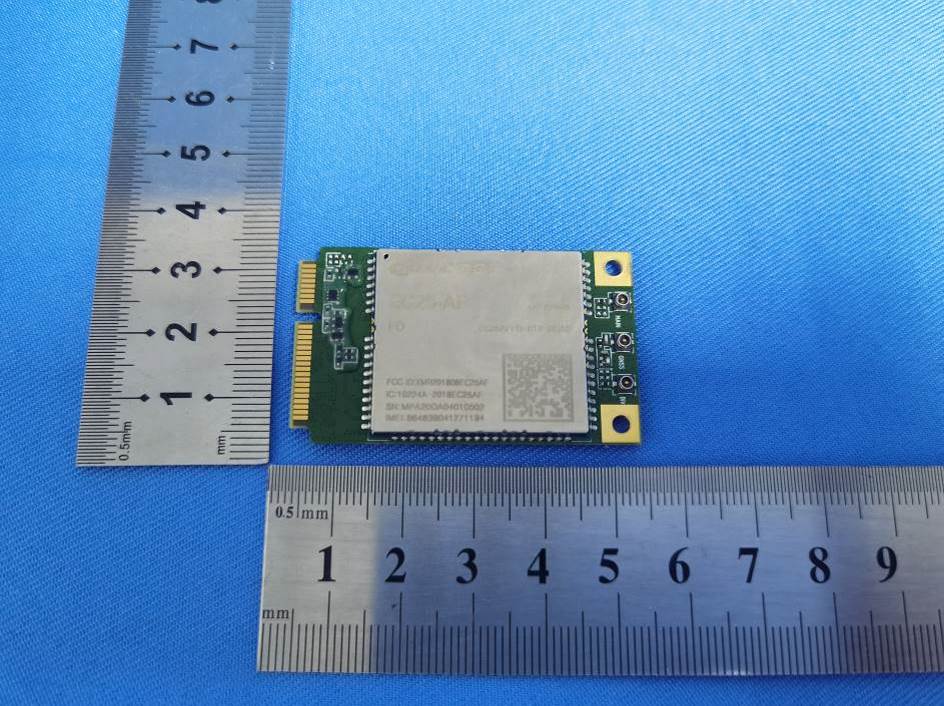

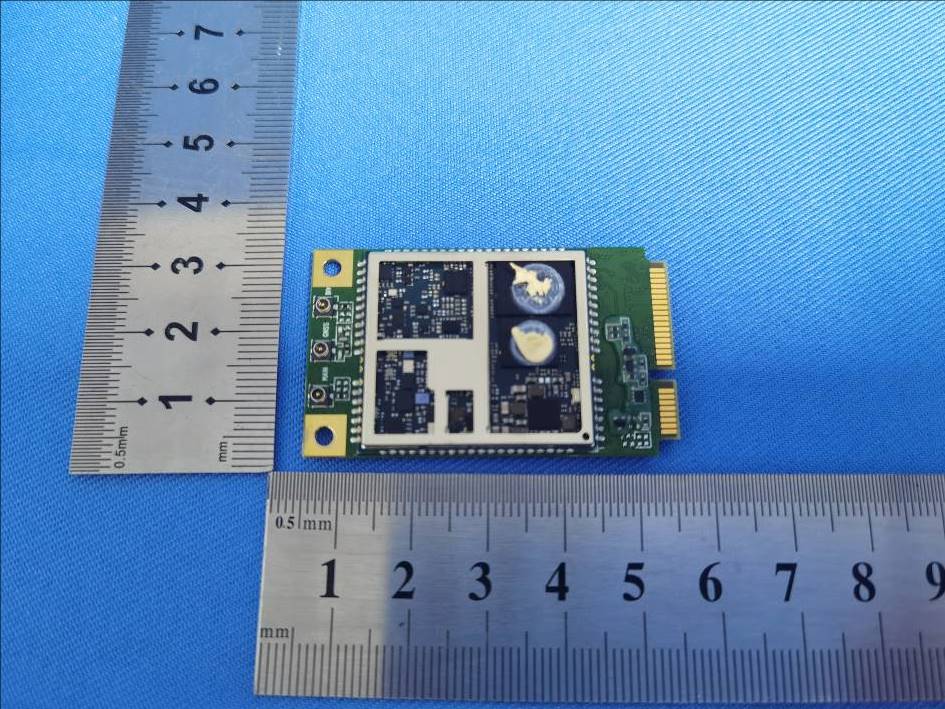

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 5 Internal Photos for SZCR2105021212AT FCC ID:C3D-AZ1000022 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 5 1 EUT Constructional Details Test Model No.: WG06 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 5 WiFi Antenna1 WiFi Antenna2 WCDMA/LTE Antenna1 WCDMA/LTE Antenna2 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 5

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121203 Page: 1 of 8 Keny Xu EMC Laboratory Manager RF Exposure Evaluation Report Application No.: SZCR2105021212AT Applicant: Winegard Company Address of Applicant: 3000 Kirkwood Street, Burlington, Iowa, 52601 United States Manufacturer: Winegard Company Address of Manufacturer: 3000 Kirkwood Street, Burlington, IA 52601, USA Factory: 1. Aztech Communication Device (DG) Ltd. 2. IOT Manufacturing SDN.BHD Address of Factory: 1. Jiu Jiang Shui Village Chang Ping Town, Dong Guan City Guang Dong Province, China 2. No,8&10, Setia Business Park, Jalan Laman Setia 7/4, Taman Laman Setia, 81550 Gelang Patah, Johor Bahru, Malaysia Equipment Under Test (EUT): EUT Name: Basic Gateway 2x2 Model No.: WG06 Trade Mark: Winegard FCC ID: C3D-AZ1000022 Standards: 47 CFR Part 1.1307 47 CFR Part 1.1310 47 CFR Part 2.1091 Date of Receipt: 2021-05-26 Date of Test: 2021-05-26 to 2021-06-15 Date of Issue: 2021-06-16 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121203 Page: 2 of 8 1 Version Revision Record Version Chapter Date Modifier Remark 01 2021-06-16 Original Authorized for issue by: Edison Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121203 Page: 3 of 8 2 Contents Page 1 VERSION ................................................................................................................................................ 2 2 CONTENTS ............................................................................................................................................ 3 3 GENERAL INFORMATION ..................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................................. 4 3.2 DETAILS OF WCDMA/LTE MODULE*: ...................................................................................................... 4 3.3 TEST LOCATION .................................................................................................................................... 5 3.4 TEST FACILITY ...................................................................................................................................... 5 3.5 DEVIATION FROM STANDARDS ................................................................................................................. 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................ 5 3.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 5 4 RF EXPOSURE EVALUATION ............................................................................................................... 6 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................................. 6 4.1.1 Limits .......................................................................................................................................... 6 4.1.2 Test Procedure ........................................................................................................................... 6 4.1.3 EUT RF EXPOSURE EVALUATION ........................................................................................................... 7 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121203 Page: 4 of 8 3 General Information 3.1 General Description of EUT Power supply: DC 12V Type of Modulation: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11n (HT20/HT40): OFDM (64QAM, 16QAM, QPSK, BPSK) Operating Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Channel Number: 802.11b/g/11n(HT20): 11 Channels 802.11n(HT40): 7 Channels Channels Step: Channels with 5MHz step Sample Type: Fixed devices Antenna Type: PCB antenna Antenna Gain: Antenna1/Antenna2/Antenna3: 3.2dBi Note: MIMO for 802.11n 3.2 Details of WCDMA/LTE module*: Operation Frequency Band: WCDMA Band II,IV,V; LTE FDD Band 2,4,5,12,13,14,66,71 Modulation Type: WCDMA: QPSK LTE: QPSK, 16QAM HSDPA UE Category: 24 HSUPA UE Category: 6 LTE Category: 4 Antenna Type: PCB Antenna Antenna Ports: Tx & Rx Port 1 Rx-only Port 1 Antenna Gain: 2dBi *: The WCDMA/LTE single module approval by TCB(FCC ID:C3D-201808EC25AF), Grant at 05/18/2021. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121203 Page: 5 of 8 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 1 of 155 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZCR2105021212AT Applicant: Winegard Company Address of Applicant: 3000 Kirkwood Street, Burlington, Iowa, 52601 United States Manufacturer: Winegard Company Address of Manufacturer: 3000 Kirkwood Street, Burlington, IA 52601, USA Factory: 1. Aztech Communication Device (DG) Ltd. 2. IOT Manufacturing SDN.BHD Address of Factory: 1. Jiu Jiang Shui Village Chang Ping Town, Dong Guan City Guang Dong Province, China 2. No,8&10, Setia Business Park, Jalan Laman Setia 7/4, Taman Laman Setia, 81550 Gelang Patah, Johor Bahru, Malaysia Equipment Under Test (EUT): EUT Name: Basic Gateway 2x2 Model No.: WG06 Trade Mark: Winegard FCC ID: C3D-AZ1000022 Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2021-05-26 Date of Test: 2021-05-26 to 2021-06-15 Date of Issue: 2021-06-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 2 of 155 Revision Record Version Chapter Date Modifier Remark 01 2021-06-16 Original Authorized for issue by: Edison Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 3 of 155 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 4 of 155 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 6 4.1 DETAILS OF E.U.T. ......................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY ......................................................................................................... 6 4.4 TEST LOCATION ............................................................................................................................. 7 4.5 TEST FACILITY ............................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ......................................................................................................... 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 7 5 EQUIPMENT LIST ............................................................................................................................... 8 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................10 6.1 ANTENNA REQUIREMENT ................................................................................................................10 6.1.1 Test Requirement: ..................................................................................................................10 7 RADIO SPECTRUM MATTER TEST RESULTS .................................................................................11 7.1 CONDUCTED PEAK OUTPUT POWER ................................................................................................11 7.1.1 E.U.T. Operation .....................................................................................................................11 7.1.2 Test Mode Description ............................................................................................................11 7.1.3 Test Setup Diagram ................................................................................................................11 7.1.4 Measurement Procedure and Data .........................................................................................12 7.2 MINIMUM 6DB BANDWIDTH .............................................................................................................13 7.2.1 E.U.T. Operation .....................................................................................................................13 7.2.2 Test Mode Description ..............................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 105 of 155 3. Maximum Conducted Output Power 3.1 Power 3.1.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos Power Setting Measured Peak Output Power (dBm) Limit (dBm) Verdict Ant1 Ant2 Sum 802.11b SISO 2412 / / 21 22.50 22.95 / <=30 Pass 2437 / / 21 19.39 20.07 / <=30 Pass 2462 / / 21 20.59 20.26 / <=30 Pass 802.11g SISO 2412 / / 25 23.48 23.85 / <=30 Pass 2437 / / 25 21.39 21.84 / <=30 Pass 2462 / / 25 22.33 22.03 / <=30 Pass 802.11n (HT20) MIMO 2412 / / 23 22.04 22.53 25.30 <=29.79 Pass 2437 / / 23 19.80 20.54 23.20 <=29.79 Pass 2462 / / 23 20.60 20.66 23.64 <=29.79 Pass 802.11n (HT40) MIMO 2422 / / 20 19.14 19.47 22.32 <=29.79 Pass 2437 / / 20 18.94 19.06 22.01 <=29.79 Pass 2452 / / 20 19.62 19.49 22.57 <=29.79 Pass Note1: Antenna1 Gain: 3.20dBi; Antenna2 Gain: 3.20dBi; Note2: Note: Directional gain=G ant + Array gain= G Ant + 10*log(N Ant /N ss ) = 3.2+10*log(2/1) =6.21dBi. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 106 of 155 4. Maximum Power Spectral Density 4.1 PSD 4.1.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos Maximum PSD (dBm/3kHz) Limit (dBm/3kHz) Verdict Ant1 Ant2 Sum 802.11b SISO 2412 / / 4.49 7.80 / <=8 Pass 2437 / / 7.64 7.85 / <=8 Pass 2462 / / -6.10 4.50 / <=8 Pass 802.11g SISO 2412 / / -2.53 -1.86 / <=8 Pass 2437 / / -5.04 -4.48 / <=8 Pass 2462 / / -3.24 -4.08 / <=8 Pass 802.11n (HT20) MIMO 2412 / / -3.73 -3.10 -1.03 <=8 Pass 2437 / / -6.58 -5.82 -3.95 <=8 Pass 2462 / / -4.79 -4.78 -2.63 <=8 Pass 802.11n (HT40) MIMO 2422 / / -8.78 -8.77 -6.00 <=8 Pass 2437 / / -10.75 -9.42 -7.82 <=8 Pass 2452 / / -6.28 -7.55 -4.35 <=8 Pass Note1: Antenna1 Gain: 3.20dBi; Antenna2 Gain: 3.20dBi; Note2: Note: Directional gain=G ant + Array gain= G Ant + 10*log(N Ant /N ss ) = 3.2+10*log(2/1) =6.21dBi. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 107 of 155 4.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 108 of 155 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant2 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 109 of 155 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant2 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 110 of 155 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant2 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 111 of 155 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant2 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 112 of 155 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant2 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 113 of 155 802.11n(HT20)_LCH_2412MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant2 (MIMO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 114 of 155 802.11n(HT20)_LCH_2412MHz_MIMO_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (MIMO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 115 of 155 802.11n(HT20)_MCH_2437MHz_Ant2 (MIMO)_NTNV 802.11n(HT20)_MCH_2437MHz_MIMO_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 116 of 155 802.11n(HT20)_HCH_2462MHz_Ant1 (MIMO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant2 (MIMO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 117 of 155 802.11n(HT20)_HCH_2462MHz_MIMO_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (MIMO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 118 of 155 802.11n(HT40)_LCH_2422MHz_Ant2 (MIMO)_NTNV 802.11n(HT40)_LCH_2422MHz_MIMO_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 119 of 155 802.11n(HT40)_MCH_2437MHz_Ant1 (MIMO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant2 (MIMO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 120 of 155 802.11n(HT40)_MCH_2437MHz_MIMO_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (MIMO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 121 of 155 802.11n(HT40)_HCH_2452MHz_Ant2 (MIMO)_NTNV 802.11n(HT40)_HCH_2452MHz_MIMO_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 122 of 155 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Ref 5.1.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos Ant Level of Reference (dBm) Limit (dBm) Verdict 802.11b SISO 2412 / / 1 13.23 / / 2 13.55 / / 2437 / / 1 9.46 / / 2 10.35 / / 2462 / / 1 11.32 / / 2 10.57 / / 802.11g SISO 2412 / / 1 14.67 / / 2 14.22 / / 2437 / / 1 11.15 / / 2 11.85 / / 2462 / / 1 11.33 / / 2 10.57 / / 802.11n (HT20) MIMO 2412 / / 1 12.89 / / 2 13.20 / / 2437 / / 1 9.33 / / 2 9.76 / / 2462 / / 1 11.36 / / 2 10.61 / / 802.11n (HT40) MIMO 2422 / / 1 7.68 / / 2 7.61 / / 2437 / / 1 5.62 / / 2 5.45 / / 2452 / / 1 8.68 / / 2 8.14 / / Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2013, the channel contains the maximum PSD level was used to establish the reference level. Note2: Only for Report Use SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 123 of 155 5.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_LCH_2412MHz_Ant2 (SISO)_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210502121202 Page: 124 of 155 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Setup Photos for SZCR2105021212AT FCC ID:C3D-AZ1000022 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 Photographs Radiated Spurious Emissions Below 1GHz Radiated Spurious Emissions Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3 Radiated Emissions which fall in the restricted bands
