C3D-AZ1222200Gateway PRO 2x2

1 Specifications: Specifications Wireless Standard: 802.11a/b/g/n/ac Frequency Band: 2.4GHz/5GHz Wireless Speed:2.4GHz 432Mbps(Tx), 5Ghz 757Mbps Amplifiers: 2x2 MIMO Antennas: (2) 2.4GHz/5GHz, (2) 4G LTE Antennas Wireless Security: WEP,WPA, WPAA2, WPA mixed Sim Card Port: Standard SIM (25mm x 15mm x .076mm) Port: (1) RJ45 10/100/1000 Power Rating: Switching, DC Input 12V,1.5A WARNINGS: • Read this manual carefully and completely before attempting to assemble, install or operate this product. Winegard® recommends the installation of this equipment be done by a professional technician. • Save these instructions. • Do not paint any portion of the Winegard Connect® Home™. Painting the system could damage the system and will void the warranty. • When first setting up the Winegard ConnecT it is recommended to check for software updates the first time the system is connected to an internet signal. It is also recommended to check for updates every couple months for fixes and added features. WINEGARD Gateway PRO 2x2 2 3 4 5 6 FCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and devices. • Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Channels 1-11 can only be operated in the 2.4GHz band. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. IC Regulatory Compliance This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Exposure Compliance This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition aux radiations IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. GW2-PRO FCC ID: C3D-AZ1222200 Contains FCC ID:22428-2018EC25AF Disclaimer: Although every effort has been made to ensure that the information in this manual is correct and complete, no company shall be held liable for any errors or omissions in this manual. Information provided in this manual was accurate at time of printing. If the antenna does not function as expected, please contact Winegard Co. Winegard is a registered trademark of Winegard Company. LLC. Apple & the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play & the Google Play logo are trademarks of Google LLC. All trademarks, registered trademarks and logos are the property of their respective owners and are not affiliated with Winegard Company

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 External Photos for SZCR2106021339AT FCC ID:C3D-AZ1222200 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details Model: WG07 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

WGD-840FG012-BR WG07 MAIN BOARD GATEWAY PRO 2X2 INDT PACK MYS 3962114 MADE IN MALAYSIA LAN MAC:XXXXXXXXXXXX S/N: WG07204300001 S/N:WG07204300001 FCC ID:C3D-AZ1222200 Contains FCC ID:C3D-201808EC25AF FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location: please see external photo on page 4.

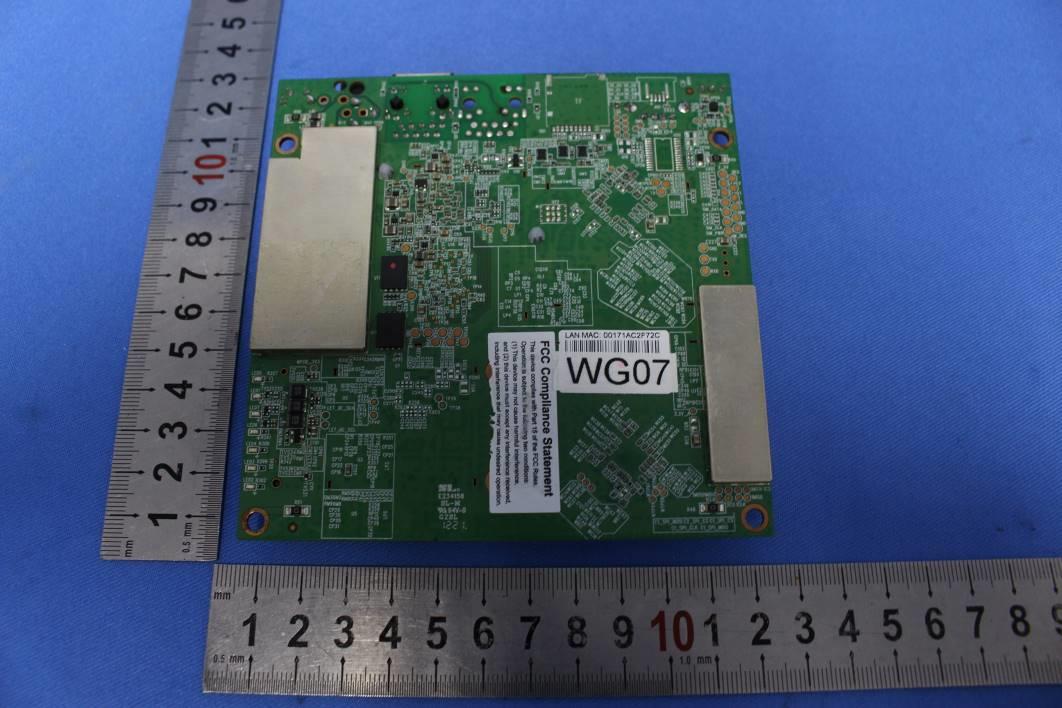

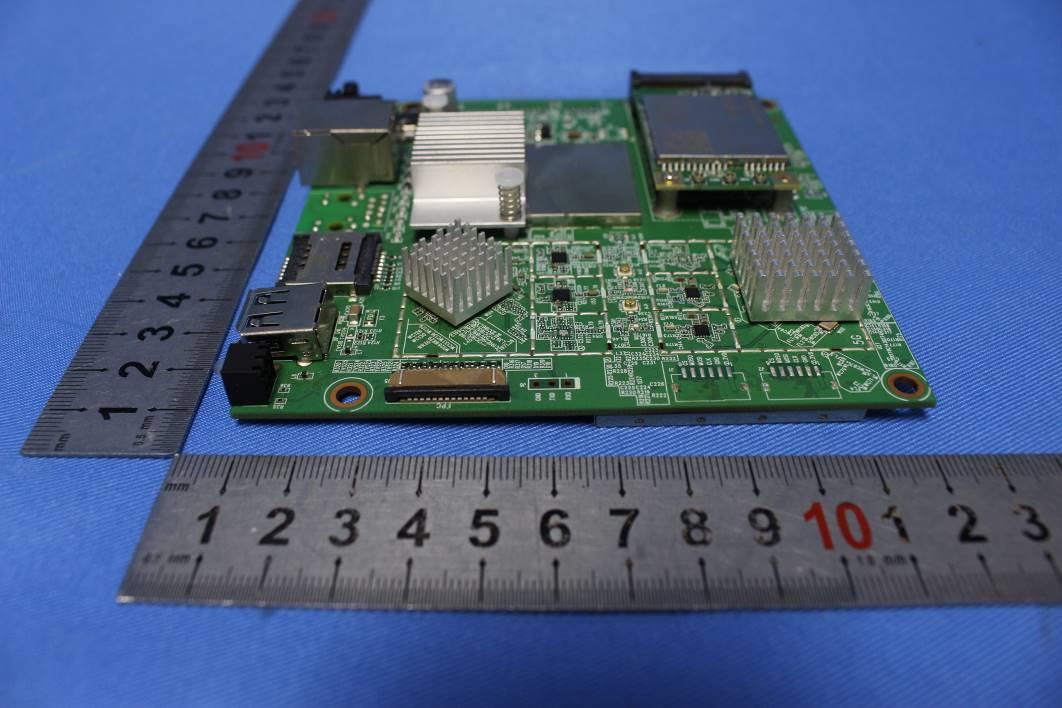

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 5 Internal Photos for SZCR2106021339AT FCC ID:C3D-AZ1222200 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 5 1 EUT Constructional Details Model:WG07 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 5 2.4G & 5G Ant1 2.4G & 5G Ant2 LTE Main Ant LTE Aux Ant SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 5

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133905 Page: 1 of 10 Keny Xu EMC Laboratory Manager Cover page RF Exposure Evaluation Report Application No.: SZCR2106021339AT Applicant: Winegard Company Address of Applicant: 3000 Kirkwood Street, Burlington, Iowa 52601, United States Manufacturer: Winegard Company Address of Manufacturer: 3000 Kirkwood Street, Burlington, Iowa 52601, United States Factory: 1. Aztech Communication Device (DG) Ltd 2. IOT Manufacturing SDN.BHD. Address of Factory: 1. Jiu Jiang Shui Village,Chang Ping Town,Dong Guan City, Guang Dong Province, China 2. No. 8 & 10, Setia Business Park, Jalan Laman Setia 7/4, Taman Laman Setia, 81550 Gelang Patah, Johor Bahru, Malaysia Product Name: Gateway PRO 2x2 Model No.: WG07 Trade Mark: Winegard FCC ID: C3D-AZ1222200 Standards: 47 CFR Part 1.1307, 47 CFR Part 1.1310, 47 CFR Part 2.1091 Date of Receipt: 2021-06-02 Date of Test: 2021-06-03 to 2021-06-17 Date of Issue: 2021-06-29 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133905 Page: 2 of 10 1 Version Revision Record Version Chapter Date Modifier Remark 01 2021-06-29 Original Authorized for issue by: Edison Li /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133905 Page: 3 of 10 2 Contents Page 1 VERSION ................................................................................................................................................ 2 2 CONTENTS ............................................................................................................................................ 3 3 GENERAL INFORMATION ..................................................................................................................... 4 3.1 GENERAL DESCRIPTION ......................................................................................................................... 4 3.2 TEST LOCATION .................................................................................................................................... 6 3.3 TEST FACILITY ...................................................................................................................................... 6 3.4 DEVIATION FROM STANDARDS ................................................................................................................. 6 3.5 ABNORMALITIES FROM STANDARD CONDITIONS ........................................................................................ 6 3.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER .............................................................................. 6 4 RF EXPOSURE EVALUATION ............................................................................................................... 7 4.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................................. 7 4.1.1 Limits .......................................................................................................................................... 7 4.1.2 Test Procedure ........................................................................................................................... 7 4.1.3 EUT RF Exposure Evaluation ...................................................................................................... 8 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133905 Page: 4 of 10 3 General Information 3.1 General Description Power supply: DC 12V Internal source: More than 108MHz For 2.4G WiFi Type of Modulation: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11n (HT20/HT40): OFDM (64QAM, 16QAM, QPSK, BPSK) Operating Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Channel Number: 802.11b/g/11n(HT20): 11 Channels 802.11n(HT40): 7 Channels Channels Step: Channels with 5MHz step Sample Type: Fixed devices Antenna Type: PCB antenna Antenna Gain: Antenna1/Antenna2: 3.2dBi Note: Two antennas can simultaneous transmission. For 5G WiFi Operation Frequency: Band Mode Frequency Range(MHz) Number of channels UNII Band I 802.11a/n(HT20)/ac(HT20) 5180-5240 4 802.11n(HT40)/ac(HT40) 5190-5230 2 802.11ac(HT80) 5210 1 UNII Band II-A 802.11a/n(HT20)/ac(HT20) 5260-5320 4 802.11n(HT40)/ac(HT40) 5270-5310 2 802.11ac(HT80) 5290 1 UNII Band II-C 802.11a/n(HT20)/ac(HT20) 5500-5700 8 802.11n(HT40)/ac(HT40) 5510-5670 5 802.11ac(HT80) 5530,5610 2 UNII Band III 802.11a/n(HT20)/ac(HT20) 5745-5825 5 802.11n(HT40)/ac(HT40) 5755-5795 2 802.11ac(HT80) 5775 1 Modulation Type: 802.11a: OFDM(64QAM, 16QAM, QPSK, BPSK) 802.11n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133905 Page: 5 of 10 Sample Type: Fixed devices Antenna Type: PCB antenna Antenna Gain: Antenna1/Antenna2: 4.6dBi Note: two antennas can simultaneous transmission. Details of WCDMA/LTE module*: Operation Frequency Band: WCDMA Band II,IV,V; LTE FDD Band 2,4,5,12,13,14,66,71 Modulation Type: WCDMA: QPSK LTE: QPSK, 16QAM HSDPA UE Category: 24 HSUPA UE Category: 6 LTE Category: 4 Antenna Type: PCB Antenna Antenna Ports: Tx & Rx Port 1 Rx-only Port 1 Antenna Gain: 2dBi *: The WCDMA/LTE single module approval by TCB(FCC ID:C3D-201808EC25AF), Grant at 05/18/2021. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133905 Page: 6 of 10 3.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 No tests were sub-contracted. 3.3 Test Facility The test facility is r…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 1 of 566 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZCR2106021339AT Applicant: Winegard Company Address of Applicant: 3000 Kirkwood Street, Burlington, Iowa 52601, United States Manufacturer: Winegard Company Address of Manufacturer: 3000 Kirkwood Street, Burlington, Iowa 52601, United States Factory: 1. Aztech Communication Device (DG) Ltd 2. IOT Manufacturing SDN.BHD. Address of Factory: 1. Jiu Jiang Shui Village,Chang Ping Town,Dong Guan City, Guang Dong Province, China 2. No. 8 & 10, Setia Business Park, Jalan Laman Setia 7/4, Taman Laman Setia, 81550 Gelang Patah, Johor Bahru, Malaysia Equipment Under Test (EUT): EUT Name: Gateway PRO 2x2 Model No.: WG07 Trade Mark: Winegard FCC ID: C3D-AZ1222200 Standard(s) : 47 CFR Part 15, Subpart E 15.407 Date of Receipt: 2021-06-02 Date of Test: 2021-06-03 to 2021-06-17 Date of Issue: 2021-06-29 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 2 of 566 Revision Record Version Chapter Date Modifier Remark 01 2021-06-29 Original Authorized for issue by: Edison Li/Project Engineer Eric Fu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 3 of 566 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart E 15.407 N/A 47 CFR Part 15, Subpart C 15.203 Pass Transmission in the Absence of Data N/A 47 CFR Part 15, Subpart C 15.407 (c) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Duty Cycle 47 CFR Part 15, Subpart E 15.407 KDB 789033 II B 1 KDB 789033 D02 II B 1 Pass 99% Bandwidth KDB 789033 II D N/A Pass 26dB Emission bandwidth KDB 789033 D02 II C 1 47 CFR Part 15, Subpart C 15.407 (a) Pass Minimum 6 dB bandwidth (5.725- 5.85 GHz band) KDB 789033 D02 II C 2 47 CFR Part 15, Subpart C 15.407 (e) Pass Maximum Conducted output power KDB 789033 D02 II E 47 CFR Part 15, Subpart C 15.407 (a) Pass Peak Power spectrum density KDB 789033 D02 II F 47 CFR Part 15, Subpart C 15.407 (a) Pass Radiated Emissions (Below 1GHz) KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Radiated Emissions (Above 1GHz) KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Radiated Emissions which fall in the restricted bands KDB 789033 D02 II G 47 CFR Part 15, Subpart C 15.209 & 15.407(b) Pass Frequency Stability ANSI C63.10 (2013) Section 6.8 47 CFR Part 15, Subpart C 15.407 (g) Pass Emission Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.407 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 4 of 566 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 6 4.1 DETAILS OF E.U.T. ............................................................................................................................... 6 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 6 4.3 MEASUREMENT UNCERTAINTY .............................................................................................................. 7 4.4 TEST LOCATION .................................................................................................................................... 8 4.5 TEST FACILITY ...................................................................................................................................... 8 4.6 DEVIATION FROM STANDARDS ............................................................................................................... 8 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 8 5 EQUIPMENT LIST ...................................................................................................................................... 9 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................... 11 6.1 ANTENNA REQUIREMENT .................................................................................................................... 11 6.1.1 Test Requirement: ....................................................................................................................... 11 6.1.2 Conclusion ................................................................................................................................... 11 6.2 TRANSMISSION IN THE ABSENCE OF DATA ............................................................................................ 12 6.2.1 Test Requirement: ....................................................................................................................... 12 6.2.2 Conclusion ................................................................................................................................... 12 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 13 7.1 DUTY CYCLE ...............................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 306 of 566 10 Appendix 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) RU RU Pos T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Fac tor (dB) Max. DC Variation (%) 802.11a SISO 5180 / / 1.40 1.73 80.73 0.93 0.44 5200 / / 1.40 1.76 79.51 1.00 1.75 5240 / / 1.40 1.76 79.51 1.00 1.65 5260 / / 1.40 1.73 80.73 0.93 0.02 5300 / / 1.40 1.74 80.31 0.95 0.86 5320 / / 1.40 1.75 79.90 0.97 1.26 5500 / / 1.40 1.74 80.31 0.95 0.86 5580 / / 1.40 1.74 80.31 0.95 0.86 5700 / / 1.40 1.74 80.31 0.95 0.86 5745 / / 1.40 1.75 79.90 0.97 1.68 5785 / / 1.40 1.75 79.81 0.98 1.34 5825 / / 1.40 1.73 80.73 0.93 0.02 802.11n (HT20) MIMO 5180 / / 0.43 0.80 53.63 2.71 3.96 5200 / / 0.43 0.79 54.29 2.65 3.32 5240 / / 0.43 0.79 54.17 2.66 3.32 5260 / / 0.42 0.76 54.86 2.61 2.03 5300 / / 0.42 0.77 54.09 2.67 2.75 5320 / / 0.42 0.76 54.72 2.62 2.13 5500 / / 0.42 0.74 56.12 2.51 0.77 5580 / / 0.42 0.76 54.80 2.61 2.13 5700 / / 0.42 0.77 54.16 2.66 2.66 5745 / / 0.42 0.77 54.22 2.66 2.66 5785 / / 0.42 0.77 54.16 2.66 2.75 5825 / / 0.42 0.77 54.16 2.66 2.70 802.11n (HT40) MIMO 5190 / / 0.22 0.58 38.00 4.20 0.60 5230 / / 0.22 0.58 37.82 4.22 0.64 5270 / / 0.22 0.55 39.75 4.01 0.75 5310 / / 0.22 0.56 39.15 4.07 1.34 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 307 of 566 5510 / / 0.22 0.58 37.89 4.21 2.61 5550 / / 0.22 0.56 39.04 4.09 1.34 5670 / / 0.22 0.56 39.04 4.09 1.39 5755 / / 0.22 0.56 39.15 4.07 1.30 5795 / / 0.22 0.55 39.67 4.01 0.75 802.11ac (VHT20) MIMO 5180 / / 0.34 0.67 50.52 2.97 0.11 5200 / / 0.34 0.69 49.20 3.08 1.91 5240 / / 0.34 0.67 50.45 2.97 0.11 5260 / / 0.34 0.68 49.93 3.02 1.44 5300 / / 0.34 0.68 49.85 3.02 1.44 5320 / / 0.34 0.67 50.45 2.97 0.11 5500 / / 0.34 0.68 49.71 3.04 1.38 5580 / / 0.34 0.67 50.60 2.96 0.11 5700 / / 0.34 0.67 50.45 2.97 0.11 5745 / / 0.34 0.68 49.85 3.02 1.38 5785 / / 0.34 0.67 50.60 2.96 0.11 5825 / / 0.34 0.67 50.45 2.97 0.11 802.11ac (VHT40) MIMO 5190 / / 0.19 0.52 37.07 4.31 0.72 5230 / / 0.19 0.52 36.99 4.32 0.75 5270 / / 0.19 0.52 36.99 4.32 0.66 5310 / / 0.19 0.52 36.87 4.33 0.72 5510 / / 0.19 0.52 36.99 4.32 0.72 5550 / / 0.19 0.52 36.99 4.32 0.75 5670 / / 0.19 0.52 36.99 4.32 0.66 5755 / / 0.19 0.52 37.19 4.30 0.69 5795 / / 0.19 0.52 37.19 4.30 0.66 802.11ac (VHT80) MIMO 5210 / / 0.12 0.45 25.88 5.87 0.61 5290 / / 0.12 0.45 25.66 5.91 0.64 5530 / / 0.12 0.45 25.66 5.91 0.64 5610 / / 0.12 0.45 25.83 5.88 0.64 5775 / / 0.12 0.45 25.72 5.90 0.64 Note1: Only for Report Use SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 308 of 566 1.1.2 Test Graph 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_MCH_5200MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 309 of 566 802.11a_HCH_5240MHz_Ant1_NTNV 802.11a_LCH_5260MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 310 of 566 802.11a_MCH_5300MHz_Ant1_NTNV 802.11a_HCH_5320MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 311 of 566 802.11a_LCH_5500MHz_Ant1_NTNV 802.11a_MCH_5580MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 312 of 566 802.11a_HCH_5700MHz_Ant1_NTNV 802.11a_LCH_5745MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 313 of 566 802.11a_MCH_5785MHz_Ant1_NTNV 802.11a_HCH_5825MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 314 of 566 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 315 of 566 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV 802.11n(HT20)_LCH_5260MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 316 of 566 802.11n(HT20)_MCH_5300MHz_Ant1_NTNV 802.11n(HT20)_HCH_5320MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 317 of 566 802.11n(HT20)_LCH_5500MHz_Ant1_NTNV 802.11n(HT20)_MCH_5580MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 318 of 566 802.11n(HT20)_HCH_5700MHz_Ant1_NTNV 802.11n(HT20)_LCH_5745MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 319 of 566 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 320 of 566 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 321 of 566 802.11n(HT40)_LCH_5270MHz_Ant1_NTNV 802.11n(HT40)_HCH_5310MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 322 of 566 802.11n(HT40)_LCH_5510MHz_Ant1_NTNV 802.11n(HT40)_MCH_5550MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 323 of 566 802.11n(HT40)_HCH_5670MHz_Ant1_NTNV 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 324 of 566 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 325 of 566 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 326 of 566 802.11ac(VHT20)_LCH_5260MHz_Ant1_NTNV 802…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 368 of 566 802.11ac(VHT80)_LCH_5530MHz_Ant1_NTNV 802.11ac(VHT80)_HCH_5610MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 369 of 566 802.11ac(VHT80)_MCH_5775MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 370 of 566 2.2 6dB BW 2.2.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos Ant 6dB Bandwidth (MHz) Limit Verdict 802.11a SISO 5745 / / 1 16.15 >=0.5 Pass 5785 / / 1 16.06 >=0.5 Pass 5825 / / 1 16.19 >=0.5 Pass 802.11n (HT20) MIMO 5745 / / 1 17.29 >=0.5 Pass 5785 / / 1 17.21 >=0.5 Pass 5825 / / 1 17.26 >=0.5 Pass 802.11n (HT40) MIMO 5755 / / 1 35.62 >=0.5 Pass 5795 / / 1 35.68 >=0.5 Pass 802.11ac (VHT20) MIMO 5745 / / 1 17.03 >=0.5 Pass 5785 / / 1 16.86 >=0.5 Pass 5825 / / 1 16.98 >=0.5 Pass 802.11ac (VHT40) MIMO 5755 / / 1 35.56 >=0.5 Pass 5795 / / 1 35.84 >=0.5 Pass 802.11ac (VHT80) MIMO 5775 / / 1 75.56 >=0.5 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 371 of 566 2.2.2 Test Graph 802.11a_LCH_5745MHz_Ant1_NTNV 802.11a_MCH_5785MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 372 of 566 802.11a_HCH_5825MHz_Ant1_NTNV 802.11n(HT20)_LCH_5745MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 373 of 566 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 374 of 566 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 375 of 566 802.11ac(VHT20)_LCH_5745MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5785MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 376 of 566 802.11ac(VHT20)_HCH_5825MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5755MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 377 of 566 802.11ac(VHT40)_HCH_5795MHz_Ant1_NTNV 802.11ac(VHT80)_MCH_5775MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 378 of 566 2.3 26dB BW 2.3.1 Test Result Mode TX Type Frequency (MHz) RU RU Pos Ant 26dB Bandwidth (MHz) Limit Verdict 802.11a SISO 5180 / / 1 20.42 / Note1 5200 / / 1 20.40 / Note1 5240 / / 1 20.49 / Note1 5260 / / 1 20.40 / Note1 5300 / / 1 20.50 / Note1 5320 / / 1 20.52 / Note1 5500 / / 1 20.55 / Note1 5580 / / 1 20.44 / Note1 5700 / / 1 20.62 / Note1 802.11n (HT20) MIMO 5180 / / 1 20.84 / Note1 5200 / / 1 20.78 / Note1 5240 / / 1 20.73 / Note1 5260 / / 1 20.61 / Note1 5300 / / 1 20.80 / Note1 5320 / / 1 20.71 / Note1 5500 / / 1 20.79 / Note1 5580 / / 1 20.80 / Note1 5700 / / 1 20.77 / Note1 802.11n (HT40) MIMO 5190 / / 1 41.40 / Note1 5230 / / 1 41.31 / Note1 5270 / / 1 41.16 / Note1 5310 / / 1 41.06 / Note1 5510 / / 1 41.36 / Note1 5550 / / 1 41.37 / Note1 5670 / / 1 41.23 / Note1 802.11ac (VHT20) MIMO 5180 / / 1 20.57 / Note1 5200 / / 1 20.46 / Note1 5240 / / 1 20.73 / Note1 5260 / / 1 20.79 / Note1 5300 / / 1 20.89 / Note1 5320 / / 1 20.92 / Note1 5500 / / 1 20.81 / Note1 5580 / / 1 20.81 / Note1 5700 / / 1 20.90 / Note1 802.11ac (VHT40) MIMO 5190 / / 1 41.10 / Note1 5230 / / 1 40.01 / Note1 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 379 of 566 5270 / / 1 41.38 / Note1 5310 / / 1 41.19 / Note1 5510 / / 1 41.30 / Note1 5550 / / 1 41.24 / Note1 5670 / / 1 41.20 / Note1 802.11ac (VHT80) MIMO 5210 / / 1 82.70 / Note1 5290 / / 1 80.31 / Note1 5530 / / 1 82.65 / Note1 5610 / / 1 82.63 / Note1 Note1: Only for Report Use SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 380 of 566 2.3.2 Test Graph 802.11a_LCH_5180MHz_Ant1_NTNV 802.11a_MCH_5200MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 381 of 566 802.11a_HCH_5240MHz_Ant1_NTNV 802.11a_LCH_5260MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 382 of 566 802.11a_MCH_5300MHz_Ant1_NTNV 802.11a_HCH_5320MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 383 of 566 802.11a_LCH_5500MHz_Ant1_NTNV 802.11a_MCH_5580MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 384 of 566 802.11a_HCH_5700MHz_Ant1_NTNV 802.11n(HT20)_LCH_5180MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page: 385 of 566 802.11n(HT20)_MCH_5200MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZCR210602133903 Page:…
