C44TCE2098BASEInteractive Toy

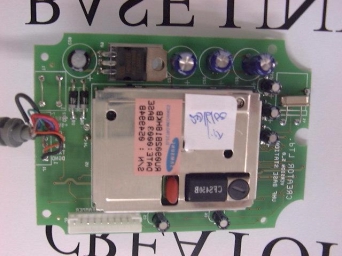

Analog Base Internal Photos Analog Base PCB Component Side Analog Base Print Side

Analog Base Product Description Base Hardware Description and Operation Base station receives and transmits signals from / to PC using RS-232 full duplex communication protocol in a speed of 115200 bps. Level transletor connect the Micro-controller to the RS232 communication port. Micro controller’s crystal frequency : 16.384 MHz. The RF communication between the base and toy has two operation modes: the commands transmitted digitally encoded by Manchester code (the rate is 8 Kbps, FSK modulation, ∆f ~ 11 Khz) and the audio signal is transmitted in analog FM modulation (signal BW: 300 Hz – 3.6 Khz ; ∆f ~ 9 Khz). Tranceiver is an integrated RF module manfactured by Samsung Corporation, Electronic Components Group, model RU0902B18HKB. Wall mount adapter feeds the Base power in the range of 7.5 to 11.0 VDC. Voltage regulator at the base input stabilize this voltage to 5V. System Test Start Up and Configuration Base After base is powered up, the bases micro controller makes the electronic circuit initialization. If communication with the PC was established successfully, base waits for the commands from the PC’s software. When no data transmitted to the toy, base’s RF unit switches the transmitter off. Base has no sleep / power down mode.

Analog Base: Schematics MAI N SHEET CREAT OR LTD. CONFIDENTI AL B 16Sunday, July 16, 2000 Title Si z eDocu ment NumberRev Date:Sheet of AUDIO&DATA PROCESS OR A&DPROCE. SCH AGND DGND AUDRX AUDTX P5VA P5VD RXDATA RXCLK AUDIORX TXDAT A AUDIOT X RS232 L EVEL TRANSELATOR RS232.SCH RXD TXD P5VD DGND TXDTTL RXDTT L RTS CTSCTSTTL RTSTTL CONTROLLER MCU.SCH DGND P5VD RXDATA RXCLK AUDIORX TXDAT A RXDTT L TXDTTL RFDAT A RFCLK RFST RB AGND AUDIOT X _RXEN _TXEN P5VA LEDCONT CLK2 VPPBASE RTSTTL CTSTTL _CD LDT RF RX&T X UNIT RFUNIT .SCH AUDRX AUDTX RFDAT A RFCLK ANT RFST RB _TXEN _RXEN AGND P5VA P5VD _CD LDT POWER CONTROL POWERCON.SCH P5VA AGND P5VD DGNDLEDCONT P9 VI N INGND RXDATA RXCLK AUDIORX TXDAT A AUDIOT X TXTTL RXTTL CTSTTL RTSTTL RFDAT A RFCLK RFST RB _CD LDT _RXEN _TXEN P5VD DGND LEDCONT P5VD TXD RXD CTS RTS ANT AUDRX AUDTX RS232 TRANSMIT DAT A B ASE TO PC RS232 RECIEVE DAT A FR OM PC T O BASE RS232 REQUEST T O SEND BASE T O PC ANTENNA CONNECTOR TTL LEVEL TRANSMIT DATA BASE TO PC TTL LEVEL RECI EVE DATA FROM PC TO BASE TTL LEVEL REQUEST T O SEND BASE T O PC RS2 32 CLEAR TO SEND PC TO BASE TT L LEV EL CLEAR T O SEND PC T O BASE RF MODULE D AT A IN RF MODULE CLOCK I N RF MODULE S TROBE I N RF MODULE L OCK DET ECT OUTPUT RF M ODULE C ARRIER DETECT OUTPUT (NEGAT I VE LOGI C) RF MODULE RECIEVE ENABLE I NPU T (NEGATI VE LOGIC) RF MODULE TRANSMIT ENABL E INPUT (NEGAT I VE LOGIC) RECIEVE RECOVERD DATA RECI EVE RECOVERD CLOCK TRANSMIT DATA RECIEVE AUDIO TRANSMIT AUDIO RECI EVE AUDIO DIRECT FROM THE RF MODULE TRANSMIT AUDIO DIREC T FROM THE RF MODULE AGND P9 VI N INGND POSI T I V E DIGITAL 5 VOLT DIGITAL GROUND POSI TI VE ANAOLOG 5 VOLT ANALOG GROUND POSI TI VE 9 VOLT FROM THE PS PS GROUNG LED CONTROL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -VPPBASEI CSP PS - - RBASE7 RBASE6 ICSP DAT A ICSP CLK TXDTXDTTLTXDTTLRXDATAAUDRXANT RXDRXDTT LRXDTT LRXCLK AUDIORXAUDTX RTSRTSTTLRTSTTLTXDAT A CTSCTSTTLCTSTTLAUDIOT XRFDAT A RFCLK P5VDRFDAT ARFST RB DGNDRFCLKLEDCONT RFST RBCLK2_CD _CDLDT LDT _RXENP5VD_ RXEN _TXENVPPBASEDGND_TXENAGND DGND TXDP5VDP5VAP5VAP5VD RXDDGNDAGNDAGNDP5VA RTSAGND CTS P9 VI N INGND P9 VI NP5VA INGNDAGND P5VD LEDCONTDGND VPPBASE P5VD DGND RFDAT A RFCLK CLK2 TXDTTL RXDTT L CTSTTL RTSTTL J3 CON10 CONTC10 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 J4 ANT PAD 1 1 CR1 CREAT OR CREAT OR 1 1 FI D1 CSFD CSFID 1 1 FI D2 CSFD CSFID 1 1 FI D3 CSFD CSFID 1 1 FI D4 CSFD CSFID 1 1 FI D5 PSFD PS FID 1 1 FI D6 PSFD PS FID 1 1 FI D7 PSFD PS FID 1 1 FI D8 PSFD PS FID 1 1 TXT 1 PS PS 1 1 TXT 2 CS CS 1 1 J1 CON7 CONTC7 1 1 2 2 3 3 4 4 5 5 6 6 7 7 J5 ANT_GND PAD 1 1 R65 300R 0805 1 2 A&DPROCES AUDIO&DATA PROCESSOR CREAT OR LTD. CONFIDENTIAL B 26Sunday, July 16, 2000 Title Si zeDocument NumberRev Date:Sheet of DGND AGNDP5VD RXCLK PANA AUDRX RXCLK DGND RXDAT A AGND DGND AGND P2 V5AAUDIORX AUDIOT X AUDTX P5VD DGND TXDAT A P5VA AGND AUDRX AGNDAGNDAUDIORX RXDAT A RXCLK AUDTX TXDAT A AUDIOT X P5VDP5VA P2 V5A DGNDAGND C1 100nF 0805 12 C2 100nF 0805 1 2 C3 10nF 0805 1 2 R3 10K 0805 1 2 C5 10uF/16V CAP100RP 1 2 C6 10uF/16V CAP100RP 1 2 C8 100nF 0805 1 2 C9 100nF 0805 1 2 C10 1nF 0805 1 2 R13 100R 0805 12 C12 1nF 0805 1 2 + - U3A LM324 SO14 3 2 1 + - U3B LM324 SO14 5 6 7 + - U3C LM324 SO14 10 9 8 + - U3D LM324 SO14 12 13 14 + - U3E LM324 SO14 4 1 1 R21 8K2 0805 12 R8 7K5 0805 12 C4 220pF 0805 1 2 R7 10K 0805 1 2 R2 100K 0805 1 2 R4 7K5 0805 1 2 R64 NA 0805 12 R19 36K 0805 12 R20 36K 0805 1 2 R22 20K 0805 12 R60 2K 0805 1 2 R9 3K 0805 12 R61 2K 0805 1 2 R14 10K 0805 12 R15 220K 0805 12 C13 2n7F 0805 1 2 C14 470pF 0805 1 2 R18 82K 0805 12 R6 36K 0805 12 R5 51K 0805 1 2 C7 3n3F 0805 1 2 Q1 MMBT3904 SOT 23 1 2 3 C40 NA 0805 1 2 R66 100K 0805 12 R67 100K 0805 1 2 R68 10K 0805 1 2 R69 10K 0805 1 2 R70 100K 0805 1 2 Q2 MMBT3906 SOT 23 1 2 3 TP5 TP TP 1 1 U1A 4013 SO14 D 5 CLK 3 Q 1 Q 2 S 6 R 4 U2A 4070 SO14 1 2 3 U1B 4013 SO14 D 9 CLK 11 Q 13 Q 12 S 8 R 1 0 U2B 4070 SO14 5 6 4 U2C 4070 SO14 8 9 10 U2D 4070 SO14 12 13 11 U2E 4070 SO14 1 4 7 U1C 4013 SO14 GN D 7 VC C 1 4 R16 2K7 0805 1 2 R17 4K7 0805 1 2 R12 NA 0805 12 R11 0R 0805 12 R10 100K 0805 12 C11 100nF 0805 1 2 R62 430R 0805 1 2 R63 430R 0805 12 D3 diode LL34 2 1 DGND AGND AUDIORX RXDAT A RXCLK TXDAT A AUDTX P5VA AUDRX P5VD AUDIOT X MC U . SC H CO NTROLLER CR EATOR LTD. C ONF ID ENTIAL B 46Sunday , July 16, 2000 Ti t l e SizeDocument N umberRev Date:Sheet of CTSTTL1CTS TTLRF DATADG ND RFC LKDG ND P5V DTXD TTL1TXD TTL P5VA RF STRBDG ND VPPBASE AUDIOR XRF DATACLK2CLK1 LEDCON T0RFC LK RF STRB _ R XEN 0D3 D2 LD TD1 _TXEND0DG ND AGNDDG NDDG NDRXC LK0 CLK1P5 V D CLK2DG NDP5VD CTSTTL1RXD TTL RTSTTLTXD TTL1 PWMTXDATA RXD ATA_C D 0 DG ND CLK2 LEDCO NT AGNDRF DATA RFC LK RXC LK0RXCLKRF STRB _CD LD T D0_ R XEN _TXEN _C D 0_ C D RXD ATA RXCLK AUDIOR X TXDATA LEDCON T0LEDCO NTD1AUDI OTX TX D TT L RXD TTL RTSTTL _ R XEN 0_ R XENCTSTTL D2 P5VA AGND P5 V D DG ND D3VPPBASE PWMAUDI OTX C32 100nF 0805 1 2 C33 39pF 0805 1 2 C34 39pF 0805 1 2 R39 1K 0805 12 R40 1K 0805 12 R41 2K 0805 12 R42 2K 0805 12 R43 2K 0805 12 R44 2K 0805 12 R45 2K 0805 12 R46 1K 0805 1 2 R47 1K 0805 1 2 R49 10 K 0805 1 2 R57 10 K 0805 12 R58 10 K 0805 12 R59 10 K 0805 12 Y1 16M384HZ CR YSTAL 12 3 R54 100K 0805 1 2 R55 51 K 0805 1 2 R56 51 K 0805 1 2 C37 100nF 0805 12 U7 PIC 16C873-20 SO28W MC L R / VP P 1 RA0/AN0 2 RA1/AN1 3 RA2/AN2 4 R A3 / AN 3 / VR EF 5 RA4/T0CKI 6 RA5/AN 4/SS 7 VSS 8 OSC1/CLKIN 9 OS C2/ CLKO UT 10 RC 0/T1OS O/T1CK I 11 RC 1/T1O SI/ CCP2 12 RC 2/CCP1 13 RC 3/SCK/SCL 14 RC 4/SDI/SDA 15 RC 5/SDO 16 RC 6/TX/C K 17 RC 7/R X/DT 18 V SS1 19 VDD 20 RB0/ INT 21 RB1 22 RB2 23 RB3 24 RB4 25 RB5 26 RB6 27 RB7 28 C35 39pF 0805 1 2 C36 39pF 0805 1 2 R50 300R 0805 12 R51 300R 0805 12 C38 10uF/16V CAP100RP 1 2 R71 0R 0805 1 2 R48 511K 0805 1 2 R72 1K 0805 1 2 R73 2K 0805 12 R74 0R 0805 12 R75 0R 0805 12 R76 0R 0805 12 R77 0R 0805 12 RXD TTL RTSTTL CTSTTL TX D TT L RXD ATA RXCLK TXDATA RF DATA RFC LK LEDCO NT AUDIOR X _ R XEN _TXEN RF STRB P5 V D DG ND AGND AUDI OTX P5VA CLK2 VPPBASE LD T _CD POWERC ON.…

Text truncated - open the document above for the full version.

FCC ID C44TCE2098BASE Electrical (EMC) Test Report E37110.00Team Concepts Electronics Ltd. Page 1 of 56 FCC DOC M Ver 1.12 04 April 2000 DATE: 11 July 2000 I.T.L. (PRODUCT TESTING) LTD. FCC EMC Test Report for Team Concepts Electronics Ltd. Equipment under test: Computerized Toy Analog Base 900M VER. 5.0 (Analog Base) Approved by:_____________________________ Y. Mordukhovitch , Test Engineer Approved by:_____________________________ I. Raz, EMC Laboratory Manager This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. . FCC ID C44TCE2098BASE Test Report E37110.00Team Concepts Electronics Ltd. Page 2 of 56 FCC DOC M Ver 1.12 04 April 2000 Measurement/Technical Report for Team Concepts Electronics Ltd. Equipment under test: Computerized Toy Analog Base M/N: 900M VER. 5.0 (Analog Base) S/N B1001 FCC ID: C44TCE2098BASE DATE: 17 July 2000 This report concerns:Original Grant x Class II change ___ Class B verification Class A verification Class I change ____ Equipment type: Radio Telemetry Transmitter Request Issue of Grant: x Immediately upon completion of review Limits used: CISPR 22 Part 15 x Measurement procedure used is ANSI C63.4-1992. Application for Certification Applicant for this device: prepared by:(different from "prepared by") Ishaiahou Raz ITL (Product Testing) Ltd.Team Concepts Electronics Ltd POB 2115/F Yan Hing Centre Or Yehuda 602519-13 Wong Chuk Yeung Street IsraelFo Tan, Shatin Tel: 972-3-533 9022N.T. Hong Kong Fax: 972-3-533 9019Tel: 852 2697 8138 Fax: 852 2691 0405 FCC ID C44TCE2098BASE Test Report E37110.00Team Concepts Electronics Ltd. Page 3 of 56 FCC DOC M Ver 1.12 04 April 2000 TABLE OF CONTENTS 1.GENERAL INFORMATION -----------------------------------------------------------------------------4 1.1Product Description.................................................................................... 4 1.2Test Methodology...................................................................................... 4 1.3Test Facility............................................................................................... 4 1.4Measurement Uncertainty ........................................................................... 4 2.PRODUCT LABELING----------------------------------------------------------------------------------5 3.SYSTEM TEST CONFIGURATION-------------------------------------------------------------------6 3.1Justification................................................................................................ 6 3.2EUT Exercise Software .............................................................................. 6 3.3Special Accessories ................................................................................... 6 3.4Equipment Modifications ............................................................................. 6 3.5Configuration of Tested System .................................................................. 6 4.BLOCK DIAGRAM ---------------------------------------------------------------------------------------7 4.1Schematic Block/Connection Diagram.......................................................... 7 5.CONDUCTED EMISSION-------------------------------------------------------------------------------8 6.RADIATED EMISSION DATA ------------------------------------------------------------------------ 13 6.1Radiated Emission ................................................................................... 13 6.2Measured Data........................................................................................ 13 6.3Test Instrumentation Used, Radiated Measurements .................................. 30 6.4Field Strength Calculation ......................................................................... 31 7.RADIATED EMISSION DATA ------------------------------------------------------------------------ 32 7.1Radiated Emission Above 1 GHz............................................................... 32 7.2Measured Data........................................................................................ 32 7.3Test Instruments used, Radiated Measurement Above 1 GHZ ..................... 41 7.4Field Strength Calculation ......................................................................... 42 8.PHOTOGRAPHS OF TESTED E.U.T. ------------------------------------------------------------- 43 9.SIGNATURES OF THE E.U.T'S TEST ENGINEERS ------------------------------------------- 49 10.APPENDIX A - CORRECTION FACTORS--------------------------------------------------------- 50 10.1 Correction factors for CABLE................................................................... 50 10.2 Correction factors for CABLE................................................................... 51 10.3 Correction factors for LOG PERIODIC ANTENNA ..................................... 52 10.4 Correction factors for BICONICAL ANTENNA............................................. 53 10.5 Correction factors for BICONICAL ANTENNA Type 3109............................ 54 10.6 Correction factors for BICONICAL ANTENNA Type 3109............................ 55 10.7 Correction factors for SAS ANTENNA, 3 meter range................................. 56 FCC ID C44TCE2098BASE Test Report E37110.00Team Concepts Electronics Ltd. Page 4 of 56 FCC DOC M Ver 1.12 04 April 2000 1. General Information 1.1 Product Description This document describes the “Smart Alex” system operation. The product includes a receiver operating between 925.3 MHz to 927.05MHz and a transmitter operating between 902.8MHz to 904.55MHz This is an intelligent interactive toy, designed especially for interactive games and educational programs with kids of all ages. The toy has the appearance of a book, an intelligent book, with a face, eyes, mouth, legs and hands. The toy is connected to PC via an RF link so that it is completely mobile within the home surrounding range. The toy has full voice capab…

Text truncated - open the document above for the full version.

Analog Base Test Setup Photos Analog Base Conducted Emissions Front View Conducted Emissions Side View Radiated Emissions Front View Radiated Emissions Side View
