CADC1000Bluetooth 2.1 Stereo Component Speaker System

SM Bluetooth Soundbar System Comprehensive Owner’s Manual The lightning flash with arrowhead within The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and safety instructions in the literature accompanying the appliance. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THIS PRODUCT. NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be a risk of electric shock to persons. IMPORTANT SAFETY INSTRUCTIONS READ MANUAL - Read all the safety and operating instructions before the product is operated. RETAIN MANUAL- This manual should be retained for future reference. HEED WARNINGS - All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed. CLEANING - The product should be cleaned only with a polishing cloth or a soft dry cloth. Never use volatile liquids since they may damage the product. WATER AND MOISTURE - Do not use this product near water such as near a bathtub, kitchen sink, in a wet basement; or near a swimming pool, etc. OBJECT OR LIQUID ENTRY - Do not insert any kind of object into this product through any opening as they may make contact with electrical points and result in a fire or electric shock. Avoid spilling any kind of liquid on the product. VENTILATION - Openings in the cabinet are provided for ventilation and to protect the product from overheating, and these openings must not be blocked or covered. HEAT - The product should be placed away from sources of heat such as radiators, stoves, or other products that produce heat. Leave a comfortable gap between this product and all other electronics in your Home Theater system. LOCATION – This product should be installed in a stable location. POWER-CORD PROTECTION - Power-supply cords should not be stepped on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and the point where they exit from the product. OVERLOADING - Do not overload wall outlets, extension cords, or power strips as this can result in a risk of fire or electric shock. POWER SOURCES - This product should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home consult your local power company. NONUSE PERIODS – The power cord should be unplugged from the outlet when left un-used for a long period of time. LIGHTNING - For extra protection during a lightning storm or when the product is left unattended and unused for long periods of time, unplug the power cord. This will prevent damage due to lightning and power surges. SERVICING - Do not attempt to service this product yourself as opening the product may expose you to electric shock, or the product may be damaged. Refer all servicing to qualified service personnel. DAMAGE REQUIRING SERVICE — Unplug this product from the wall outlet and contact a qualified service personnel under the following conditions: • When the power-supply cord or plug is damaged. • If liquid has been spilled, or objects have fallen into the product. • If the product has been exposed to rain or water. • If the product does not operate normally following the instructions in this manual. • If the product has been dropped or damaged in any way. • When the product exhibits a distinct change in performance. CAUTION – TO PREVENT ELECTRIC SHOCK DO NOT PLUG A CABLE INTO A WALL OUTLET, EXTENSION CORD, OR OTHER RECEPTICLE UNLESS THE METAL BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. We appreciate your choosing SYLVANIA Sound bar for use in your home. These unique sound bar will provide you with powerful and satisfying sound from an ultra stylish & compact package. Please read this manual completely to ensure the best possible performance from your system. Panel Description BT: The Indicator for bluetooth input status. Frequent blinks of the LED indicate a failure of the communication, while infrequent ones indicates a successful communication IR： The remote control signal receiver AUX1/2: The input signal indicator. The indicator is green when the signals are being input into AUX1, red into AUX2 and orange( the result from the simultaneous glows of the green and red LEDs) for standby. Description …

Text truncated - open the document above for the full version.

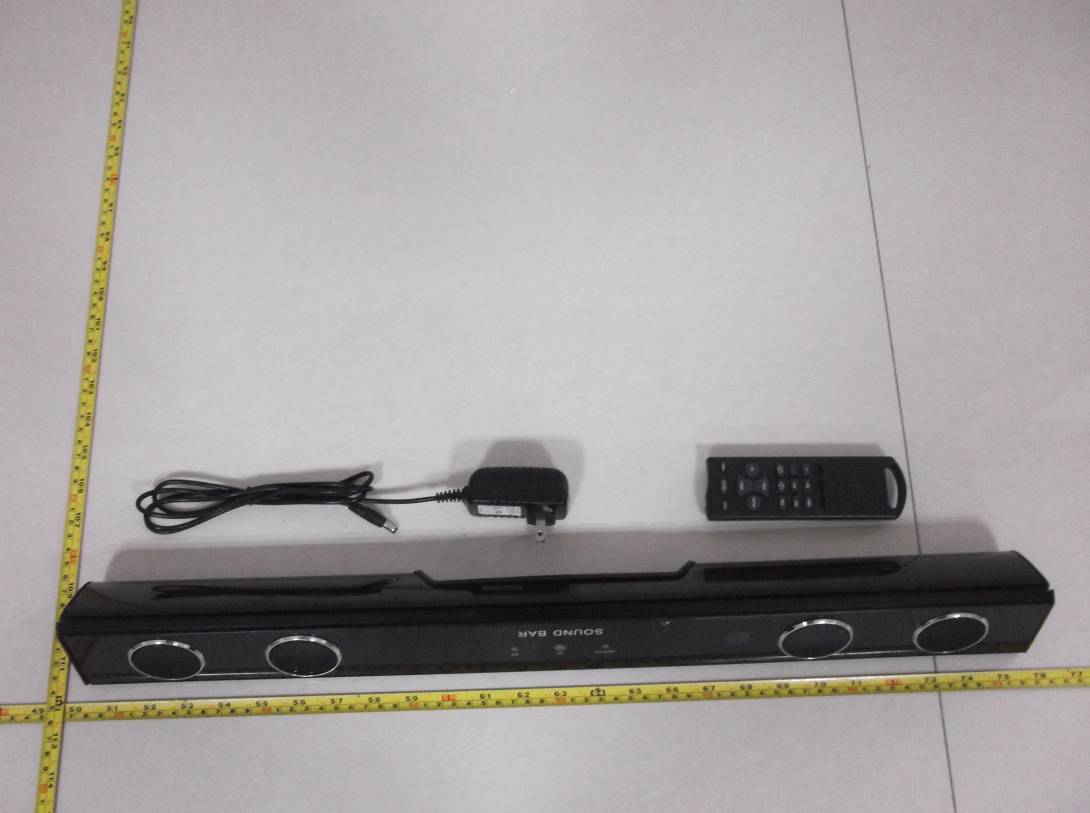

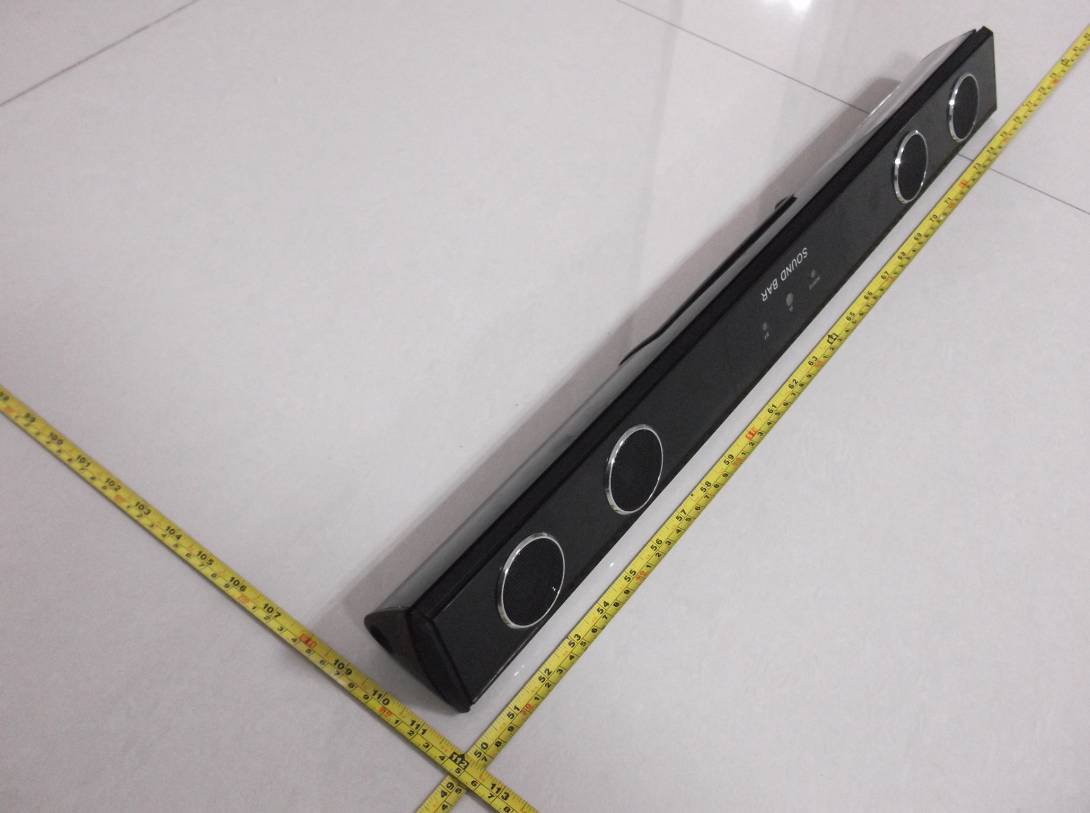

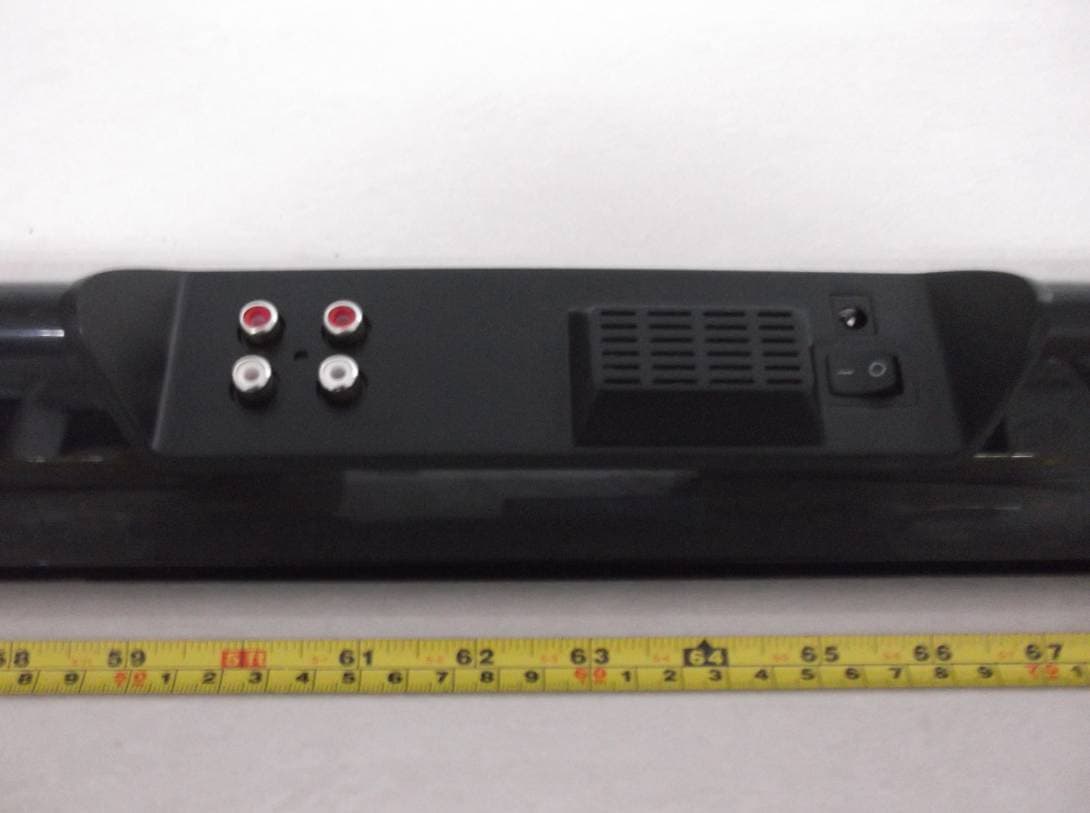

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 8. RADIO FREQUENCY EXPOSURE 8.1 Standard Applicable According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 8.2 EUT Specification Frequency Range Low Frequency (MHz) High Frequency (MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2402 2480 2441 24.58 Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mw) 6.70 1.0 5.89 8.3 Test Results Threshold at which no SAR required is 24.58mw. Maximum Tx Output power is 5.89mw EIRP. Conclusion: No SAR is required.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 38 RADIO TEST REPORT FOR SHENZHEN VANKE LOUDSPEAKER PRODUCTS CO., LTD. Bluetooth Soundbar System Model No.: C1000 Prepared for : SHENZHEN VANKE LOUDSPEAKER PRODUCTS CO., LTD. Address : Vanke Industrial Park, Bingtang Mountain, Shaping, Shawan, Buji Town, Longgang District Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : September 14, 2012 Number of tested samples : 1 Serial number : Prototype Date of Test : September 14, 2012 – September 21, 2012 Date of Report : September 21, 2012 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 38 TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ............... : LCS120914062TF Date of Issue ................................. : September 21, 2012 Testing Laboratory Name.......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : SHENZHEN VANKE LOUDSPEAKER PRODUCTS CO., LTD. Address ......................................... : Vanke Industrial Park, Bingtang Mountain, Shaping, Shawan, Buji Town, Longgang District Shenzhen, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 Subpart C, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF................................... : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : Bluetooth Soundbar System Trade Mark ................................... : N/A Model/ Type reference ................. : C1000 Ratings .......................................... : DC 12V from Adapter Input AC 120V/60 Hz Result .......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang/ File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 38 RADIO -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS120914062TF September 21, 2012 Date of issue Type / Model........................... : C1000 EUT......................................... : Bluetooth Soundbar System Applicant............................... : SHENZHEN VANKE LOUDSPEAKER PRODUCTS CO., LTD. Address.................................. : Vanke Industrial Park, Bingtang Mountain, Shaping, Shawan, Buji Town, Longgang District Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN VANKE LOUDSPEAKER PRODUCTS CO., LTD. Address................................... : Vanke Industrial Park, Bingtang Mountain, Shaping, Shawan, Buji Town, Longgang District Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : SHENZHEN VANKE LOUDSPEAKER PRODUCTS CO., LTD. Address................................... : Vanke Industrial Park, Bingtang Mountain, Shaping, Shawan, Buji Town, Longgang District Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 38 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ................................................................................................... 5 1.1 Description of Device (EUT)..............................................................................................................5 1.2 Host System Configuration List and Details ......................................................................................5 1.3 External I/O Cable ..............................................................................................................................5 1.4 Description of Test Facility ................................................................................................................5 1.5 Statement of The Measurement Uncertainty ......................................................................................6 1.6 Measurement Uncertainty..............................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emission Measurement Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:CADC1000 Report No.:LCS120914062TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Conducted Emission Measurement Fig.3
