CINDCR-5112.4G Digital Two-Way Tour Guide System

DCT-511 DCR-511 2.4G DIGITAL TWO-WAY TOUR GUIDE SYSTEM ISO 9001:2008 ISO 14001 OHSAS 18001 Green Product OPERATION MANUAL ISO 14001 REGISTERED OHSAS 18001 REGISTERED -1- DCT-511 Mini transmitter Parts and functions 1. Antenna 2. Mute 3. Volume control 4. Power/frequency synchronizing 5. MIC-MIX-AUX IN mode switch 6. Aux input (Ø 3.5mm) 7. Power indicator 8. Mute indicator 9. Earphone jack (Ø 3.5mm) 10. Mini USB charging port 11. Reset Instructions 1. Mute: Press to activate or cancel muting. 2. Aux input: You may play music files in your device as background music by connecting to the transmitter. In a museum, you may also play respective introductions recorded for different galleries. 3. Audio mode switch: If using only earphone, please switch to . For only music play, please switch to . To simultaneously use earphone and play music, please switch to middle. 4. Power and charging: Press the power button one second to turn on the transmitter and the indicator will light green. It turns red when battery low or during charging. It lights off once the battery is full. The charging process takes approximately four hours. 1 2 3 4 5 6 789 10 11 ISO 9001 / ISO 14001 / OHSAS 18001 -2- DCR-511 Mini receiver Parts and functions 1. Antenna 2. Press to talk 3. Volume control 4. Power/frequency synchronizing 5. Power indicator 6. Reception indicator 7. Earphone jack (Ø 3.5mm) 8. Mini USB charging port 9. Reset Instructions 1. Talking: Press the talk button to talk with your guide and the conversation could be heard by other members. And release to stop. 2. Reception indicator: The LED stays green within the reception from the tour guide. Once beyond the reception range, it will flash red and beep as a warning of dropout. 3. Power and charging: Press the power button one second to turn on the transmitter and the indicator will light green. It turns red when battery low or during charging. It lights off once the battery is full. The charging process takes approximately four hours. 1 2 3 4 567 8 9 -3- Frequency synchronizing between DCT-511 and DCR-511 1. Before the synchronizing, please power off the device. 2. Press DCT-511’s power button for five seconds till the mute indicator flashes green, which implies readiness to synchronize. 3. Press DCR-511’s power button for five seconds till the reception indicator flashes green, which implies readiness to synchronize. Both mute and reception indicators will light green after the setting is completed. 4. DCT-511’s mute indicator will stop flashing after a setting period of about twelve seconds. 5. DCR-511’s reception indicator will stop flashing after a setting period of about twelve seconds. 6. To synchronize mass receivers with the transmitter, just to follow STEP 2 on all receivers simultaneously. 7. If the power indicator glows red, it means battery low and needs to be recharged. The system paring can be made only after the charging process is finished. ISO 9001 / ISO 14001 / OHSAS 18001 -4- Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

RF_160, Issue 02 Declaration of Authorization We Name: Chiayo Electronics Co Ltd Address: No.88, Chung Hsiao Street 2, City:Chiayi Country:Taiwan Declare that: Name Representative of agent: Lynn Kao(1) Agent Company name: Worldwide Testing Services (Taiwan) Co., Ltd. Address: 6F., No. 58, Lane 188, Ruey Kuang Road, Neihu District, City: Taipei 114, Country Taiwan is authorized to apply for FCC Certification of the following product(s): Product description: 2.4G Digital Two-Way Tour Guide System Type designation: DCR-511 Trademark: CHIAYO on our behalf. Date: City: Name: Function: 6/16/2014 Chiayi Victor Lin R&D Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Chiayo Electronics Co Ltd Address: No.88, Chung Hsiao Street 2, City: Chiayi Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: CINDCR-511 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 16/06/2014 Name and signature of applicant: Victor Lin Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

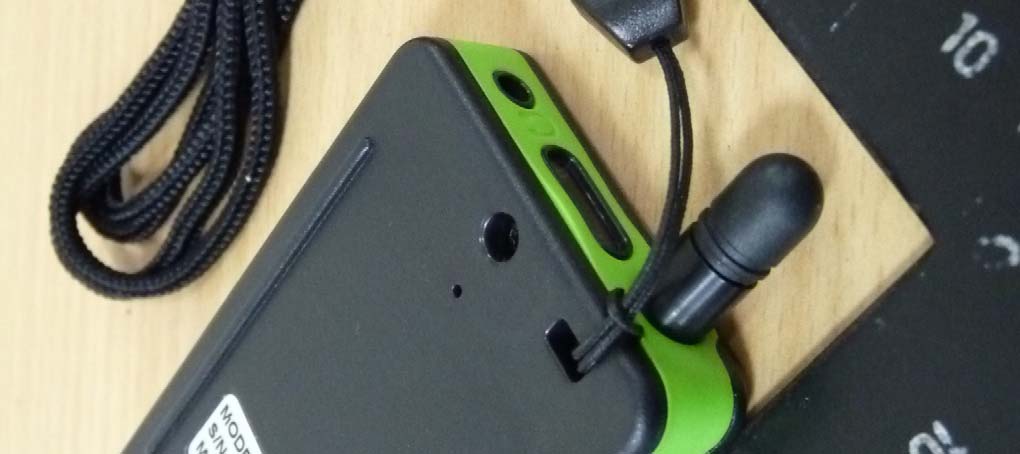

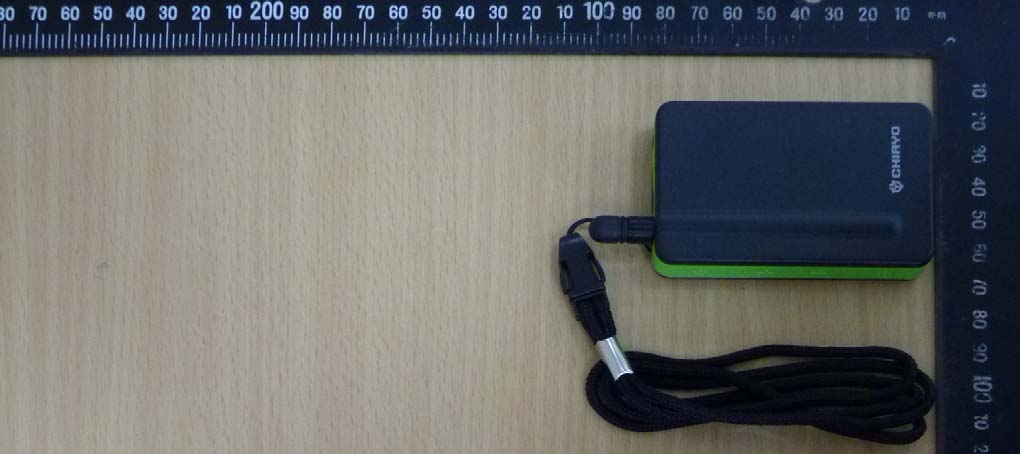

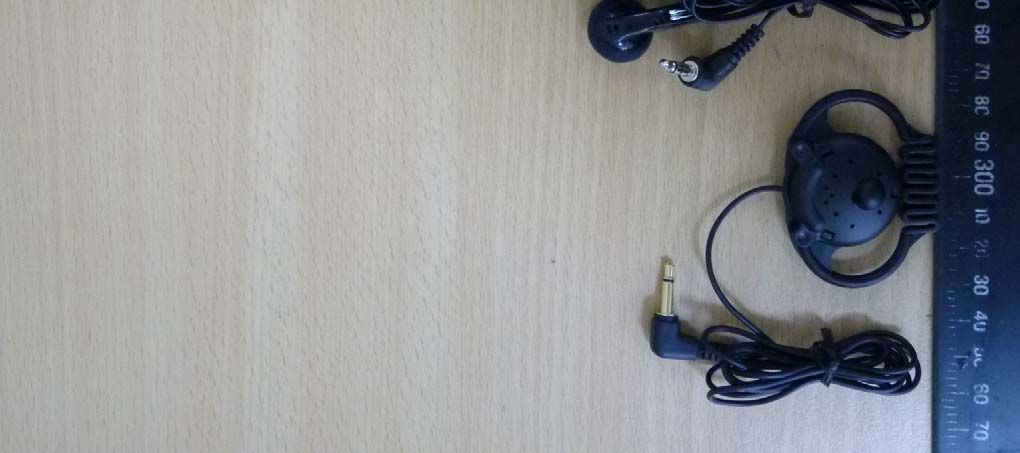

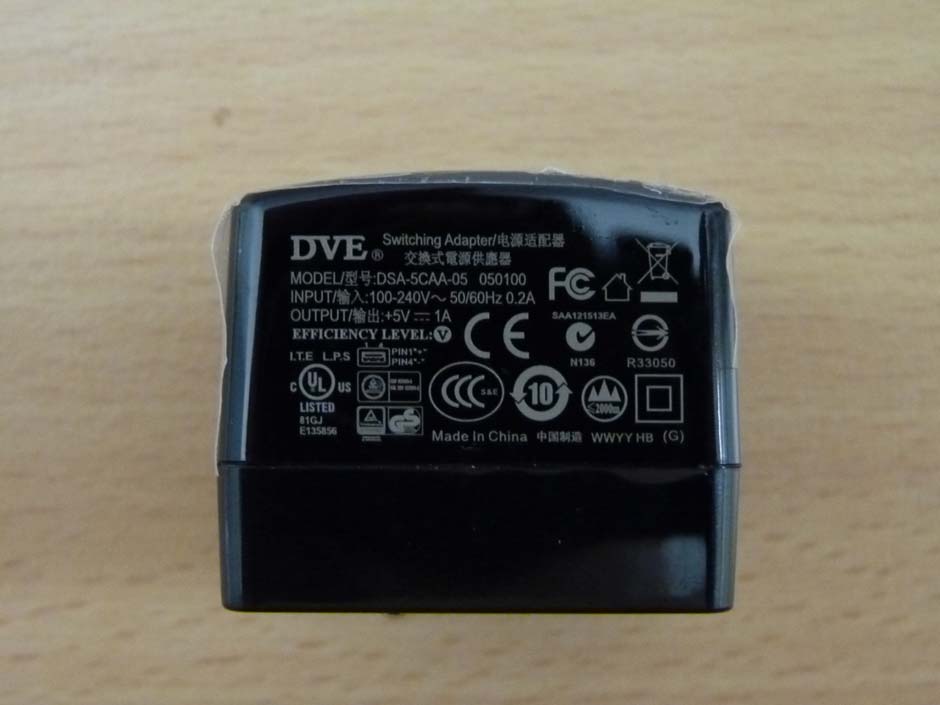

Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 34 of 46 External Photos Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 35 of 46 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 36 of 46 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 37 of 46

CO.,LTD MODEL REVERSION CHIAYO DCR-511 A DRAWING NO. COMPUTER NO. DRAWN DESCRIPTION DATE APPROVED 黏貼位置圖 2012/04/13 UNITmm1:1SCALE CHIAYO ELECTRONICS CO.,LTD. DCR-511 主體流水 / FCC/ RCM 黏貼位置圖 21414602 Alan SIZE:30x12mm (包裝製作)

Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 38 of 46 Internal Photos Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 39 of 46 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 40 of 46 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 41 of 46 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 42 of 46 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 43 of 46 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 44 of 46

Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 36 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain (Directional gain) EIRP = 16.15 dBm + (2.7 dBi) = 18.85 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. PG S = --------- 4πR 2 S – Power Density P – Output power ERP R – Distance D – Cable Loss AG – Antenna Gain Item Unit Value Remarks P mW 41.2097 Peak value D dB AG dBi 2.7 G 1.8620 Calculated Value R cm 20 Assumed value S mW/cm 2 0.0152 Calculated value Limits: Limit for General Population / Uncontrolled Exposure Frequency (MHz) Power Density (mW/cm 2 ) 1500 – 100.000 1.0

of Applicant: Chiayo Electronics Co Ltd Address: No.88, Chung Hsiao Street 2, Chiayi Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21406-14253-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for 2.4G Digital Two-Way Tour Guide System Model No.: DCR-511 FCC ID: CINDCR-511 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 36 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 TESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 APPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 T EST EQUIPMENT LIST.................................................................................................................7 2.4 GENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 S PURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 R ADIATED EMISSION ON THE BAND EDGE..................................................................................22 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................24 3.8 PEAK POWER SPECTRAL DENSITY.............................................................................................27 3.9 R ADIATED EMISSION FROM RECEIVER PART..............................................................................30 3.10 POWER LINE CONDUCTED EMISSION.........................................................................................33 APPENDIX.............................................................................................................25 Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 36 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: July 11, 2014 Robert Ren Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 11, 2014 Kevin Wang Date WTS Name Signature Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 36 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, …

Text truncated - open the document above for the full version.

Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 45 of 46 Set Up Photo of Radiated Emission Registration number: W6M21406-14253-C-1 FCC ID: CINDCR-511 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 46 of 46 Set Up Photo of Conducted Emission
