CINM-200Wireless Microphone Belt Pack

40.00 1 5 . 0 0

Functional description of the EUT M-200 The EUT ( Equipment Under Test ) is a mobile bodypack transmitter of a Lavalier Microphone. It is using FM modulation and has peak deviation of +/- 15 KHz. The power supply comes from 3 pieces of AA type battery, generating 4.5V DC. The signal source could be (1) a low impedance Lavalier Microphone ( MT ) or (2) a high impedance musical instruments or audio source such as CD Player (GT ).The connection of the signal source to the transmitter is via a 4 pin connector. Before the audio signal is fed into the modulator, it undergoes level control limiting, compression and high cut circuit to obtain optimum signal to noise ratio. A 32.768 KHz pilot signal is also added to the modulator to be transmitted as a code. The basic oscillator of the transmitter is an extremely temperature stable quartz crystal with maximum deviation of +/- 0.005 %. The 3 overtone frequency of the quartz crystal is used and the modulated signal goes through a frequency multiplier circuit before being amplified and radiated out through an antenna, which in this case the audio cable of the signal source. CHIAYO ELECTRONICS FCC ID : CINM-200 JOB : 1134T1 EXHIBIT # : 6

DepartmentR&D CHIAYO ELECTRONICS Co.,Ltd Page1/1 Date88.11.03 M-200 ADJUSTMENT PROCEDURES Doc. No WriterVic Lin 3PTM17 81019 RevisionA 1. Insert 3 pieces of “AA” (1.5V) size batteries . 2. Adjust VR201 till the output with in 7.5 V ± 0.1 V . 3. Adjust L602 L603 L604 VC601 VC602 , The level of the carrier appear in Spectrum Analyzer should > 103 dBuV (-4dBm) and the difference between carrier and harmonics should be > 45 dBuV . 4. Adjust L601 to ensure that frequency is with in ± 0.005% tolerance as specified . 5. Supply signal to P101 input , adjust VR703 till Modulation with in 12 KHz ± 1KHz .GT Modulation with in 3~7KHz. 6. Adjust VR501 till the difference between Tone Level and Carrier fall with in – 16 ± 2 dB . CHIAYO ELECTRONICS FCC ID : CINM-200 JOB : 1134T1 EXHIBIT # : 5

R613 47 R617 47 R609 47 R607 47 C612 103P VR201 VR10K R201 47K BATT BATTERY 4.5V C103 104P ON ON SW101 SW DPDT C201 100U IC201 3578 1 3 8 6 4 5 7 L201 270U L202 270U D201 RB160 C603 103P C602 2U2 TH601 TH5K R601 15K R605 27K C604 103P C607 *C1 C608 *C2 C611 103P L602 TL-2 C617 103P C614 *C5 R611 39K L604 TL-3 L607 *L3 C624 102P R615 10K L605 *L1C620 *C7 VC601 VC30P C626 3P L609 *L5 VC602 VC30P C619 *C6 C621 3P C622 *C8 L606 *L2 Q604 3082 R612 10K Q602 2SK302 C615 3P Q603 3082 C613 *C4 R606 10K C605 47P C609 3P Q601 3082 L603 TL-2 X601 CRY R602 27K R604 47K D601 SVC217 C205 100U C206 100U C207 100U C208 100U C202 222P R203 150K C203 100P R202 8K2 C204 680P D101 DAN217 R603 22K L601 *TL C601 2U2 R608 2K2 C606 68P C610 *C3 R610 1K5 C618 102P C616 102P R614 100 C623 *C9 R616 3K9 C625 102P R618 22 C628 *C11 C627 *C10 L608 *L4 3 1 2 IC501 7201U30 R501 4K7 C502 103P C501 2U2 R502 560R R735 10K VR501 VR10K R726 12K R727 12K C724 47U C723 3P R718 33K R719 22K R712 22K C712 56P 2 3 1 4 IC701A 33078 VR701 VR10K C705 0U47 R709 1K R702 330R C702 103P C703 2U2 R711 10K L701 1UH L702 1UH B+ MT Q101 1427 R104 1M R105 180K R101 33K R103 1K R102 100K C101 2U2 Q102 2812 C102 1U R403 5K6 R401 1K5 R402 2K2 R701 8K2 L704 1UH C701 680P C704 100P R710 12K R708 10K R703 10K C706 2U2 R704 1M C715 2U2 C716 2U2 R714 12K C713 2U2 R720 1K C721 103P C717 2U2 C720 472P R725 1K C722 10P C730 2U2 C726 2U2 C725 2U2 R728 10 C729 2U2 6 5 7 8 IC701B 33078 C506 472P C732 472P R730 3K3 C734 2U2 R724 22K Q501 2812 R504 10 R503 470K X501 32K C503 U1 C504 8P Q502 K508 R505 100K C505 35P R506 3K3 C731 103P Q703 2812 C733 2U2 R721 3K3 C730 2U2 VR703 VR10K R722 20K R723 22K Q704 1179 R732 10K 119 13 1 2 1 4 1 6 IC702B NE572 R731 33K R729 12K R715 2K2 D701 DAN217 C718 2U2 Q702 2812 5 4 7 3 82 IC702A NE572 R716 10K R707 5K6 C711 4U7 C708 OU1 C710 4U7 VR702 VR10K Q701 K209 L703 1UH GT 3 1 2 IC301 7201U50 Q401 1179 R404 22K R405 220R C401 47U D401 LED R705 100K C707 100P C709 100P R706 1M R717 100K R713 10M C714 U47 R734 100K C719 2U2 C727 U47 C728 2U2 R733 10M DATE DRAWING NO. DRAWN SCALE MODEL APPROVED CO., LTD DESCRIPTION CHIAYO ELECTRONICS CO.,LTD. UNIT QUANTITY REVERSION COMPUTER NO. Q1234567EXPLOSION MMM.DD.YYYYQ-123 NAMEJ.S.LINAmm1:1 MATERIAL WORKS TOLERANCE DRAWING --- DRAWING BOUNDARY ALLOWANCE 1-4 ±0.05 4-16 ±0.07 16-63 ±0.1 63-250 ±0.2 250-1000 ±0.3 1000~ ±0.5 CHIAYO CIRCUIT Nov.03.19993PTM1781019M-200 Amm1:1 DRAWING --- DRAWING

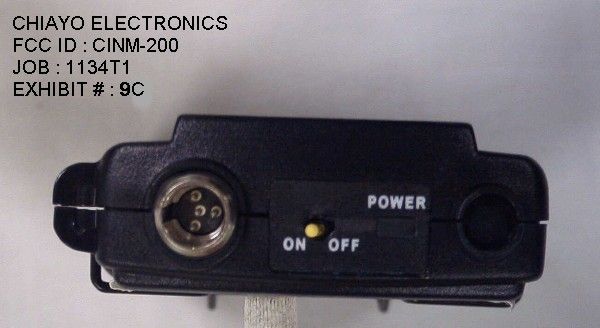

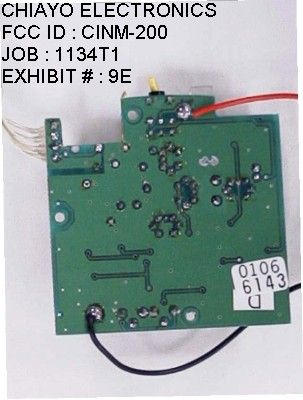

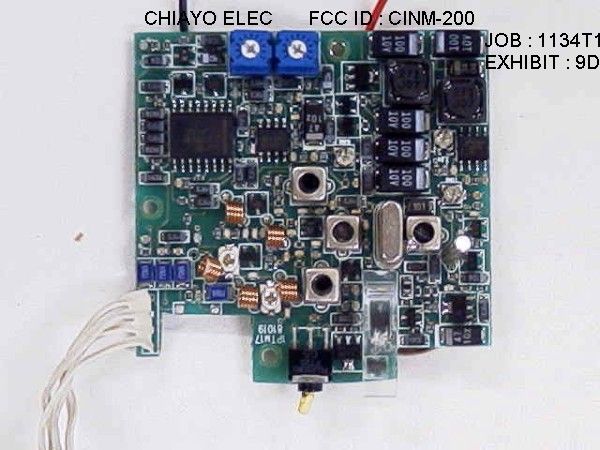

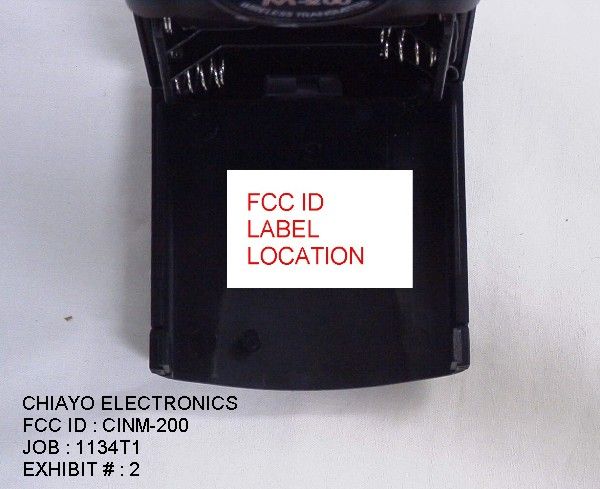

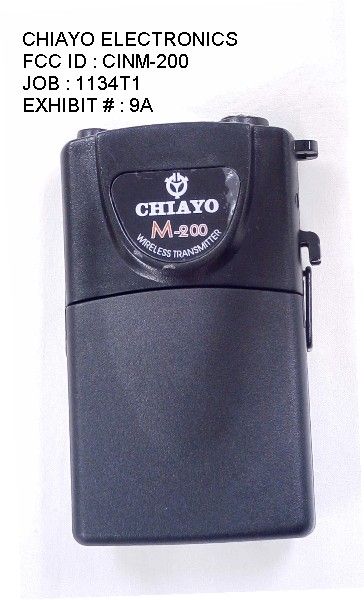

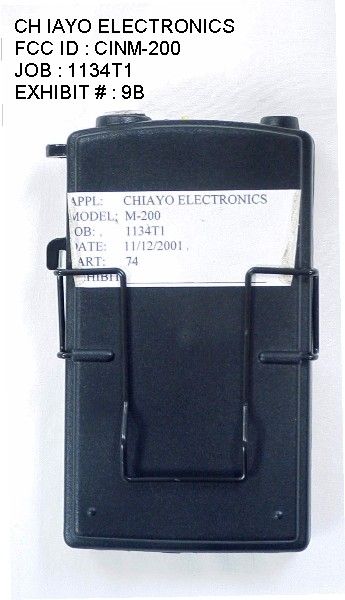

APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-200 TABLE OF CONTENTS LIST TEST REPORT CONTAINING: PAGE 1........ GENERAL INFORMATION PAGE 2.........DESCRIPTIONS PAGE 3A-3C.....MODULATAION LIMITING GRAPHS PAGE 4.........RF POWER TEST PROCEDURE PAGE 5.........AUDIO FREQUENCY RESPONSE GRAPH PAGE 6.........OCCUPIED BANDWIDTH PAGE 7.........OCCUPIED BANDWIDTH PLOT PAGE 8.........OCCUPIED BANDWIDTH PLOT - CW PAGE 9.........RADIATED EMISSIONS TEST DATA PAGE 10........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 11........FREQUENCY STABILITY TEST DATA PAGE 12........EQUIPMENT LIST EXHIBITS CONTAINING: EXHIBIT 1.......FCC ID LABEL SAMPLE EXHIBIT 2.......SKETCH OF LABEL LOCATION EXHIBIT 3.......BLOCK DIAGRAM EXHIBIT 4.......SCHEMATIC EXHIBIT 5.......TUNING PROCEDURE EXHIBIT 6.......CIRCUIT DESCRIPTION EXHIBIT 7.......USER'S MANUAL EXHIBIT 8.......TEST SET UP PHOTOGRAPH EXHIBIT 9A......EXTERNAL PHOTO – FRONT VIEW EXHIBIT 9B......EXTERNAL PHOTO – REAR VIEW EXHIBIT 9C......INTERNAL PHOTO – TOP VIEW EXHIBIT 9D......INTERNAL PHOTO – COMPONENT VIEW EXHIBIT 9E......INTERNAL PHOTO – COPPER VIEW APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-200 REPORT #: C\CHIAYO\1134T1\1134T1RPT.doc TABLE OF CONTENTS LIST GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033(c)(1) CHIAYO ELECTRONICS CO., LTD. will manufacture the in 2.1033(c)(2) quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. CHIAYO ELECTRONICS CO., LTD. 30, LANE 27, SEC. 4, JEN AI ROAD TAIPEI, TAIWAN R.O.C., 2.1033 TECHNICAL DESCRIPTION (c)(3) Instruction book. The instruction manual is in- cluded as Exhibit 7. (c)(4) Type of Emission: 86K0F3E Bn = 2M + 2DK M = 20000 D = 23kHz(Peak Deviation) K = 1 Bn = 2(20k) + 2(23k)(1) = 86k ALLOWED AUTHORIZED BANDWIDTH = 200kHz. 74.861(e)(5) (c)(5) Frequency Range: Part 74: 174-216 MHz TEST FREQ = 202.1 MHz. (c)(6) Power Range and Controls:UNIT has no controls. (c)(7) Maximum Output Power Rating: .00043 Watts into 50 ohms resistive load. (c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 4.5V BATTERY Vce = 4.5 Volts Ice = 28 mA. (c)(9) Tune-up procedure. The tune-up procedure is included as Exhibit # : 5. (c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT # 4. The block diagram is included as EXHIBIT # 3. APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-200 REPORT #: C\CHIAYO\1134T1\1134T1RPT.doc PAGE #: 1 2.1033(c)11) Photo or Drawing of Label: See EXHIBIT # 1. Sketch of Label Location : See EXHIBIT # : 2. 2.1033(c)12) Photos of Equipment: See EXHIBIT #'S 9A-9E. (c)(13) Description of all circuitry and devices provided for determining and stabilizing frequency. Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power. This circuitry is described on Exhibit 6. Limiting Modulation: The transmitter audio circuitry is contained in IC701, IC702. Limiting Power: There is no provision for changing the output power. (13) Digital modulation. This unit does not use digital modulation. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is sub- mitted below. 2.1046 RF power output. RF power measured is: OUTPUT POWER: .00043 WATTS APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-200 REPORT #: C\CHIAYO\1134T1\1134T1RPT.doc PAGE #: 2 Modulation Limiting Chiayo Electronics M-200 10000 15000 20000 25000 -72-62-52-42-32-22-12 dBmV Deviation 300 Hz CHIAYO ELECTRONICS FCC ID : CINM-200 JOB : 1134T1 PAGE # : 3A Modulation Limiting Chiayo Electronics M-200 10000 15000 20000 25000 30000 -73-63-53-43-33-23-13 dBmV Deviation 1000 Hz CHIAYO ELECTRONICS FCC ID : CINM-200 JOB : 1134T1 PAGE # : 3B Modulation Limiting Chiayo Electronics M-200 10000 12000 14000 16000 18000 20000 22000 24000 -72-62-52-42 dBmV Deviation 15000 Hz CHIAYO ELECTRONICS FCC ID : CINM-200 JOB : 1134T1 PAGE # : 3C R.F. POWER OUTPUT TEST PROCEDURE Transmitter 50 ohm under test Watt Meter Audio Oscillator 2.1047(a)(b) Modulation characteristics: AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. AUDIO LOW PASS FILTER The audio low pass filter is not required in this unit. APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-200 REPORT #: C\CHIAYO\1134T1\1134T1RPT.doc PAGE #: 4 Chiayo Electronics M-200 -70 -65 -60 -55 -50 -45 -40 -35 100100010000100000 Frequency dBmV audio response CHIAYO ELECTRONICS FCC ID : CINM-200 JOB : 1134T1 PAGE # : 5 2.1049(c) Occupied Bandwidth: Data in the plots show that all sidebands between 50 & 100% for the authorized bandwidth are attenuated by at least 25dB. From 100 to 250% of the authorize3d band- width they are attenuated by at least 35dB and beyond 250% 43 log(Po) dB. The plot shows the transmitter modulated with 15000 Hz(the highest modulation frequen- cy), adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the unmodulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth plots are on the following two pages. Wireless Microphone transmitter: Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT Transmitter Coupler 50 ohm under test Resistive Load Audio Spectrum Oscillator Analyzer REQUIREMENT: PART 74: 200kHz EMISSION BANDWIDTH. APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-200 REPORT #: C\CHIAYO\1134T1\1134T1RPT.doc PAGE #: 6 2.1051 Spurious emissions at antenna terminals(conducted): Not Applicable no antenna connector. 2.1053(a)(b) Field strength of spurious emissions: NAME OF TEST: RADIATED SPURIOUS EMISSIONS REQUIREMENTS: Emissions must be 43 +10log(Po) dB below the mean power output of the transmitter. 43 + 10 log(.00043) = 9.33 dB TEST DATA: Tuned Frequency MHz Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m ATTN dBc Margin dB 202.1 202.10 80.1 H 1.81 11.76 93.67 00.00 00.00 202.1 252.60 27.0…
