CINM-809

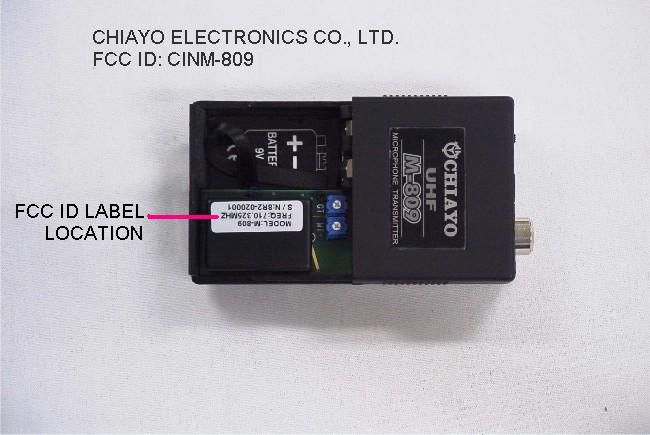

Label Sample of CHIAYO CINM-809 • SIZE: 16mm(L) x 7mm(D) FCC ID: CINM-809 MADE IN TAIWAN

TABLE OF CONTENTS LIST APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-809 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS & OCCUPIED BANDWIDTH PAGE 4......OCCUPIED BANDWIDTH CONTINUED PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 6......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 7......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 8......FREQUENCY STABILITY PAGE 9......LIST OF TEST EQUIPMENT EXHIBITS: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 3A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 3B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 3C........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 3D........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5A-5F.....PARTS LIST EXHIBIT 6.........SCHEMATIC EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........TUNING PROCEDURE EXHIBIT 9.........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 10A.......MODULATION LIMITING GRAPH - 300 Hz EXHIBIT 10B.......MODULATION LIMITING GRAPH - 1000 Hz EXHIBIT 10C.......MODULATION LIMITING GRAPH - 15000 Hz EXHIBIT 11A.......OCCUPIED BANDWIDTH PLOT- CW EXHIBIT 11B.......OCCUPIED BANDWIDTH PLOT- 2.5kHz 16 dB>23K DEV EXHIBIT 11C.......OCCUPIED BANDWIDTH PLOT- 15kHz 48.5K DEV APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-809 DATE: MARCH 15, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI66T0\CHI66T0.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033 (C)(1)(2) CHIAYO ELECTRONICS CO., LTD. will manufacture the CINM-809 in quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. 2.1033 (C)(1) TECHNICAL_DESCRIPTION (4) Type of Emission: 130KF3E Bn = 2M + 2DK M = 1000 D = 50.0KHz (Peak Deviation) K = 1 Bn = 2(1K) + 2(50.0K)(1) = 2K +100.0K = 102.0KHz M = 15,000 D = 66KHz K = 1 Bn = 2(15K) + 2(50K) = 30 +100 = 130KHz 74.861(e)(5) ALLOWED AUTHORIZED BANDWIDTH = 200KHz. (5) Frequency Range: Part 74: 944.00-952.00MHz TEST FREQ = 951.750MHz. (6) Power Range and Controls:UNIT has no power controls. (7) Maximum Output Power Rating: 1.0 MilliWatts ERP. (8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 9.0V BATTERY Vce = 8.9 Volts Ice = 2.6mA. Pce = 23.14mW (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #: 8. 2.1033(C) (10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6. The block diagram is included as EXHIBIT 4. (11) The equipment label is included at exhibit 2 and the sketch of the label location is Exhibit #3. (12) Photographs of the equipment are included as exhibit #4. (13) Digital modulation. This unit does not use digital modulation. APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-809 DATE: MARCH 15, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI66T0\CHI66T0.RPT PAGE: 1 2.1033(C)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF_power_output. ERP was measured by the method described later in this report. The input power to the final stage was measured with a 9.0V supply connected in place of the 1.5V battery. INPUT POWER: FOR 9.0 V OPERATION (8.9V)(0.0026A) = 23.14MilliWatts OUTPUT POWER: FOR 9.0 V OPERATION 1.0 mWATTS ERP R.F. POWER OUTPUT /-------\ /-----------------\ | | | | TRANSMITTER | | | |HP | UNDER TEST WITH | \--| |SPECTRUM | INTERNAL ANTENNA| | | |ANALYZER \-----------------/ | | | | | \-------/ |?- 3.0 meters---?| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. The center of the Dipole antenna at the center of the platform and the output of the signal generator adjusted to produce the same meter reading as measured for the fundamental in the radiated emissions test. APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINM-809 DATE: MARCH 15, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI66T0\CHI66T0.RPT PAGE: 2 2.1047 Modulation_characteristics: (a) AUDIO FREQUENCY RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603 S2.2.6.2.1. with the following exceptions; Constant Deviation Test /---------------\ /----------\ /----------\ | Dummy | | Audio | | RMS | /-| Microphone |--| Generator| /-| VOLTMETER| | | | \----------/ | \----------/ | \---------------/ | |----------------------------------/ | /------------\ /------------\ /---------\ | | | | | | | | Test | | | Transmitter|---/ \----| NEAR FIELD|---| Receiver| \-| under test | | PROBE | | | \------------/ \------------/ \---------/ 1. The test receiver audio bandwidth was <50Hz to >20,000Hz. 2. Apply a 1000Hz tone and adjust the audio generator to produce 10% of the rated system deviation. 3. Measure frequency responce over the frequency range from 100Hz to 20,000Hz. The audio frequency response curve is shown in EXHIBIT # 9. (b) Modulation Limiting - See Exhibits # 10A-10C. 2.1049 (c) Occupied_bandwidth: Using TIA/EIA 2.2.10 Accoustic Microphone Sensitivity test procedure to determine if the UUT could be put into modulation limiting and limiting could not be reached, the maximum deviation was only +40KHz. Using this test procedure the frequency of maximum sensitivity was determined to be 500Hz. a. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT /---------------\ /----------\ |Acoustic | | Audio | /-| Mic Spkr |-| Generator| | |Chamber | \----------/ | \---------------/ | | /------------\ /------------\ /---------\ | | | | | | | | Test | | | Transmitter|---/ \----| NEAR FIELD|---| Receiver| \-| under test | | PROBE | | | \------------/ \------------/ \---------/ DATE: MARCH 15, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI66T0\CHI66T0.RPT PAGE: 5 2.1049 Occupied Bandwidth (cont) b. Since the UUT could not be put into modulation limiting with an acoustic coupling a dummy microphone was used to connect to the U…

Text truncated - open the document above for the full version.

Chiayo Electronics Co., LTD. CINM-809 3 5 7 9 11 13 15 17 19 21 100100010000100000 Frequency rms mVolts audio response CHIAYO ELECTRONICS CO. , LTD. FCC ID : CINM-809 EXHIBIT # : 9

Modulation Limiting Chiayo Electronics Co., LTD. CINM-809 0 10000 20000 30000 40000 50000 00.050.10.150.2 rms Volts Deviation 300 Hz CHIAYO ELECTRONICS CO. LTD. FCC ID : CINM-809 EXHIBIT # : 10A

Modulation Limiting Chiayo Electronics Co., LTD. CINM-809 0 10000 20000 30000 40000 50000 00.050.10.150.2 rms Volts Deviation 1000 Hz CHIAYO ELECTRONICS CO., LTD . FCC ID : CINM-809 EXHIBIT # : 10B

Modulation Limiting Chiayo Electronics Co., LTD. CINM-809 0 10000 20000 30000 40000 50000 00.020.040.060.080.1 rms Volts Deviation 15000 Hz CHIAYO ELECTRONICS CO. LTD FCC ID : CINM-809 EXHIBIT # : 10C
