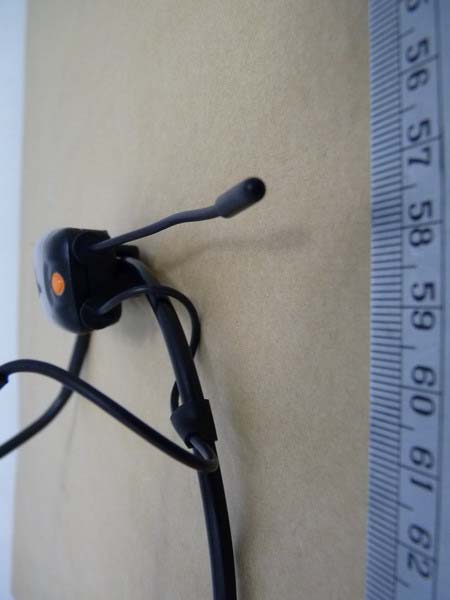

CINMT-U8MINI TRANSMITTER

Wireless Microphone System Operating Manual OPERATING MANUAL FITNESS AUDIO U Series Wireless Mic System SDR-5716 Receiver SM-716 / MT-U8 Transmitter 2 Wireless Microphone System Operating Manual 1. INTRODUCTION Congratulations on your purchase of the state-of-the-art Fitness Audio PLL Synthesized 16 channel frequency agile UHF high band professional wireless system. Please read this operating manual thoroughly in order to familiarize yourself with the controls before using them. 2. FRONT AND REAR PANEL CONTROLS U Series Receiver BALANCED ANT.AANT.B AF OUT DC-IN 10-15V SQ 1. GND 2. 3. + - 3 1 2 MIX MAX SDR-5716 1. Power Switch 2. Diversity Indicator 3. RF Signal Indicator 4. AF Signal Indicator 5. Channel LED 6. Channel Selector 7. Volume Control 8. Antenna B Socket 9. Balanced Audio output 10. Unbalanced Line-level output 11. Squelch Control 12. DC IN Jack 13. Antenna A socket 1. Power Switch 2. Diversity Indicator 3. RF Signal Indicator 4. AF Signal Indicator 5. Channel LED 6. Channel Selectors 7. Volume Control 8. Antenna B Socket 9. Fixed Mic-level Balanced output 10. Unbalanced Variable Line-level output 11. Squelch Control 12. DC IN Jack 13. Antenna A socket Channel Selection The channel changing buttons are software locked. To release the lock so that you can check for alternative clean channels press and hold both Channel buttons in at the same time. After 3 seconds the Channel display will flash and you can change and check the channels using the up and down buttons. Once you have chosen a suitable channel to use leave it flashing for 15 seconds to lock it in as indicated by a solid chan- nel number. Now set the transmitter channel to match. 3 Wireless Microphone System Operating Manual 3. RECEIVER INSTALLATION Audio output connection There are two audio outputs on the back of the U-Series SDR5716 Receiver, a Mic-level balanced XLR-M and Line-level unbalanced 6.35mm jack. We have supplied you with a balanced cable that goes from the XLR output into a TRS 6.35mm jack plug as used on the Fitness Audio Aeromix 2+2 and HRX-32 Mixers. This cable is a perfect match for an Aeromic/Cyclemic or E•Mic/V•Mic, the balanced cable connection will deliver the highest sound quality possible from any microphone, with more “body” in the voice being the main audible difference. This audio connection is shown below. AF OUT 1 2 3 1. GND 2. + 3. - BALANCED ANTENNA-B ANTENNA-A DC-IN 10V-15V SQ However, if your mixer has an XLR input socket, then it’s best to purchase a balanced XLR-F to XLR-M cable to connect the receiver to the Mic Input. Some mixers will also ac- cept an unbalanced jack to jack lead mic connection with the receiver’s output volume control adjusted down to suit as an alternative connection, but a balanced cable con- nection is the better one to use. Rack Mounting the Receiver The Fitness Audio SDR5716 Receiver is a 19” half-rack mount design and is supplied with a specially designed 19” rack mount adapter so can be bolted into equipment cabinets. Assemble as shown in Fig 3. We have also supplied you with a pair of antenna extension cables so that the two antennas can be mounted into the holes on the rack ears out front in the air and not trapped inside a steel box. 4 Wireless Microphone System Operating Manual A double receiver rack mount kit is available as an optional extra if required (Fig. 4). Positioning the Receiver For best operation, the receiver should be at least 1m above the ground and at least 1m away from a wall or metal surface to minimize RF reflections. 4. THE BELT-PACK TRANSMITTER (SM716) Channel Selection and Gain The channel selector and gain adjustment are located under the battery cover as shown in the picture below. To make channel selection remove the cover and select a channel by turning the Channel Selector(6) with a small screwdriver. Gain adjustment for Lavalier and Headset microphones can be done by adjusting the MT trimpot(5), whereas GT trimpot(4) is for the gain adjustment of an Electric Guitar or other high impedance line level inputs. If you’re using the Transmitter with an Aeromic then turn down the MT trimpot to minimum. If using an E•Mic or V•Mic then leave the MT trimpot at full and turn down only if distortion is evident. Due to minor variations in the casing sizes of many brands of 9V batteries, the trans- mitter battery compartment is designed to accommodate the preferred 9V size battery made by Eveready - the Energizer 9V Alkaline – but other brands may also work well. Re-chargeable Ni MH batteries @ 170-190mAH ratings may need to be re-charged after about 1.5 – 2.0 hours of continuous use, whereas Alkaline 9V Bat- teries will generally be suitable for about 6 – 8 hours of airtime with the Aeromic or E•Mic/ V•Mic wireless microphones. 1. Battery Status Indicator 2. Power Switch 3. Microphone Connector 4. GT Trimpot 5. MT Trimpot 6. Channel Selector 5 Wireless Microphone System Operating Manual A range of transmitter Pouchbelts in different styles and colours which can be worn un- der or over your clothes are available for many different users, including fitness instruc- tors, actors, musicians and professional presenters. For more details please consult your FA System supplier or visit our website: http://www.fitnessaudio.com.au/ Pouchbelts shown L - R: Standard, Hipster, Zipster, Grey Zipster, Beige Theater belt. 5. MINI TRANSMITTER (MT-U8) If your system has been supplied with a Mini Trans- mitter then it will already be wired to an Aeromic or Cyclemic, E•Mic or V•Mic either attached to the frame or with an Arm Pouch or Waist Pouchbelt to suit. To select the matching channel to the Receiver first remove the battery cover and with the small screwdriver supplied change the channel to match the one shown on the LED screen. Please note that the MT-U8 is an 8 channel transmitter and will normally be supplied lining up with channels 01-08 on the receiver, in some countries a “B” group of channels may also be available (Ch. 09-16). In both cases the…
