CINQ-1002Wireless microphone transmitter

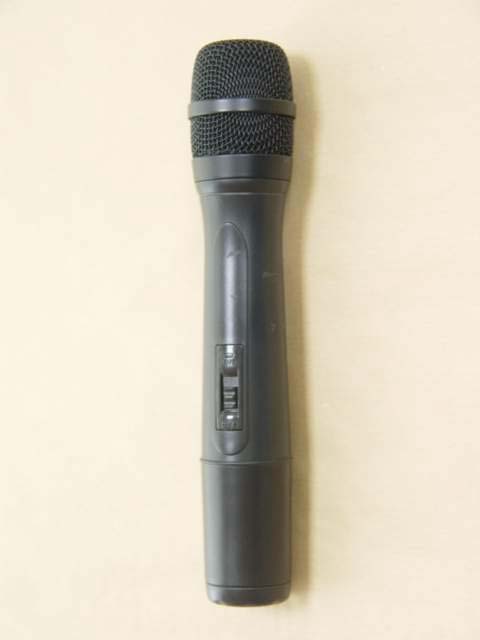

HAND-HELDMicrophone(Q-1002) HandheldMicrophone PartsandFunctions Batterystatus LEDindicator I Batterycompartment cover Fig.1 MetalGrille ( Capsulemoduleinside) PowerSwitch BatteryInstallation Q-802uses1 pieceof9Vbattery.Toinstallneworreplacetheoldbattery,Firstunscrewthebatterycap fromthebatterycompartment,theninsertthenewbatteryaccordingto itscorrectpolarityasindicated.Forlonger Operationhour,Alkalinebattery is recommended! ~ Fig.2 III Afterputtingthebatterycoverbacktothehousing,slidestheswitchto"ON" positionasshowninFig.3. Fig.3 Assoonastheswitchison,thebattery-statusindicatorwillgivea flash,indicating a normaloperation.Ifthereisnoflash,itindicateseitherpowersupplyisnot availableorbatteryisinstalledwrongly. IIIAfterswitchingon,theRFsignalindicatorLED(s)ofmatchingreceiverwilllightup, indicatingthemicrophonesignaltransmissionis innormaloperation. Switchoffthepowerswitchwhenthemicrophoneis notinuse,meanwhile,remove thebatteryoutofmicrophoneif it isnotinuseforanextendedperiod.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 1 of 11 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 3 of 11

7 m m 30 mm 04/16/2004 FCC ID:CINQ-1002 DATE DRAWING NO. DRAWN SCALE MODEL APPROVED CO., LTD DESCRIPTION UNIT REVERSION COMPUTER NO. mm CHIAYO TAI CHIAYO ELECTRONICS CO.,LTD. CHIAYO ELECTRONICS CO.,LTD. FCC ID:CINQ-1002 Q-1002 Q-1002 A

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 74 Subpart H, Section 74.861 FCC ID: CINQ-1002 Test report no.: W6M20403-5053-C-1 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 1 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 (a), 74.861(e)(1) 4.1 Test Procedure 4.2 Test Results 5 Radiated Power 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047 (b), 74.861(e)(2) 6.1 Test Procedure 6.2 Test Results 7 Audio Frequency response, FCC 2.1047 (a); 74.861 7.1 Test Procedure 7.2 Test Results 8 Occupied Bandwidth Emission Mask FCC 74.861 (e)(5);(e) (6)(i) (ii);FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Radiated Spurious Power , FCC 2.1053; 74.861(e)(b) 9.1 Test Procedure 10.1 Test Results 10 Line Conducted Emissions, FCC 15.207 10.1 Test Procedure 10.2 Test Results 11 Frequency Stability vs Temperature, FCC 2.1055; 74.861(e)(4) 11.1 Test Procedure 11.2 Test Results 12 Frequency Stability vs Voltage, FCC 2.1055; 74.861(e)(4) 12.1 Test Procedure 12.2 Test Results ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 1 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 06.05.2004N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 06.05.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 2 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax: +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: Chiayo Electronics Co., Ltd Street: No. 88, Chung Hsiao Street 2 Town: Chiayhi Country: Taiwan, R.O.C. Telephone: +886-5-271-1000 Fax: +886-5-276-7611 Contact: Ms. Teresa Hung E-Mail: ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 3 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 05.03.2004 Date of receipt of test item: 05.03.2004 Date of test: 05.03.2004 – 12.05.2004 1.5Test item Description of test item:Wireless Microphone Transmitter Type identification: Q-1002Brand Name: CHIAYO Serial number: Test model without serial number. Photos: See annex A. Technical data Frequency band: Frequency (MHz)TV BandUsed Band 26.100 – 26.480 54.000 – 72.000 76.000 – 88.000 161.625 - 161.775 174.000 – 216.000 450.000 – 451.000 455.000 – 456.000 470.000 – 488.000 488.000 – 494.000 494.000 – 608.000 614.000 – 806.000 944.000 – 952.000 Frequency ( ch A): 174.1 MHz Frequency (ch B): 194.6 MHz Frequency (ch C): 215.2 MHz ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 4 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Antenna Type: integral (internal antenna) Antenna Gain: 1 dBi Power supply : 3,7 V DC Operating mode: simplex Manufacturer: (if applicable) Name: Street: Town: Country: 1.6Test standards Technical standard : FCC Parts 74 Subpart H, section 74.861 Additional information: none 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa ETS Dr. Genz GmbH, GermanyRegistration number: W6M20403-5053-C-1Page 5 of 33 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Test equipmentTypeManufacturer ETS 0001 Test receiverESHS 10Rohde & Schwarz ETS 0002 Test receiverESVPRohde & Schwarz ETS 0003 Test receiverESVS 10Rohde & Schwarz ETS 0004 Spectrum- and Network-AnalyzerFSMS 26Rohde & Schwarz ETS 0005 Test receiverSMV 11MEB ETS 0006 Test receiver systemSME 12MEB ETS 0008 AntennaLoop antennaSiemens ETS 0009 AntennaARA 2MEB ETS 0010 AntennaLoop antennaMEB ETS 0011 Antennavan Veen/ FrameRohde & Schwarz ETS 0012 AntennaHK 116Rohde & Schwarz ETS 0013 …
