CINSQ-916Handheld Wireless Microphone

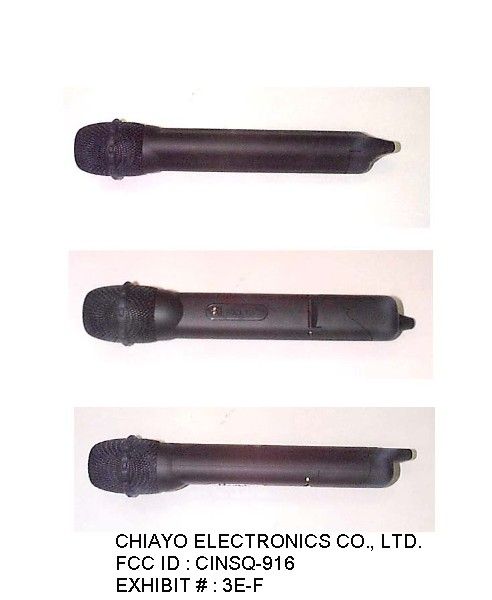

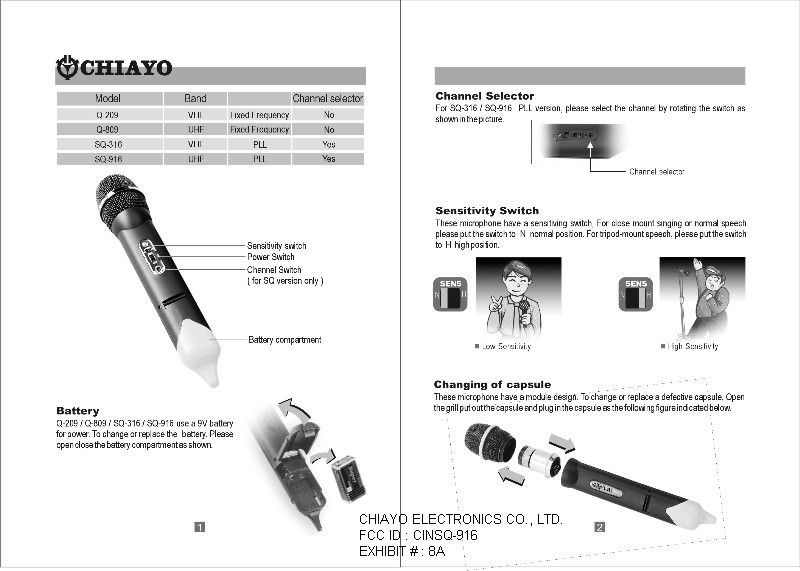

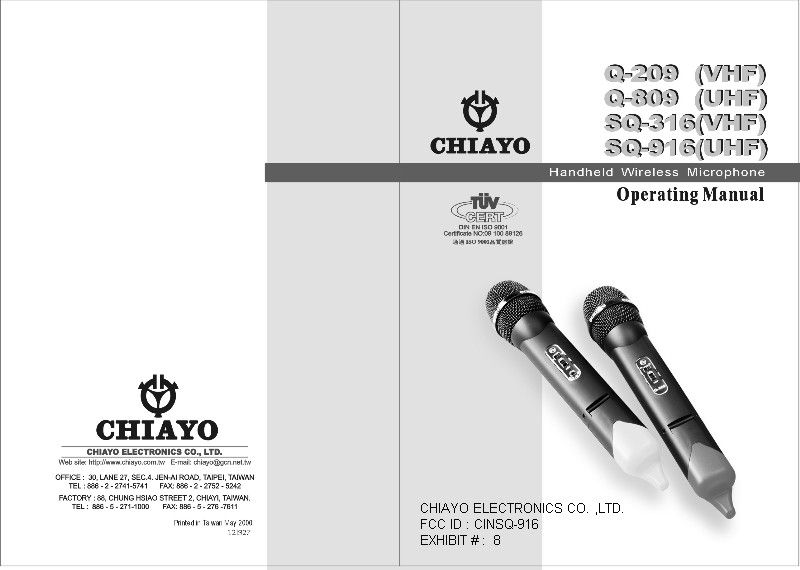

TABLE OF CONTENTS LIST APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINSQ-916 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AND OCCUPIED BANDWIDTH PAGE 4......OCCUPIED BANDWIDTH CONTD. AND SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 5......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7-8....FREQUENCY STABILITY PAGE 9......LIST OF TEST EQUIPMENT EXHIBITS: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 3A........EXTERNAL FRONT VIEW PHOTO - SQ-916 EXHIBIT 3B........EXTERNAL REAR VIEW PHOTO - SQ-916 EXHIBIT 3C........INTERNAL COMPONENT SIDE PHOTO - SQ-916 EXHIBIT 3D........INTERNAL SOLDER SIDE PHOTO - SQ-916 EXHIBIT 3E........EXTERNAL FRONT VIEW PHOTO - Q-809 EXHIBIT 3F........EXTERNAL REAR VIEW PHOTO - Q-809 EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5A-5F.....PARTS LIST EXHIBIT 6.........SCHEMATIC EXHIBIT 7.........TUNING PROCEDURE EXHIBIT 8A-8 .....USER'S MANUAL EXHIBIT 9.........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 10A.......MODULATION LIMITING GRAPH - 300 Hz EXHIBIT 10B.......MODULATION LIMITING GRAPH - 1000 Hz EXHIBIT 10C.......MODULATION LIMITING GRAPH - 15000 Hz EXHIBIT 11A.......OCCUPIED BANDWIDTH PLOT- CW EXHIBIT 11B.......OCCUPIED BANDWIDTH PLOT- 85% OF 45K DEV-15K Hz EXHIBIT 11C.......OCCUPIED BANDWIDTH PLOT- 85% OF 45K DEV-2.5kHz EXHIBIT 11D ................OCCUPIED BANDWIDTH PLOT-85% OF 45K DEV-15kHZ APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINSQ-916 DATE: APRIL 10, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI65T0\65T0.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033 (C)(1)(2) CHIAYO ELECTRONICS CO., LTD. will manufacture the CINSQ-916 in quantity, for use under FCC RULES PART 74.801, LOW POWER AUXILIARY STATIONS. 2.1033 (C)(1) TECHNICAL_DESCRIPTION (4) Type of Emission: 126KF3E Bn = 2M + 2DK M = 1000 D = 10.0KHz (Peak Deviation) K = 1 Bn = 2(1K) + 2(45.0K)(1) = 2K +90.0K = 92.0KHz M = 15,000 D = 10KHz K = 1 Bn = 2(15K) + 2(48K) = 30 +96 = 126KHz 74.861(e)(5) ALLOWED AUTHORIZED BANDWIDTH = 200KHz. (5) Frequency Range: Part 74: 614-806 & 944.00-952.00MHz TEST FREQ = 719.17 & 947.48MHz. (6) Power Range and Controls:UNIT has no power controls. (7) Maximum Output Power Rating: 1.0 MilliWatts ERP. (8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY 9.0V BATTERY Vce = 8.9 Volts Ice = 2.3mA. Pce = 20.47mW (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #: 7. 2.1033(C) (10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6. The block diagram is included as EXHIBIT 4. (11) The equipment label is included at exhibit 2 and the sketch of the label location is Exhibit #3. (12) Photographs of the equipment are included as exhibit #4. (13) Digital modulation. This unit does not use digital modulation. DATE: APRIL 10, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI65T0\65T0.RPT PAGE: 1 2.1033(C)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046 RF_power_output. ERP was measured by the method described later in this report. The input power to the final stage was measured with a 9.0V supply connected in place of the 1.5V battery. INPUT POWER: FOR 9.0 V OPERATION (8.9V)(0.0023A) = 20.47MilliWatts OUTPUT POWER: FOR 9.0 V OPERATION 1.0 mWATTS ERP R.F. POWER OUTPUT /-------\ /-----------------\ | | | | TRANSMITTER | | | |HP | UNDER TEST WITH | \--| |SPECTRUM | INTERNAL ANTENNA| | | |ANALYZER \-----------------/ | | | | | \-------/ |?- 3.0 meters---?| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. The center of the Dipole antenna at the center of the platform and the output of the signal generator adjusted to produce the same meter reading as measured for the fundamental in the radiated emissions test. APPLICANT: CHIAYO ELECTRONICS CO., LTD. FCC ID: CINSQ-916 DATE: APRIL 10, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI65T0\65T0.RPT PAGE: 2 2.1047 Modulation_characteristics: (a) AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in accordance with TIA/EIA Specification 603 S2.2.6.2.1. with the following exceptions; Constant Deviation Test /---------------\ /----------\ /----------\ | Dummy | | Audio | | RMS | /-| Microphone |--| Generator| /-| VOLTMETER| | | | \----------/ | \----------/ | \---------------/ | |----------------------------------/ | /------------\ /------------\ /---------\ | | | | | | | | Test | | | Transmitter|---/ \----| NEAR FIELD|---| Receiver| \-| under test | | PROBE | | | \------------/ \------------/ \---------/ 1. The test receiver audio bandwidth was <50Hz to >20,000Hz. 2. Apply a 1000Hz tone and adjust the audio generator to produce 10% of the rated system deviation. 3. Measure frequency responce over the frequency range from 100Hz to 20,000Hz. The audio frequency response curve is shown in EXHIBIT # 9. (b) Modulation Limiting 2.1049 (c) Occupied_bandwidth: Using TIA/EIA 2.2.10 Accoustic Microphone Sensitivity test procedure to determine if the UUT could be put into modulation limiting and limiting could not be reached, the maximum deviation was only +40KHz. Using this test procedure the frequency of maximum sensitivity was determined to be 500Hz. a. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT /---------------\ /----------\ |Acoustic | | Audio | /-| Mic Spkr |-| Generator| | |Chamber | \----------/ | \---------------/ | | /------------\ /------------\ /---------\ | | | | | | | | Test | | | Transmitter|---/ \----| NEAR FIELD|---| Receiver| \-| under test | | PROBE | | | \------------/ \------------/ \---------/ DATE: APRIL 10, 2000 REPORT #: T:\CUS\C\CHIAYO\CHI65T0\65T0.RPT PAGE: 3 2.1049 Occupied Bandwidth (cont) b. Since the UUT c…

Text truncated - open the document above for the full version.

Chiayo Electronics Co., LTD. CINSQ-916 (700MHz band) 3 4 5 6 7 8 9 10 11 100100010000100000 Frequency rms mVolts audio response CHIAYO ELECTRONICS CO. LTD. FCC ID : CINSQ-916 EXHIBIT # : 9

Modulation Limiting Chiayo Electronics Co., LTD. CINSQ-916 0 10000 20000 30000 40000 50000 00.050.10.15 rms Volts Deviation 1000 Hz CHIAYO ELECTRONICS CO., LTD. FCC ID : CINSQ-916 EXHIBIT # : 10B

Modulation Limiting Chiayo Electronics Co., LTD. CINSQ-916 0 10000 20000 30000 40000 50000 00.020.040.060.08 rms Volts Deviation 15000 Hz CHIAYO ELECTRONICS CO., LTD. FCC ID : CINSQ-916 EXHIBIT # : 10C
