_ _ _ The CRCL is accredited to ISO/IEC 17025 by the National Voluntary Laboratory Accreditation Program for the scope of accreditation under Lab Code 100399-0. The CRCL is accredited to ISO/IEC 17025 by the Canadian Standards Association under Master Contract 155397. NVLAP Lab Code 100399-0 Federal Communications Commission attn: Reviewing Engineer 7435 Oakland Mills Road Columbia, MD 21046 Philips Lighting Company Corporate Regulatory and Certification Laboratory 3861 S. 9 th St. Salina, KS 67401 Tel: 785 822 1511 Fax: 785 822 1510 [email protected] Date: 3 April 2008 Subject: CONFIDENTIALITY REQUEST FOR: Philips LivingColors7 (aka LC7) Remote Control (aka LC7 RC) (FCC ID: CIW322202190511) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematics diagrams, design technical specification including block diagrams and Bill of Materials required to be submitted with this application be withheld from public review. REASON FOR REQUEST: the documents are company proprietary information that could never get into the possession of competition. Please contact me if there is any information you may need. Sincerely, James R. Cyre PLCNA Regulatory Administrator Ref: FCC 2008-007 File: 14-05-22 CC: Salina, KS A. Jackson Somerset, NJ G. Gregga

_ _ _ The CRCL is accredited to ISO/IEC 17025 by the National Voluntary Laboratory Accreditation Program for the scope of accreditation under Lab Code 100399-0. The CRCL is accredited to ISO/IEC 17025 by the Canadian Standards Association under Master Contract 155397. NVLAP Lab Code 100399-0 Federal Communications Commission attn: Reviewing Engineer 7435 Oakland Mills Road Columbia, MD 21046 Philips Lighting Company Corporate Regulatory and Certification Laboratory 3861 S. 9 th St. Salina, KS 67401 Tel: 785 822 1511 Fax: 785 822 1510 [email protected] Date: 3 April 2008 Subject: DECLARATION ON FCC IDENTIFIER VISIBILITY: Philips LivingColors7 (aka LC7) Remote Control (aka LC7 RC) (FCC ID: CIW322202190511) To Whom It May Concern: This letter serves as an official declaration that the FCC identifier will be visible at the time of LivingColors7 purchase. The FCC ID is placed in the LC7 RC battery compartment. The LC7 product is marketed without the batteries installed. The batteries (3 x AAA type, foiled together) are attached to the product in the product box. The battery compartment of the LC7 RC device needs to be opened by the end-user to install the batteries. The device operation is not possible without the batteries installed. The need for battery installation in the LC7 RC device is stated in the Instruction for Use in “Getting Started” section. Please contact me if there is any information you may need. Sincerely, James R. Cyre PLCNA Regulatory Administrator Ref: FCC 2008-010 File: 14-05-22 CC: Salina, KS A. Jackson Somerset, NJ G. Gregga

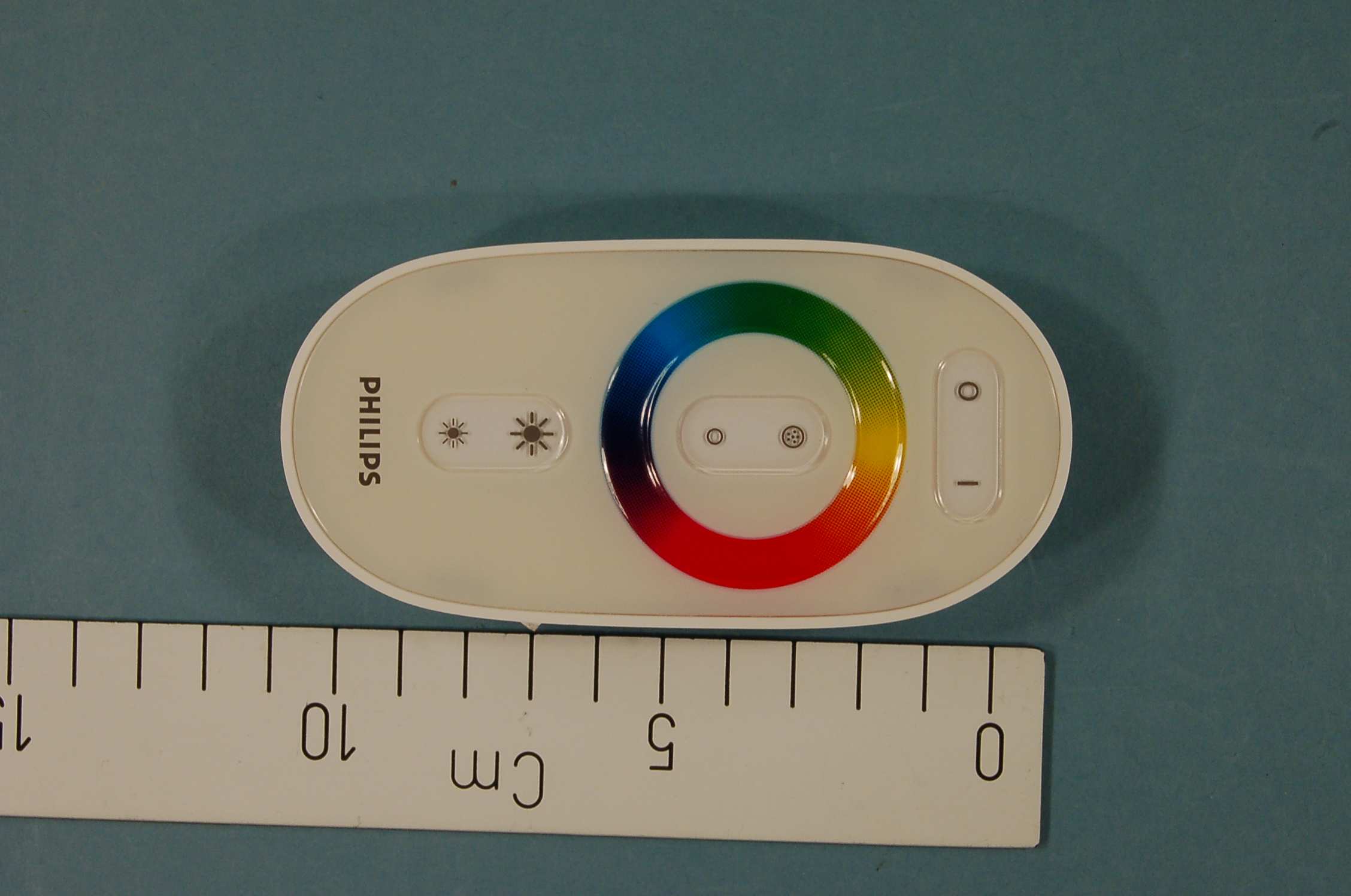

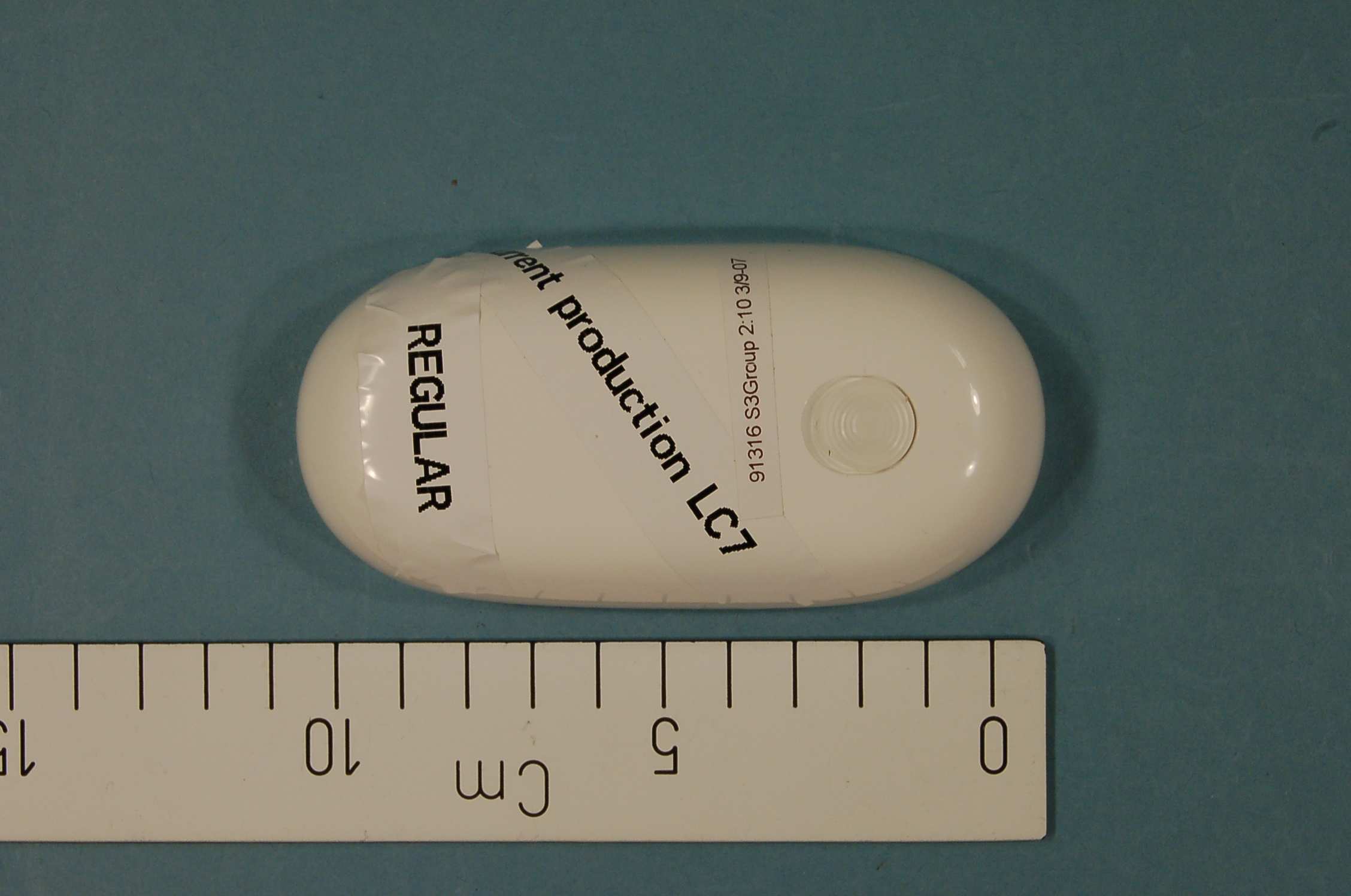

FCC Part 15 & RSS-210 Project no.: 91316 Page 1 of 2 Nemko Comlab, N-2007 Kjeller EXTERNAL PHOTOS – LC7 Remote Control LC7 Remote Control - Top View LC7 Remote control – Bottom view FCC Part 15 & RSS-210 Project no.: 91316 Page 2 of 2 Nemko Comlab, N-2007 Kjeller LC7 Remote Control – Rear view

Label material: I confirm we can produce with silver label. Regarding UL969 please see below specification. Product data Fasson Specialty Transfer PET Matt Chrome TOP / AL170 / BG42 white No Imprint / AFJ083 Issue date : 29-Jun- 2006 Facestock A matt finished metallic polyester film. The smooth surface is covered with a topcoat for excellent ink anchorage. Basis Weight 72 g/m² ISO 536 Caliper 0.050 mm ISO 534 Adhesive AL170 is a transparent, solvent-based permanent, acrylic adhesive. Liner BG42 White: siliconized glassine paper, woodfree, super calendered and extremely tough and tear-resistant despite its thinness. Basis Weight 65 g/m² ISO 536 Caliper 0.058 mm ISO 534 Adhesive performance The adhesive is distinguished by very high ageing stability. It features very high resistance against chemicals and heat. Applications and use Transfer PET matt chrome TOP was specially developed for industrial labels and thermal transfer applications. Thanks to the special surface coating, excellent results can be achieved with thermal transfer printers equipped with conventional or near-edge print heads using resin ribbons. The main area of application is the labelling of industrial products. Nameplates and logistics labels are typical examples. This product is distinguished by its high chemical resistance. The liner is not recommended for fanfolding. For special requirements we strongly recommend application tests. As with all pressure sensitive materials, this product should be tested thoroughly under end-use conditions to ensure it meets the requirements of the specific application. Conversion / Printing In addition to thermal transfer printing the product can also be printed by all conventional roll label tecniques, such as flexo, UV letterpress, silkscreen. Specific testing is required. For easy diecutting sharp corners should be avoided. This product is UL recognized for indoor and outdoor use, file number MH27538. Shelf life Two years when stored at 22°C/50%RH Detailed technical information available on request. Laminate Total Caliper 0.132 mm +/- 10 % PERFORMANCE DATA Initial Tack 370 N/m FTM 9 glass Peel Adhes. 90° 500 N/m FTM 2 st.st. Min. appl. temp. 0°C Service temp. -80°C --> +150°C N.B. : All data to be considered as typical values.





FCC Part 15 & RSS-210 Project no.: 91316 Page 1 of 2 Nemko Comlab, N-2007 Kjeller INTERNAL PHOTOS – LC7 Remote Control LC7 remote Control – Top view of PCB LC7 Remote control – rear view of PCB FCC Part 15 & RSS-210 Project no.: 91316 Page 2 of 2 Nemko Comlab, N-2007 Kjeller LC7 Remote control – rear view of PCB

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 91316/14 Item tested : LC7 Remote control Type of equipment: Low Power Transceiver Client : Silicon & Software Systems Polska Sp. z O. O. FCC Part 15.249 Low Power Transceiver 2400 – 2483.5 MHz Band RSS210 Issue 7 & RSS Gen Issue 2 Low-Power Licence-exempt Radiocommunications devices 2400 – 2483.5 MHz Band 28 March 2008 Authorized by : .............................................. Frode Sveinsen Technical Verificator Test Report FCC part 15.249 Project no. : 91316/14 Nemko Comlab, Kjeller, Norway Page 2 (28) CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 Testhouse Info .......................................................................................................................... 3 1.2 Client Information ...................................................................................................................... 3 1.3 Manufacturer ( if other than client) ............................................................................................3 2 Test Information ................................................................................................................... 4 2.1 Test Item ................................................................................................................................... 4 2.2 Test Environment ...................................................................................................................... 5 2.2.1 Normal test condition ................................................................................................................ 5 2.3 Test Period................................................................................................................................ 5 3 TEST REPORT SUMMARY .................................................................................................. 6 3.1 General ..................................................................................................................................... 6 3.2 Test Summary........................................................................................................................... 7 3.3 Description of modification for Modification Filing ..................................................................... 7 3.4 Comments................................................................................................................................. 7 3.5 Family List Rational................................................................................................................... 7 4 TEST RESULTS ....................................................................................................................8 4.1 Power Line Conducted Emissions............................................................................................. 8 4.2 Transmitter Frequency Stability.................................................................................................9 4.3 6 dB bandwidth ....................................................................................................................... 10 4.4 Peak Power Output ................................................................................................................. 11 4.5 Spurious Emissions (Radiated)............................................................................................... 12 4.6 Receiver Spurious Emissions (Radiated)................................................................................ 15 5 LIST OF TEST EQUIPMENT ...............................................................................................26 6 BLOCK DIAGRAM..............................................................................................................27 6.1 System set up ......................................................................................................................... 27 6.2 Test Site Radiated Emission ................................................................................................... 28 Test Report FCC part 15.249 Project no. : 91316/14 Nemko Comlab, Kjeller, Norway Page 3 (28) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko Comlab Address : Gåsevikveien 8, Box 96 N-2027 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 E-mail: [email protected] FCC test firm registration # : 994405 Industry Canada OATS registration # : 4443 1.2 Client Information Name : Silicon & Software Systems Polska Sp.Z O.O. Address : ul. Nyska 83/85, 50-505 Wroclaw, Poland Telephone : +48 71 3348177 Contact: Name : Sebastian Roslan Telephone : +48 71 3348177 E-mail : [email protected] 1.3 Manufacturer ( if other than client) Name : Philips Lighting Address : BU Consumer Lamps, Mathildelaan 1, 5611 BD, Eindhoven , The Netherlands Telephone : +31 40 2755531 Contact: Name : Bao Trinh Telephone : +31 40 2755531 E-mail : [email protected] Test Report FCC part 15.249 Project no. : 91316/14 Nemko Comlab, Kjeller, Norway Page 4 (28) 2 Test Information 2.1 Test Item Name : Remote control for Philips Living Colours (LED Ambience Lamp) Model/version : LC7 Remote control Serial number : TX: S/N 339 , RX: S/N 342 , Regular: S/N 356 Hardware identity and/or version: Not stated Software identity and/or version : Not stated Operating frequency: 2433 MHz Transmitter data rate: 250kbit/s Tuneable Bands : None Emissions Designator : / Number of Channels : 1 Operating Modes : Transceiver Channel spacing: None Channel bandwidth: 200kHz (TX) , 540kHz (RX) Type of Modulation : MSK User Frequency Adjustment : None Rated Output Power : -4dBm (0.4 mW) Type of Power Supply : Battery 4.5Vdc Antenna gain: / Antenna Connector :…

Text truncated - open the document above for the full version.

FCC Part 15 & RSS-210 Project no.: 91316 Page 1 of 1 Nemko Comlab, N-2007 Kjeller TEST SET-UP PHOTOS – Remote Control Radiated Emissions Test below 30MHz @10m Radiated Emissions Test above 30MHz
