CIW322202192004LivingColors ambience LED luminaire

Cleaning and MaintenanceRemove the plug from the wall socket.The LivingColors and plug should only be cleaned with a soft dry cloth. Be careful for possible scratches.Do not use cleaning agents.Warranty and ServiceFor information or in case of a problem, please visit the Philips website at www.philips.com/livingcolors or call 1-800-555-0050. EnvironmentIf you discard the appliance in due course, dispose of it in accordance with the instructions of the local authority. Remove the batteries when you discard the remote control. Do not throw the batteries away with the normal household waste. Hand them in at an official collection point or at a Philips Dealer, which will dispose of the batteries in an environmentally-friendly way.Plug Specifications• AC Plug • Model: ADP-15GH • Input: 100-240 V ~ 0.5A 50-60Hz • Output: 5V ~ 2.68A WarrantyPhilips’ one year warranty is valid if the product is used in accordance with the instructions and for its intended purpose. Claims will only be accepted on submission of the original proof of purchase (invoice, sales slip or receipt) stating the purchase date, the name of the dealer and a description of the product.The Philips warranty lapses if:• anything has been changed, crossed out, deleted or rendered illegible on the purchase docket or product description.• failures caused by damage, faulty connections or abuse.• a defect is caused by extreme circumstances not inherent to the LivingColors, for example, lighting, flooding, fire, incorrect use or negligance. • the LivingColors or plug have been opened (for other reasons as changing batteries) or disassembled. FCC InformationThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur ina particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Philips Lighting Company200 Franklin Square DriveSomerset, NJ 08875-6800 Questions or Comments: 1-800-555-0050www.philips.com Living Colors User Manual IntroductionThank you for buying Philips LivingColors.LivingColors has been specially designed to enable you to create your own ambience, through color and light. Before first use please read these instructions carefully. By following our guidelines you will enjoy the full functionality of Philips LivingColors.Visit our website at www.philips.com/livingcolors for more information about this product and to see a demonstration on the possible ambiences you can create at your home.ImportantRead these instructions carefully before you use LivingColors for the first time and save them for future reference.• Check whether all parts are available (see next page).• Carefully remove the parts from the packaging.• Check the connections. Unpack Remote Control 3 AAA Batteries Plug with cord (is packed at the bottom) Support A A A A A A A A A Top Side LivingColors LivingColors Safety InstructionsKeep the plug and LivingColors away from liquids and humidity.• LivingColors is for indoor use only. Do not use in wet locations, e.g. bathrooms or outdoors.• LivingColors is not a toy designed to be played with by children.• Do not place on hot surfaces.• For safety reasons and under the terms of the warranty the LivingColors and plug must not be opened. • Only use the plug supplied with the charger: using an plug with the wrong polarity or current can damage your LivingColors. Extend the LivingColors PossibilitiesFault TracingThe LivingColors will bring you a colorful world of opportunities.1. If, however, you face one of the exceptional situations where : LivingColors is not providing light, • check your batteries in the Remote Control • check the connections • check the plug 2. Is LivingColors still not working up to standards, please call 1-800-555-0050 (also see Warranty and Service ). Getting Started 01 On/off Color tuningWhite balanceDimming LivingColorsRemote control 01 Open the battery compartment of the Remote Control by sliding the button at the back.Insert the 3 AAA batteries ( + and – as indicated). Place LivingColors at a selected location on a level, stable surface. Depending on the surface, you could consider using the support (A) especially designed for LivingColors.Direct LivingColors towards the wall, and insert the plug into the wall socket. A LivingColors will show a short introduction to the color possibilities (this is normal). Switch LivingColors on by pushing the 1 (on) on the on/off button. Create your own ambience by:1. Touching the desired co lor on the touch ring, Move a finger over the touch ring for refining the color. 2. Deep full color through to white Push the white balance button, for a shorter or longer time, on A ( ) for a deep color or on…

Text truncated - open the document above for the full version.

_ _ _ The CRCL is accredited to ISO/IEC 17025 by the National Voluntary Laboratory Accreditation Program for the scope of accreditation under Lab Code 100399-0. The CRCL is accredited to ISO/IEC 17025 by the Canadian Standards Association under Master Contract 155397. NVLAP Lab Code 100399-0 Federal Communications Commission attn: Reviewing Engineer 7435 Oakland Mills Road Columbia, MD 21046 Philips Lighting Company Corporate Regulatory and Certification Laboratory 3861 S. 9 th St. Salina, KS 67401 Tel: 785 822 1511 Fax: 785 822 1510 [email protected] Date: 3 April 2008 Subject: CONFIDENTIALITY REQUEST FOR: Philips LivingColors7 (aka LC7) Luminaire (FCC ID: CIW322202192004) To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematics diagrams, design technical specification including block diagrams and Bill of Materials required to be submitted with this application be withheld from public review. REASON FOR REQUEST: the documents are company proprietary information that could never get into the possession of competition. Please contact me if there is any information you may need. Sincerely, James R. Cyre PLCNA Regulatory Administrator Ref: FCC 2008-006 File: 14-05-22 CC: Salina, KS A. Jackson Somerset, NJ G. Gregga

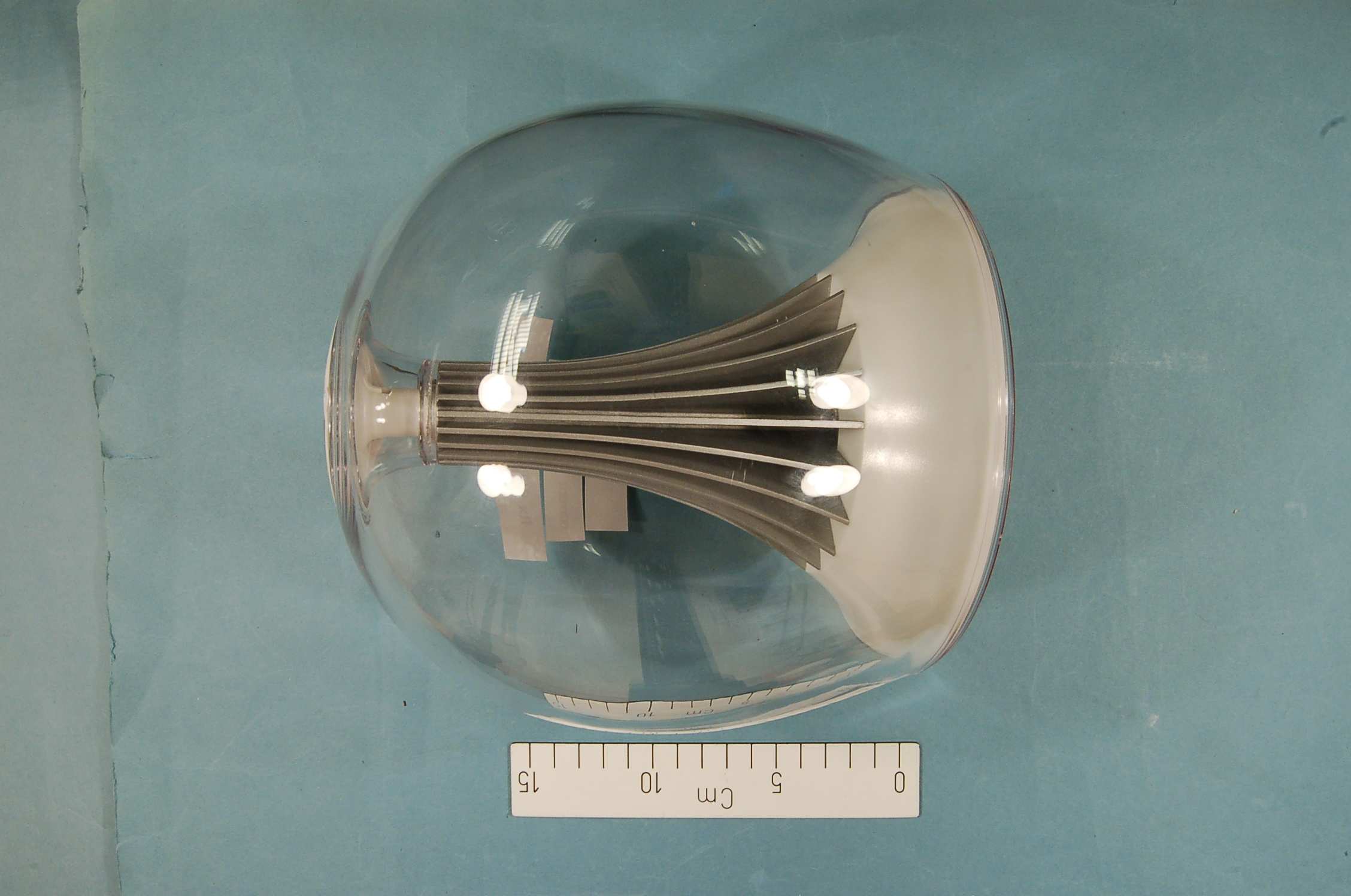

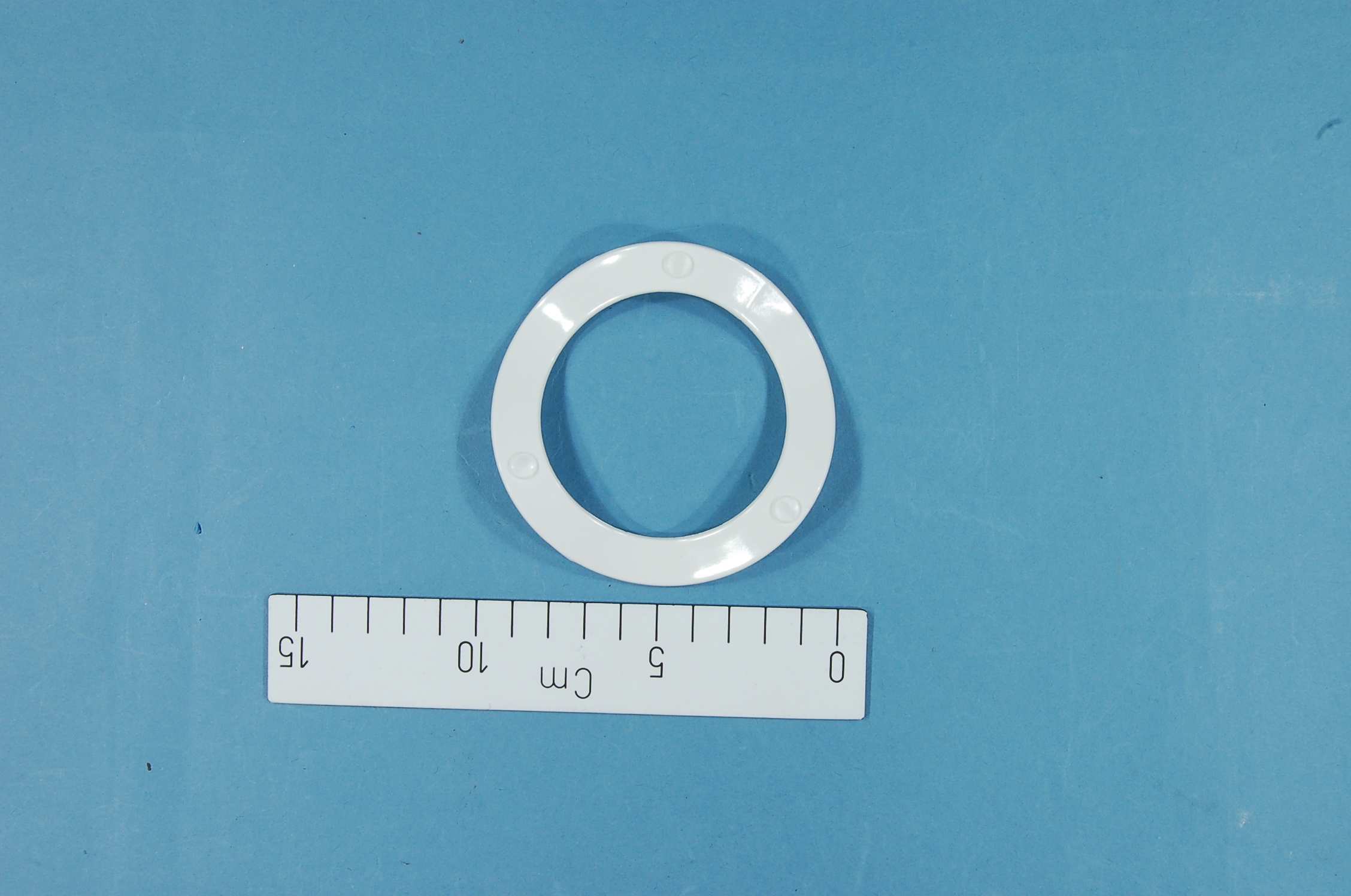

FCC Part 15 & RSS-210 Project no.: 91316 Page 1 of 3 Nemko Comlab, N-2007 Kjeller EXTERNAL PHOTOS - Luminaire Luminaire Luminaire – Bottom view (AC adapter port ) FCC Part 15 & RSS-210 Project no.: 91316 Page 2 of 3 Nemko Comlab, N-2007 Kjeller Luminaire – Top view (LED’s) FCC Part 15 & RSS-210 Project no.: 91316 Page 3 of 3 Nemko Comlab, N-2007 Kjeller Accessories Luminaire –AC adaptor Support for Luminaire

Label material: I confirm we can produce with silver label. Regarding UL969 please see below specification. Product data Fasson Specialty Transfer PET Matt Chrome TOP / AL170 / BG42 white No Imprint / AFJ083 Issue date : 29-Jun- 2006 Facestock A matt finished metallic polyester film. The smooth surface is covered with a topcoat for excellent ink anchorage. Basis Weight 72 g/m² ISO 536 Caliper 0.050 mm ISO 534 Adhesive AL170 is a transparent, solvent-based permanent, acrylic adhesive. Liner BG42 White: siliconized glassine paper, woodfree, super calendered and extremely tough and tear-resistant despite its thinness. Basis Weight 65 g/m² ISO 536 Caliper 0.058 mm ISO 534 Adhesive performance The adhesive is distinguished by very high ageing stability. It features very high resistance against chemicals and heat. Applications and use Transfer PET matt chrome TOP was specially developed for industrial labels and thermal transfer applications. Thanks to the special surface coating, excellent results can be achieved with thermal transfer printers equipped with conventional or near-edge print heads using resin ribbons. The main area of application is the labelling of industrial products. Nameplates and logistics labels are typical examples. This product is distinguished by its high chemical resistance. The liner is not recommended for fanfolding. For special requirements we strongly recommend application tests. As with all pressure sensitive materials, this product should be tested thoroughly under end-use conditions to ensure it meets the requirements of the specific application. Conversion / Printing In addition to thermal transfer printing the product can also be printed by all conventional roll label tecniques, such as flexo, UV letterpress, silkscreen. Specific testing is required. For easy diecutting sharp corners should be avoided. This product is UL recognized for indoor and outdoor use, file number MH27538. Shelf life Two years when stored at 22°C/50%RH Detailed technical information available on request. Laminate Total Caliper 0.132 mm +/- 10 % PERFORMANCE DATA Initial Tack 370 N/m FTM 9 glass Peel Adhes. 90° 500 N/m FTM 2 st.st. Min. appl. temp. 0°C Service temp. -80°C --> +150°C N.B. : All data to be considered as typical values.





FCC Part 15 & RSS-210 Project no.: 91316 Page 1 of 1 Nemko Comlab, N-2007 Kjeller INTERNAL PHOTOS - Luminaire Luminaire – Top view of PCB Luminaire – rear view of PCB

Nemko AS, Gaustadalléen 30, P.O.Box 73 Blindern, NO-0314 Oslo Norway T +47 22 96 03 30 F +47 22 96 05 50 Enterprise number NO974404532 Visiting address: Nemko Comlab Gåsevikveien 8, P.O.Box 96, NO-2027 Kjeller Norway T +47 64 84 57 00 F +47 64 84 57 05 Test report no. : 91316/13 Item tested : LivingColors – Luminaire Type of equipment: Low Power Transceiver Client : Silicon & Software Systems Polska Sp. z O. O. FCC Part 15.249 Low Power Transceiver 2400 – 2483.5 MHz Band RSS210 Issue 7 & RSS Gen Issue 2 Low-Power Licence-exempt Radiocommunications devices 2400 – 2483.5 MHz Band 28 March 2008 Authorized by : .............................................. Frode Sveinsen Technical Verificator Test Report FCC part 15.249 Project no. : 91316/13 Nemko Comlab, Kjeller, Norway Page 2 (32) CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 Testhouse Info .......................................................................................................................... 3 1.2 Client Information ...................................................................................................................... 3 1.3 Manufacturer ( if other than client) ............................................................................................3 2 Test Information ................................................................................................................... 4 2.1 Test Item ................................................................................................................................... 4 2.2 Test Environment ...................................................................................................................... 5 2.2.1 Normal test condition ................................................................................................................ 5 2.3 Test Period................................................................................................................................ 5 3 TEST REPORT SUMMARY .................................................................................................. 6 3.1 General ..................................................................................................................................... 6 3.2 Test Summary........................................................................................................................... 7 3.3 Description of modification for Modification Filing ..................................................................... 7 3.4 Comments................................................................................................................................. 7 3.5 Family List Rational................................................................................................................... 7 4 TEST RESULTS ....................................................................................................................8 4.1 Power Line Conducted Emissions............................................................................................. 8 4.2 Transmitter Frequency Stability.................................................................................................9 4.3 6 dB bandwidth ....................................................................................................................... 10 4.4 Peak Power Output ................................................................................................................. 11 4.5 Band Edge Emissions .............................................................................................................12 4.6 Spurious Emissions (Radiated)............................................................................................... 13 4.7 Receiver Spurious Emissions (Radiated)................................................................................ 16 5 LIST OF TEST EQUIPMENT ...............................................................................................30 6 BLOCK DIAGRAM..............................................................................................................31 6.1 System set up ......................................................................................................................... 31 6.2 Test Site Radiated Emission ................................................................................................... 32 Test Report FCC part 15.249 Project no. : 91316/13 Nemko Comlab, Kjeller, Norway Page 3 (32) 1 GENERAL INFORMATION 1.1 Testhouse Info Name : Nemko Comlab Address : Gåsevikveien 8, Box 96 N-2027 Kjeller, NORWAY Telephone : +47 64 84 57 00 Fax : +47 64 84 57 05 E-mail: [email protected] FCC test firm registration # : 994405 Industry Canada OATS registration # : 4443 1.2 Client Information Name : Silicon & Software Systems Polska Sp.Z O.O. Address : ul. Nyska 83/85, 50-505 Wroclaw, Poland Telephone : +48 71 3348177 Contact: Name : Sebastian Roslan Telephone : +48 71 3348177 E-mail : [email protected] 1.3 Manufacturer ( if other than client) Name : Philips Lighting Address : BU Consumer Lamps, Mathildelaan 1, 5611 BD, Eindhoven , The Netherlands Telephone : +31 40 2755531 Fax : - Contact: Name : Bao Trinh Telephone : +31 40 2755531 E-mail : [email protected] Test Report FCC part 15.249 Project no. : 91316/13 Nemko Comlab, Kjeller, Norway Page 4 (32) 2 Test Information 2.1 Test Item Name : Luminaire Model/version : LivingColors Luminaire Serial number : TX: S/N 339 , RX: S/N 356 Hardware identity and/or version: 2.4 Software identity and/or version : Not stated Operating frequency: 2433 MHz Transmitter data rate: 250kbit/s Tuneable Bands : None Emissions Designator : / Number of Channels : 1 Operating Modes : Transceiver Channel spacing: None Channel bandwidth: 200kHz (TX) , 540kHz (RX) Type of Modulation : MSK User Frequency Adjustment : None Rated Output Power : -4dBm (0.4 m…

Text truncated - open the document above for the full version.

FCC Part 15 & RSS-210 Project no.: 91316 Page 1 of 1 Nemko Comlab, N-2007 Kjeller TEST SET-UP PHOTOS - Luminaire Radiated Emissions Test Power-Line Conducted Emissions Test
