CKLHGC-130SSingle-Mode Cellular CDMA Phone

l HYUNDAI HYUNDAI ELECTRONICS IND. CO., LTD Quality Assurance Off ice Quality Assistance De t. San 136-1, Ami-Ri, Buba -Eub, P Ichon-Si Kyoungki-Do, 467-fO1, Korea AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Phone (FCC ID: CKLHGC-130S) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transfered, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, I Ki Soo Kim EMC Test Lab. / Section Chief Quality Assistance Dept. Quality Assurance Office Hyundai Electronics Industries Co., Ltd.

l HYUNDAI HYUNDAI ELECTRONICS IND. Quality Assurance Off ice CO., LTD Quality Assistance Det. San 136-1, Ami-Ri,Buba -Eub, P Ichon-Si Kyoungki-Do, 467-701, Korea Date : MAR. 15. 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. In re : Hyundai Electronics Industries Co., Ltd. FCC ID : CKLHGC-130s CDMA Cellular Phone Part 22 Certification Request for Confidentiality Gentlemen : In accordance with 0.459 of CFR 47, Hyundai Electronics Industries Co., Ltd. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment,Operational Description attachment, and Part List/Tune-Up Procedure attachment and Antenna Specification attachment for the above-referenced application. These documents contain detailed system and equipment description and related information about the product which Hyundai Electronics Industries Co., Ltd. considers to be proprietary,confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Hyundai Electronics Industries Co., Ltd. feels this information would’ be of benefit to its competitors, and that the discloure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, __o;;_?r&E%-_~!_~__h~ 6? f c ;T Manager of QA Office Hyundai Electronics Ind. Co., Ltd.

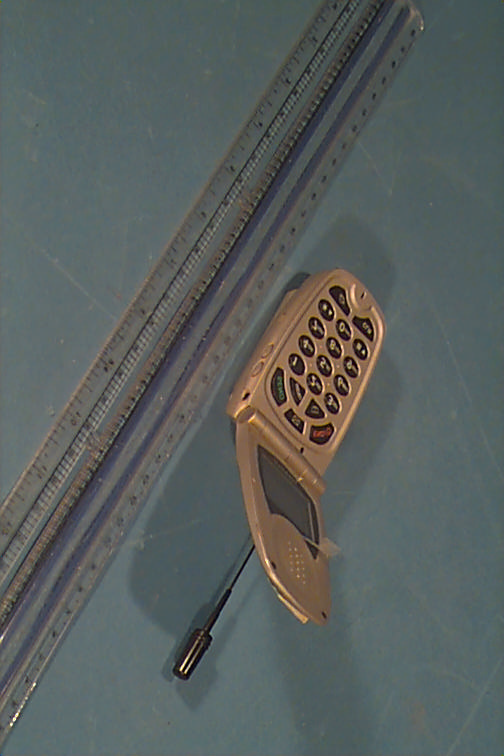

April 02, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:HYUNDAI Electronics Industries Co., Ltd. FCC ID: CKLHGC-130S Part 22 Certification Gentlemen: Attached herewith, on behalf of HYUNDAI Electronics Industries Co., Ltd. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID:CKLHGC-130S TRADE / MODEL(s):HYUNDAI HGC-130S EUT TYPE:Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range:824.64 – 849.97 MHz Rx Freq. Range:869.64 – 893.97 MHz Max. Output Power:0.3 W (ERP) Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), antenna specifications (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Ki-Soo Kim Section Chief, QA Office HYUNDAI Electronics Industries Co., Ltd

Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone

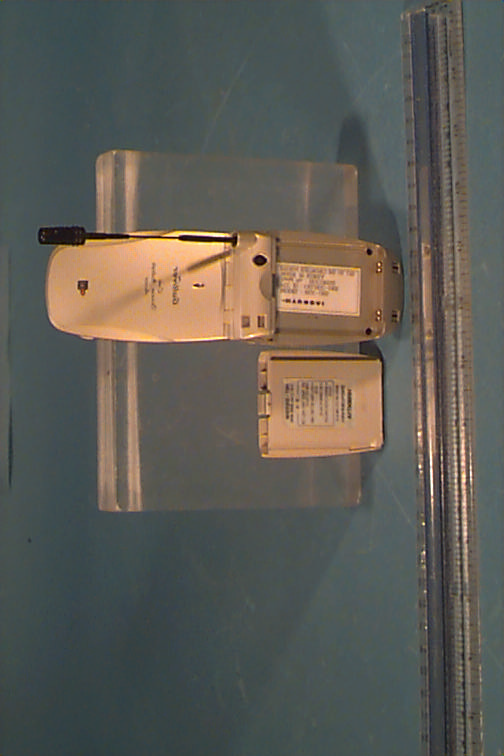

© 1998 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE) EXHIBIT. IDENTIFICATION 4 LABEL with regard to the FCC Rule Part 2.983 According to the requirement shall be permanently affixed % section 2.925 and 2.926 The sample label shown below at a conspicuous location on the device supplied to the user and be readily visible to the phaser at the time of purchace. l HYUNDAl CDMA CELLULAR PHONE MODEL : HGC-130S FCC ID : CKLHGC-130S SERIAL NO: MADE IN KOREA HYUNDAI ELECTRONICS IND.CO.,LTD

Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: 22.990319191.CKLFCC Part 22 Test Date(s): March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: March 22-26, 1999 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: SAR.990319192.CKL Ichon-Si, Kyungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia, MD Attention: Mr. Ki-Soo Kim, Section Chief, QA Office FCC ID CKLHGC-130S APPLICANT HYUNDAI Electronics Industries Co., Ltd. EUT Type:Single-Mode Cellular CDMA Phone Tx Frequency:824.64 – 848.37 MHz Rx Frequency:869.64 – 893.37 MHz Max Output Power:0.2 Watts (Conducted) Trade Name/Model(s):HYUNDAI HGC-130S FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980727515.A3L SAR Measurement ReportFCC Part 22 Certification © 1999 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Dates: March 22-26, 1999FCC Part 22 Certification HYUNDAI Cellular CDMA Phone (Tx 824-849 MHz) © 1999 PCTEST LabFCC ID: CKLHGC-130S (Model: HGC-130S)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungi-Do, KOREA 467-701 Attention:Ki-Soo Kim, Section Chief, QA Office • EUT Type:Single-Mode Cellular CDMA Phone • Trade Name:HYUNDAI • FCC IDENTIFIER:CKLHGC-130S • Model:HGC-130S • S/N:Pre-production • Tx Frequency:824.64 ~ 848.37 MHz • Rx Frequency:869.64 ~ 893.37 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Max. Output Power:0.2W (Conducted) • Modulation:CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:10.8 cm. (Length) • Date of Test(s):March 22-26, 1999 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990319192.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Dates: March 22-26, 1999FCC Part 22 Certification HYUNDAI Cellular CDMA Phone (Tx 824-849 MHz) © 1999 PCTEST LabFCC ID: CKLHGC-130S (Model: HGC-130S)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequ…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99032219_ZOOM.VLT Start : 22-Mar-99 03:28:31 pm End : 22-Mar-99 03:37:03 pm Radio Type : HYUNDAI Model Number : CKLHGC-130S Serial Number : HGC130S02 Frequency : 824.64 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : HYUNDAI CDMA PHONE CHANNEL 1016 CDMA MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.750, Y = -2.250, Z = 0.000 (cm) Value = 10.013 Measured Values (volts) = 9.414E-003 7.278E-003 5.896E-003 4.847E-003 4.088E-003 3.384E-003 2.806E-003 2.330E-003 1.901E-003 1.568E-003 1.225E-003 8.945E-004 6.072E-004 3.380E-004 9.324E-005 -1.569E-004 -3.549E-004 -5.340E-004 -6.515E-004 -7.297E-004 -7.664E-004 Calc. Voltage @ Surface (Vs) = 0.0119 Voltage @ 1.00 cm (Vt) = 0.0048 Ave. Voltage (Vs+Vt)/2 = 0.0084 Ave. SAR over 1 g (mW/g) = 0.6125 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 mW/g 012345 Z centimeters SAR Scan File : 99032219_ZOOM Start : 22-Mar-99 03:28:31 pm End : 22-Mar-99 03:37:03 pm HYUNDAI/CKLHGC-130S/HGC130S02;824.64MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99032218_ZOOM.VLT Start : 22-Mar-99 02:59:25 pm End : 22-Mar-99 03:12:27 pm Radio Type : HYUNDAI Model Number : CKLHGC-130S Serial Number : HGC130S02 Frequency : 824.64 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : HYUNDAI CDMA PHONE CHANNEL 1016 CDMA MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.750, Y = -2.250, Z = 0.000 (cm) Value = 8.078 Measured Values (volts) = 7.706E-003 5.995E-003 4.796E-003 3.837E-003 3.320E-003 2.728E-003 2.419E-003 1.869E-003 1.463E-003 1.153E-003 8.588E-004 6.072E-004 3.704E-004 6.239E-005 -9.220E-005 -3.015E-004 -5.225E-004 -6.404E-004 -7.478E-004 -6.410E-004 -8.591E-004 Calc. Voltage @ Surface (Vs) = 0.0098 Voltage @ 1.00 cm (Vt) = 0.0038 Ave. Voltage (Vs+Vt)/2 = 0.0068 Ave. SAR over 1 g (mW/g) = 0.4976 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 mW/g 012345 Z centimeters SAR Scan File : 99032218_ZOOM Start : 22-Mar-99 02:59:25 pm End : 22-Mar-99 03:12:27 pm HYUNDAI/CKLHGC-130S/002;824.64MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99032221_ZOOM.VLT Start : 22-Mar-99 04:01:23 pm End : 22-Mar-99 04:09:56 pm Radio Type : HYUNDAI Model Number : CKLHGC-130S Serial Number : HGC130S02 Frequency : 836.49 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : HYUNDAI CDMA PHONE CHANNEL 383 CDMA MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.750, Y = -2.250, Z = 0.000 (cm) Value = 9.444 Measured Values (volts) = 8.767E-003 6.870E-003 5.509E-003 4.476E-003 3.740E-003 3.096E-003 2.568E-003 2.072E-003 1.665E-003 1.332E-003 1.003E-003 7.141E-004 4.766E-004 2.187E-004 1.034E-005 -1.822E-004 -3.988E-004 -5.103E-004 -6.473E-004 -7.146E-004 -7.793E-004 Calc. Voltage @ Surface (Vs) = 0.0111 Voltage @ 1.00 cm (Vt) = 0.0045 Ave. Voltage (Vs+Vt)/2 = 0.0078 Ave. SAR over 1 g (mW/g) = 0.5682 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 mW/g 012345 Z centimeters SAR Scan File : 99032221_ZOOM Start : 22-Mar-99 04:01:23 pm End : 22-Mar-99 04:09:56 pm HYUNDAI/CKLHGC-130S/HGC130S02;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99032220_ZOOM.VLT Start : 22-Mar-99 03:47:58 pm End : 22-Mar-99 03:56:31 pm Radio Type : HYUNDAI Model Number : CKLHGC-130S Serial Number : HGC130S02 Frequency : 836.49 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : HYUNDAI CDMA PHONE CHANNEL 383 CDMA MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 …

Text truncated - open the document above for the full version.

Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Date(s): March 22-26, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone 1 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone. Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Date(s): March 22-26, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Date(s): March 22-26, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Date(s): March 22-26, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Date(s): March 22-26, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Date(s): March 22-26, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S NVLAP Lab Code: 100431-0 HYUNDAI Cellular CDMA Phone

Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Dates: March 24, 1999FCC Part 22 Certification HYUNDAI Cellular CDMA Phone (Tx 824-849 MHz) © 1999 PCTEST LabFCC ID: CKLHGC-130S (Model: HGC-130S)1 11.1 TEST DATA SUMMARY Ambient TEMPERATURE (°C) 21.0 Relative HUMIDITY (%) 45.0 Atmospheric PRESSURE (kPa) 100.3 Mixture Type: Muscle Dielectric Constant: 56.2 Conductivity: 0.95 S/m Closest Distance (between E-Probe & EUT Antenna): 1.6 cm Measurement Results FREQUENCYModulationPOWERAntennaSAR MHzCh.(W)*Position (W/kg) or (mW/g) 848.37779CDMA0.2IN0.4729 848.37779CDMA0.2OUT0.6275 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak (Muscle) Uncontrolled Exposure/General Population 1.6 W/kg (mW/g) NOTES: 1. The test data reported are the worst-case SAR value with the antenna-phantom setup in a normal operating position. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. Power measured:o Conducted o EIRP x ERP PCTEST SEAL

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99032402_SAR.VLT Start : 24-Mar-99 10:54:08 am End : 24-Mar-99 11:00:53 am Radio Type : HYUNDAI Model Number : CKLHGC-130S Serial Number : HGC130S2 Frequency : 848.37 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR 10g Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 56.200 Mixture Conductivity = 0.950 Comment : HYUNDAI CDMA PHONE CHANNEL 779 CDMA MODE Hand SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 4.250, Y = -1.750, Z = 0.000 (cm) Value = 33.362 Ave. SAR over 10 g (mW/g) = 0.4729 0.10 0.20 0.30 0.40 Ave SAR over 2 cm 3.33.43.53.63.73.83.94.04.14.24.34.44.54.64.74.84.95.05.15.2 X centimeters X-Z Plane Slice Y=-1.750 File : 99032402_SAR Start : 24-Mar-99 10:54:08 am End : 24-Mar-99 11:00:53 am HYUNDAI/CKLHGC-130S/HGC130S2;848.37MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/56.200/0.950 File : 99032402_SAR Start : 24-Mar-99 10:54:08 am End : 24-Mar-99 11:00:53 am HYUNDAI/CKLHGC-130S/HGC130S2;848.37MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/56.200/0.950 0.804 0.731 0.658 0.585 0.513 0.440 0.367 0.294 0.221 0.149 File : 99032402_SAR Start : 24-Mar-99 10:54:08 am End : 24-Mar-99 11:00:53 am HYUNDAI/CKLHGC-130S/HGC130S2;848.37MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/56.200/0.950 0.804 0.731 0.658 0.585 0.513 0.440 0.367 0.294 0.221 0.149 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99032404_SAR.VLT Start : 24-Mar-99 11:23:50 am End : 24-Mar-99 11:30:37 am Radio Type : HYUNDAI Model Number : CKLHGC-130S Serial Number : HGC130S2 Frequency : 848.37 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR 10g Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 56.200 Mixture Conductivity = 0.950 Comment : HYUNDAI CDMA PHONE CHANNEL 779 CDMA MODE Hand SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.895 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.250, Y = -0.750, Z = 0.000 (cm) Value = 21.633 Ave. SAR over 10 g (mW/g) = 0.6275 0.2 0.3 0.4 0.5 0.6 0.7 Ave SAR over 2 cm 1.31.41.51.61.71.81.92.02.12.22.32.42.52.62.72.82.93.03.13.2 X centimeters X-Z Plane Slice Y=-0.750 File : 99032404_SAR Start : 24-Mar-99 11:23:50 am End : 24-Mar-99 11:30:37 am HYUNDAI/CKLHGC-130S/HGC130S2;848.37MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/56.200/0.950 File : 99032404_SAR Start : 24-Mar-99 11:23:50 am End : 24-Mar-99 11:30:37 am HYUNDAI/CKLHGC-130S/HGC130S2;848.97MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/56.200/0.950 0.788 0.740 0.693 0.645 0.598 0.550 0.503 0.455 0.408 0.360 File : 99032404_SAR Start : 24-Mar-99 11:23:50 am End : 24-Mar-99 11:30:37 am HYUNDAI/CKLHGC-130S/HGC130S2;848.97MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR 10g;PCTEST/E Field/0 DegreesMuscle/56.200/0.950 0.788 0.740 0.693 0.645 0.598 0.550 0.503 0.455 0.408 0.360

Test Report S/N: SAR.990319192.CKLSAR Measurement Report Test Date(s): March 24, 1999FCC Part 22 Certification © 1999 PCTEST Lab HYUNDAI Cellular CDMA Phone NVLAP Lab Code: 100431-0 FCCID: CKLHGC-130S (Model: HGC-130S)

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Part 22 Certification) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: March 22-26, 1999 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: 22.990319191.CKL Ichon-Si, Kyoungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia, MD Attention: Mr. Ki-Soo Kim, Section Chief, QA Office FCC ID CKLHGC-130S APPLICANT HYUNDAI Electronics Industries Co., Ltd. Classification:Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s):§§§§22(H), 2.983, 2.987 EUT Type:Single-Mode Cellular CDMA Phone Trade Name/Model(s):HYUNDAI HGC-130S Tx Frequency Range:824.64 ~ 848.37 MHz Rx Frequency Range:869.64 ~ 893.37 MHz Max Output Power:0.3 W (ERP) Frequency Tolerance:0.00025% (2.5 ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990319191.CKL FCC Part 22Certification © 1999 PCTEST Engineering Laboratory, Inc.FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION 2 DESCRIPTION OF TESTS 3-6 EFFECTIVE RADIATED POWER OUTPUT 7 RADIATED MEASUREMENTS 8-10 FREQUENCY STABILITY 11-12 PLOTS OF EMISSIONS 13 LIST OF TEST EQUIPMENT 14 SAMPLE CALCULATIONS 15 RECOMMENDATION / CONCLUSION 16 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O:SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.990319191.CKLFCC Part 22 Test Dates: March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S (Tx 824-849MHz)1 HYUNDAI Cellular CDMA Phone (Model: HGC-130S) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyoungki-Do, KOREA 467-701 Attention:Mr. Ki-Soo Kim, Section Chief, QA Office • §2983(b) FCC ID:CKLHGC-130S • Trade Name:HYUNDAI • Model(s):HGC-130S • §2983(c) Quantity:Quantity production is planned • §2.983(d) Emission Designator:1M25F9W • §2.983(d) Tx Freq. Range:824.64 – 848.37 MHz Rx Freq. Range:869.64 – 893.37 MHz • Equipment Class:Non-Broadcast Transmitter Held to Ear (TNE) • Equipment Type:Single-Mode Cellular CDMA Phone • Modulation:CDMA • Frequency Tolerance:± 0.00025% (2.5 ppm) • §2.983(d) Max. Power:0.3W (ERP) • FCC Rule Part(s):§§§§ 22(H), 2.983, 2.987 • AC/DC Charger:110-220 VAC 60 Hz (Model: HTC-130S) • Battery Pack:3.6 VDC mAh Li-Ion • Dates of Tests:March 22-26, 1999 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:22.990319191.CKL Test Report S/N: 22.990319191.CKLFCC Part 22 Test Dates: March 22-26, 1999Certification © 1999 PCTEST LabFCC ID: CKLHGC-130S (Tx 824-849MHz)2 HYUNDAI Cellular CDMA Phone (Model: HGC-130S) 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambien…
