CKLHGC-310Dual-Mode Cellular Phone (AMPS/CDMA)

Hyundai Electronics Industries Co Ltd

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Dec 10, 2000
Application Purpose: Original Equipment
Date of Application: Oct 17, 2000
Equipment Note: Dual-Mode Cellular Phone (AMPS/CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: Hyundai Electronics Industries Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

HYUNDAI ELECTRONICS IND. CO., LTD Qualit Assurance Office Int’l StanJard Certification Team San 136-1, Ami-Ri, Bubal-Eub, Ichon-Si Kyoungki-Do, 467-701, Korea Date : OCT. 09, 2000 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject : Authorization Letter To whom it may concern : We, the undersigned. hereby authorized PCTEST ENGINEERING LABORATORY INC. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by PCTEST ENGINEERING LABORATORY INC. on our behalf shall have the same effect as acts of our own. This authorization is valid until Sep. 30, 2001. Sincerely Yours, Ki-Soo Kim - Part Leader EMC Part of Int’l Standard Certification Team

Cover Letter(s)

October 13, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: HYUNDAI Electronics Industries Co., Ltd. FCC ID: CKLHGC-310 Part 22 Certification Gentlemen: Attached herewith, on behalf of HYUNDAI Electronics Industries Co., Ltd. is an application for Part 22 Certification of the following Dual Mode Cellular Phone (AMPS/CDMA): FCC ID: CKLHGC-310 TRADE / MODEL(s): HYUNDAI MMD-1010E EUT TYPE: Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) Max. Output Power: 0.606 W ERP AMPS (27.822 dBm) 0.443 W ERP CDMA (26.467 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Ki-Soo Kim, QA Dept. HYUNDAI Electronics Industries Co., Ltd.

Cover Letter(s)

November 9, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Errol Chang SUBJECT: Hyundai Electronics Industries Co., Ltd. FCC ID: CKLHGC-310 731 Confirmation No.: EA99060 Correspondence Reference No.: 16984 Request for Tech. Info.: 11/7/00 Dear Errol: Transmitted herewith, on behalf of Hyundai Electronics Industries Co., Ltd. is an amendment provided in response to the request for technical information dated November 7, 2000. 1. Hyundai R&D confirmed that the preliminary user’s manual submitted contained the wrong picture of the holster. A revised photograph of the holster will be included in the final revision of the users manual. 2. The FPA and the matching circuit respond differently to the bandwiths and rise times of the FM and CDMA mode signals. Therefore, the SAR signature across the 800 MHz band is sometimes different. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: Hyundai Electronics Industries Co., Ltd.

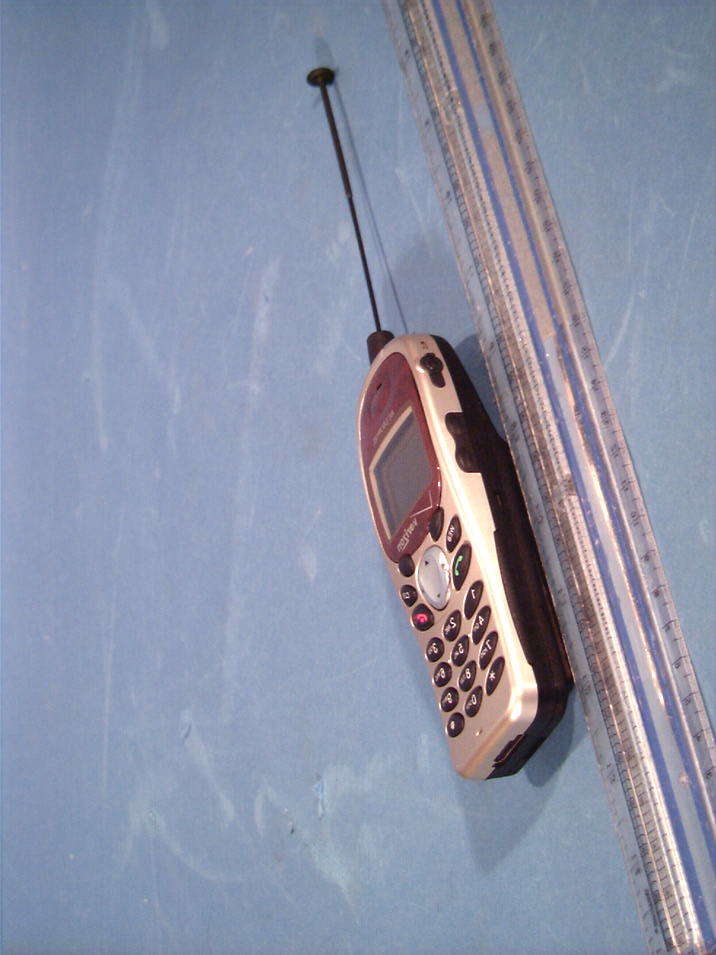

External Photos

© 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGC-310 (Model: MMD-1010E) NVLAP Lab Code: 1004310 HYUNDAI Dual-Mode Cellular Phone (AMPS/CDMA)

ID Label/Location Info

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries Co., Ltd. Dates of Tests: October 12-13 & 16-18, 2000 San 136-1, Ami-Ri, Bubal-Eub Test Report S/N: SAR.201012500.CKL Ichon-Si, Kyungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia, MD USA Attn: Mr. Ki Soo Kim, QM Dept. System Quality Assurance Office FCC ID CKLHGC-310 APPLICANT HYUNDAI Electronics Industries Co., Ltd. EUT Type: Dual-Mode Analog Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.606 W ERP AMPS (27.822 dBm) 0.443 W ERP CDMA (26.467 dBm) Max. SAR Measurement: HEAD SAR: 1.470mW/g Amps Head SAR; 1.110mW/g CDMA Head SAR BODY SAR: 0.499mW/g Amps Body SAR; 0.350mW/g CDMA Body SAR Trade Name/Model(s): HYUNDAI MMD-1010E FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 991228690.CKL SAR Measurement Report FCC Part 22 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-17 14.1 SAR TEST EQUIPMENT LIST 18 15.1 CONCLUSION 19 16.1 REFERENCES 20 Test Report S/N: SAR.201012500.CKL SAR Measurement Report Test Date(s): October 12-13 & 16-18, 2000 FCC Part 22 Certification HYUNDAI FCC ID: CKLHGC-310 (Model: MMD-1010E) © 2000 PCTEST Lab Dual-Mode Analog Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: HYUNDAI Electronics Industries Co., Ltd. Address: San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention: Mr. Ki-Soo Kim, QM Dept. System Quality Assurance Office • EUT Type: Dual-Mode Analog Phone (AMPS/CDMA) • Trade Name / Model: HYUNDAI MMD-1010E • FCC IDENTIFIER: CKLHGC-310 • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • Modulation(s): AMPS / CDMA • FCC Rule Part(s): §2.1093, Docket 96-326 • Max. RF Output Power: 0.606W ERP - AMPS (27.822 dBm) 0.443W ERP - CDMA (26.467 dBm) • Max. SAR Measurement: 1.470mW/g Amps Head SAR; 1.110mW/g CDMA Head SAR 0.499mW/g Amps Body SAR; 0.350mW/g CDMA Body SAR • Antenna Type: Helical (λ/3) Antenna Dimensions: 12.5 cm. (Length) • Dates of Tests: October 12-13 & 16-18, 2000 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.201012500.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.201012500.CKL SAR Measurement Report Test Date(s): October 12-13 & 16-18, 2000 FCC Part 22 Certification HYUNDAI FCC ID: CKLHGC-310 (Model: MMD-1010E) © 2000 PCTEST Lab Dual-Mode Analog Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on …

Text truncated - open the document above for the full version.

RF Exposure Info

HYUNDAI FCC ID:CKLHGC-310 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.23 mW/g, SAR (10g): 0.844 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0991 [824.04MHz] Conducted Power = 27.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 1.11E-1 3.33E-1 5.54E-1 7.76E-1 9.98E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.18 mW/g, SAR (10g): 0.820 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0991 [824.04MHz] Conducted Power = 27.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 1.13E-1 3.40E-1 5.66E-1 7.92E-1 1.02E+0 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.29 mW/g, SAR (10g): 0.881 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0383 [836.49MHz] Conducted Power = 27.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 1.13E-1 3.38E-1 5.64E-1 7.90E-1 1.02E+0 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.15 mW/g, SAR (10g): 0.775 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0383 [836.49MHz] Conducted Power = 27.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 1.06E-1 3.17E-1 5.28E-1 7.40E-1 9.51E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.47 mW/g, SAR (10g): 1.00 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0799 [848.97MHz] Conducted Power = 27.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 1.30E-1 3.91E-1 6.51E-1 9.12E-1 1.17E+0 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.974 mW/g, SAR (10g): 0.670 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0799 [848.97MHz] Conducted Power = 27.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 9.63E-2 2.89E-1 4.81E-1 6.74E-1 8.67E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.10 mW/g, SAR (10g): 0.775 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.1013 [824.70MHz] Conducted Power = 25.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 9.88E-2 2.96E-1 4.94E-1 6.92E-1 8.89E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.11 mW/g, SAR (10g): 0.774 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.1013 [824.70MHz] Conducted Power = 25.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 1.04E-1 3.13E-1 5.21E-1 7.29E-1 9.38E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.808 mW/g, SAR (10g): 0.558 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.0363 [835.89MHz] Conducted Power = 25.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 7.34E-2 2.20E-1 3.67E-1 5.14E-1 6.61E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.898 mW/g, SAR (10g): 0.625 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.0363 [835.89MHz] Conducted Power = 25.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 8.16E-2 2.45E-1 4.08E-1 5.71E-1 7.34E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.877 mW/g, SAR (10g): 0.613 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.0777 [848.31MHz] Conducted Power = 25.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 8.27E-2 2.48E-1 4.14E-1 5.79E-1 7.44E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.773 mW/g, SAR (10g): 0.544 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.0777 [848.31MHz] Conducted Power = 25.8dBm Test Date -- 10-12-2000 SAR Tot [mW/g] 7.40E-2 2.22E-1 3.70E-1 5.18E-1 6.66E-1 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

HYUNDAI FCC ID:CKLHGC-310 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.499 mW/g, SAR (10g): 0.363 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0991 [824.04MHz] Conducted Power = 27.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 4.73E-2 1.42E-1 2.37E-1 3.31E-1 4.26E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.361 mW/g, SAR (10g): 0.262 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0991 [824.04MHz] Conducted Power = 27.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 3.74E-2 1.12E-1 1.87E-1 2.62E-1 3.37E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.302 mW/g, SAR (10g): 0.219 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0383 [836.49MHz] Conducted Power = 27.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 2.94E-2 8.82E-2 1.47E-1 2.06E-1 2.65E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.242 mW/g, SAR (10g): 0.175 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0383 [836.49MHz] Conducted Power = 27.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 2.37E-2 7.11E-2 1.19E-1 1.66E-1 2.13E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.351 mW/g, SAR (10g): 0.252 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0799 [848.97MHz] Conducted Power = 27.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 3.48E-2 1.04E-1 1.74E-1 2.44E-1 3.13E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- FM Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.241 mW/g, SAR (10g): 0.173 mW/g HYUNDAI Dual-Mode Model: MMD-1010E FM Mode, Ch.0799 [848.97MHz] Conducted Power = 27.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 2.42E-2 7.26E-2 1.21E-1 1.69E-1 2.18E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.350 mW/g, SAR (10g): 0.253 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.1013 [824.70MHz] Conducted Power = 25.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 3.63E-2 1.09E-1 1.81E-1 2.54E-1 3.27E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.237 mW/g, SAR (10g): 0.172 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.1013 [824.70MHz] Conducted Power = 25.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 2.40E-2 7.20E-2 1.20E-1 1.68E-1 2.16E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.228 mW/g, SAR (10g): 0.166 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.0363 [835.89MHz] Conducted Power = 25.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 2.30E-2 6.90E-2 1.15E-1 1.61E-1 2.07E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.176 mW/g, SAR (10g): 0.128 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.0363 [835.89MHz] Conducted Power = 25.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 1.76E-2 5.28E-2 8.80E-2 1.23E-1 1.58E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHGC-310 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.196 mW/g, SAR (10g): 0.142 mW/g HYUNDAI Dual-Mode Model: MMD-1010E CDMA Mode, Ch.0777 [848.31MHz] Conducted Power = 25.8dBm; Spacing = 2.0cm from flat phantom to phone, w/holster Test Date -- 10-13-2000 SAR Tot [mW/g] 1.89E-2 5.67E-2 9.45E-2 1.32E-1 1.70E-1 PCTEST Engineeri…

Text truncated - open the document above for the full version.

RF Exposure Info

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation For body-worn operation, to maintain compliance with FCC RF exposure guidelines, use only HYUNDAI approved accessories. When carrying the phone while it is on, use the specific HYUNDAI belt-clip that has been tested for compliance. The use of non-HYUNDAI approved accessories may violate FCC RF exposure guidelines and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone

RF Exposure Info

Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ . Page 2 of 8 ET3DV5 SN:1370 DASY3 - Parameters of Probe: ET3DV5 SN:1370 Sensitivity in Free Space NormX1.58μV/(V/m) 2 NormY1.64μV/(V/m) 2 NormZ1.80μV/(V/m) 2 Diode Compression DCP X96mV DCP Y96mV DCP Z96mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.5extrapolated ε r = 48 ± 5% ConvF Y6.5extrapolated σ =0.50 ± 10%mho/m ConvF Z6.5extrapolated(brain tissue simulating liquid) 900 MHz ConvF X6.0± 10% ε r = 42.5 ± 5% ConvF Y6.0± 10% σ =0.86 ± 10%mho/m ConvF Z6.0± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.4interpolated ε r = 41 ± 5% ConvF Y5.4interpolated σ =1.32 ± 10%mho/m ConvF Z5.4interpolated(brain tissue simulating liquid) 1800 MHz ConvF X5.1± 10% ε r = 41 ± 5% ConvF Y5.1± 10% σ =1.69 ± 10%mho/m ConvF Z5.1± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.6 ± 0.2mm Page 3 of 8 ET3DV5 SN:1370 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 18…

Text truncated - open the document above for the full version.
