CKLHGC-900Single-Mode Cellular CDMA Phone
Hyundai Electronics Industries Co Ltd
Click to zoom
Application Details
- Equipment Class
- TNE - Licensed Non-Broadcast Transmitter Held to Ear
- Date of Grant
- Jan 11, 2000
- Application Purpose
- Original Equipment
- Date of Application
- Aug 10, 1999
- Equipment Note
- Single-Mode Cellular CDMA Phone
- Frequency Range
- 824.70000000 - 848.31000000
- Country
- South Korea
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Attestation Statements
l HYUNDAI HYUNDAI ELECTRONICS IND. CO., LTD Quality Assurance Off ice Quality Assistance De t. San 136-1, Ami-Ri, Buba -Eub, P Ichon-Si Kyoungki-Do, 467-fO1, Korea AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Phone (FCC ID: CKLHGC-900) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transfered, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, I Ki Soo Kim EMC Test Lab. / Section Chief Quality Assistance Dept. Quality Assurance Office Hyundai Electronics Industries Co., Ltd.
Cover Letter(s)
August 11, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:HYUNDAI Electronics Industries Co., Ltd. FCC ID: CKLHGC-900 Part 22 Certification Gentlemen: Attached herewith, on behalf of HYUNDAI Electronics Industries Co., Ltd. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID:CKLHGC-900 TRADE / MODEL(s):HYUNDAI HGC-900 EUT TYPE:Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range:824.70 β 848.31 MHz Rx Freq. Range:869.70 β 896.31 MHz Max. Output Power:0.36 W (ERP) Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Ki-Soo Kim Section Chief, QA Office HYUNDAI Electronics Industries Co., Ltd
Cover Letter(s)
November 15, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:Hyundai Electronics Industries Co., Ltd. FCC ID: CKLHGC-900 731 Confirmation Number: EA95122 Correspondence Reference No.: 10113 Request for Additional Info.: 10/13/99 Dear Frank / Kwok: Submitted herewith, on behalf of Hyundai Electronics Industries Co., Ltd., is an amendment in response to your e-mail dated October 13, 1999 requesting additional information for the subject application. 1. Attached is the resubmitted test report per your request. 2. Attached is SAR measurement data and photographs showing compliance for hands-free body- worn configuration, using the ear-microphone accessory, and the test setup simulating shirt- pocket configuration. 3. Attached is a letter from the applicant stating the minimum separation distance, which will be placed in the operation manual as a warning statement to the user. We trust this information is sufficient to issue the grant. Should you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Bong-Jae Hur EMC Section of QA Office Hyundai Electronics Industries Co., Ltd.
Cover Letter(s)
December 22, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:Hyundai Electronics Industries Co., Ltd. FCC ID: CKLHGC-900 731 Confirmation Number: EA95122 Correspondence Reference No.: 11080 Request for Additional Info.: 12/17/99 Dear Frank / Kwok: Submitted herewith, on behalf of Hyundai Electronics Industries Co., Ltd., is an amendment in response to your e-mail dated December 17, 1999 requesting additional information for the subject application. 1. We confirm that for future applications we will submit body-worn SAR test data for the high, middle, and low frequencies. 2. The body-worn SAR measurements were performed without using any body-worn accessory by maintaining a 0.5 inch separation between the phone and the test device holder.. 3. Attached is a letter from the applicant stating the revised RF exposure warning statement that will be placed in the userβs manual. We trust this information is sufficient to issue the grant asap. Should you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Bong-Jae Hur EMC Section of QA Office Hyundai Electronics Industries Co., Ltd.
Cover Letter(s)
January 6, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:Hyundai Electronics Industries Co., Ltd. FCC ID: CKLHGC-900 731 Confirmation Number: EA95122 Correspondence Reference No.: 11080 Request for Additional Info.: 12/17/99 Dear Frank / Kwok: Submitted herewith, on behalf of Hyundai Electronics Industries Co., Ltd., is an amendment in response to your e-mail dated December 17, 1999 requesting additional information for the subject application. 1. We confirm that for future applications we will submit body-worn SAR test data for the high, middle, and low frequencies. 2. The body-worn SAR measurements were performed without using any body-worn accessory by maintaining a 0.5 inch separation between the back of the phone and the test device holder. 3. Attached is a letter from the applicant confirming the attached RF exposure warning page will be placed in the userβs manual. We trust this information is sufficient to issue the grant asap. Should you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Bong-Jae Hur EMC Section of QA Office Hyundai Electronics Industries Co., Ltd.

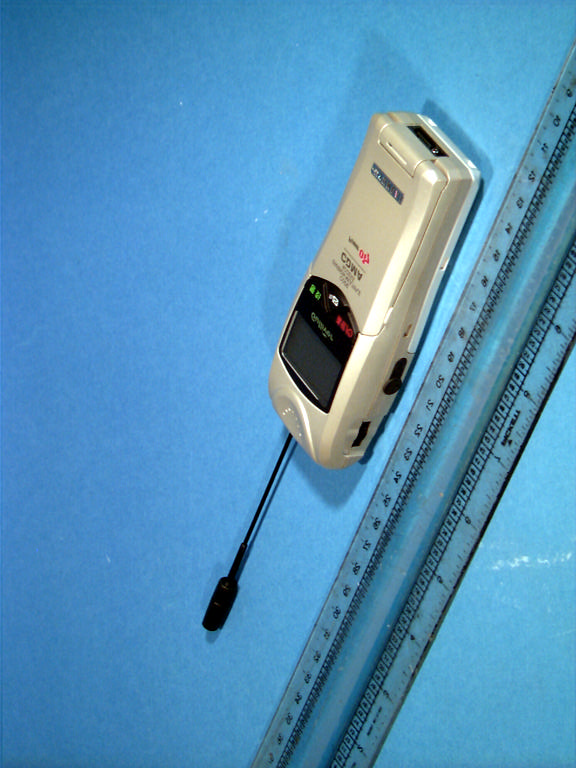

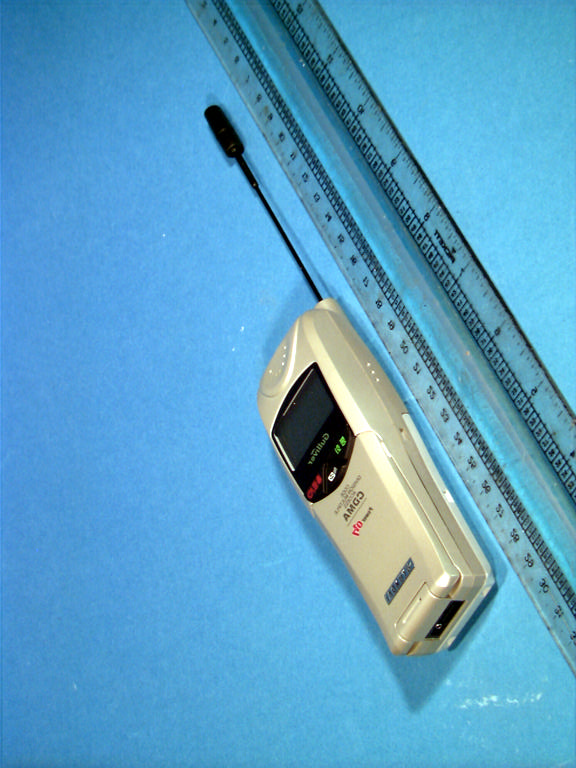

External Photos
Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKL FCC Part 22 Test Date(s): August 02-06, 1999 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd.
ID Label/Location Info
© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) IDENTIFICATION with regard to the FCC Rule Part 2 LABEL 983 According to the requirement section 2.925 and 2.926, the sample label shown below shall be permanently affixed at a conspicuous location on the device supplied to the user and be readily visible to the purchaser at the time of purchase. Single Mode Cellular Phone MODEL : HGC-900 FCC ID : CKLHGC-900 Serial No. : MADE IN KOREA HYUNDAI ELECTRONICS IND. CO., LTD. IJ
Internal Photos
Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 22.990709419.CKLFCC Part 22 Test Date(s): August 02-06, 1999Certification Β© 1999 PCTEST Lab LGIC FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd.
RF Exposure Info
Β© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road β’β’ Columbia, MD 21045 Columbia, MD 21045 β’β’ U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 β’β’ FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: August 02-06, 1999 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: SAR.990709420.CKL Ichon-Si, Kyungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia, MD Attention: Mr. Ki-Soo Kim, Section Chief, QA Office FCC ID CKLHGC-900 APPLICANT HYUNDAI Electronics Industries Co., Ltd. EUT Type:Single-Mode Cellular CDMA Phone Tx Frequency:824.70 β 848.31 MHz Rx Frequency:869.70 β 893.31 MHz Max Output Power:0.3 Watts (Conducted) Trade Name/Model(s):HYUNDAI HGC-900 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980727515.A3L SAR Measurement ReportFCC Part 22 Certification Β© 1999 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Dates: August 02-06, 1999FCC Part 22 Certification HYUNDAI Cellular CDMA Phone (Tx 824-849 MHz) Β© 1999 PCTEST LabFCC ID: CKLHGC-900 (Model: HGC-900)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungi-Do, KOREA 467-701 Attention:Ki-Soo Kim, Section Chief, QA Office β’ EUT Type:Single-Mode Cellular CDMA Phone β’ Trade Name:HYUNDAI β’ FCC IDENTIFIER:CKLHGC-900 β’ Model(s):HGC-900 β’ S/N:Pre-production β’ Tx Frequency:824.70 ~ 848.31 MHz β’ Rx Frequency:869.70 ~ 893.31 MHz β’ Application Type: Certification β’ FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) β’ FCC Rule Part(s):Β§ 2.1093, Docket 96-326; Β§ 22(H) β’ Max. Output Power:0.3W (Conducted) β’ Modulation:CDMA β’ Antenna:Helical (Ξ»/2) β’ Antenna Dimensions:11.0 cm. (Length) β’ Date of Test(s):August 02-06, 1999 β’ Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. β’ Report Serial No.:SAR.990709420.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Dates: August 02-06, 1999FCC Part 22 Certification HYUNDAI Cellular CDMA Phone (Tx 824-849 MHz) Β© 1999 PCTEST LabFCC ID: CKLHGC-900 (Model: HGC-900)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequeβ¦
Text truncated - open the document above for the full version.
RF Exposure Info
File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99071404_ZOOM.VLT Start : 14-Jul-99 08:47:59 am End : 14-Jul-99 09:00:00 am Radio Type : HYUNDAI Model Number : CKLHGC-900 Serial Number : 001 Frequency : 824.70 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CDMA ONLY Phone Channel 1013 Cable offset 0.7dBm (24.8 dBm CONDUCTED) Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.500, Y = -4.250, Z = 0.000 (cm) Value = 8.477 Measured Values (volts) = 8.076E-003 6.538E-003 5.898E-003 5.251E-003 4.575E-003 4.013E-003 3.471E-003 2.931E-003 2.492E-003 2.099E-003 1.801E-003 1.636E-003 1.521E-003 1.431E-003 1.329E-003 1.246E-003 1.077E-003 8.879E-004 5.594E-004 4.673E-004 3.288E-004 Calc. Voltage @ Surface (Vs) = 0.0095 Voltage @ 1.00 cm (Vt) = 0.0053 Ave. Voltage (Vs+Vt)/2 = 0.0074 Ave. SAR over 1 g (mW/g) = 0.5382 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 mW/g -1012345 Z centimeters SAR Scan File : 99071404_ZOOM Start : 14-Jul-99 08:47:59 am End : 14-Jul-99 09:00:00 am HYUNDAI/CKLHGC-900/001;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 99071404_ZOOM Start : 14-Jul-99 08:47:59 am End : 14-Jul-99 09:00:00 am HYUNDAI/CKLHGC-900/001;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.620 0.592 0.565 0.537 0.510 0.482 0.455 0.427 0.400 0.372 File : 99071404_ZOOM Start : 14-Jul-99 08:47:59 am End : 14-Jul-99 09:00:00 am HYUNDAI/CKLHGC-900/001;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.620 0.592 0.565 0.537 0.510 0.482 0.455 0.427 0.400 0.372 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99071407_ZOOM.VLT Start : 14-Jul-99 09:29:11 am End : 14-Jul-99 09:41:13 am Radio Type : HYUNDAI Model Number : CKLHGC-900 Serial Number : 001 Frequency : 824.70 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CDMA ONLY Phone Channel 1013 Cable offset 0.7dBm (24.8 dBm CONDUCTED) Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.500, Y = -4.750, Z = 0.000 (cm) Value = 10.409 Measured Values (volts) = 9.797E-003 8.510E-003 7.633E-003 6.854E-003 6.040E-003 5.246E-003 4.520E-003 3.816E-003 3.254E-003 2.783E-003 2.433E-003 2.206E-003 2.067E-003 1.965E-003 1.818E-003 1.669E-003 4.583E-004 1.127E-003 8.600E-004 6.231E-004 4.315E-004 Calc. Voltage @ Surface (Vs) = 0.0111 Voltage @ 1.00 cm (Vt) = 0.0069 Ave. Voltage (Vs+Vt)/2 = 0.0090 Ave. SAR over 1 g (mW/g) = 0.6567 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 mW/g -1012345 Z centimeters SAR Scan File : 99071407_ZOOM Start : 14-Jul-99 09:29:11 am End : 14-Jul-99 09:41:13 am HYUNDAI/CKLHGC-900/001;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 99071407_ZOOM Start : 14-Jul-99 09:29:11 am End : 14-Jul-99 09:41:13 am HYUNDAI/CKLHGC-900/001;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.761 0.736 0.710 0.685 0.659 0.634 0.609 0.583 0.558 0.532 File : 99071407_ZOOM Start : 14-Jul-99 09:29:11 am End : 14-Jul-99 09:41:13 am HYUNDAI/CKLHGC-900/001;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.761 0.736 0.710 0.685 0.659 0.634 0.609 0.583 0.558 0.532 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99071311_ZOOM.VLT Start : 13-Jul-99 03:31:29 pm End : 13-Jul-99 03:43:22 pm Radio Type : HYUNDAI Model Number : CKLHGC-900 Serial Number : 001 Frequency : 835.89 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CDMA ONLY Phone Channel 363 Cable offset 0.7dBm (24.8 dBm CONDUCTED) Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 1.500, Y = -3.250, Z = 0.000 (cm) Value = 7.875 Measured Values (volts) = 7.530E-003 6.400E-003 5.558E-003 4.933E-003 4.303E-003 3.812E-003 3.235E-003 2.712E-003 2.357E-003 1.990E-003 1.711E-003 1.558E-003 1.464E-003 1.320E-003 1.210E-003 1.080E-003 9.332E-004 7.513E-004 5.952E-004 4.305E-004 3.114E-004 Calc. Voltage @ Surface (Vs) = 0.0088 Voltage @ 1.00 cm (Vt) = 0.0049 Ave. Voltage (Vs+Vt)/2 = 0.0068 Ave. SAR over 1 g (mW/g) = 0.5010 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 mW/g -1012345 Z centimeters SAR Scan File : 99071311_ZOOM Start : 13-Jul-99 03:31:29 pm End : 13-Jul-99 03:43:22 pm HYUNDAI/CKLHGC-900/001;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 99071311_ZOOM Start : 13-Jul-99 03:31:29 pm End : 13-Jul-99 03:43:22 pm HYUNDAI/CKLHGC-900/001;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.576 0.553 0.529 0.506 0.482 0.459 0.436 0.412 0.389 0.366 File : 99071311_ZOOM Start : 13-Jul-99 03:31:29 pm End : 13-Jul-99 03:43:22 pm HYUNDAI/CKLHGC-900/001;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.576 0.553 0.529 0.506 0.482 0.459 0.436 0.412 0.389 0.366 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99071405_ZOOM.VLT Start : 14-Jul-99 09:00:57β¦
Text truncated - open the document above for the full version.
RF Exposure Info
Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Date(s): August 02-06, 1999FCC Part 22 Certification Β© 1999 PCTEST Lab FCC ID: CKLHGC-900 NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd.
RF Exposure Info
Β© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road β’β’ Columbia, MD 21045 Columbia, MD 21045 β’β’ U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 β’β’ FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: August 02-06, 1999 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: SAR.990709420.CKL Ichon-Si, Kyungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia, MD Attention: Mr. Ki-Soo Kim, Section Chief, QA Office FCC ID CKLHGC-900 APPLICANT HYUNDAI Electronics Industries Co., Ltd. EUT Type:Single-Mode Cellular CDMA Phone Tx Frequency:824.70 β 848.31 MHz Rx Frequency:869.70 β 893.31 MHz Max Output Power:0.3 Watts (Conducted) Trade Name/Model(s):HYUNDAI HGC-900 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980727515.A3L SAR Measurement ReportFCC Part 22 Certification Β© 1999 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Dates: August 02-06, 1999FCC Part 22 Certification HYUNDAI Cellular CDMA Phone (Tx 824-849 MHz) Β© 1999 PCTEST LabFCC ID: CKLHGC-900 (Model: HGC-900)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungi-Do, KOREA 467-701 Attention:Ki-Soo Kim, Section Chief, QA Office β’ EUT Type:Single-Mode Cellular CDMA Phone β’ Trade Name:HYUNDAI β’ FCC IDENTIFIER:CKLHGC-900 β’ Model(s):HGC-900 β’ S/N:Pre-production β’ Tx Frequency:824.70 ~ 848.31 MHz β’ Rx Frequency:869.70 ~ 893.31 MHz β’ Application Type: Certification β’ FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) β’ FCC Rule Part(s):Β§ 2.1093, Docket 96-326; Β§ 22(H) β’ Max. Output Power:0.3W (Conducted) β’ Modulation:CDMA β’ Antenna:Helical (Ξ»/2) β’ Antenna Dimensions:11.0 cm. (Length) β’ Date of Test(s):August 02-06, 1999 β’ Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. β’ Report Serial No.:SAR.990709420.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.990709420.CKLSAR Measurement Report Test Dates: August 02-06, 1999FCC Part 22 Certification HYUNDAI Cellular CDMA Phone (Tx 824-849 MHz) Β© 1999 PCTEST LabFCC ID: CKLHGC-900 (Model: HGC-900)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequeβ¦
Text truncated - open the document above for the full version.
RF Exposure Info
File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99071404_ZOOM.VLT Start : 14-Jul-99 08:47:59 am End : 14-Jul-99 09:00:00 am Radio Type : HYUNDAI Model Number : CKLHGC-900 Serial Number : 001 Frequency : 824.70 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CDMA ONLY Phone Channel 1013 Cable offset 0.7dBm (24.8 dBm CONDUCTED) Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.500, Y = -4.250, Z = 0.000 (cm) Value = 8.477 Measured Values (volts) = 8.076E-003 6.538E-003 5.898E-003 5.251E-003 4.575E-003 4.013E-003 3.471E-003 2.931E-003 2.492E-003 2.099E-003 1.801E-003 1.636E-003 1.521E-003 1.431E-003 1.329E-003 1.246E-003 1.β¦
Text truncated - open the document above for the full version.
