CKLHGP-1200E

Hyundai Electronics Industries Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jul 23, 1998
Application Purpose: Original Equipment
Date of Application: May 03, 1998
Frequency Range: 1851.25000000 - 1908.75000000
Company: Hyundai Electronics Industries Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

Test Report S/N: SAR.9804020284.J9CSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.9804020284.J9CSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.9804020284.J9CSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.9804020284.J9CSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.9804020284.J9CSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.9804020284.J9CSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: SAR.9804020284.J9CSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd.

ID Label/Location Info

© 1998 PCTEST Lab FCC ID SAMPLE LABEL LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE)

Internal Photos

RF Exposure Info

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: April 20-24, 1998 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: SAR.980420284.CKL Ichon-Si, Kyoungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Mr. Ki Soo KIM, Assistant Manager, QA Office FCC ID CKLHGP-1200E APPLICANT HYUNDAI ELECTRONICS INDUSTRIES CO., LTD. EUT Type:PCS CDMA Phone Tx Frequency:1851.25 – 1908.75 MHz Max. Output Power:0.3W Trade Name/Model(s):HYUNDAI HGP-1200E, HGP-1100E FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Type Acceptance Serial Number:n/a (pre-production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/ general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std C95.3-1992 (see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benifits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Randy Ortanez President & Chief Engineer 980420286.FFM Lab Code 100431-0 SAR Measurement ReportFCC Part 24 Type Acceptance © 1998 PCTEST Labi Table of Contents SCOPE ............................................................................................................... 1 INTRODUCTION / SAR DEFINITION ................................................................. 2 SAR MEASUREMENT SET-UP .......................................................................... 3 E-FIELD PROBE SYSTEM ................................................................................. 4 E-FIELD PROBE CALIBRATION PROCESS ..................................................... 5 PHANTOM & BRAIN EQUIVALENT MATERIAL ............................................... 7 SYSTEM SPECIFICATIONS ............................................................................... 8 MEASUREMENT PROCESS .............................................................................. 9 TEST POSITION OF THE PHONE .................................................................. 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ....................................................... 11 MEASUREMENT UNCERTAINTIES .................................................................12 TEST DATA SUMMARY ....................................................................................13 SAR TEST EQUIPMENT LIST ..........................................................................14 CONCLUSION / REFERENCES ........................................................................15 Test Report S/N: SAR.980420284.CKLSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Type Acceptance HYUNDAI PCS CDMA Phone (Tx 1851.25-1908.75 MHz) © 1998 PCTEST Lab FCC ID: CKLHGP-1200E (Models: HGP-1200E & HGP-1100E)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyoungki-Do, KOREA 467-701 Attention:Mr. Ki Soo, KIM Assistant Manager, QA Office • EUT Type:PCS CDMA Phone • Trade Name:HYUNDAI • FCC IDENTIFIER:CKLHGP-1200E • Model(s):HGP-1200E & HGP-1100E • S/N:Pre-production • Tx Frequency: 1851.25 -1908.75 MHz • Application Type: Type Acceptance • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 24; § 2.1093, Docket 96-326 • Max. Output Power:0.3 W • Modulation :CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:12.1 cm. (Length) • Dates of Test(s):April 20-24, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.980420284.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Lab Code 100431-0 Test Report S/N: SAR.980420284.CKLSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Type Acceptance HYUNDAI PCS CDMA Phone (Tx 1851.25-1908.75 MHz) © 1998 PCTEST Lab FCC ID: CKLHGP-1200E (Models: HGP-1200E & HGP-1100E)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics…

Text truncated - open the document above for the full version.

RF Exposure Info

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98042307_ZOOM.VLT Start : 23-Apr-98 12:55:52 pm End : 23-Apr-98 01:06:24 pm Radio Type : HYUNDAI Model Number : HGP-1200E Serial Number : 0005 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.300 Mixture Conductivity = 1.260 Comment : CHAN 0025 PCS PHONE CDMA MODE PCTEST SAR Measurement Laboratory Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 3.750, Y = -0.250, Z = 0.000 (cm) Value = 9.549 Measured Values (volts) = 9.524E-003 2.635E-003 6.906E-004 1.574E-004 6.094E-005 4.857E-005 1.266E-005 2.043E-005 0.000E+000 4.578E-006 6.714E-006 Calc. Voltage @ Surface (Vs) = 0.0132 Voltage @ 1.00 cm (Vt) = 0.0044 Ave. Voltage (Vs+Vt)/2 = 0.0088 Ave. SAR over 1 g (mW/g) = 0.9766 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g 012345678910 Z centimeters SAR Scan File : 98042307_ZOOM Start : 23-Apr-98 12:55:52 pm End : 23-Apr-98 01:06:24 pm HYUNDAI/HGP-1200E/0005;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.260 File : 98042307_ZOOM Start : 23-Apr-98 12:55:52 pm End : 23-Apr-98 01:06:24 pm HYUNDAI/HGP-1200E/0005;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.260 1.061 0.975 0.889 0.802 0.716 0.630 0.544 0.458 0.371 0.285 File : 98042307_ZOOM Start : 23-Apr-98 12:55:52 pm End : 23-Apr-98 01:06:24 pm HYUNDAI/HGP-1200E/0005;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.260 1.061 0.975 0.889 0.802 0.716 0.630 0.544 0.458 0.371 0.285 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98042309_ZOOM.VLT Start : 23-Apr-98 01:34:24 pm End : 23-Apr-98 01:45:05 pm Radio Type : HYUNDAI Model Number : HGP-1200E Serial Number : 0005 Frequency : 1880 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.300 Mixture Conductivity = 1.260 Comment : CHAN 0600 PCS PHONE CDMA MODE PCTEST SAR Measurement Laboratory Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 3.000, Y = 0.500, Z = 0.000 (cm) Value = 7.661 Measured Values (volts) = 7.485E-003 2.131E-003 5.644E-004 8.143E-005 5.269E-005 1.279E-005 1.236E-006 1.675E-005 0.000E+000 1.129E-005 2.830E-005 Calc. Voltage @ Surface (Vs) = 0.0103 Voltage @ 1.00 cm (Vt) = 0.0035 Ave. Voltage (Vs+Vt)/2 = 0.0069 Ave. SAR over 1 g (mW/g) = 0.7673 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 mW/g 012345678910 Z centimeters SAR Scan File : 98042309_ZOOM Start : 23-Apr-98 01:34:24 pm End : 23-Apr-98 01:45:05 pm HYUNDAI/HGP-1200E/0005;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.260 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98042311_ZOOM.VLT Start : 23-Apr-98 03:25:39 pm End : 23-Apr-98 03:36:27 pm Radio Type : HYUNDAI Model Number : HGP-1200E Serial Number : 0005 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.300 Mixture Conductivity = 1.260 Comment : CHAN 1175 PCS PHONE CDMA MODE PCTEST SAR Measurement Laboratory Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 3.750, Y = 0.750, Z = 0.000 (cm) Value = 7.710 Measured Values (volts) = 7.481E-003 1.816E-003 4.302E-004 1.190E-004 1.058E-004 3.043E-005 6.633E-005 2.045E-005 0.000E+000 7.537E-006 0.000E+000 Calc. Voltage @ Surface (Vs) = 0.0107 Voltage @ 1.00 cm (Vt) = 0.0032 Ave. Voltage (Vs+Vt)/2 = 0.0070 Ave. SAR over 1 g (mW/g) = 0.7736 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 mW/g 012345678910 Z centimeters SAR Scan File : 98042311_ZOOM Start : 23-Apr-98 03:25:39 pm End : 23-Apr-98 03:36:27 pm HYUNDAI/HGP-1200E/0005;1908.75MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.260 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98042312_ZOOM.VLT Start : 23-Apr-98 03:43:37 pm End : 23-Apr-98 03:54:56 pm Radio Type : HYUNDAI Model Number : HGP-1200E Serial Number : 0005 Frequency : 1908.75 MHz Peak Trans. Pwr : 0.300 W Start Trans. Pwr: 0.300 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.300 Mixture Conductivity = 1.260 Comment : CHAN 1175 PCS PHONE CDMA MODE PCTEST SAR Measurement Laboratory Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 3.000, Y = 1.250, Z = 0.000 (cm) Value = 6.739 Measured Values (volts) = 6.711E-003 1.765E-003 4.103E-004 1.014E-004 3.600E-005 4.585E-006 2.762E-005 1.921E-004 1.706E-004 2.228E-005 1.005E-004 Calc. Voltage @ Surface (Vs) = 0.0095 Voltage @ 1.00 cm (Vt) = 0.0030 Ave. Voltage (Vs+Vt)/2 = 0.0063 Ave. SAR over 1 g (mW/g) = 0.6958 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 mW/g -1012345678910 Z centimeters SAR Scan File : 98042312_ZOOM Start : 23-Apr-98 03:43:37 pm End : 23-Apr-98 03:54:56 pm HYUNDAI/HGP-1200E/0005;1908.75MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.300/1.260 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98042401_ZOOM.VLT…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report S/N: SAR.980420284.CKLSAR Measurement Report Test Date(s): April 20-24, 1998FCC Part 24 Type Acceptance © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. 1 1 Peak SAR Value at the surface of the phantom @ Z=0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone.

Test Report

© 1998 PCTEST Engineering Laboratory, Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Type Acceptance) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: April 20-24, 1998 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: SAR.980420285.CKL Ichon-Si, Kyoungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Mr. Ki Soo KIM, Assistant Manager, QA Office FCC ID CKLHGP-1200E APPLICANT HYUNDAI ELECTRONICS INDUSTRIES CO., LTD. Classification:Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s):§§§ 24(E); 2.983, 2.987 EUT Type:PCS CDMA Phone Trade Name / Model(s):HYUNDAI HGP-1200E, HGP-1100E Frequency Range:1851.25MHz – 1908.75MHz Max. Output Power:0.3 Watts Frequency Tolerance:0.00020% (2.0ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified is §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) Lab Code 100431-0 TYPE ACCEPTANCE © 1998 PCTEST Engineering Laboratory, Inc. FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 INSERTS PER §2.983 3 DESCRIPTION OF TESTS 4-6 TEST DATA (RADIATED) 7-9 TEST DATA (FREQUENCY STABILITY) 10-11 PLOTS OF EMISSIONS 12 LIST OF TEST EQUIPMENT 13 SAMPLE CALCULATIONS 14 RECOMMENDATION / CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAMS(S) ATTACHMENT J: SCHEMATIC DIAGRAMS(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.980420285.CKLFCC Part 24 Dates of Tests: April 20-24, 1998Type Acceptance © 1998 PCTEST LabFCC ID: CKLHGP-1200E (Part 24 – Licensed PCS)1 HYUNDAI PCS CDMA Phone (Model: HGP-1200E) MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kuoungki-Do, KOREA 467-701 Attention:Mr. Ki Soo, KIM, Assistant Manager, QA Office • §2983(b) FCC ID:CKLHGP-1200E • §2983(c) Quantity:Quantity production is planned • §2.983(d) Emission Designator:1M25F9W • §2.983(d) Maximum Power Rating:0.3 W • §2.983(d) D.C. Voltage into Final RF Amplifier:3.6 VDC • §2.983(d) D.C. Current into Final RF Amplifier:560 mA • Power Supply Battery:3.6 VDC 600mAh Li-Ion Battery Pack • FCC Classification:Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type:PCS CDMA Phone • Modulation:CDMA • Frequency Tolerance:± 2.0 ppm • FCC Rule Part(s):§§§ 24, 2.983, 2.987 • Dates of Tests:April 20-24, 1998 • Place of Tests:PCTEST Lab, Colubmia, MD U.S.A. 980420284.CKL Lab Code 100431-0 Test Report S/N: 24.980420285.CKLFCC Part 24 Dates of Tests: April 20-24, 1998Type Acceptance © 1998 PCTEST LabFCC ID: CKLHGP-1200E (Part 24 – Licensed PCS)2 HYUNDAI PCS CDMA Phone (Model: HGP-1200E) 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Lab is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. The Scope of PCTEST Accreditation are for Electromagnetic Compatibility and Telecommunications and FCC. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 24.980420285.CKLFCC Part 24 Dates of Tests: April 20-24, 1998Type Acceptance © 1998 PCTEST LabFCC ID: CKLHGP-1200…

Text truncated - open the document above for the full version.

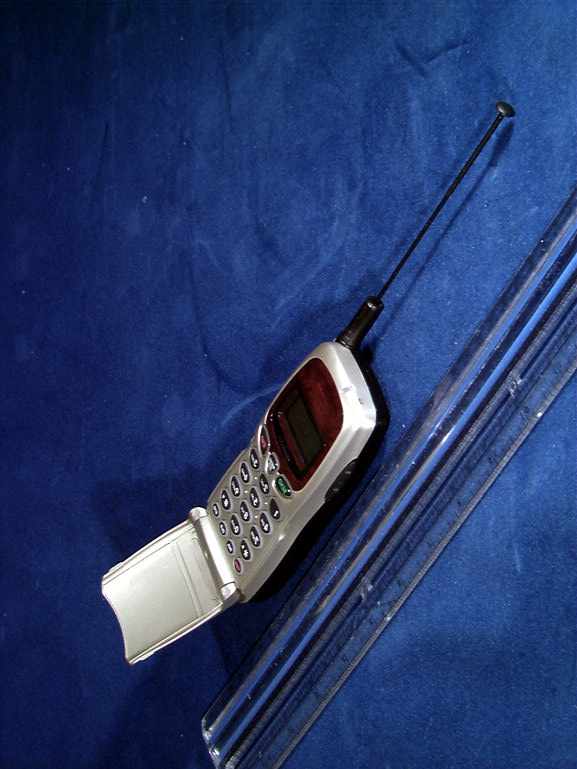

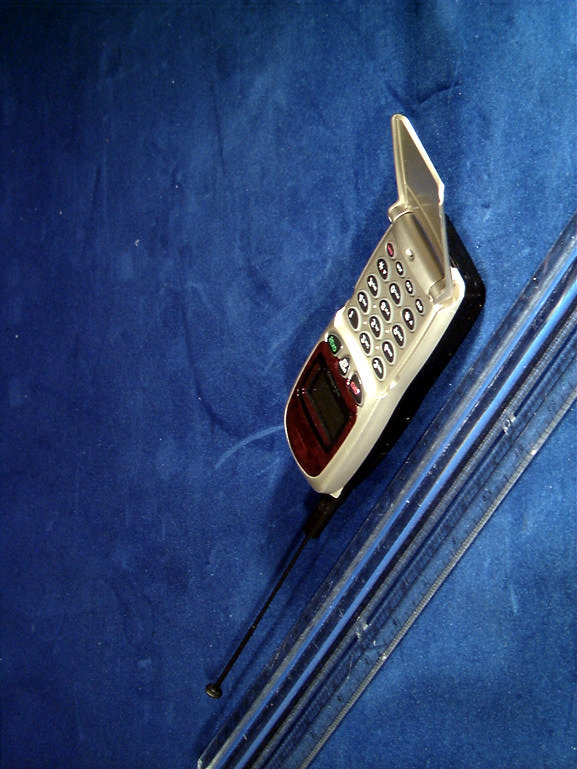

Test Setup Photos

Test Report S/N: 24.980420285.CKLFCC Part 24 Test Date(s): April 20-24, 1998Type Acceptance © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd. Test Report S/N: 24.980420285.CKLFCC Part 24 Test Date(s): April 20-24, 1998Type Acceptance © 1998 PCTEST LabFCC ID: CKLHGP-1200E NVLAP Lab Code: 100431-0 HYUNDAI Electronics Industries Co., Ltd.
