CKLHGP-3100ESingle Mode PCS CDMA Phone

© 2000 PCTEST Lab ATTACHMENT M – USER’S MANUAL

© 2000 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S)

© 2000 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S)

© 2000 PCTEST Lab ATTACHMENT A – COVER LETTER July 31, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: HYUNDAI Electronics Industries Co., Ltd. FCC ID: CKLHGC-3100E Part 24 Certification Gentlemen: Attached herewith, on behalf of HYUNDAI Electronics Industries Co., Ltd. is an application for Part 24 Certification of the following Single-Mode PCS CDMA Phone: FCC ID: CKLHGC-3100E TRADE / MODEL(s): HYUNDAI HGP-3100E EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 1851.25 – 1908.75 MHz Rx Freq. Range: 1931.25 – 1988.75 MHz Max. RF Output Power: 0.4218 W EIRP (26.25 dBm) Attached is the Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Ki-Soo Kim Section Chief, QA Office HYUNDAI Electronics Industries Co., Ltd.

October 30, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Katie Hawkins SUBJECT: HYUNDAI Electronics Industries Co., Ltd. FCC ID: CKLHGP-3100E 731 Confirmation No.: EA98383 Correspondence Reference No.: 16803 Request for Tech. Info.: 10/27/00 Dear Katie: Transmitted herewith, on behalf of HYUNDAI Electronics Industries Co., Ltd. is an amendment provided in response to the request for technical information dated October 27, 2000. 1. Please note that section 4.9 of the test report was inadvertently submitted, the radiated measurements was taken with the antenna attached to the EUT, and we did in fact use the signal substitution to determine the signal levels not the field strength. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: HYUNDAI Electronics Industries Co., Ltd.

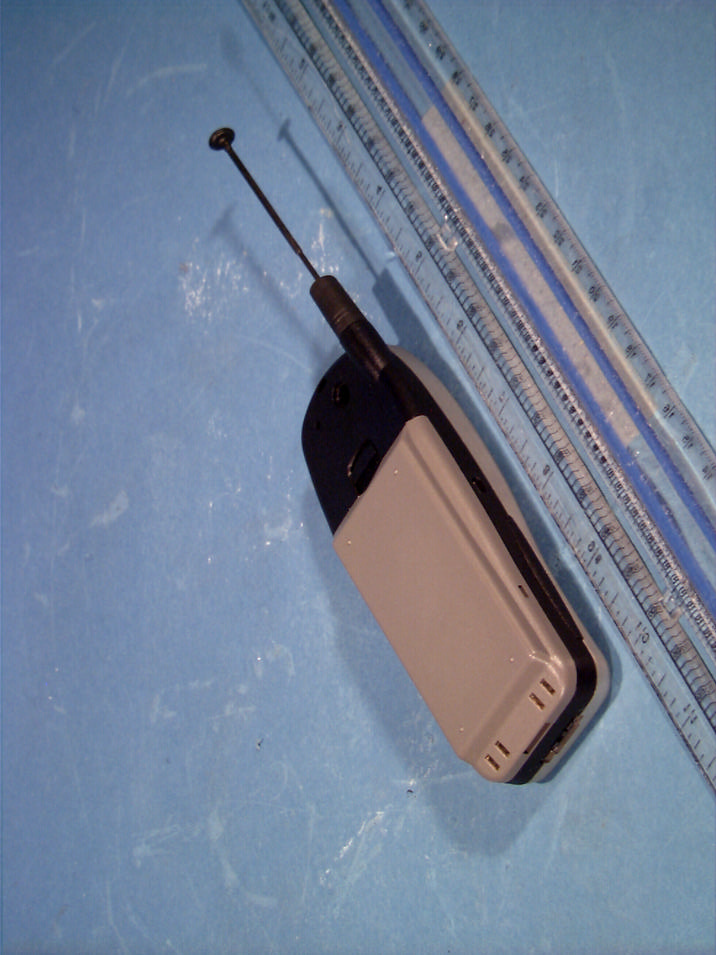

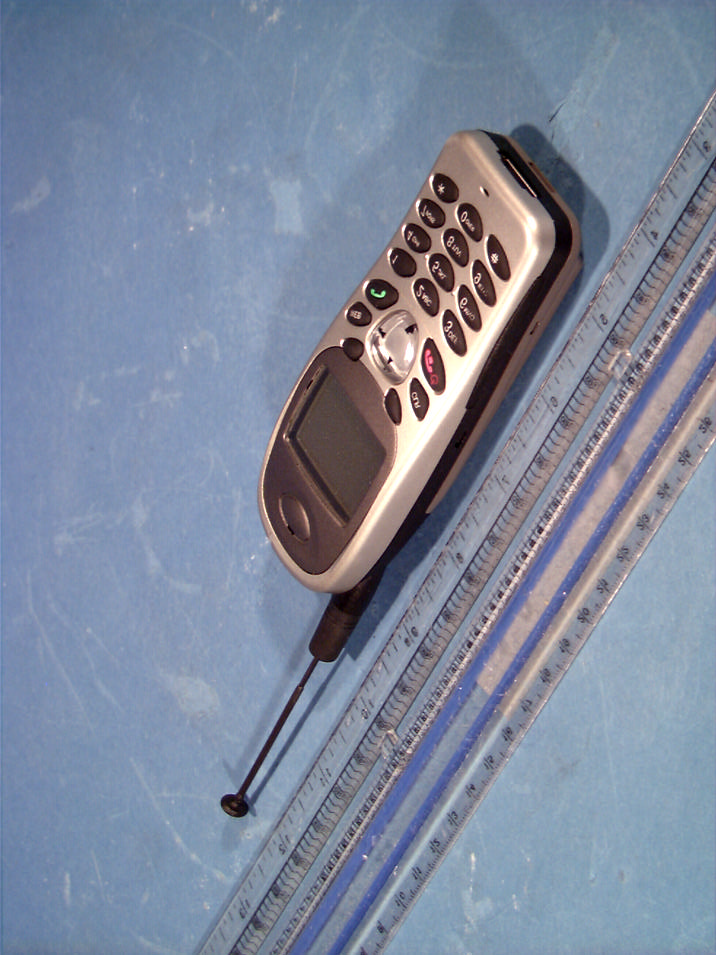

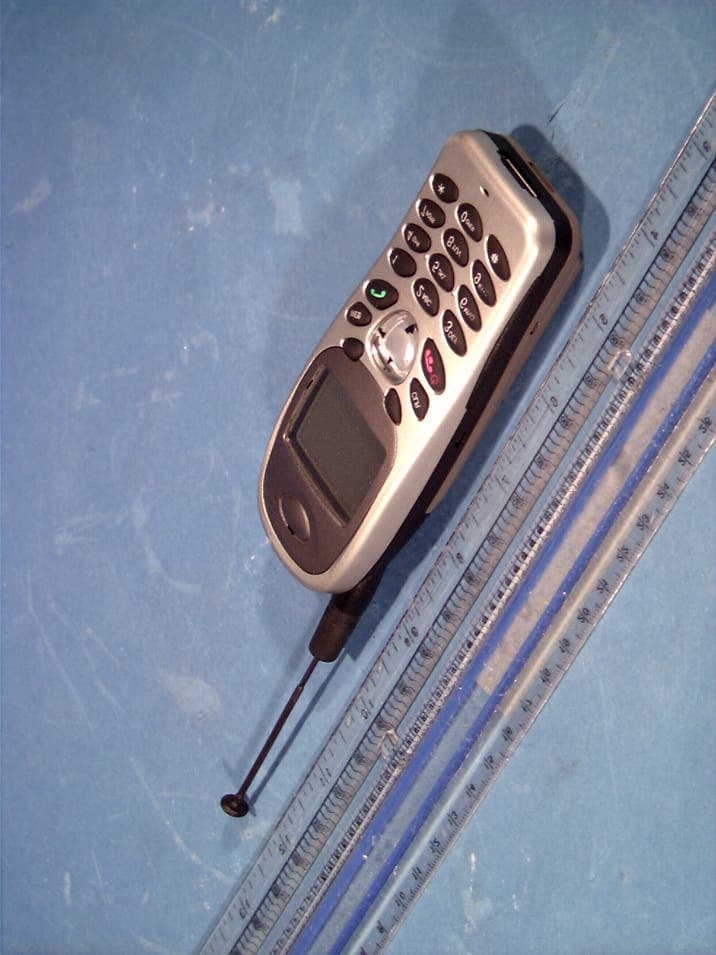

© 2000 PCTEST Lab ATTACHMENT G – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA)

© 2000 PCTEST Lab ATTACHMENT E – FCC ID LABEL / LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER § 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2000 PCTEST Lab ATTACHMENT H – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA)

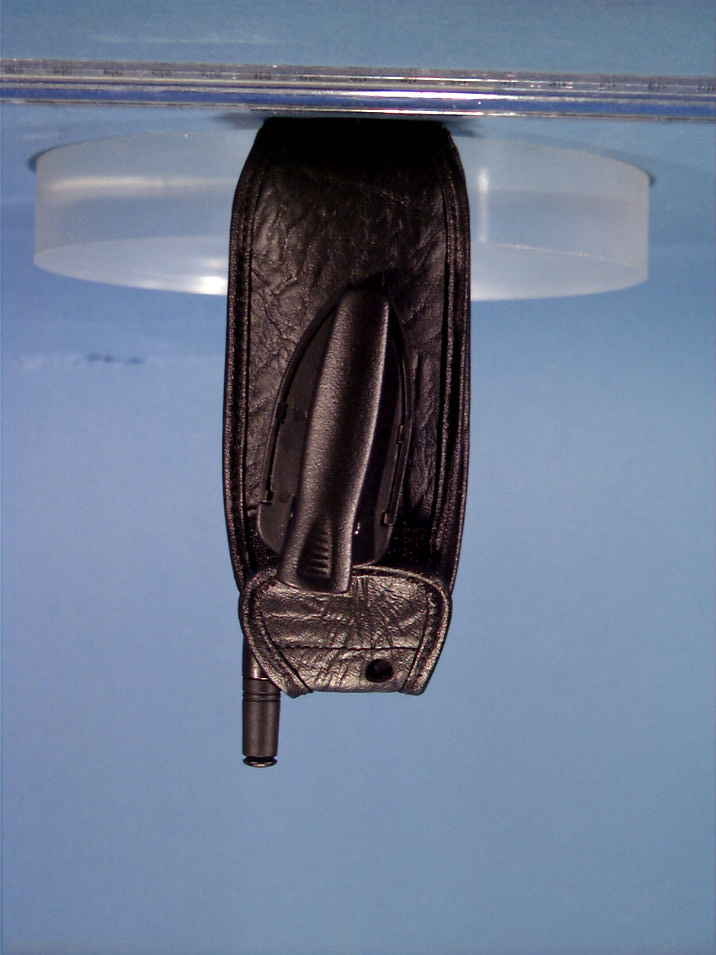

© 2000 PCTEST Lab ATTACHMENT N – SAR MEASUREMENT REPORT © 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: July 24-27, 2000 San 136-1, Ami-Ri, Bubal-Eub Test Report S/N: SAR.200725321.CKL Ichon-Si, Kyungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia MD USA Attn: Mr. Ki-Soo Kim, QM Dept. System Quality Assurance Office FCC ID CKLHGP-3100E APPLICANT HYUNDAI Electronics Industries Co., Ltd. EUT Type:Single-Mode PCS CDMA Phone Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max. RF Output Power:0.4218W EIRP (26.25 dBm) Trade Name/Model(s):HUNDAI HGP-3100E FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). Part 24 PCS CDMA Mode - Head Max. SAR:1.1481 W/kgFCC Limit: 1.6 W/kg Body Max. SAR:0.4408 W/kg FCC Limit: 1.6 W/kg I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 200725321.CKL SAR Measurement ReportFCC Part 24 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE1 2.1 INTRODUCTION / SAR DEFINITION2 3.1 SAR MEASUREMENT SET-UP3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM4 5.1 E-FIELD PROBE SYSTEM5-6 6.1 PHANTOM & EQUIVALENT TISSUES7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS9 9.1 TEST POSITION OF THE PHONE10 10.1 BODY-WORN TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS12 12.1 MEASUREMENT UNCERTAINTIES13 13.1 TEST DATA SUMMARY14-15 14.1 SAR TEST EQUIPMENT LIST16 15.1 CONCLUSION / REFERENCES17 Test Report S/N: SAR.200725321.CKLSAR Measurement Report Test Dates: July 24-27, 2000FCC Part 24 Certification HYUNDAI FCC ID: CKLHGP-3100E (Model: HGP-3100E) © 2000 PCTEST LabSingle-Mode PCS CDMA Phone1 Figure 1. SAR Test Set-up SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention:Mr. Ki-Soo Kim, QM Dept System Quality Assurance Office • EUT Type:Single-Mode PCS CDMA Phone • FCC Rule Part(s):§2.1093, Docket 96-326 • Trade Name:HYUNDAI • FCC IDENTIFIER:CKLHGP-3100E • Model(s):HGP-3100E • Tx Frequency:1851-25 – 1908.75 MHz • Rx Frequency:1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 2.1093, Docket 96-326 • Modulation(s):CDMA • Max. RF Output Power:0.4218W EIRP (26.25 dBm) • Antenna Type:Helical (λ/2) • Antenna Dimensions:6.4 cm. (Length) • Dates of Tests:July 24-27, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200725321.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Test Report S/N: SAR.200725321.CKLSAR Measurement Report Test Dates: July 24-27, 2000FCC Part 24 Certification HYUNDAI FCC ID: CKLHGP-3100E (Model: HGP-3100E) © 2000 PCTEST LabSingle-Mode PCS CDMA Phone2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential bio…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA) © 2000 PCTEST Lab FCC ID: CKLHGP-3100E NVLAP Lab Code: 1004310 HYUNDAI Single-Mode Cellular Phone (PCS/CDMA)

October 12, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Katie Hawkins SUBJECT: HYUNDAI Electronics Industries Co., Ltd. FCC ID: CKLHGP-3100E 731 Confirmation No.: EA98383 Correspondence Reference No.: 16472 Request for Tech. Info.: 10/06/00 Dear Katie: Transmitted herewith, on behalf of HYUNDAI Electronics Industries Co., Ltd. is an amendment provided in response to the request for technical information dated October 6, 2000. 1. Attached is the revised RF exposure warning statement, which will be place towards the front location in the user’s manual. 2. Hyundai R&D confirmed that the preliminary users manual submitted contained the wrong picture of the holster. A revised photograph of the holster will be included in the final revision of the users manual. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: HYUNDAI Electronics Industries Co., Ltd.

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification HYUNDAI Electronics Industries Co., Ltd. Dates of Tests: July 24-27, 2000 San 136-1, Ami-Ri, Bubal-Eub Test Report S/N: 24.200705388.CKL Ichon-Si, Kyungki-Do, KOREA 467-701 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Ki-Soo Kim, QM Dept. System Quality Assurance Office FCC ID CKLHGP-3100E APPLICANT HYUNDAI Electronics Industries Co., Ltd. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E); §2 EUT Type: PCS CDMA Phone Trade Name/Model: HYUNDAI HGP-3100E Tx Frequency Range: 1851.25MHz – 1908.75MHz Rx Frequency Range: 1931.25MHz – 1988.75MHz Max. RF Output Power: 0.4218 W EIRP (26.25 dBm) Emission Designator(s): 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200705388.CKL FCC Part 24 Certification © 2000 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION (SITE DESCRIPTION) 2 3.1 INSERTS PER §2.1033 3 4.1 DESCRIPTION OF TESTS 4-7 5.1 TEST DATA (Equivalent Isotropic Radiated Power) 8 6.1 TEST DATA (RADIATED) 9-11 7.1 TEST DATA (FREQUENCY STABILITY) 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab ATTACHMENT C – TEST REPORT Test Report S/N: 24.200705388.CKL FCC Part 24 Dates of Tests: July 24-27, 2000 Certification © 2000 PCTEST Lab FCC ID: CKLHGP-3100E (Model: HGP-3100E) 1 HYUNDAI PCS CDMA Phone MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant: HYUNDAI Electronics Industries Co., Ltd. Address: San 136-1, Ami-ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention: Mr. Ki-Soo Kim, QM Dept System Quality Assurance Office • FCC ID: CKLHGP-3100E • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 1851.25 – 1908.75 MHz • Rx Freq. Range: 1931.25 – 1988.75 MHz • Max. Power Rating: 0.4218 W EIRP (26.25 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: PCS CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E); §2 • Dates of Tests: July 24-27, 2000 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.200705388.CKL Test Report S/N: 24.200705388.CKL FCC Part 24 Dates of Tests: July 24-27, 2000 Certification © 2000 PCTEST Lab FCC ID: CKLHGP-3100E (Model: HGP-3100E) 2 HYUNDAI PCS CDMA Phone 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure 2). The equipment under test is placed on the turntable connected to a RF wattmeter and a dummy RF load, and then its power is adjusted to its rated output. A receiving antenna located 2 meters from the turntable picks up any signal radiated from the transmitter. The turntable containing the system was rotated; the receiving antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. The testing procedure is repeated for both horizontal and vertical polarization of the receiving antenna. The actual radiated signal strength is obtained by substitution method with a signal generator with a calibrated output. The signal generator is adjusted in output until its reading is identical to that obtained when the receiving antenna is connected to the receiver. Signal strength is then read directly from the signal generator. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. a…
