CKLHWT-120Single-Mode Cellular CDMA WLL Terminal

May 22, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:HYUNDAI Electronics Industries, Co., Ltd. FCC ID: CKLHWT-120 Part 22 Certification Gentlemen: Attached herewith, on behalf of HYUNDAI Electronics Industries, Co., Ltd. is an application for Part 22 Certification of the following: FCC ID:CKLHWT-120 TRADE / MODEL(s):HYUNDAI HWT-120 Equipment Class:Non-Broadcast Station Transmitter (TNB) Equipment Type:Single-Mode Cellular CDMA WLL Terminal Tx Freq. Range:824.70 – 848.31 MHz Rx Freq. Range:869.70 – 893.31 MHz Max. RF Output Power:0.32 W ERP (25.05 dBm) Attached is the Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Ja Beom Koo Quality Management Dept. Systems Quality Assurance Office

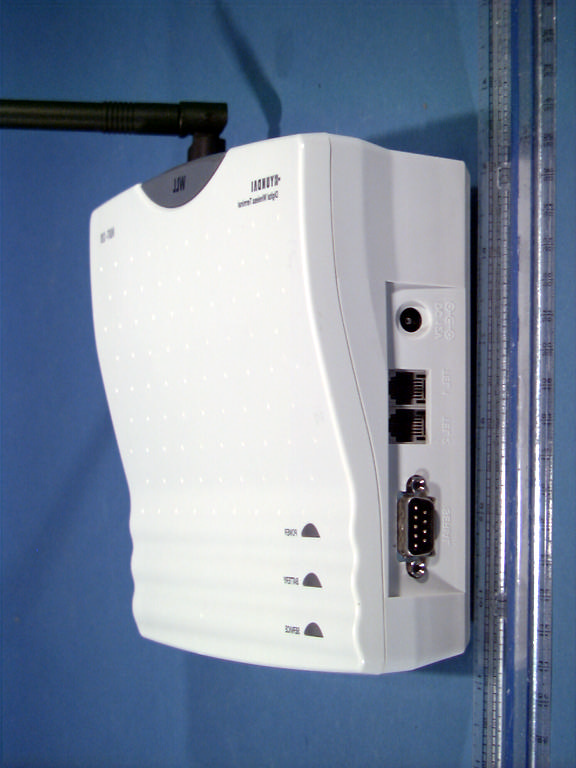

© 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: May 08-12, 2000 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: SAR.200428183.CKL Ichon-Si, Kyungki-Do, Korea 467-701Test Site: PCTEST Lab, Columbia, MD USA Attn: Mr. Ja Beom Koo Quality Management Dept. System Quality Assurance Office FCC ID CKLHWT-120 APPLICANT HYUNDAI Electronics Industries Co., Ltd. EUT Type:Single-Mode Cellular CDMA WLL Terminal Tx Frequency:824.70 – 848.31 MHz Rx Frequency:869.70 – 893.31 MHz Max. RF Output Power:0.320 W EIRP (25.05 dBm) Trade Name/Model(s):HYUNDAI HWT-120 FCC Classification:Non-Broadcast Station Transmitter (TNB) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200428183.CKL FCC Part 22 Certification PCTEST Engineering Laboratory, Inc.i Table of Contents SCOPE 1 INTRODUCTION / SAR DEFINITION 2 SAR MEASUREMENT SET-UP 3 E-FIELD PROBE SYSTEM 4 E-FIELD PROBE CALIBRATION PROCESS 5 DATA EXTRAPOLATION 6 PHANTOM & EQUIVALENT TISSUE 7 SYSTEM SPECIFICATIONS 8 MEASUREMENT PROCESS 9 TEST POSITION OF THE EUT 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 MEASUREMENT UNCERTAINTIES 12 TEST DATA SUMMARY 13 SAR TEST EQUIPMENT LIST 14 CONCLUSION 15 REFERENCES 16 Test Report S/N: SAR.200428183.CKLSAR Measurement Report Test Date(s): May 08-12, 2000FCC Part 22 Certification FCC ID: CKLHWT-120 (Tx 824.70 – 848.31 MHz) © 2000 PCTEST LabHYUNDAI Single-Mode Cellular CDMA WLL Terminal1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention:Mr. Ja Beom Koo Quality Management Dept. System Quality Assurance Office • EUT Type:Single-Mode Cellular CDMA WLL Terminal • Trade Name:HYUNDAI • Model(s):HWT-120 • FCC IDENTIFIER:CKLHWT-120 • S/N:Pre-production • Tx Frequency:848.70 – 848.31 MHz • Rx Frequency:869.70 – 893.31 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Station Transmitter (TNB) • FCC Rule Part(s):§2.1093, Docket 96-326 • Modulation(s):CDMA • Max RF. Output Power:0.320 W EIRP (25.05 dBm) • Antenna Type:Helical (λ/2) • Antenna Dimensions:23.4 cm. (Length) • Date(s) of Tests:May 08-12, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200428183.CKL 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200428183.CKLSAR Measurement Report Test Date(s): May 08-12, 2000FCC Part 22 Certification FCC ID: CKLHWT-120 (Tx 824.70 – 848.31 MHz) © 2000 PCTEST LabHYUNDAI Single-Mode Cellular CDMA WLL Terminal2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contained in a vo…

Text truncated - open the document above for the full version.

HYUNDAI FCC ID:CKLHWT-120 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.41 mW/g, SAR (10g): 0.979 mW/g HYUNDAI WLL Model: HWT-120 CDMA Mode, Ch.1013 [824.70MHz]; Conducted Power = 25.0dBm Antenna Extended up-right = normal operating condition; Spacing = 2.5cm from flat phantom to antenna Test Date = 05-10-2000 SAR Tot [mW/g] 1.35E-1 4.06E-1 6.76E-1 9.46E-1 1.22E+0 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHWT-120 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.35 mW/g, SAR (10g): 0.942 mW/g HYUNDAI WLL Model: HWT-120 CDMA Mode, Ch.0363 [835.89MHz]; Conducted Power = 25.0dBm Antenna Extended up-right = normal operating condition; Spacing = 2.5cm from flat phantom to antenna Test Date = 05-10-2000 SAR Tot [mW/g] 7.97E-2 2.39E-1 3.99E-1 5.58E-1 7.17E-1 PCTEST Engineering Laboratory, Inc. HYUNDAI FCC ID:CKLHWT-120 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.37 mW/g, SAR (10g): 0.931 mW/g HYUNDAI WLL Model: HWT-120 CDMA Mode, Ch.0777 [848.31MHz]; Conducted Power = 25.0dBm Antenna Extended up-right = normal operating condition; Spacing = 2.5cm from flat phantom to antenna Test Date = 05-10-2000 SAR Tot [mW/g] 7.97E-2 2.39E-1 3.99E-1 5.58E-1 7.17E-1 PCTEST Engineering Laboratory, Inc.

Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ . Page 2 of 8 ET3DV5 SN:1370 DASY3 - Parameters of Probe: ET3DV5 SN:1370 Sensitivity in Free Space NormX1.58μV/(V/m) 2 NormY1.64μV/(V/m) 2 NormZ1.80μV/(V/m) 2 Diode Compression DCP X96mV DCP Y96mV DCP Z96mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.5extrapolated ε r = 48 ± 5% ConvF Y6.5extrapolated σ =0.50 ± 10%mho/m ConvF Z6.5extrapolated(brain tissue simulating liquid) 900 MHz ConvF X6.0± 10% ε r = 42.5 ± 5% ConvF Y6.0± 10% σ =0.86 ± 10%mho/m ConvF Z6.0± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.4interpolated ε r = 41 ± 5% ConvF Y5.4interpolated σ =1.32 ± 10%mho/m ConvF Z5.4interpolated(brain tissue simulating liquid) 1800 MHz ConvF X5.1± 10% ε r = 41 ± 5% ConvF Y5.1± 10% σ =1.69 ± 10%mho/m ConvF Z5.1± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.6 ± 0.2mm Page 3 of 8 ET3DV5 SN:1370 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1370 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1370 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1370 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.0010.010.1110100 mW/cm 3 errror[dB] not compensated diode characteristic compensated relative accuracy Page 7 of 8 ET3DV5 SN:1370 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 0.00 0.50 1.00 1.50 2.00 2.50 020…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyundai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal

i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. This device was tested for RF exposure compliance with the back of the phone kept 2.5 cm (1.0 inches) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 2.5 cm (1.0 inches) must be maintained between the user/bystander and the back of the phone, including the antenna. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification HYUNDAI Electronics Industries Co., Ltd.Dates of Tests: May 08-12, 2000 San 136-1, Ami-Ri, Bubal-EubTest Report S/N: 22.200428182.CKL Ichon-Si, Kyungki-Do, KOREA 467-701Test Site: PCTEST Lab, Columbia MD Attn: Mr. Ja Beom Koo Quality Management Dept. System Quality Assurance Office FCC ID CKLHWT-120 APPLICANT HYUNDAI Electronics Industries Co., Ltd. Classification:Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s):§22.901(d), §2 EUT Type:Single-Mode Cellular CDMA WLL Terminal Trade Name/Model(s):HYUNDAI HWT-120 Tx Frequency Range:824.70 ~ 848.31 MHz Rx Frequency Range:869.70 ~ 893.31 MHz Max. RF Output Power:0.32 W ERP (25.05 dBm) Frequency Tolerance:0.00025% (2.5 ppm) Emission Designator:1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 200428182.CKL Certification © 2000 PCTEST Engineering Laboratory, Inc.FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7 6.1 RADIATED MEASUREMENTS 8-10 7.1 FREQUENCY STABILITY 11-12 8.1 PLOTS OF EMISSIONS 13 9.1 LIST OF TEST EQUIPMENT 14 10.1 SAMPLE CALCULATIONS 15 11.1 CONCLUSION 16 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS & DESCRIPTION ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O:SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R:PROBE CALIBRATION Test Report S/N: 22.200428182.CKLFCC Part 22 Test Dates: May 08-12, 2000Certification © 2000 PCTEST LabHYUNDAI FCC ID: CKLHWT-120 (Tx 824-849MHz)1 Cellular CDMA WLL Terminal (Model: HWT-120) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name:HYUNDAI Electronics Industries Co., Ltd. Address:San 136-1, Ami-Ri, Bubal-Eub Ichon-Si, Kyungki-Do, KOREA 467-701 Attention:Mr. Ja Beom Koo Quality Management Dept. System Quality Assurance Office • FCC ID:CKLHWT-120 • Trade Name/Model(s):HYUNDAI HWT-120 • Quantity:Quantity production is planned • Emission Designator:1M25F9W • Tx Freq. Range:824.70 – 848.31 MHz Rx Freq. Range:869.70 – 893.31 MHz • Equipment Class:Non-Broadcast Station Transmitter (TNB) • Equipment Type:Single-Mode Cellular CDMA WLL Terminal • Modulation:CDMA • Frequency Tolerance:± 0.00025% (2.5 ppm) • Max. RF Output Power:0.32W ERP (25.05 dBm) • FCC Rule Part(s):§22.901(d), §2 • Battery Pack:8.4 VDC Ni-CD • Dates of Tests:May 08-12, 2000 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:22.200428182.CKL Test Report S/N: 22.200428182.CKLFCC Part 22 Test Dates: May 08-12, 2000Certification © 2000 PCTEST LabHYUNDAI FCC ID: CKLHWT-120 (Tx 824-849MHz)2 Cellular CDMA WLL Terminal (Model: HWT-120) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure2). The equipment under test is placed on the turntable connected to a RF wattmeter and a dummy RF load, and then its power is adjusted to its rated output. A receiving antenna located 2 meters from the turntable picks up any signal radiated from the transmitter. The turntable containing the system was rotated; the receiving antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. The testing procedure is repeated for both horizontal and vertical polarization of the receiving antenna. The actual radiated signal strength is obtained by substitution method with a signal generator with a calibrated output. The sig…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab Hyndai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal © 2000 PCTEST Lab Hyndai FCC ID: CKLHWT-120 NVLAP Lab Code: 100431-0 Cellular CDMA WLL Terminal
