CO8-RSM20150518RadioSecure SLM

` 1 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my RadioSecure SLM Operation Manual V1.01 ` 2 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my Hardware Contents: 1. RadioSecure SLM Device 2. Stainless Steel wire rope with header 3. Horizontal bolt 4. Locking Barrel 5. Sim window cover ` 3 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my SIM Card installation RadioSecure SLM is delivered with SIM Window Cover unattached. User is to follow the following procedure to insert SIM and subsequent closing the window to retain the IP67.  Check that Green Reset Plug is inserted and secured.  Use a pair of long nose plier or a pair of tweezer to grip the sim card.  Hold the SLM at eye level and gently insert the sim card into the sim holder with the contact face down.  Apply sufficient Silicon base adhesive such as Loctite 5607 to the groove around the SIM window.  Align SIM window cover with arrow facing down and gently press to lock the SIM window cover.  Leave it to cure according to manufacturer’s instruction. ` 4 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my Charging the RadioSecure SLM RadioSecure SLM is delivered with the battery charged to approximately 25%. Before deploying the RadioSecure SLM, make a full charge of the battery with an appropriate charger. (3hrs with 4amp rapid charger). To charge the battery,  slide the interface connector sliding window to the left.  unscrew green reset plug.  Align charger receptacle to connector by aligning the key to the key-way and gently push down to mate.  Switch on charger and leave it to charge for the required period. When fully charged, the charger indicator will turn green ` 5 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my Preparing RadioSecure SLM for deployment: RadioSecure SLM with fully charged battery is stored with reset plug inserted and securely tightens. The reset plug disconnects power supply to the CCA. The following procedure and visual observations should be observed in deploying the RadioSecure SLM. 1. Slide the interface connector window to left, unscrew green reset plug. 2. Red LED start blinking for approximately 45s (system initialization). 3. Red LED latched (system completed initialization). 4. Red and Green LED latched (GSM initialization). 5. Red LED latched, Green LED blink (GSM primary login). 6. Green LED latched (RadioSecure SLM ready for commissioning). 7. Insert header end of the stainless steel wire rope into the larger hole on the top of RadioSecure SLM. 8. Insert Horizontal Bolt and lock it with locking barrel. 9. Pass stainless steel wire rope through the hasp of object to be sealed and insert the taper end of the cable through the smaller hole. 10. Pull to seal tight. ` 6 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my Unseal and Decommission the RadioSecure SLM To end journey, the following procedure and observation should be observed. 1. pull the horizontal bolt to left. 2. use a sharp bolt cutter to cut the bolt at the recess area. 3. grip the locking barrel and pull out the remaining portion of the horizontal bolt. 4. pull the stainless steel wire rope out from the smaller hole (left). 5. un thread the stainless steel wire rope from the hasp. 6. pull out the remaining end (with the header) to access the interface connector. ` 7 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my 7. align green reset plug to the interface connector and gently pressed while turning clockwise. 8. the RadioSecure SLM has successfully completed an assignment and is in deep sleep. ` 8 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman Pertama), 30100 Jelapang, Ipoh, Perak, Malaysia. Tel: +605 527 8287 / +605 527 9287 Fax: +605 526 1287 Email: [email protected] Website: www.envotech.com.my Maintaining the SLM RadioSecure SLM has a delicate Floating Mechanism which requires maintenance. Maintenance schedule shall depend on usage environment. It is advisable to carry out monthly maintenance for normal usage. Usage in dusty environment may require more frequent maintenance. 1. Dust off any visible sludge or dust accumulated in or around the cable-header insertion hole, cable end insertion hole and the horizontal bolt insertion hole. 2. Spray light lubricant into these three holes. 3. Hold SLM with drain hole facing downward and in an angle where excess lubricant can be drained. Cable header insertion hole Horizontal bolt insertion hole Cable end insertion hole Drain Hole ` 9 ENVOTECH NETWORK SDN BHD (657306‐W) 25, Jalan Kilang 2, Kawasan Perindustrian Jelapang (Taman…

Text truncated - open the document above for the full version.

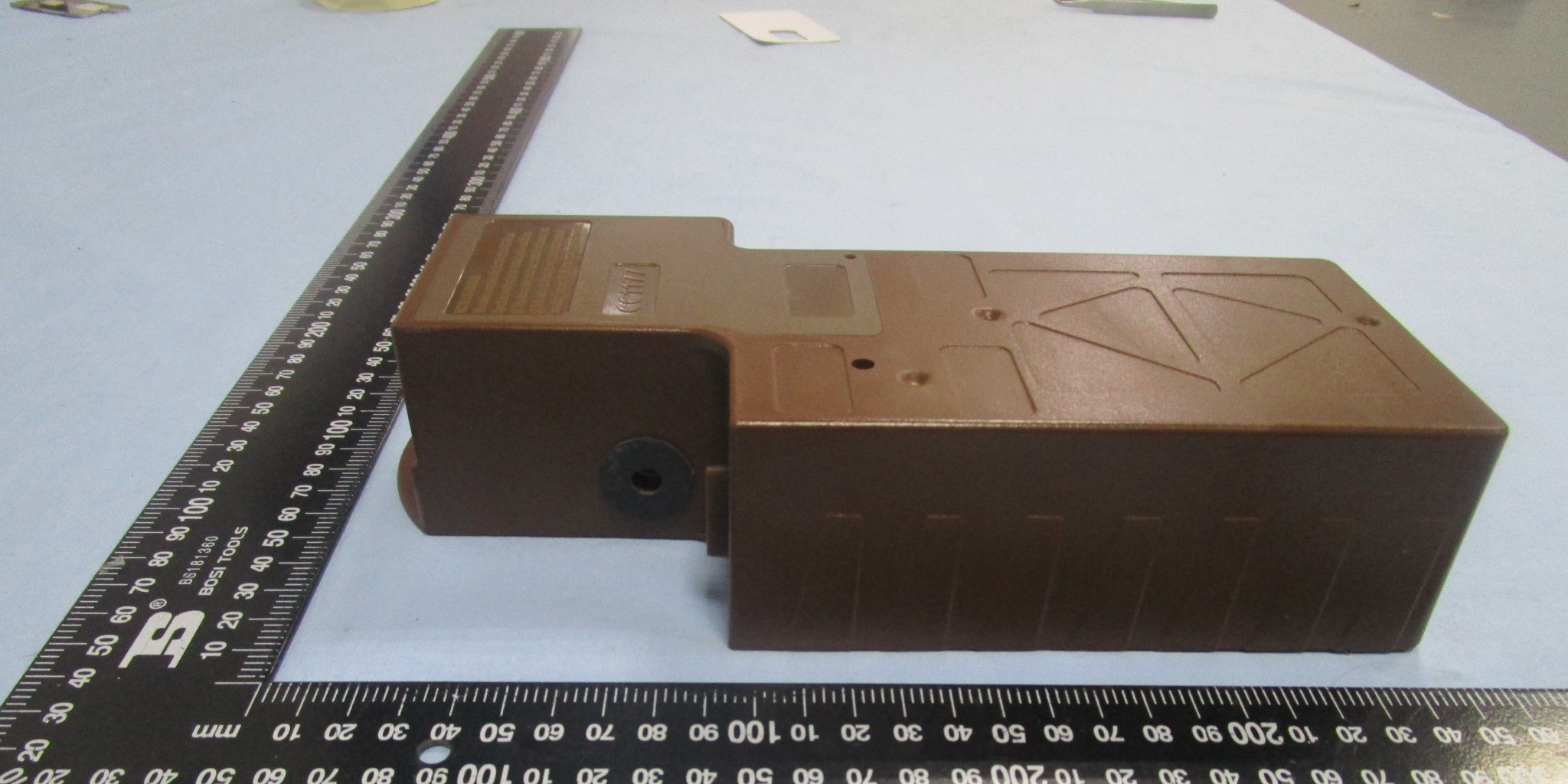

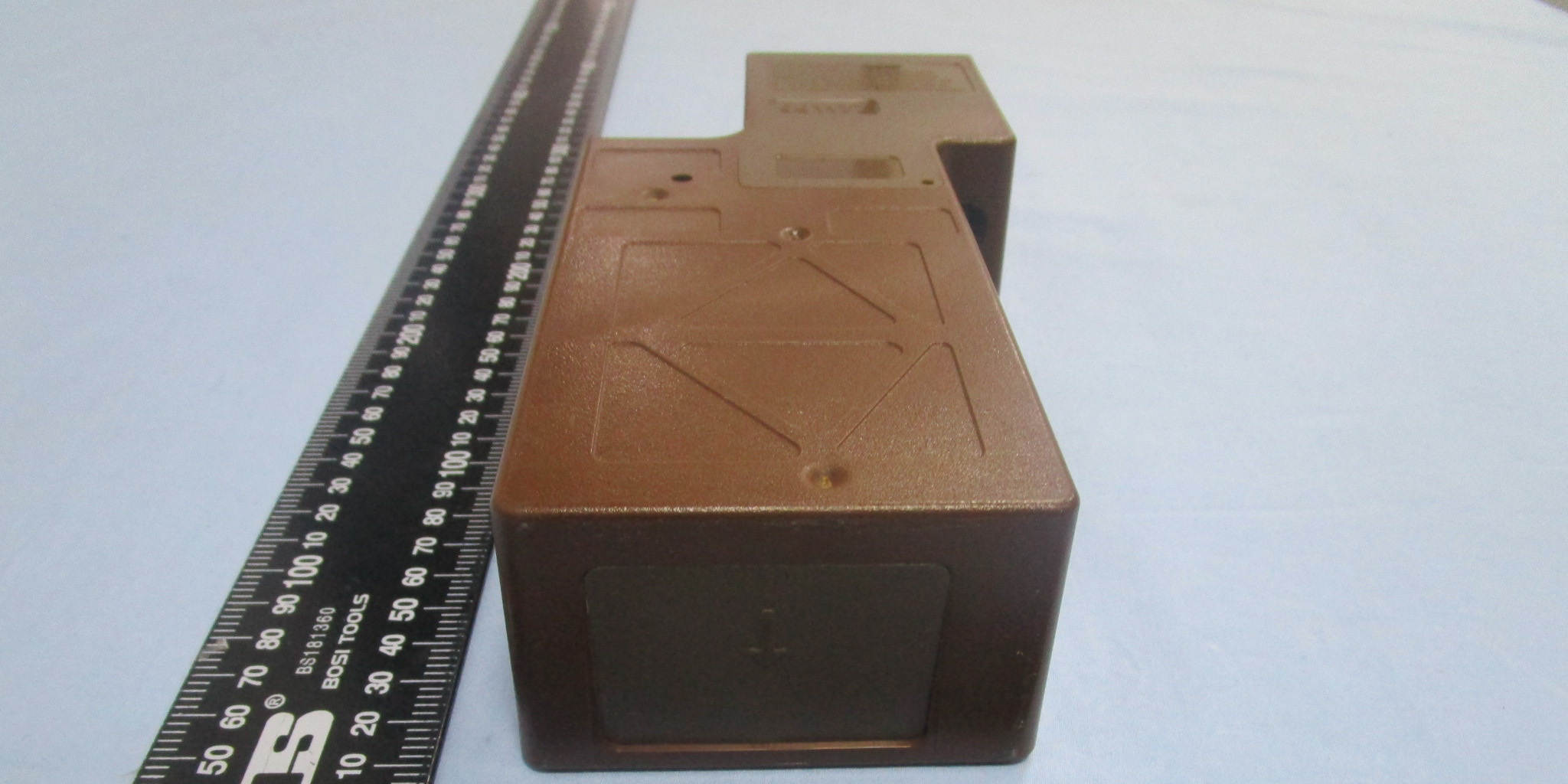

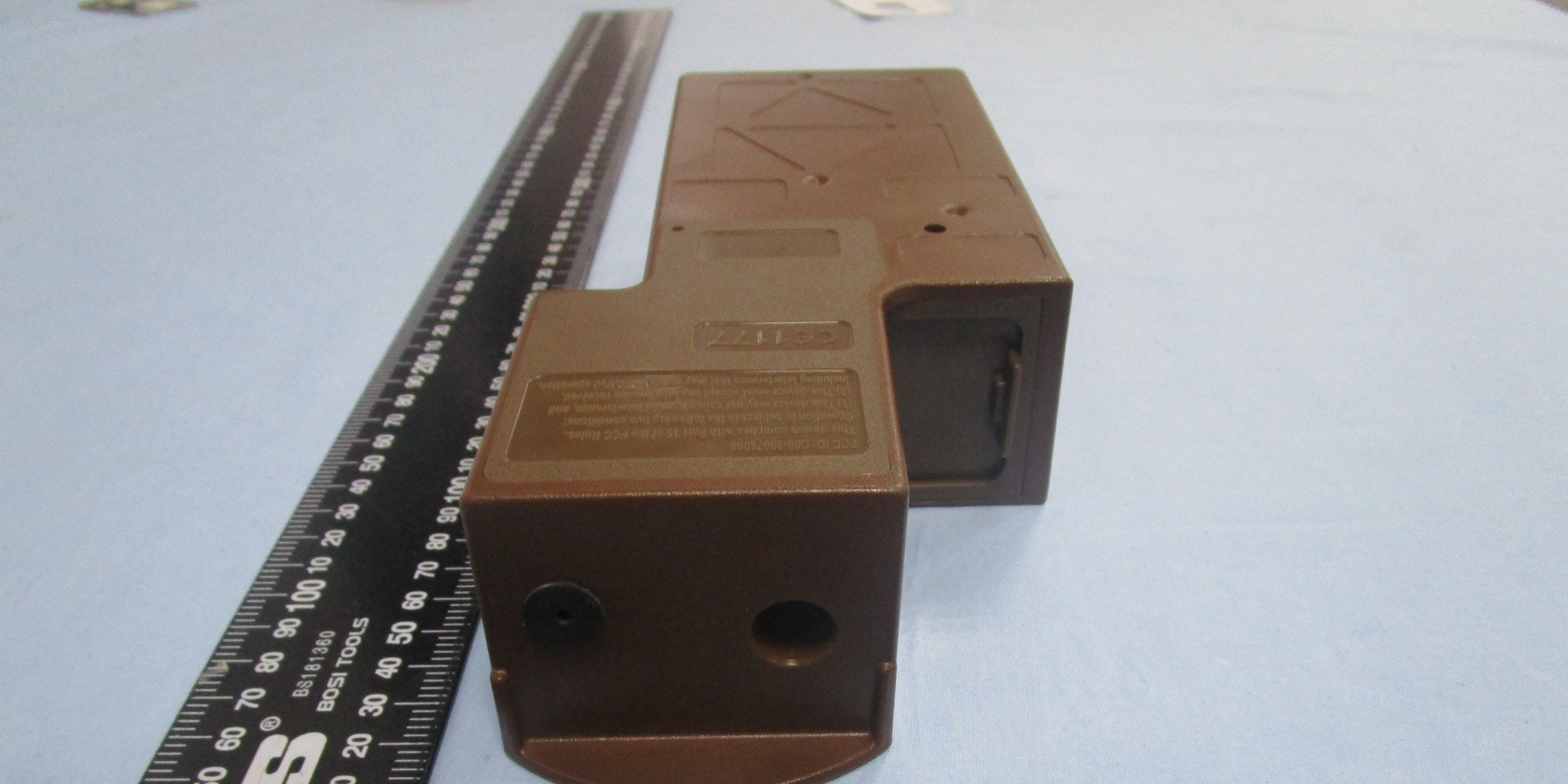

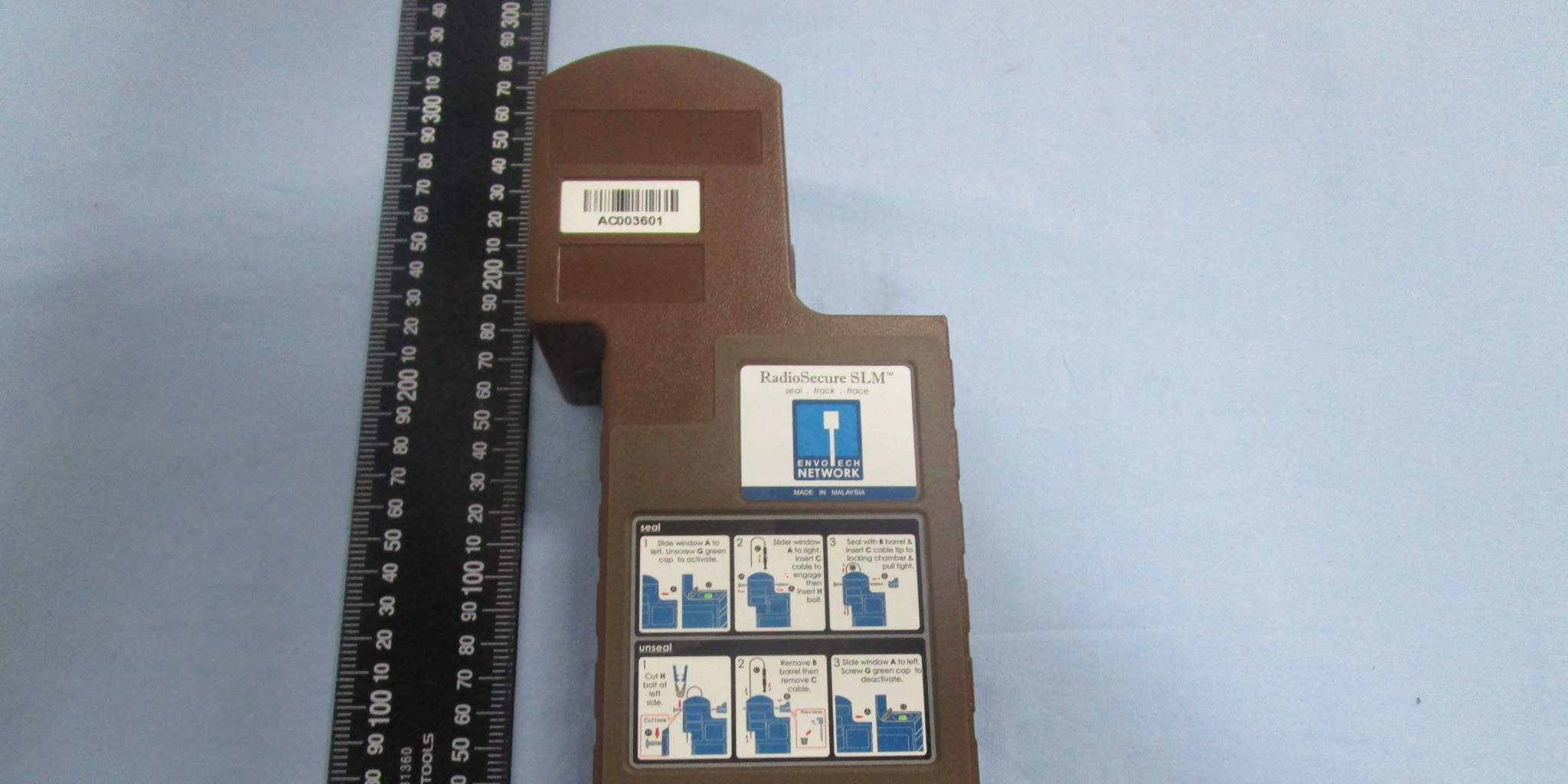

ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E EUT View 3 EUT View 4 ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E EUT View 5 EUT View 6

ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: CO8-RSM20150518 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E Solder Board-Component View 1 Solder Board-Component View 2 ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E Solder Board-Component View 3 Solder Board-Component View 4 2G Antenna 2.4G Antenna

ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E Solder Board-Component View 5 Solder Board-Component View 6 ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E Solder Board-Component View 7 Solder Board-Component View 8

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (Agilent 8960) measures the GSM device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. z For GSM 850 band： PCL = 5, PWR = 32 ± 1 dBm z For PCS 1900 band： PCL = 5, PWR = 29 ± 1 dBm Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a Agilent 8960 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result Product Description: RADIOSECURE SLM Model No.: RS-SLM-324x FCC ID: CO8-RSM20150518 Device Category: Mobile Device Antenna-to-tissue separation: >= 20 cm The following RF exposure evaluation shall to demonstrate RF exposure compliance. For Cellular Band (GSM850) Tx Freq. Power Power Gain Gain Mobile S Limit Result MHz dBm mW dBi Num cm mW/cm2 mW/cm2 GSM 824.2 32.10 1621.81 0.5 1.12 20.00 0.3620 0.55 PA S S 836.6 32.30 1698.24 0.5 1.12 20.00 0.3791 0.56 PA S S 848.8 32.36 1721.87 0.5 1.12 20.00 0.3843 0.57 PA S S GPRS 824.2 32.19 1655.77 0.5 1.12 20.00 0.3696 0.55 PA S S 836.6 32.38 1729.82 0.5 1.12 20.00 0.3861 0.56 PA S S 848.8 32.46 1761.98 0.5 1.12 20.00 0.3933 0.57 PA S S For PCS Band (GSM1900) Tx Freq. Power Power Gain Gain Mobile S Limit Result MHz dBm mW dBi Num cm mW/cm2 mW/cm2 GSM 1850.2 28.06 639.73 1.3 1.35 20.00 0.1717 1.00 PA S S 1880.0 28.92 779.83 1.3 1.35 20.00 0.2093 1.00 PA S S 1909.8 29.55 901.57 1.3 1.35 20.00 0.2419 1.00 PA S S GPRS 1850.2 28.19 659.17 1.3 1.35 20.00 0.1769 1.00 PA S S 1880.0 28.95 785.24 1.3 1.35 20.00 0.2107 1.00 PA S S 1909.8 29.76 946.24 1.3 1.35 20.00 0.2539 1.00 PA S S RF 2.4GHz Mode: Maximum field strength of fundamental: 104.67dBuV/m at 3m distance The transmitter has a very low power in the 2.4GHz mode, fulilled the RF exposure requirement. So the antenna of this device must be installed to provide a separation distance of at least 20 cm from all persons, to ensure satisfy the requirement of the RF Exposure.

ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 PAGE 1 OF 50 FCC PART 22H&24E FCC Part 22H & 24E Measurement and Test Report For ENVOTECH NETWORK SDN BHD NO. 1, Lot 4324N, Bulatan Cherry Off Jalan Tun Abdul Razak, 30100 Ipoh, Perak, Malaysia. FCC ID: CO8-RSM20150518 FCC Rules: FCC Part 22H, FCC Part 24E Product Description: RadioSecure SLM Tested Model: RS-SLM-324x Report No.: STR15058042I-1 Tested Date: 2015-05-08 to 2015-05-23 Issued Date: 2015-05-23 Tested By: Lebron Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 PAGE 2 OF 50 FCC PART 22H&24E TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 8 3. RF EXPOSURE ......................................................................................................................................................... 9 3.1 STANDARD APPLICABLE ......................................................................................................................................... 9 3.2 TEST RESULT.......................................................................................................................................................... 9 4. RF OUTPUT POWER ............................................................................................................................................ 10 4.1 STANDARD APPLICABLE ....................................................................................................................................... 10 4.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 10 4.3 TEST PROCEDURE ................................................................................................................................................. 10 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 11 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 11 5. PEAK-TO-AVERAGE RADIO (PAR) OF TRANSMITTER ............................................................................. 14 5.1 STANDARD APPLICABLE ....................................................................................................................................... 14 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 14 5.3 TEST PROCEDURE ................................................................................................................................................. 14 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 14 5.5 SUMMARY OF TEST RESULTS ............................................................................................................................... 15 6. EMISSION BANDWIDTH ..................................................................................................................................... 16 6.1 STANDARD APPLICABLE ....................................................................................................................................... 16 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 16 6.3 TEST PROCEDURE ................................................................................................................................................. 16 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 16 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 7. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ............................................................................... 24 7.1 STANDARD APPLICABLE ....................................................................................................................................... 24 7.2 TEST EQUIPMENT LIST AND DETAILS ...............................................................................…

Text truncated - open the document above for the full version.

ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Spurious Radiation Test Setup (9kHz to 30MHz) Spurious Radiation Test Setup (30MHz to 1G) ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E Spurious Radiation Test Setup (Above1G) Extreme Condition Test Setup ENVOTECH NETWORK SDN BHD Model: RS-SLM-324x REPORT NO.: STR15058042I-1 FCC PART 22H&24E Mobile Communication Test Setup
