CQOFN00040Smart key FOB

3. Outline of Smart Key FOB Electronic Key is mainly used for locking or unlocking the doors of the vehicles. Electronic Key detects signals when it reaches the vicinity of vehicle, and sends signals using radio frequency. Also, Electronic Key sends a radio wave signal while a button is pushed. When the button is released, the radio wave signal is automatically off within 0.392 seconds. When the button is depressed continuously, Electronic Key sends a signal for a predetermined constant time. This product sends a signal when the following buttons are pushed. Transmitter IC Actuator Receiver Subject for application Installation in vehicle Micom Electronic Key Control IC LF Transmitter 314.35 MHz 134.2 kHz Smart Key ECU Trunk button for opening the trunk or back door. Lock button for locking the doors Unlock button for unlocking the doors. Panic button for Panic Alarm Electronic Key Product Outline Product Description Product Type FN00040 RF characteristic Nominal frequency 314.35MHz Oscillator frequency 18.370MHｚ X-tal, PLL synthesizer Antenna Built-in type (Fixed) Button 4-Button type Lock Unlock Trunk Panic Power Supply Nominal supply voltage 3V DC Type of Battery One lithium battery Electronic Key is mainly used for locking or unlocking the doors of the vehicle. Electronic Key detects signals when it reaches the vicinity of vehicle, and sends signals using radio frequency. Also, Electronic Key sends a radio wave signal while a button is pushed. When the button is released, the radio wave signal is automatically off within 0.392 seconds. When the button is depressed continuously, Electronic Key sends a signal for a predetermined constant time. The receiver becomes active in response to signals from the transmitter. Unit: mm Appearance 4-Button type Explanation document of mechanical key for Electronic Key FN00040 ・Key groove varies according to each key. ・The key used for testing has no groove on its surface, which we consider is a worst case. Presence or absence of mechanical key does not affect on the RF characteristics. Mechanical key detached Mechanical key attached Mechanical key FCC ID: CQOFN00040 FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. IC: 1151E-FN00040 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio ex empts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is s ubject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

DENSO PS ELECTRONICS CORPORATION 853-11, Wae-Dong, Sungsan-Gu, Changwon City, Kyungnam, Korea ` Date: June 13, 2012 Attn: Reviewing Engineer EMCCert DR. RASEK GmbH Moggast, Boelwiese 5, 91320 Ebermannstadt, Germany RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits. This authorization is valid until further written notice from us undersigned. Sincerely Yours, Name: Dong-Ki, Cho Company: DENSO PS ELECTRONICS CORPORATION

DENSO PS ELECTRONICS CORPORATION 853-11, Wae-Dong, Sungsan-Gu, Changwon City, Kyungnam, Korea ` Date: June 13, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: CQOFN00040 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, DENSO PS ELECTRONICS CORPORATION, would like the following documents regarding this submission for FCC ID: CQOFN00040 to be kept permanent confidential. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give DENSO PS ELECTRONICS CORPORATION temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows : < Permanent Confidential List> 1. Schematics 2. Operating description 3. Block Diagram < Short-Term Confidential List > 1. External Photos 2. Internal Photos 3. Test-Setup Photos 4. User’s Manual The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely Yours, Name: Dong-Ki, Cho Company: DENSO PS ELECTRONICS CORPORATION

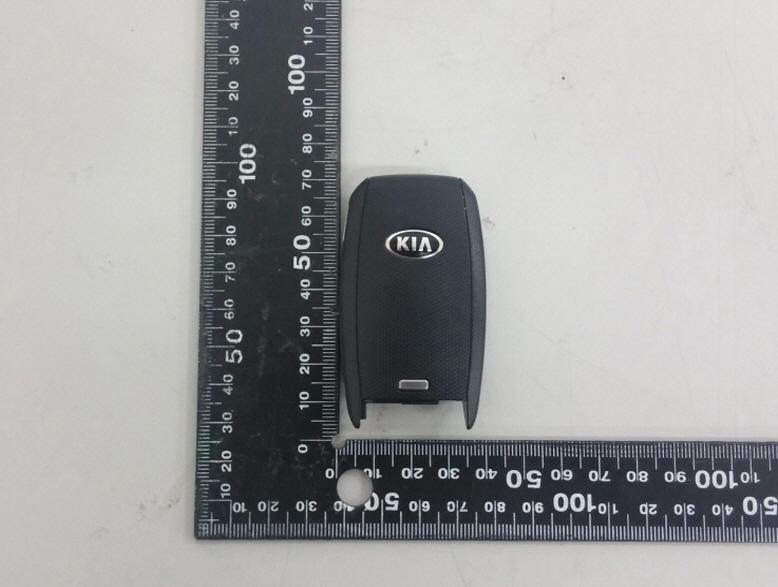

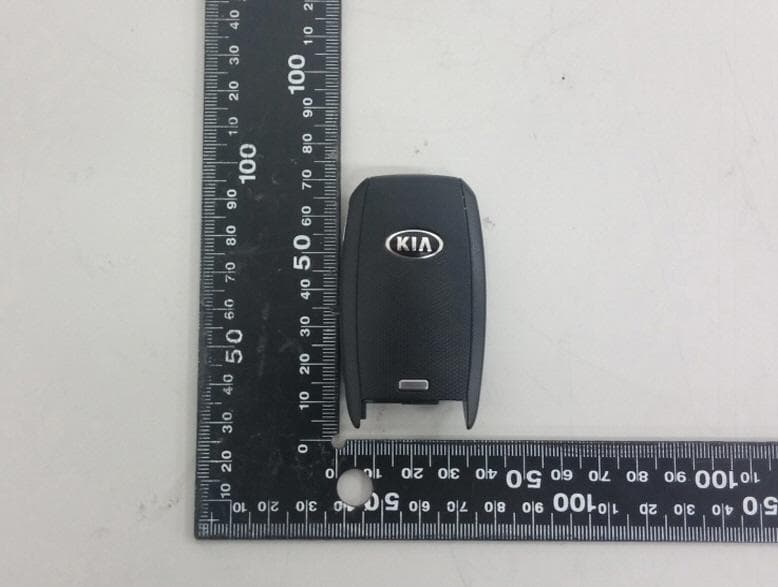

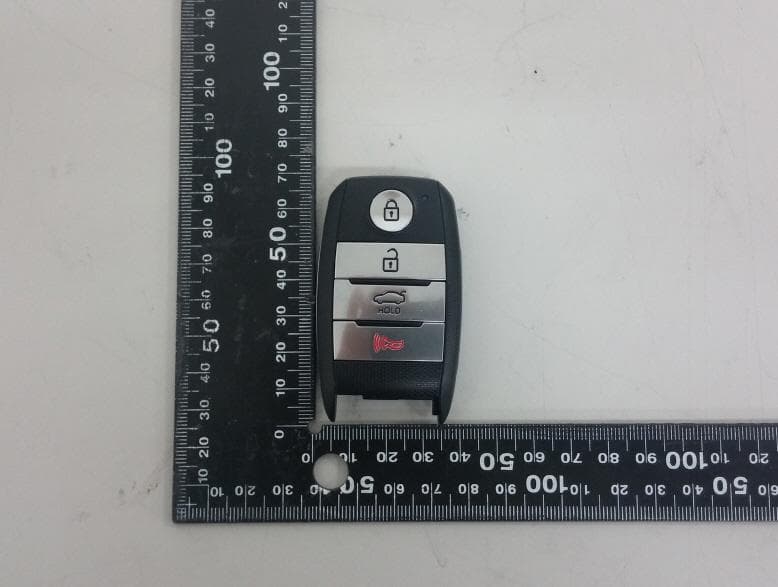

External photos of EUT FN00040 Front view of EUT Rear view of EUT Side view of EUT Top view of EUT Bottom view of EUT

FCC/IC Label 1. FCC/IC Label Drawing 2. FCC/IC Label Location

Internal photos of EUT FN00040 Internal view of EUT Top view of PCB Bottom view of PCB Tx Antenna

Report Number :F690501/RF-RTL005608-2Page:2of23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX TABLE OF CONTENTSPage 1. General Information ---------------------------------------------------------------------3 2. Field Strength of Fundamental ------------------------------------------------------6 3. Spurious Emission-----------------------------------------------------------------------11 4. Receiver Spurious Emission (Radiated)------------------------------------------14 5. Bandwidth of Operation Frequency------------------------------------------------16 6. Transmission Time-----------------------------------------------------------------------18 7. Occupied Bandwidth--------------------------------------------------------------------20 8. Duty Cycle Correction Factor---------------------------------------------------------22 Report Number :F690501/RF-RTL005608-2Page:3of23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.ee.sgs.com/korea Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant: DENSO PS Electronics Corp Address: 853-11, Wae-dong, Changwon City, Kyungnam, Korea Contact Person: Cho, Dong-Ki Phone No.: +82 31 349 9864 Fax No.: +82 31 349 5251 1.3. Description of EUT Kind of Product Smart Key FOB Model Name FN00040 Serial Number N/A Power Supply DC 3 V (Lithium type of battery) Frequency Range Tx : 314.35㎒, Rx : 134.2㎑ Modulation Type FSK Number of Channels 1 Antenna Type PCB Antenna 1.4. Details of Modification - N/A Report Number :F690501/RF-RTL005608-2Page:4of23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&S SMBV100A255834 Jul. 20, 2011AnnualJul. 02, 2013 Spectrum Analyzer R&S FSL6100639 Jul. 05, 2011 Annual Jul. 02, 2013 PreamplifierH.P.8447F2944A03909Jul. 04, 2011AnnualJul. 03, 2013 PreamplifierR&SSCU1810117Jan. 12, 2012 Annual Jan. 12, 2013 High Pass Filter Mini-Circuits NLP-800 V8207600724Mar. 30, 2012 Annual Mar. 30, 2013 Test ReceiverR&SESU26100109Feb. 21, 2012 Annual Feb. 21, 2013 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163396May. 12, 2011BiennialMay. 12, 2013 Horn AntennaR&SHF906 100326Nov. 23, 2010BiennialNov. 23, 2012 Antenna MasterINNCOMM4000 N/AN/AN/AN.C.R. Turn TableINNCODS 1200S N/AN/AN/AN.C.R. Anechoic ChamberSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN/AN/AN.C.R. Report Number :F690501/RF-RTL005608-2Page:5of23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCC 15 Section in RSS-210, RSS-Gen Test ItemResult 15.209(a) 15.231(b) RSS-210, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.109(a) RSS-Gen, 6, Table 2 Receiver Spurious Emission (Radiated) Complied 15.231© RSS-210 A1.1.3 Bandwidth of Operation frequency Complied 15.231(a) RSS-210 A1.1.1 Transmission TimeComplied - RSS-Gen, Issue 3, 4.6.1 Occupied BandwidthComplied 1.7 Test Report Revision RevisionReport numberDescription 0F690501/RF-RTL005608Initial 1F690501/RF-RTL005608-1Modify EUT’s name 2F690501/RF-RTL005608-2Add Duty cycle correction factor Report Number :F690501/RF-RTL005608-2Page:6of23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9㎑to 30㎒Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30㎒to 1㎓Emissions. Report Number :F690501/RF-RTL005608-2Page:7of23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea The diagram below shows the test setup that is utilized to make the measurements for emission from 1㎓to 18㎓Emissions. Report Number :F690501/RF-RTL005608-2Page:8of23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be repr…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test
