CQOFN00100SMART FOB KEY

Electronic Key Product Outline Product Description Product TypeFN00100 RF characteristicNominal frequency433.92MHz Oscillator frequency 13.081MHｚX-tal, PLL synthesizer AntennaBuilt-in type (Fixed) Button4-Button typeLock Unlock Tailgate Panic Power SupplyNominal supply voltage3V DC Type of BatteryOne lithium battery Electronic Key is mainly used for locking or unlocking the doors of the vehicle.ElectronicKeydetects signals when it reaches the vicinity of vehicle, and sends signals using radio frequency. Also, Electronic Key sends a radio wave signal while a button is pushed. When the button is released, the radio wave signal is automatically off within 0.392seconds.When the button is depressed continuously, Electronic Key sends a signal for a predetermined constant time. The receiver becomes active in responsetosignalsfromthe transmitter. Unit: mm Appearance 4-Button type Manual Requirement of FCC / IC Our product (FN00100) is one of vehicle parts. Therefore, we will not supply the user’s manual. However, we will ask the vehicle manufacturer to include following statements in the vehicle user’s manual in accordance with FCC and IC requirements. 1. Requirement for User Manual 1.1. FCC Requirement 1.1.1. In accordance with 15.21 of FCC rule, following statement will be included in the user’s manual. 1.1.2. In accordance with requirement of FCC§15.19(a)(5), following statement will be included in the user’s manual. 1.2. IC Requirement 1.2.1 In accordance with requirement of RSS-GEN, following statement will be included in the user’s manual. 1.2.2. In accordance with requirement of RSS-310, following statement will be included in the user’s manual. FCC W ARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device complies with RSS-3310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

DENSO PS ELECTRONICS CORPORATION 853-11, Wae-Dong, Changwon City, Kyungsangnam-do, South, Korea Tel: 82-31-349-9864 / Fax: 82-31-349-5251 http://www.dnpe.co.kr April 5, 2013 Attn: Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits. This authorization is valid until further written notice from us undersigned. Sincerely Yours, Dong-ki Cho Manager DENSO PS Electronics Corporation

DENSO PS ELECTRONICS CORPORATION 853-11, Wae-Dong, Changwon City, Kyungsangnam-do, South, Korea Tel: 82-31-340-1938 / Fax: 82-31-349-5251 http://www.dnpe.co.kr Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID:CQOFN00100 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,DENSO PS Electronics Corporationhereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for180days after the grant as outlined in Public Notice DA 04-1705. This provision will giveDENSO PS Electronics Corporationtemporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1Block Diagram 2Operational Descriptions 3Schematics Short-Term 4External Photos 5Internal Photos 6Test-Setup Photos 7User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Dong-ki Cho Manager DENSO PS Electronics Corporation

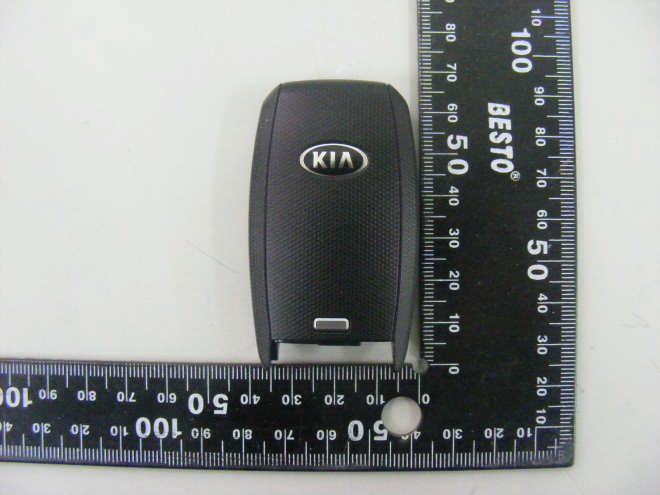

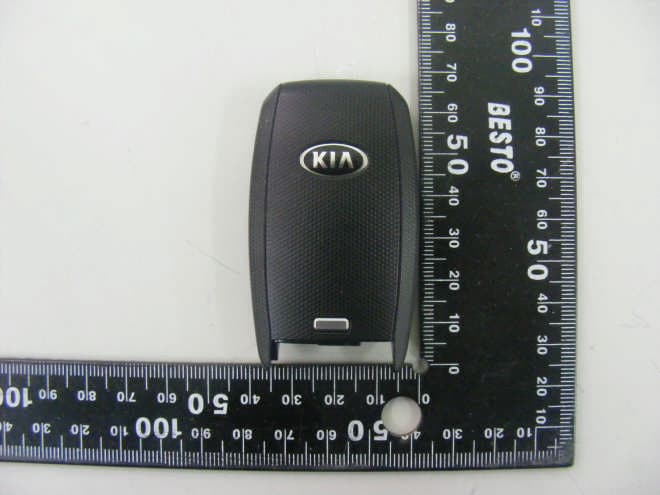

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

DENSO PS ELECTRONICS CORPORATION 853-11, Wae-Dong, Changwon City, Kyungsangnam-do, South, Korea Tel: 82-31-340-1938 / Fax: 82-31-349-5251 http://www.dnpe.co.kr Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 FCC ID:CQOFN00100 To Whom It May Concern: We hereby declare justification to place FCC Identifier inside battery compartment to pursuant to CFR 47 Section 2.925. a.The Device FN00100 is remote keyless entry device for automobile. b.The height of FN00100 is 65mm and width is 40mm. c.FN00100 has three parts, front cover, back cover and PCB. It does not have isolated battery cover. User may change battery by removing back cover itself. d.FCC identifier will be engraved inside of back cover so it can be readily seen while use change battery. Thank you very much. Sincerely Yours, 29 April 2013 Dong-ki Cho Manager DENSO PS Electronics Corporation

8. Marking layout INSIDE OF BACK COVER

Internal photos of EUT Internal view of EUT Top view of Main Board Bottom view of Main Board

Report Number:F690504/RF-RTL006402 Page:2of20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------3 2. Field Strength of Fundamental ----------------------------------------------------------6 3. Spurious Emission--------------------------------------------------------------------------11 4. Bandwidth of Operation Frequency----------------------------------------------------13 5. Transmission Time--------------------------------------------------------------------------15 6. Occupied Bandwidth-----------------------------------------------------------------------17 7. Duty Cycle Correction factor-------------------------------------------------------------19 Report Number:F690504/RF-RTL006402 Page:3of20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Lab) -Wireless Div. 1FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 (Chamber) All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:DENSO PS Electronics Corp. Address:853-11, Oe-Dong, Sungsan-Gu, Changwon City, Kyungnam, Korea Contact Person:Cho, Dong-Ki Phone No.:+82 31 340 1938 1.3. Description of EUT Kind of Product Smart FOB Key Model Name FN00100 Serial Number N/A Power Supply DC 3.0 V (Lithium type of battery) Frequency Range Tx: 433.92㎒, Rx : 134.20㎑ Modulation Type FSK Number of Channels 1 Antenna Type PCB Antenna 1.4. Details of Modification - N/A Report Number:F690504/RF-RTL006402 Page:4of20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.5. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Signal GeneratorAgilent E4438CMY42082477 Mar. 28, 2013AnnualMar. 28, 2014 Spectrum AnalyzerR&SFSV30100955Mar. 28, 2013 AnnualMar. 28, 2014 High Pass FilterMini circuitsNHP-400+V9199000936-1 Mar. 30, 2013AnnualMar. 30, 2014 DC Power SupplyAgilentU8002AMY50060028Mar. 28, 2013 Annual Mar. 28, 2014 PreamplifierH.P.8447F2944A03909Jul. 04, 2012AnnualJul. 03, 2013 PreamplifierR&SSCU1810117Jan. 14, 2013 Annual Jan. 14, 2014 Test ReceiverR&SESU26100109Feb. 28, 2013 Annual Feb. 28, 2014 Loop AntennaR&SHFH2-Z2100118Aug. 24, 2011 Biennial Aug. 24, 2013 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163390Apr. 19, 2012BiennialApr. 19, 2014 Horn AntennaR&SHF907 100208Aug. 13, 2012BiennialAug. 13, 2014 Antenna MasterINN-COMM4000 N/AN.C.R.N/AN.C.R. Turn TableINN-CODS 1200S N/AN.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Report Number:F690504/RF-RTL006402 Page:5of20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCCPart15 Section in RSS-210, RSS-Gen Test ItemResult 15.209(a) 15.231(b) RSS-210, Issue 8, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) RSS-210, Issue 8, A1.1.3 Bandwidth of Operation frequencyComplied 15.231(a) RSS-210, Issue 3, A1.1.1 Transmission TimeComplied - RSS-Gen, Issue 3, 4.6.1 Occupied BandwidthComplied 1.7. Test Report Revision RevisionReport numberDescription 0F690501/RF-RTL006402Initial Report Number:F690504/RF-RTL006402 Page:6of20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9㎑ to 30㎒Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30㎒ to 1㎓Emissions. Report Number:F690504/RF-RTL006402 Page:7of20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea The diagram below shows the test setup that is utilized to make the measurements for emission .The spurious emissions were invest…

Text truncated - open the document above for the full version.

Test setup photo of EUT Photo of Test setup
