CQOFN01050Smart Key FOB

Manual for vehicle manufacturer For Smart Key FOB TYPE: FN01050 Details of contents Page 1.Description of manufacture2 2. Technical description of Smart Key FOB3 3.Outline of Smart Key FOB4 DENSO KOREA ELECTRONICS CORPORATION Dec. 15, 2020 1. Description of manufacturer 1.1 Trade mark : N/A 1.2 Name and address of manufacturer -Name -Address : DENSO KOREA CORPORATION : 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsamgnam-do, Korea, 51176 1.3 Name and address of applicant -Name -Address : DENSO KOREA CORPORATION : 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsamgnam-do, Korea, 51176 2. Technical description of Smart Key FOB 2.1. Type - Model : FN01050 2.2. Specifications of Electronic Key - Nominal frequency : 433.92MHz - Oscillator frequency (IC clock) : 16MHz - Oscillator frequency (RF clock) : 27.6MHz - Type of modulation : FSK/F1D - Power Supply - Nominal supply voltage : 3 VDC - Type of Battery : One lithium battery - Antenna : Built-in type (Fixed) 3. Outline of Smart Key FOB Smart Key FOB is mainly used for locking or unlocking the doors of the vehicles. Smart Key FOB detects signals when it reaches the vicinity of vehicle, and sends signals using radio frequency. Also, Smart Key FOB sends a radio wave signal while a button is pushed. When the button is released, the radio wave signal is automatically off within 0.196 seconds. When the button is depressed continuously, Smart Key FOB sends a signal for a predetermined constant time. This product sends a signal when the following buttons are pushed. Transmitter IC Actuator Receiver Subject for application Installation in vehicle Micom Smart Key FOB Control IC LF Transmitter 433.92 MHz 125 kHz Smart Key ECU Panic button for Panic Alarm Unlock button for unlocking the doors Lock button for unlocking the doors. Remote Start button for vehicle start This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF du FCC et IC d'exposition aux radiations: Cet équipement est conforme à l'exposition de FCC et IC rayonnements RF limites é-tablies pour un environnement non contrôlé. L’antenne pour ce transmetteur ne doit pas être même endroit avec d’autres émetteur sauf conformément à FCC et IC procédures de produits Multi-émetteur. FCC Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. FCC and IC RF Radiation Exposure Statement: This equipment complies with FCC and IC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

26 February 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: CQOFN01050 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; DENSO Korea Corporation 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do, Korea, 51176 i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours DENSO Korea Corporation 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do, Korea, 51176 Senior Research Engineer DENSO Korea Corporation 82-55-220-9321 [email protected]

26 February 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: CQOFN01050 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, DENSO KOREA ELECTRONICS hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 5 External Photos 6 Internal Photos 7 Test‐Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, DENSO Korea Corporation 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do, Korea, 51176 Senior Research Engineer DENSO Korea Corporation 82-55-220-9321 [email protected] 4 Part List

SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Declaration Applicant Legal Business Name DENSO Korea Corporation Address 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsangnam-do South Korea, 51176 Grantee Code CQO FCC ID CQOFN01050 Authorized Contact Name Chang-su Ha Contact Email [email protected] Contact Phone 82-55-220-9321 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a)in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b)in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c)if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d)in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e)in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f)neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g)the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Applicant Declaration Rev:0.0 Applicant Signature: Date: February 26, 2021 Print Name: Chang-su Ha Title: Senior Research Engineer / DENSO Korea Corporation

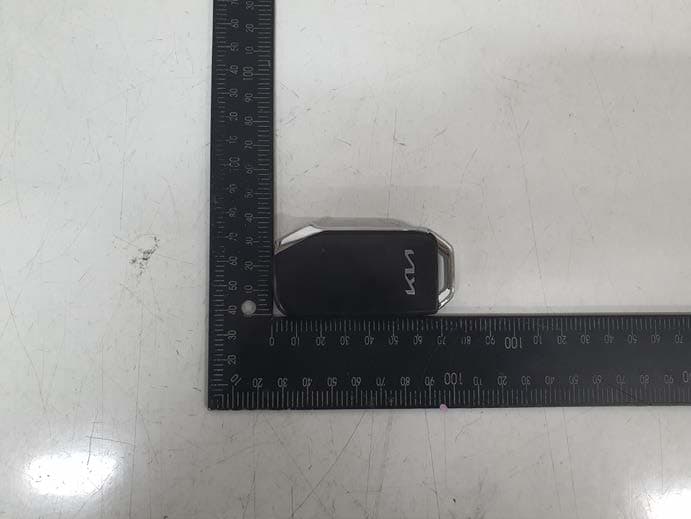

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

FN01050 Label Information: FN01050 (FCC,ISED) ※ FCC warning statement will be placed in the user manual since the device is so small that it is impractical to label it.

Internal photos of EUT Internal view of EUT Top view of PCB Bottom view of PCB View of Antenna PCB Pattern Antenna

FCC ID: CQOFN01050 According to KDB 447498 D01 General RF Exposure Guidance v06. At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 ㎜, the SAR test exclusion threshold is determined according to the following. [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, ㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 433.92 ㎒ (min. separation distances = 0 ㎜) Calculation value: 0.006 (㎽) / 5 (㎜) x √ 0.433 92 = 0.001 So, Calculation value ≤ 3.0 Remark; - Max. Radiated field strength 73.20 (㏈㎶/m): Max. E.I.R.P. of EUT -22.03 ㏈m (0.006 ㎽) - When the minimum test separation distance is < 5 ㎜, a distance of 5 ㎜ is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001694 Page: 2 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission--------------------------- 7 3. Bandwidth of Operation Frequency---------------------------------------------------- 17 4. Occupied Bandwidth----------------------------------------------------------------------- 19 5. Transmission Time-------------------------------------------------------------------------- 21 6. Duty Cycle Correction Factor------------------------------------------------------------ 23 7. Antenna Requirement---------------------------------------------------------------------- 25 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001694 Page: 3 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil. Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : DENSO Korea Corporation Address : 3, Cheomdansaneop-ro, Masanhappo-gu, Chang-won-si, Gyeongsamgnam-do, Korea, 51176 Contact Person : Ha, Chang-su Phone No. : +82 55 220 9321 1.3. Details of Manufacturer Company : Same as above Address : Same as above 1.4. Description of EUT Kind of Product Smart Key FOB Model Name FN01050 Variant Model Names FN01120, FG01350, FN01000, FG01140 Serial Number 42000-01050 Power Supply DC 3.0 V Frequency Range Tx: 433.92 ㎒, Rx: 125.00 ㎑ Modulation Type FSK Number of Channel 1 Antenna Type PCB Pattern Antenna Antenna Gain -13.82 ㏈i H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001694 Page: 4 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMBV100A 255834 Jun. 03, 2020 Annual Jun. 03, 2021 Spectrum Analyzer R&S FSV30 100768 Mar. 04, 2020 Annual Mar. 04, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 DC Power Supply Agilent U8002A MY50020026 Dec. 01, 2020 Annual Dec. 01, 2021 Preamplifier H.P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Signal Conditioning Unit R&S SCU-18 10117 Jun. 10, 2020 Annual Jun. 10, 2021 High Pass Filter Mini-Circuits NHP-800+ V8207600724 Mar. 04, 2020 Annual Mar. 04, 2021 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000- 18000-40SS 7 Mar. 04, 2020 Annual Mar. 04, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 396 Mar. 21, 2019 Biennial Mar. 21, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Horn Antenna R&S HF906 100326 Feb. 14, 2020 Annual Feb. 14, 2021 Horn Antenna R&S HF907 102270 Feb. 14, 2020 Annual Feb. 14, 2021 Test Receiver R&S ESU26 100109 Feb. 18, 2020 Annual Feb. 18, 2021 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MW X221-NMSNMS (4 m) J1023142 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 01/20 Aug. 20, 2020 Semi- annual Feb. 20, 2021 Note; Operating software of EUT has integrated test interface. No additional software was used. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001694 Page: 5 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 subpart C, IC RSS-210 Issue 10 and RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.209(a) 15.231(b) RSS-210 Issue 10 A.1, Table A1 RSS-Gen Issue 5 8.9 Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) - Bandwidth of Operation Frequency Complied 15.231(a) RSS-210 Issue 10 A.1.1 Transmission Time Complied - RSS-210 Issue 10 A.1.3 RSS-Gen Issue 5 6.7 Occupied Bandwidth Complied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.7. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty Radiated Emission, 9 ㎑ to 30 ㎒ H ± 3.66 ㏈ V ± 3.66 ㏈ Radiated Emission, below 1 ㎓ H ± 4.90 ㏈ V ± 4.82 ㏈ Radiated Emission, above 1 ㎓ H ± 3.62 ㏈ V ± 3.64 ㏈ Uncertainty figures are valid to a confidence level of 95 %. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL0…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photo of Conducted Test
