CW21673-1REMOTE FIRING DEVICE

1673 REMOTE FIRING DEVICE OPERATION MANUAL ROTHENBUHLER ENGINEERING P.0. BOX 708 524 RHODES ROAD SEDRO WOOLLEY, WA 98284 1673-A16A 1/17/2014 ©2014 Rothenbuhler Engineering All Rights Reserved ROTHENBUHLER ENGINEERING ® 1673 OPERATION MANUAL REV A ii TABLE OF CONTENTS Chapter Page TABLE OF CONTENTS .................................................................................................. II LIST OF ILLUSTRATIONS ............................................................................................. V SAFETY WARNINGS ................................................................................................... VII LIMITED WARRANTY ................................................................................................. VIII REGULATORY INFORMATION .................................................................................... IX RADIATION HAZARD WARNING ................................................................................. XI 1. INTRODUCTION .................................................................................................. 1 1.1. Theory of Operation .......................................................................................... 1 1.2. Storage and Environmental Conditions ............................................................. 1 2. RFD SYSTEM COMPONENTS ............................................................................ 3 2.1. Controller unit .................................................................................................... 3 2.2. Remote Unit ...................................................................................................... 5 2.3. Battery Chargers ............................................................................................... 6 2.4. Enable Keys ...................................................................................................... 6 2.5. Controller Unit External Features ...................................................................... 7 2.6. Controller Unit Panel Display ............................................................................ 8 2.7. Controller LCD Display ................................................................................... 10 2.8. Remote Unit External features ........................................................................ 15 2.9. Remote Unit Panel Display ............................................................................. 17 2.10. Remote Unit LCD Display............................................................................ 19 2.11. Shock Tube Firing TIp ................................................................................. 22 3. PREOPERATIONAL PROCEDURES ................................................................ 24 3.1. Physical Inspection ......................................................................................... 24 1673 OPERATION MANUAL REV A iii 3.2. Charging the Batteries .................................................................................... 24 3.3. Power On Test ................................................................................................ 25 3.4. Testing the Electric Detonator Mode ............................................................... 25 3.5. Testing the Shock Tube Initiator Mode ........................................................... 27 4. RFD OPERATIONAL PROCEDURES ............................................................... 30 4.1. Setting up the RFD ......................................................................................... 30 4.2. Firing the RFD ................................................................................................. 33 5. RFD SYSTEM CONFIGURATION –MENUS ..................................................... 38 5.1. Start Menu ...................................................................................................... 38 5.2. Normal User .................................................................................................... 38 5.3. Controller Advanced User ............................................................................... 39 5.4. Remote Normal User ...................................................................................... 39 5.5. Remote Unit Advanced User........................................................................... 40 5.6. Service Menu .................................................................................................. 41 5.7. Factory Menu .................................................................................................. 41 5.8. Programming Electronic Keys ......................................................................... 41 6. 1673 CONFIGURATION SOFTWARE ............................................................... 44 6.1. About the Configuraton Software .................................................................... 44 6.2. Running the Configuration Software ............................................................... 44 6.3. Reading the Event History Log ....................................................................... 45 7. CONFIGURATION SOFTWARE INSTALLATION ............................................. 48 7.1. 1673 RFD Conguration Software .................................................................... 48 7.1. Installing the USB Cable Drivers ..................................................................... 48 8. MAINTENANCE ................................................................................................. 53 8.1. Maintenance Procedures ................................................................................ 53 9. BASIC TROUBLESHOOTING IN THE FIELD ................................................... 55 9.1. Remote Unit .................................................................................................... 55 1673 OPERATION MANUAL REV A iv 9.2. Controller Unit .........................…

Text truncated - open the document above for the full version.

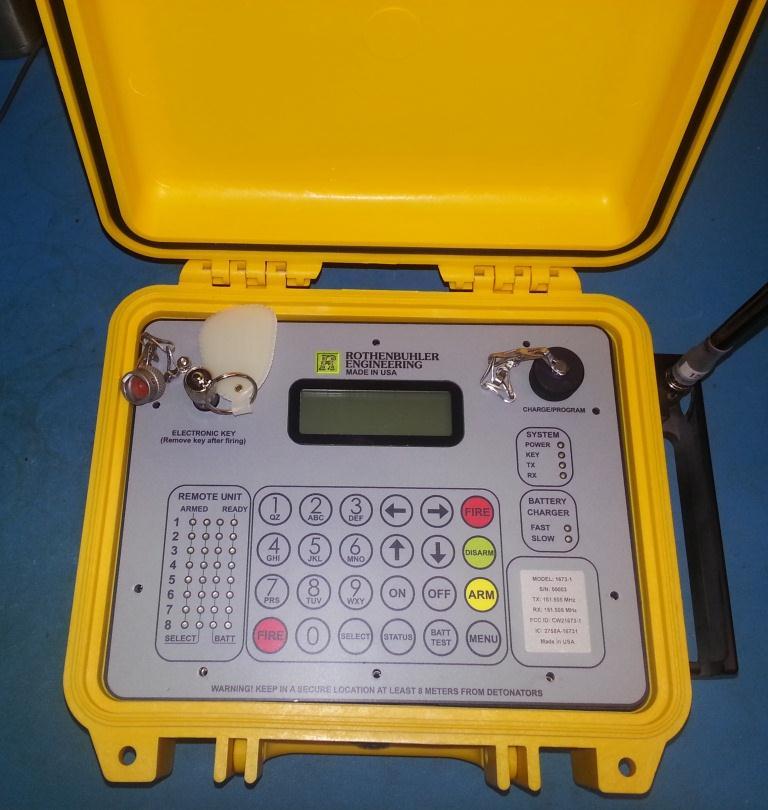

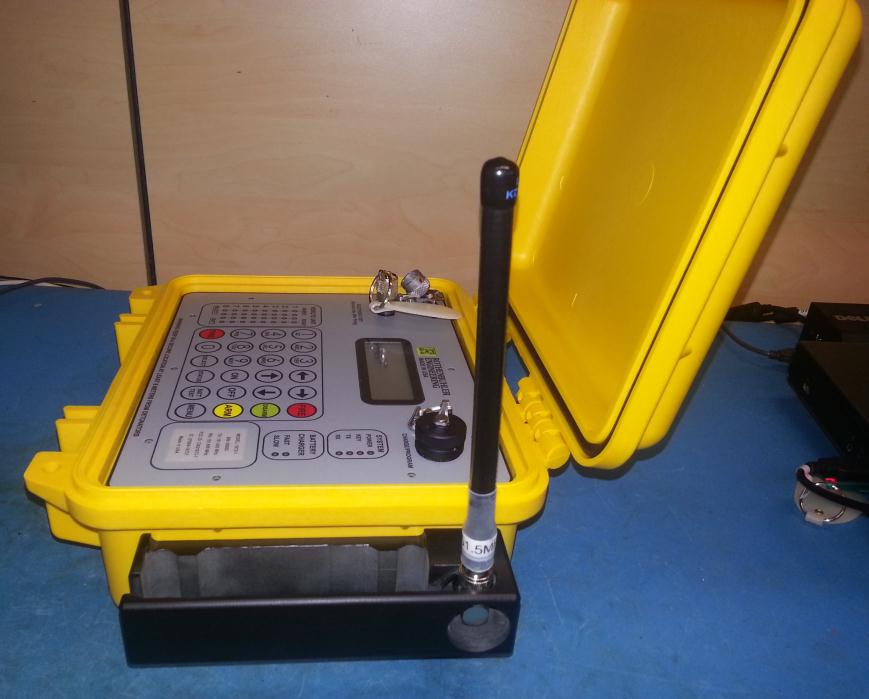

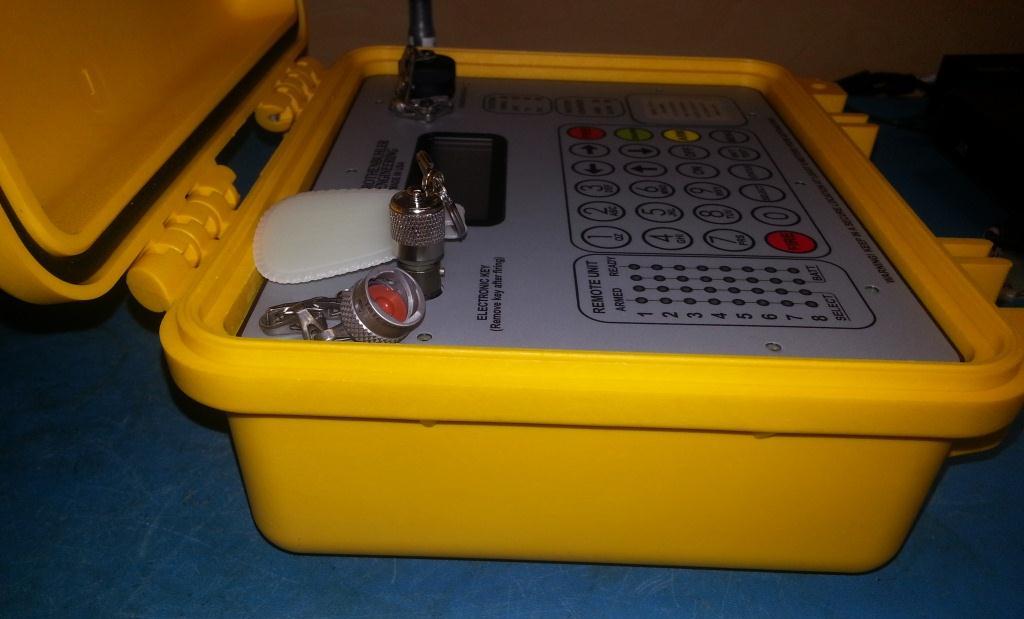

TYPE OF EXHIBIT: Photographs – External MANUFACTURER: Rothenbuhler Engineering, Inc. 524 Rhodes Road Sedro Woolley, WA 98284-0708 MODELS: 1673-1, 1673-1-A, 1673-1-V, 1673-1-AV FCC ID: CW21673-1 IC: 2758A-16731 DATE: December 20, 2013 External Photographs follow: Top Right Side Front Back Left Bottom

TYPE OF EXHIBIT: Equipment Label - Location MANUFACTURER: Rothenbuhler Engineering, Inc. 524 Rhodes Road Sedro Woolley, WA 98284-0708 MODELS: 1673-1, 1673-1-A, 1673-1-V, 1673-1-AV FCC ID: CW21673-1 IC: 2758A-16731 DATE: December 20, 2013 Photograph of unit showing location of equipment label follows: Controller Label Close In Controller Label Location

TYPE OF EXHIBIT: Equipment Label - Samples MANUFACTURER: Rothenbuhler Engineering, Inc. 524 Rhodes Road Sedro Woolley, WA 98284-0708 MODELS: 1673-1, 1673-1-A, 1673-1-V, 1673-1-AV FCC ID: CW21673-1 IC: 2758A-16731 DATE: January 17, 2014 Samples of equipment labels follows: Model 1673-1 Equipment Label Size: 1.6”H x 1.35”W Model 1673-1-A Equipment Label Size: 1.6”H x 1.35”W Model 1673-1-V Equipment Label Size: 1.6”H x 1.35”W Model 1673-1-AV Equipment Label Size: 1.6”H x 1.35”W MODEL: 1673-1 S/N: 00001 SYSTEM: 20101 TX: 151.505 MHz RX: 151.505 MHz FCC ID: CW21673-1 IC: 2758A-16731 Contains FCC ID: YOPGS1011MEP Contains IC: 9154A-GS1011MEP Made in USA MODEL: 1673-1-A S/N: 00001 SYSTEM: 20101 TX: 151.505 MHz RX: 151.505 MHz FCC ID: CW21673-1 IC: 2758A-16731 Contains FCC ID: YOPGS1011MEP Contains IC: 9154A-GS1011MEP Made in USA MODEL: 1673-1-V S/N: 00001 SYSTEM: 20101 TX: 151.505 MHz RX: 151.505 MHz FCC ID: CW21673-1 IC: 2758A-16731 Contains FCC ID: YOPGS1011MEP Contains IC: 9154A-GS1011MEP Made in USA MODEL: 1673-1-AV S/N: 00001 SYSTEM: 20101 TX: 151.505 MHz RX: 151.505 MHz FCC ID: CW21673-1 IC: 2758A-16731 Contains FCC ID: YOPGS1011MEP Contains IC: 9154A-GS1011MEP Made in USA

TYPE OF EXHIBIT: Photographs - Internal MANUFACTURER: Rothenbuhler Engineering, Inc. 524 Rhodes Road Sedro Woolley, WA 98284-0708 MODELS: 1673-1, 1673-1-A, 1673-1-V, 1673-1-AV FCC ID: CW21673-1 IC: 2758A-16731 DATE: January 16, 2014 Digital Control Photographs follow: Microcontroller PCBA - Top Microcontroller PCBA – Bottom Display Panel PCBA – Top Display Panel PCBA Top no Decal (All component are bottom mounted) Display Panel PCBA – Bottom Display Panel PCBA – Bottom Shows Under Membrane Tail

TYPE OF EXHIBIT: Photographs - Internal MANUFACTURER: Rothenbuhler Engineering, Inc. 524 Rhodes Road Sedro Woolley, WA 98284-0708 MODELS: 1673-1, 1673-1-A, 1673-1-V, 1673-1-AV FCC ID: CW21673-1 IC: 2758A-16731 DATE: January 16, 2014 RF Transceiver Board Photographs follow: RF Transceiver Board – Top RF Transceiver Board – Shield Removed RF Transceiver Board - Bottom

CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 FCC RF Exposure and Maximum Permissible Exposure Calculation Project: E10596-1304 EUT Description: Remote Firing Device Model No.: 1673-1 and 1673-2 FCC ID: CW21673-1(Controller) and CW21673-2 (Remote) IC: 2758A-16731 and 2758A-16732 FCC Applicable Standards According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. - This is a Mobile device as defined in §2.1091. - KDB 447498 D01 General RF Exposure Guidance v05 was used as the guidance. - According to the procedures in §1.1310 and §2.1091 RF exposure is calculated. RF Exposure Calculation Data: Frequencies used: 150-174 MHz Modulation: F3D Mid-Channel: 161MHz Antenna Gain: G = 1.0 dBi (detachable antenna is included with the product) The Max Peak Power Conducted measurment is: 5.5Watts Duty Cycle: The information passed over the air is small data packets containing a limited set of commands and responses, there is no transmission of arbitrary data, or voice. The duty cycle of transmission is extremely low. The normal operation would have perhaps 15 command / response transmissions, consisting of approximately 300ms bursts over the period of 10 minutes or so. This may typically happen once or twice a day, for an overall transmission duty cycle of approximately 0.8% during each use. Total duty cycle over the 10Minute period : 15pulses x 0.3ms pulse duration = 4.5sec/10Minutes = 4.5sec/600 sec = 0.75% Power level after duty cycle reduction = 5Watts * 0.0075 = .0375Watts The intended use of the Transmitter will be on the ground or on a table top. Except for the momentary exposure during setup of the Transmitter, the expected occupancy range to the hands in normal usage is approximately 50mm to the antenna in some situations. SAR Evaluation According to the requirement of KDB 447498 D01 General RF Exposure Guidance v05 , SAR evaluation is not required when the corresponding SAR Exclusion Threshold condition is satisfied: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR (0.0375W / 50mm) x √0.150 = 0.00029 SAR evaluation is not required since the transmitters power level 0.00029 is < 7.5 for 10-g extremity requirement. CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Calculations for Maximum Permissible Exposure Levels (MPE) Power Density = Pd (mW/cm2) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Seperation distance (cm) G = 10 (G (dBi) /10) The use of this EUT requires the use of the General Population/Uncontrolled Exposure limit power density charts as defined in FCC §1.1310 and IC RSS-102. For the Frequency Range 150 to 174MHz is a maximum of 1.0mW/cm 2 Antenna Gain (dBi) Antenna Gain (numeric) Duty Cycle corrected Output Power (mw) Calculated MPE @ 50mm (mW/cm 2 ) 1.0 1.26 37.5 0.75 This Transmitters uncontrolled exposure power density at 50mm or greater is less than 1.0mW/cm 2

CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Company Name: Rothenbuhler Engineering Report Number: E10596-1304-A Rev 3.0 Page 1 of 25 Electromagnetic Compatibility INTENTIONAL RADIATOR TEST REPORT IC RSS-119, FCC 47 CFR Part 90 Report Reference No. ...................: E10596-1304-A Rev 3.0 Date of issue .....................................: January 16,2014 Total number of pages...............: 25 Testing Laboratory.......................: Quality Auditing Institute Address............................................ : 16 – 211 Schoolhouse Street, Coquitlam, BC, V3K 4X9, Canada Accreditations (ISO 17025): Standard Council of Canada: Accredited Laboratory No. 743 International Accreditation Service Inc: Accredited Laboratory: No. TL-239 This report has been completed in accordance with the requirements of ISO/IEC 17025. Test results contained in this report are within QAI Laboratories ISO/IEC 17025 accreditation. QAI Laboratories authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for the use by the company’s employees only. Applicant’s name ........................: Rothenbuhler Engineering Address..................................: P.O.Box 708, 524 Rhodes Road, Sedro Woolley, WA. USA 98284-0708 Contact...................................: Richard Taft Email ...........................................: [email protected] Phone.....................................: (360) 856-0836 Fax........:(360) 856-2183 Test Standard...........................: RSS-119 Issue 11, FCC 47 CFR Part90 Subpart I Test item description...............: Remote Firing Device Model....................................: 1673-1 Controller Manufacturer ................................: Rothenbuhler Engineering Registrations: : FCC ID: CW21673-1 IC: 2758A-1673-1 CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Company Name: Rothenbuhler Engineering Report Number: E10596-1304-A Rev 3.0 Page 2 of 25 1673-1 Controller CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Company Name: Rothenbuhler Engineering Report Number: E10596-1304-A Rev 3.0 Page 3 of 25 Revision History Date Report Number Rev # Details Authors Initials Jan 10, 2014 E10596-1304-A 0.0 Draft Test Report DJ Jan 13, 2014 E10596-1304-A 1.0 - separated into Controller and Remote test reports - included client requested changes per email 13Jan2014 Release Test Report DJ Jan 14, 2014 E10596-1304-A 2.0 - Revised model numbers per email 13Jan2014 Release Test Report DJ Jan 16, 2014 E10596-1304-A 3.0 - Added FCC and IC numbers for the product to page 1 - Modified Page 5 RF Power to 5.55W to match measured result on page 11. Release Test Report DJ Note:All previous versions of this report have been superseded by the latest dated revision as listed in the above table. Please dispose of all previous electronic and paper printed revisions accordingly. CANADA: 16 - 211 Schoolhouse Street Coquitlam, British Columbia Canada V3K 4X9 Company Name: Rothenbuhler Engineering Report Number: E10596-1304-A Rev 3.0 Page 4 of 25 Index Section I: Statement of Compliance ................................................................................................... 5 Section II: Testing Location and Procedures ....................................................................................... 6 Section III: Product Description ............................................................................................................. 8 Section IV: Test Results ...................................................................................................................... 11 Section Ia: RF Output Power ......................................................................................... 11 Section Ib: Occupied Bandwidth .................................................................................... 12 Section Ic: Out Of Band Spurious Emissions Conducted .............................................. 15 Section Id: Out Of Band Spurious Emissions Radiated ................................................. 16 Section Ie: Frequency Stability ....................................................................................... 17 Section If: Transient Frequency Behaviour .................................................................... 20 Appendix A: EUT photos during the testing .......................................................................................... 23 Company Name: Rothenbuhler Engineering Report Number: E10596-1304-A Rev 3.0 Page 5 of 25 Section I: Statement of Compliance The following tests demonstrate testimony for the FCC & IC Marks for Transceivers / electromagnetic compatibility testing for this EUT as required by FCC Part 90 and IC RSS-119. Test / Requirement Description Applicable FCC Rule Parts Applicable Industry Canada Rule Parts Results Pass / Fail Limit Measured RF power output at antenna terminals 90.205(d); 2.1046(a); RSS-119(5.4) 28 Watt 5.55 Watt Pass Occupied Bandwidth 90.209(b)(5); 2.1049 RSS-119(5.5.3) 11.5kHz 5.44 kHz Pass Occupied Bandwidth Emissions mask 90.210(d) 2.1049 RSS-119(5.5.9) 12.5kHz Mask D 12.5 kHz Mask D Pass Spurious Emissions at antenna terminals 90.210(d)(3); 2.1051 RSS-119(5.8) 57dBc 81.5 dBc Pass Spurious Emissions Radiated Field Strength 90.210(d)(3); 2.1053 RSS-119(5.8) 57dBc 72.9 dBc Pass Frequency Stability 90.213 2.1055 RSS-119(5.3) +/- 5.0ppm +/- 0.7ppm Pass Transient Frequency Behaviour 90.214 TIA-603 2.2.19 RSS-119(5.9) 12.5kHz Mask 12.5 kHz Mask Pass Tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with CFR 47 FCC Part 90 and Industry Canada RSS-119. The manufacturer is responsible for the tested product configuration, continued product compliance with these standards listed, and for the appropriate auditing of subsequent products as required. X Tested By & Report Written By David Johanson, RF/EMC Test Engineer Compan…

Text truncated - open the document above for the full version.

Company Name: Rothenbuhler Engineering Model 1673-1 Page 1 of 2 EUT photos during the testing Company Name: Rothenbuhler Engineering Model 1673-1 Page 2 of 2
