CWTB1G077KEYLESS ENTRY SYSTEM (Hand Unit)

User Manual / TB1G077 FCC CAUTION The transmitter for t he remote keyless ■Locking the d oors ・Danger of explosion if battery i s incorrectly Changes or modif ication not expressly entry syste m is located inside the key hea d. Press the " " button to lock all doors and replaced replace only w ith the same or appr oved by the party r esponsible for rear gate (Stat ion wagon ). An electronic equivalent type. compliance could void the user's ■The remote ke yless entry system has chirp w ill sound once and the tum signal ・Do not exposed to excessive hea t such as authority to operate the equipment. the following funct ions. lights will flash once. sunshine, fire or the like. ・Locking and unlocking the door s (and If any of the doors (or t he rear gate / trunk ・Do not expose the remote trans mitter to This device complies wi th part 15 of trunk lid on the Se dan ) without key. lid) is no t fully closed, an electronic chirp severe shocks, such as those exp erience the FCC Rules. Operati on is subject ・Unlocking the re ar gate on the Station will soun d five times and the lum signal as a result of dropping or thro wing. to the following two condi tions: wagon without key. light will flash five times to alert you that ・Do not take the remote transmi tter apart (1) This device may no t cause harmful ・Unlocking the trunk lid on the Sedan the doors (for the rear gate/trunk lid ) are except when replacing the batte ry. interference, and (2) this d evice must without key. not property closed. ・Do not get the remote transmi tter wet, accept any interference received, including When you close the door, it will if it gets wet , wipe it dry with a cloth interference that ma y cause undesired The operable d istance of the remote automatic ally lock and then an electronic immediately. operation. keyless entry system is approximately 30 chirp will sound once and the lum signal ・When you carry the remote transmi ter on feet (10 meters). fight s will flash once. an airplane, do not press the button of the This device compli es with Industry Canada’s Howeve r, this distance will very depe nding remote transmitter while in the airplane. licence-exempt RSSs. Operation is subject to on environmental conditions. ・When any button of the remote the following two conditions: The system's operable distance will be transmitter is pressed, radio w aves are (1) This device may n ot cause interference; shorter i n areas near a facility or elec tronic sent and may affect the operatio n of the and (2) This device m ust accept any equipment emitti ng strong radio waves such airplane. interference, includin g interference that may as a po wer plant, broadcast station , When you carry the remo te transmitter cause undesired operatio n of the device. TV tower, or remote controller of home in a bag on an airplane, take measures to elect ronic appliance s. prevent the buttons of the remo te Le présent appareil est conf orme aux CNR d’ transmitter from being pressed. Industrie Canada applicables au x appareils radio exempts de licence. L’exploitation est Danger of explosion if battery i s incorrectly autorisée aux deu x conditions suivantes : replaced. Replace on ly with the same or 1) l’appareil ne doit p as produire de brouillage; equivalent type. 2) l’utilisateur d e l’appareil doit accepter to ut brouillage radioélectrique subi, même si le Do not exposed to excessive heat brouillage est susceptible d’e n compromettre such as sunshine, fire or t he like. le fonctionnement. Remote keyless entry system CAUTION ：Trunk lid / rear gate ：Unlock button ：Lock button

TB1G077 㻌㻔 3 Switch Type 㻕 _External Photo (with Case) TB1G077 ( 3 Switch Type ) _External Photo (without Case)

It will be indicate the mark by laser etching on outer case. FCC ID : CWTB1G077 IC : 1788F ‐ FB1G077 MODEL : TB1G077

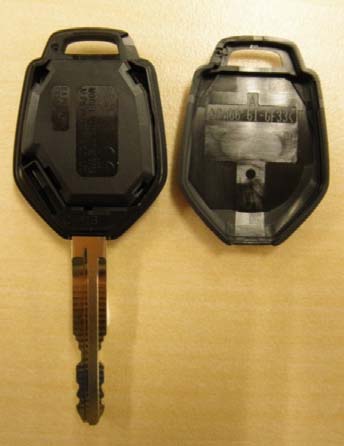

TB1G077_Internal Photo These are the photos of 4 Switch Type.TB1G077 has 3 Switch Type and 4 Switch Type.For the differences between 3 Switch Type and 4 Switch Type, pl ease find "Theory of Operation-Differences". ANTENNA

Test report No. : 10885711H-A-R1 Page : 2 of 17 Issued date : August 6, 2015 Revised date : August 24, 2015 FCC ID : CWTB1G077 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10885711H-A Revision Test report No. Date Page revised Contents - (Original) 10885711H-A August 6, 2015 - - 1 10885711H-A-R1 August 24, 2015 P.4 Correction of Rating Voltage in Clause 2.2. 1 10885711H-A-R1 August 24, 2015 P.5 Correction of FCC 15.31 (e). Test report No. : 10885711H-A-R1 Page : 3 of 17 Issued date : August 6, 2015 Revised date : August 24, 2015 FCC ID : CWTB1G077 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20 dB and 99 % Occupied Bandwidth ························································ 10 APPENDIX 1: Data of EMI test ·················································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 -20dB and 99% Occupied Bandwidth ............................................................................................... 13 Duty Cycle ........................................................................................................................................ 14 APPENDIX 2: Test Instruments ·················································································· 15 APPENDIX 3: Photographs of test setup ······································································· 16 Radiated emission ............................................................................................................................. 16 Worst case position ........................................................................................................................... 17 Test report No. : 10885711H-A-R1 Page : 4 of 17 Issued date : August 6, 2015 Revised date : August 24, 2015 FCC ID : CWTB1G077 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : ALPS ELECTRIC CO., LTD. Address : 6-3-36, Nakazato, Furukawa, Osaki-city, Miyagi-pref, 989-6181, Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-23-5129 Contact Person : Toshiya Ikarashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : KEYLESS ENTRY SYSTEM (Hand Unit) Model No. : TB1G077 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.0V (CR1620 x 1) Receipt Date of Sample : July 16, 2015 Country of Mass-production : Japan and Mexico Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: TB1G077 (referred to as the EUT in this report) is the KEYLESS ENTRY SYSTEM (Hand Unit). General Specification Clock frequencies in the system : 13.56 MHz Radio Specification Radio Type : Transmitter Frequency of Operation : 433.92 MHz Modulation : FSK Antenna Type : PWB Pattern Antenna Method of Frequency Generation : Crystal, PLL Rating Voltage : DC 3.0 V (Operating Voltage: DC 2.3 V to DC 3.3 V) Operating temperature range : -20 to +70 deg. C * Original model No.: TB1G077 has 4 switches. Variation model have 3 switches. The difference of Original model and Variation model is only the number of switches. They are completely identical in Radio characteristics. Therefore the test was performed with the representative Original model which was the worst one. Test report No. : 10885711H-A-R1 Page : 5 of 17 Issued date : August 6, 2015 Revised date : August 24, 2015 FCC ID : CWTB1G077 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2015, final revised on June 12, 2015 and effective July 13, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst marginResults Remarks Conducted emission FCC: ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A*1) - IC: RSS-Gen 8.8 IC: RSS-Gen 8.8 Automatically Deactivate FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.231(b) 4.7 dB 433.920 MHz Vertical PK (Peak with Duty factor) Complied Radiated IC: RSS-Gen 6.12 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2009 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 3.9 dB 4339.200 MHz Horizontal PK (Peak wi…

Text truncated - open the document above for the full version.

Test report No. : 10885711H-A-R1 Page : 16 of 17 Issued date : August 6, 2015 Revised date : August 24, 2015 FCC ID : CWTB1G077 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 10885711H-A-R1 Page : 17 of 17 Issued date : August 6, 2015 Revised date : August 24, 2015 FCC ID : CWTB1G077 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst case position (Below 1GHz : Horizontal: X-axis/Vertical : Y-axis) (Above 1GHz : Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis End of Report
