CWTUGPZ2Bluetooth Transceiver Module

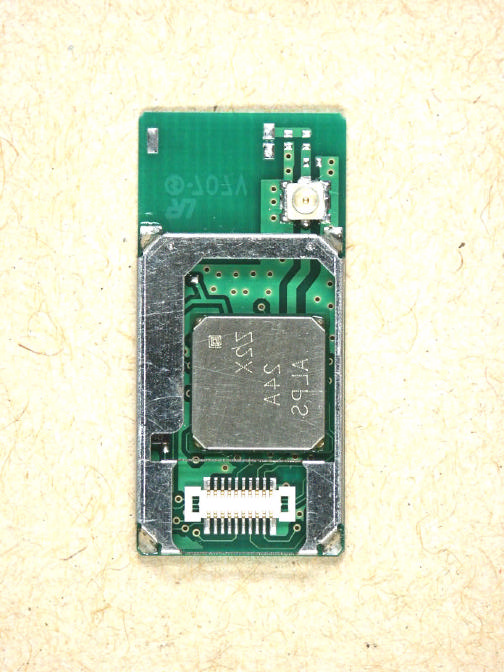

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 1 of 2 Appendix A. Pictures version: external antenna ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 2 of 2 version: internal antenna

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 1 of 6 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 2 of 6 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 3 of 6 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 4 of 6 RF shield removed ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 5 of 6 External antenna ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH REGISTRATIONNUMBER: G0M20206-6677-T-47 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STR. 38C, D-15526 REICHENWALDE B. BERLINAppendix Page 6 of 6 External antenna connected

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C Test report no.: G0M20206-6677-T-47 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 1 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 2 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 25.06.2002N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 25.06.2002Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 3 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon:+49 33631 888 00 Telefax:+49 33631 888 66 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96-00 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name:ALPS Electric Co., Ltd. Street:1-2-1, Okinouchi, Soma-City, Town:Fukushima Country:Japan Telephone:+81 244 35 1207 Fax:+81 244 35 0602 Contact:Masaaki Ueki Telephone:+81 244 35 1207 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 4 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application:03.06.2002 Date of receipt of test item:03.06.2002 Date of test:13.06.2002-18.06.02 1.5Test item Description of test item:Bluetooth Module Type identification:UGPZ2 Serial number:without Photos:See Appendix A Technical data Frequency band:2.4GHz – 2.4835GHz Frequency ( ch A):2.402 GHz Frequency (ch B):2.441 GHz Frequency (ch C):2480 GHz TransmitterUnom Power (ch A):Conducted: 0,03 dBm Power (ch B):Conducted: -0,04 dBm Power (ch C):Conducted: -0,29 dBm Vnom Antenna 1Vnom –15 % Antenna 1Vnom +15 % Antenna 1 Power (chA):Radiated: 3,36 dBmRadiated: 3,30 dBmRadiated: 3,06 dBm Power (ch B):Radiated: 0,88 dBmRadiated: 1,14 dBmRadiated: 0,82 dBm Power (ch C):Radiated: 3,92 dBmRadiated: 4,05 dBmRadiated: 3,73 dBm Vnom Antenna 2Vnom –15 % Antenna 2Vnom +15 % Antenna 2 Power (chA):Radiated: 4,01 dBmRadiated: 4,08 dBmRadiated: 4,13 dBm Power (ch B):Radiated: 4,93 dBmRadiated: 4,73 dBmRadiated: 4,47 dBm Power (ch C):Radiated: 2,26 dBmRadiated: 2,25 dBmRadiated: 2,19 dBm Antenna 1 = external Antenna Antenna 2 = internal Antenna ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 5 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Power supply :3,3 V DC battery Operating mode:duplex Type of modulation:FHSS Antenna gain:Antenna 1:-3,884 dBi (Average) 1,63 dBi(Max ) Antenna 2:-5,08 dBi (Average) 1,62 dBi (Max ) ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 6 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: Street: Town: Country: Additional information:The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronisation procedure and other parameters are determined by Bluetooth Core Specification. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 7 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course ̋ of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests® performed. 2.2Test environment Temperature:23 o C Relative humidity content:20...75 % Air pressure:86...103 kPa Details of power supply:3,3 V battery Extrem conditions parameters:: test voltage - extrememin.:3,1 V(Vnom - 15 %)battery max: 3,5 V(Vnom + 15 %)battery ETS Dr. Genz GmbH, GermanyRegistration number: G0M20206-6677-T-47Page 8 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver …
