- 1 - ALPS ELECTRIC CO., LTD. page1 Bluetooth TM Module Design Application Model number Function Document revision UGPZ6-#### Output Power class2 compliant SMD (Physical connection) Flash Memory(8M), Reference oscillator built in USB and SPI interfaces V1.0 Digit Definition Contents Digit 0~3 Bluetooth™ Module Including Base Band UGPZ (Board to board) Digit 4 Mechanical form Features 6: 25x12x2.6mm / Class2 / RF connector / VCC=3.3 V Digit 5 Status of products X: Engineering Sample -: Mass production Digit 6 Interface dependent C: USB with RF connector Digit 7~8 Serial number Customer dependent Digit 9 Revision Starting from A ¾ Features ‹ Bluetooth TM Specification V2.0 + EDR support ‹ Compact package size (13.5x10.0x2.1mm) can be fit to any type of product ‹ RF connector accompanied ‹ Built-in Link controller, Link Manager Protocol ‹ HCI interface over USB ‹ Class 2 support ‹ Built-in Flash Memory (8Mbit), system clock ¾ Application „ Mobile Phones, PCs, PDA, Terminal Adapters, Digital Cameras, Printers, Automotive, Other Peripheral Devices Flash ROM B B l l u u e e t t o o o o t t h h P P r r o o t t o o c c o o l l M M a a n n a a g g e e m m e e n n t t Ref OSC B B l l u u e e t t o o o o t t h h L L i i n n k k c c o o n n t t r r o o l l l l e e r r PLL Demod S-RAM USB SPI - 2 - ALPS ELECTRIC CO., LTD. page2 ¾ FEATURES LIST Features Contents Power level +4 dBm Max. Program memory 8M bit Flash Memory RAM 32k bytes x 16 bits Reference oscillator Built in Sub clock oscillator Built in Serial data interface USB Physical connector B to B Connector ¾ MECHANICAL CHARACTERISTICS Aspect No contamination / No scratches / No strains Dimensions 25x12x2.6mm Weight 2.4g Typ. ¾ COMMON PHYSICAL LAYER SPECIFICATIONS Operating Frequency 2402 MHz to 2480 MHz Carrier Spacing 1.0 MHz Channel 79 Duplexing TDD Symbol Rate 1 Mbps / 2Mbps / 3Mbps Modulation Method GFSK BbT = 0.5 /4 DQPSK 8 DPSK ¾ PHYSICAL INTERFACE (HCI transport layer) The Bluetooth TM Module contains USB interfaces. Detail of each interface is described on the following sub-sections. ¾ USB USB interface is compliant with Universal Serial Bus Specification 1.1 & 2.0 and supports 12 Mbps “Full Speed” And this USB interface support single ended data interface. And also USB interface according to Bluetooth™ Specification 2.0 + EDR “USB transport layer” as well, including interface suggested by Intel for further power management. Summary of supported features Items Description Application Bluetooth TM Module works as a "device" and answer on "requests" from a "master host controller" as for example a PC. Speed "High speed mode" only USB Windows Class Wireless Controller (bDeviceClass=0xE0h) USB Sub class RF Controller (bDeviceSubClass=0x01h) USB Protocol code Bluetooth™ Programming (bDeviceProtocol=0x01) OHCI/UHCI Supported SCO support SCO supported as Isochronous transfer mode Transfer mode Bulk, Control and Isochronous supported USB data packets length All packet size supported according to Bluetooth™ Spec 2.0 + EDR - 3 - ALPS ELECTRIC CO., LTD. page3 Number of endpoints 6 end points USB manufacture code Unless specified, persistent storage saving "ALPS" as manufacture HCI extended commands All private commands will be encapsulated to payload and de-encapsulated in Module Stack Description of each hardware interface Module Pin Name I/O RequirementDescription USB_D+ D+ bi-dir Mandatory Defined in USB spec 1.1,2.0 USB_D- D- bi-dir Mandatory Defined in USB spec 1.1,2.0 VBUS_IN VBUS input in proposal To protect to be drawn current from D+ when Host (Hub or root) in power down but BT Module exiting it is used for self-powered mode Reset Control Reset mode RequirementDescription HCI reset commands Mandatory Software reset. Supported by ALPS Bluetooth™ Driver Drive D+ D- low simultaneously Mandatory USB defined reset ¾ Software interface Bluetooth TM Module contains link controller, link manager & HCI transport layer which can interface to standard H4. Also single PCM interface allows you to transcode CVSD, A-Law, μ-LAW codec switched by standard HCI command. The architecture of Module listed as below. RF Radio Radio Interface driver Base Band Link Controller Link Mana ger HCI Firmware HCI HAL L2CAP RFCOMMSDP SCO ACL USBAudio Driver NDIS VCOMMWinSock OBEX DLL IrMC DLL PPP IP Ethernet Driver Bluetooth TM Module UGXZ5-####

ALPS Bluetooth TM Module UGPZ6 specification Ver. 1.0 June 7, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page1 User Guide Information to 2.4GHz ALPS Bluetooth TM Module Model UGPZ6 Caution: This user guide information is only provided to OEM or module installer. Do not supply to the end user. 1. Introduction: The ALPS, UGPZ6 with Bluetooth TM wireless technology is a radio device that transmits and receives radio signals in accordance with the spectrum regulations for the 2.4 GHz unlicensed frequency range. The following table shows a major function. Model No. Major Function Remarks UGPZ6 1. Output Power; Bluetooth™ class 2. 2.5mW (+4dBm) Max. 2. External 4 different antennas connected via antenna connector. 3. Voltage regulator built in. Rating of Input voltage: +3.3Vdc, +/-0.2V 4. Flash memory (8M bytes) built in 5. Reference oscillator built in 6. Board to board connection through USB interfaces, V2.0 7.Operating temperature: Nominal; +15 °C to +35 °C 8. Regulatory frequency range USA, Canada, Europe, Taiwan, Korea, China and Japan: 2400 – 2483.5MHz There kinds of External antenna Electrical features Contents Program memory 8M bits (256k bytes x 32 bits) Flash memory RAM 32k bytes x 16 bits Reference oscillator Built in Sub clock oscillator Built in USB interface USB (V2.0) : OHCI and UHCI) 2. Radio part Bluetooth™ Transceiver Module, model UGPZ6 has fully integrated 2.4GHz radio transceiver with Class2 power, receiver and frequency-hopping synthesizer. Then, UGPZ6 has also provision of Adaptive Frequency Hopping (AFH) that is used to improve the performance of physical links in the presence of interference as well as reducing the interference caused by physical links on other devices in the ISM band. AFH shall only be used during the connection state. In order to facilitate power management, each section of the radio may be powered up and down separately. Various software controllable switches have been implemented to control power to the transmitter, the frequency synthesizer/VCO, the receiver and the LNA, if provided. ALPS Bluetooth TM Module UGPZ6 specification Ver. 1.0 June 7, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page2 3. Base band part Bluetooth™ Module contains link controller, which performs all the real-time functions of the Bluetooth™ baseband protocol layer, including data transfer and connection management. The device also controls states of operation enables sniff, park and hold modes of operation. Real-time functions such as frequency-hopping burst timing and clock synchronization are also implemented in this hardware. Further processing is required to format the data into the Bluetooth™ packet format before it may be applied to the GFSK modulator. On the receive side the controller performs error correction and de-scrambling before de-packetizing the incoming payload and storing it in RX buffers. The link controller hardware also implements the basic, repetitive actions of paging, inquiry, page or inquiry scans and the general Bluetooth™ modes of park and sniff. This ensures that the processor used to implement the Link Manager and other lower layer protocol can be kept inactive. 4. Eligibility requirements for regulatory approval: As a part of regulatory certification, ALPS will provide an approval for certain countries in the form of modular approval (MA) . The regulatory approval is required for each country throughout world where the end-user wishes to use ALPS UGPZ6 into entire end product, if no certification program for the modular approval exists in the country. The countries that can accept MA include the USA, Canada, and certain European countries. The conditions for approval of ALPS UGPZ6 and related information for each country are described below. ALPS wishes that our customer for end product would contact with us about what module of UGPZ6 has been certified for each country. 4.1 USA 4.1.1 Compliance statement to FCC This module complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure compliance This module may be installed into any end product in both mobile and portable device applications. For Mobile Configuration, this module complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This module has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs). For Portable Configuration, this module complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This module has very low levels of RF energy that it is deemed to comply without testing of specific Absorption ratio (SAR). 4.1.3 Requirements to end product The following provisions for end product will be required on the FCC regulation, part 15. (1) Antenna ALPS wishes that our customer shall use the UGPZ6 module without any modifications including antenna. If customer use a unique antenna, the FCC certification is required for the end product. (2) Co-location. This UGPZ6 module must not be co-located or operated in conjunction with any other antenna or transmitter. ALPS Bluetooth TM Module UGPZ6 specification Ver. 1.0 June 7, 2005 Copyright © 2005 ALPS ELECTRIC CO., LTD. page3 (3) Markings To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Any similar wording that expresses the same meaning may be used. (4) Caution to user for modification The following caution is expressed…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 10, 2005 RE: FCC ID: CWTUGPZ6_ATCB002496 Attention: Toyokazu Imamura / Akane Yamamoto I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the OEM installers guide is not an exhibit that can have permanent confidentiality status. While this type exhibit may be held in temporary confidentiality, it cannot be permanently confidential. Please remove this from the list of item in the request for confidentiality. If this is desired to be held in temporary confidentiality (i.e. for 45 days or until placed on the market in the US), please provide a letter requesting this. 2. FYI – no action needed. Please note that BT devices under 15.247 require the power levels on the grant. Please note that the 731 form does not contain the measured power level as required. In future applications please provide this information for this type device. 3. FYI – no action needed. Please note that as the BT device is less than 5mW there is no need for an MPE report. 4. Please provide the test setup photos. 5. Please note that you have not provided the second page of the IC application form. This second page contains items such as the power, type equipment, emissions designator, test lab, etc. Please download the IC application form page 2 and complete this form. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

13 June, 2005 RE: FCC ID: CWTUGPZ6_ATCB002496 Attention: Mr. Dennis Ward Dear Mr. Dennis Ward, Please find the following our reply to your comments; 1. Please find the revised page of Request for Confidentiality. We removed the OEM installers guide from the list of item in the Request for Confidentiality. 2. We understand about it. 3. We understand about it. 4. Please find the attached the test setup photos. 5. Please find the attached the second page of the IC application form. Thank you very much for your prompt attention. Best regards, Akane Yamamoto (Ms.) Head Office EMC Lab. EMC Service Dept. UL Apex Co., Ltd. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL +81-596-24-8116 FAX +81-596-24-8124 E-mail: [email protected]

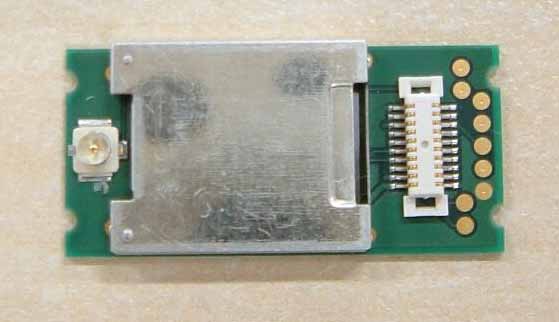

UGPZ6 Photo Top view Bottom view No shield cover

UGPZ6 Photo Top view Bottom view No shield cover UGPZ6 Antenna LDA31 top view Bottom view CAN4313359 top view Bottom view C680 top view Bottom view

Applicant: Alps Electric Co., Ltd. Type of Equipment : Bluetooth Transceiver Module Model No. : UGPZ6 FCC ID: CWTUGPZ6 Alps Electric Co., Ltd. declares that Model : Bluetooth Transceiver Module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “UGPZ6“ has 1.24 mW of conducted Peak Output power and 3.12 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “UGPZ6“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.24 mW (Maximum peak output power) G = 2.51 Numerical Antenna gain; equal t4.00 dBi r =20.0 cm For: UGPZ6S = 0.00062mW/cm 2 RF Exposure No. : 25JE0028-YK-1

FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 1 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) EMI TEST REPORT Test Report No. : 25JE0028-YK-1 Applicant : Alps Electric Co., Ltd. Type of Equipment : Bluetooth Transceiver Module Model No. : UGPZ6 FCC ID : CWTUGPZ6 Test Standard : FCC Part15 Subpart C, Section 15.207, Section 15.247: 2005 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: May 16-20 and 23, 2005 Tested by: & Ichiro Isozaki Toyokazu Imamura Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 2 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Table of Contents Page 1 Applicant Information 3 2 Product Description 4 3 Test Specification, Procedures and Results 5 4 System Test Configuration 8 5 Conducted Emissions 10 6 Carrier Frequency Separation 11 7 20dB Bandwidth 11 8 Number of Hopping Frequency 11 9 Dwell time 11 10 Maximum Peak Output Power 11 11 Out of Band Emissions (Antenna Port Conducted) 11 12 Out of Band Emissions (Radiated) 12 Contents of Appendixes 13 APPENDIX 1: Photographs of test setup 14 APPENDIX 2: Test Data 24 APPENDIX 3: Test instruments 84 FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 3 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 1 Applicant Information Company Name : Alps Electric Co., Ltd. Brand Name : ALPS Address : 1-7, Yukigaya, Otsuka-cho, Ota-ku, Tokyo, 145-8501 JAPAN Telephone Number : +81 244 35 1207 Facsimile Number : +81 244 35 1602 Contact Person : Masaaki Ueki FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 4 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 2 Product Description Type of Equipment : Bluetooth Transceiver Module Model No. : UGPZ6 Serial No. : 1 Rating : DC 3.3V Country of Manufacture : Japan Receipt Date of Sample : May 13, 2005 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Model: UGPZ6 (referred to as the EUT in this report) is a Bluetooth Transceiver Module. The clock frequency used in EUT: 26MHz Equipment type : Transceiver Frequency of operation : 2402 - 2480 MHz Band width : 79 MHz Channel spacing : 1 MHz Channel number : 79 channels Type of modulation : FHSS Antenna model : LDA31, C680, CAN4313359 Antenna type : λ/4 monopole antenna: LDA31 Inverted F antenna: C680, CAN4313359 Antenna connector type : U. FL (Hirose) Antenna gain : 4 dBi Emission Designation : F1D, G1D Operation temperature range: 15 - 35 deg. C. FCC Part15.31 (e) Host devise (ex. PC) provides the Bluetooth Transceiver Module with stable power supply (DC3.3V), and the power is not changed when voltage of the device is varied. Therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement Bluetooth Transceiver Module complies with the requirement. When it is put up for sale, one of the antennas is attached and the antenna is with a unique coupling to the intentional radiator. FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 5 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits: 2005 Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz: 2005 FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 6 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviation Worst Margin Results Antenna: LDA31 21.1dB (0.1822MHz, N, QP) Antenna: C680 21.0dB (0.1809MHz, N, QP) Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 - N/A Antenna: CAN4313359 21.1dB (0.1816MHz, N, QP) Complied Carrier Frequency Separation ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1) ConductedN/A Complied 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1) ConductedN/A Complied Number of Hopping Frequency ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1)(iii) ConductedN/A Complied Dwell time ANSI C63.4:2003 13.Measurement of intentional radiators Section15.247 (a)(1)(iii) ConductedN/A Complied Maximum Peak Output Power ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (b)(1) ConductedN/A *See data. Complied (Radiated) Antenna: LDA31 4.7dB (96.34MHz, QP, Vertical, Tx 2480MHz) Antenna: C680 5.7dB (24410MHz&22320MHz, AV, Tx 2441MHz & Tx 24…

Text truncated - open the document above for the full version.

FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 14 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Conducted emission (Antenna: LDA31) FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 15 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Conducted emission (Antenna: C680) FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 16 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Conducted emission (Antenna: CAN4313359) FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 17 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Radiated emission (Antenna: LDA31) FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 18 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Radiated emission (Antenna: C680) FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 19 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Radiated emission (Antenna: CAN4313359) FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 20 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Pre check of worse-case position (EUT) X-axis Y-axis Z-axis FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 21 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Pre check of worse-case position (Antenna: LDA31) X-axis Y-axis Z-axis FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 22 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Pre check of worse-case position (Antenna: C680) X-axis Y-axis Z-axis FCC ID : CWTUGPZ6 Test report No. : 25JE0028-YK-1 Page : 23 of 84 Issued date : June 7, 2005 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Pre check of worse-case position (Antenna: CAN4313359) X-axis Y-axis Z-axis
