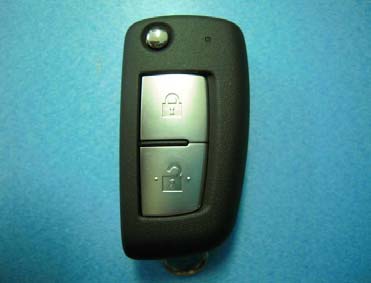

CWTWB1G767Remote Keyless Entry (Hand Unit)

Immobilizer Function Ke yless Function LOCK Button UNLOCK Button Panice Button ■CAUTION■ ・Disassembly and modification. Operation of frequency RF : 433.92MHz LF: 125kHz User's Manual Transmitter is carried by the owner of the vehicle. It performs transmission through RF antenna to tuner, vehicle performs actions according to the signal. Unit Assy Immobi&Keyless communicates with the transponder in the hand unit when the user inserts the hand unit in the key cylinder, and it rotates Product name : TRANSMITTER ASSY KEYLESS Type : TWB1G767 Lithium battery CR2032 Operating temperature range -20~＋60 degree C Keyless Operation Voltage typ. 3.0V / max 3.3V Battery -CAUTION - Danger of explosion if battery is incorrectly replaced. Weight ・Give a shock. ・Get it wet. If it got wet, wipe and dry up. This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the e quipment. Replace only with the same or equivalent type -CAUTION - Do not exposed to excessive heat such as sunshine, fire or the like. When the user pushes LOCK, UNLOCK, and the PANIC button of HAND UNIT, the RF electric wave is output, and TUNER receives it, and an open lock, the close lock of the door, and the signal of the trunk opening are output. Please DO NOT the following. Engine is not started by failure of electronic parts. (Product can not receive the signal correctly) Pay attention to the following. ・It may not be operated when using the equipment of the same frequency band in the vicinity. 0.056kg HUND UNIT UNIT ASSY IMMOBI

For U.S.A For U.S.A & Canada

Frequency433.89MHｚ～433.95MHｚ Pattern ANT

Test report No. : 4786002503H-A-R1 Page : 2 of 19 Issued date : February 21, 2013 Revised date : March 18, 2013 FCC ID : CWTWB1G767 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 4786002503H-A Revision Test report No. Date Page revised Contents - (Original) 4786002503H-A February 21, 2013 - - 1 4786002503H-A-R1 March 18, 2013P. 13 Correction of -20dB Bandwidth and 99% Occupied Bandwidth Test report No. : 4786002503H-A-R1 Page : 3 of 19 Issued date : February 21, 2013 Revised date : March 18, 2013 FCC ID : CWTWB1G767 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: Automatically deactivate ········································································· 10 SECTION 7: -20dB and 99% Occupied Bandwidth ························································· 10 APPENDIX 1: Data of EMI test ·················································································· 11 Automatically deactivate................................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 -20dB and 99% Occupied Bandwidth ............................................................................................... 13 Duty Cycle ........................................................................................................................................ 14 APPENDIX 2: Test Instruments ·················································································· 16 APPENDIX 3: Photographs of test setup ······································································· 17 Radiated emission ............................................................................................................................. 17 Worst case position ........................................................................................................................... 18 Test report No. : 4786002503H-A-R1 Page : 4 of 19 Issued date : February 21, 2013 Revised date : March 18, 2013 FCC ID : CWTWB1G767 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Alps Electric Co., Ltd. Address : 6-3-36, Nakazato, Furukawa, Osaki-city, Miyagi-pref, 989-6181, Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Toru Kinoshita SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry (Hand Unit) Model No. : TWB1G767 Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : January 7, 2013 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: TWB1G767 (referred to as the EUT in this report) is the Remote Keyless Entry (Hand Unit). General Specification Clock frequencies in the system : 13.56MHz Radio Specification Frequency of operation : 433.92MHz Type of modulation : FSK Antenna Type : PWB Pattern antenna Method of Frequency Generation : Crystal + PLL IC Operating voltage (inner) : DC 3.0V Operating Temperature : -20 deg. C to +60 deg. C Test report No. : 4786002503H-A-R1 Page : 5 of 19 Issued date : February 21, 2013 Revised date : March 18, 2013 FCC ID : CWTWB1G767 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : Test specification: FCC Part 15 Subpart C: 2012, final revised on December 27, 2012 and effective January 28, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz * The revision on December 27, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A N/A *1) - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Automatically Deactivate FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) N/A Complied Radiated IC: - IC: RSS-210 A1.1.1 Electric Field Strength of Fundamental Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) 5.2dB 433.920MHz Horizontal PK with Duty factor Complied Radiated IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 Electric Field Strength of Spurious Emission FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) 2.0dB 4339.200MHz Horizontal PK with Duty factor Complied Radiated IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.5.1 RSS-Gen 7.2.5 -20dB Bandwidth FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) N/A Complied Radiated IC: - IC: Reference data Note: UL Japan, Inc.’s EMI Work Procedures No.…

Text truncated - open the document above for the full version.

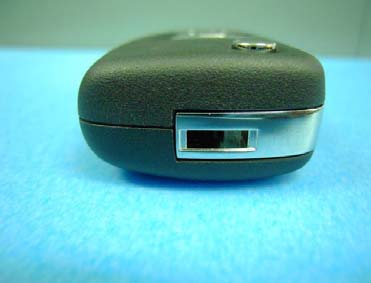

Test report No. : 4786002503H-A-R1 Page : 17 of 19 Issued date : February 21, 2013 Revised date : March 18, 2013 FCC ID : CWTWB1G767 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 4786002503H-A-R1 Page : 18 of 19 Issued date : February 21, 2013 Revised date : March 18, 2013 FCC ID : CWTWB1G767 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis Test report No. : 4786002503H-A-R1 Page : 19 of 19 Issued date : February 21, 2013 Revised date : March 18, 2013 FCC ID : CWTWB1G767 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (folded out) Worst Mechanical Key (folded in) End of Report
