CWTWB1J667Passive Entry System - Hand Unit

Keyless Entry Operation Manual （１）Lock button When this button is operated, all doors in the state of an open lock are close lock. （２）Unlock button When this button is operated, all doors in the state of an close lock are open lock. （３）Trunk button When this button is operated, trunk is open. (It’s necessary for open the trunk to press button longer than door lock or door unlock.) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Unlock button Lock button Trunk button

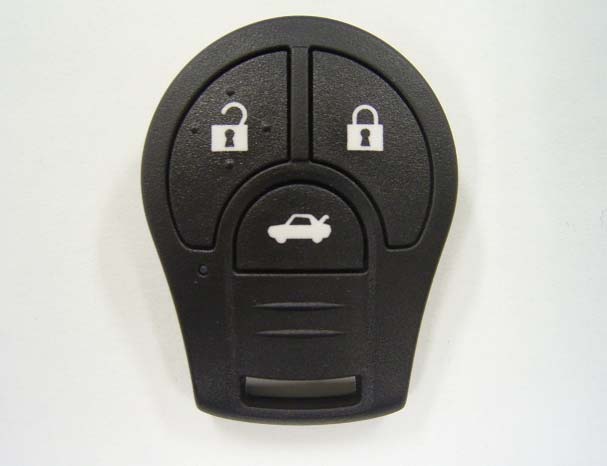

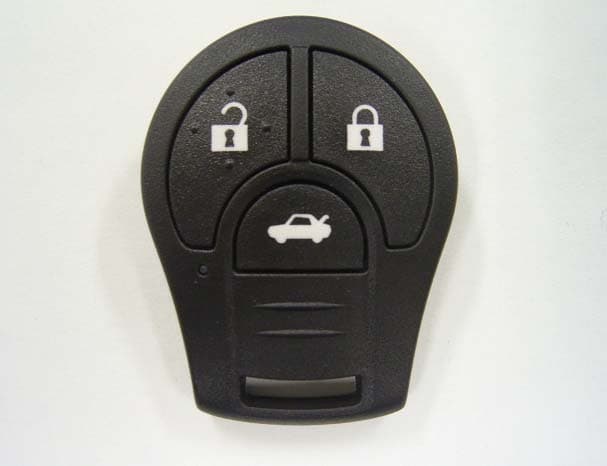

Alps Electric Co., Ltd. FCC ID: CWTWB1J667 External Photo Front Rear Alps Electric Co., Ltd. FCC ID: CWTWB1J667 External Photo Top Bottom Alps Electric Co., Ltd. FCC ID: CWTWB1J667 External Photo Left Right

Alps Electric Co., Ltd. FCC ID: CWTWB1J667 Internal Photo Inside view PWB Side A Alps Electric Co., Ltd. FCC ID: CWTWB1J667 Internal Photo PWB Side B

FCC ID : CWTWB1J667 Test report No. : 27FE0157-YK Page : 2 of 20 Issued date : March 9, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Automatically Deactivate 7 6 Radiated Emissions (Fundamental & Spurious) 8 7 Bandwidth 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test Data 13 APPENDIX 3: Test instruments 20 FCC ID : CWTWB1J667 Test report No. : 27FE0157-YK Page : 3 of 20 Issued date : March 9, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 1 Applicant Information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Furukawanakazato, Osaki-shi, Miyagi-ken, 989-6181 JAPAN Telephone Number : +81 229 23 5111 Facsimile Number : +81 229 23 3755 Contact Person : Soichi Sato 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Remote Keyless Entry Model No. : TWB1J667 Serial No. : Automatically deactivate: #3, Other test: #1 Rating : DC3V (Battery) Country of Manufacture : Japan Receipt Date of Sample : February 21, 2007 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model: TWB1J667 (referred to as the EUT in this report) is a Remote Keyless Entry, which is carried by the owner of the vehicle. It performs transmission through RF antenna to tuner, vehicle performs actions according to the signal (Door lock or unlock, Trunk open). Equipment type : Transmitter Frequency of operation : 314.85MHz Clock frequency : CPU: 4MHz Type of modulation : FSK Antenna type : Internal/PCB Pattern Antenna connector type : None ITU code : F1D Operation temperature range : -10 to +60 deg.C. *FCC Part15.31 (e) This test was performed with the new battery (DC 3V); therefore, this EUT complies with the requirement. *FCC Part15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the requirement. FCC ID : CWTWB1J667 Test report No. : 27FE0157-YK Page : 4 of 20 Issued date : March 9, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209: Radiated emission limits, general requirements Section 15.231 Periodic operation in the band 40.66 - 40.70 MHz and above 70 MHz 3.2 Procedures & Results Item Test Procedure Specification Remarks Deviation Worst Margin Results Conducted Emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Section 15.207(a) - N/A *1 - N/A Automatically Deactivate ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(a)(1) Radiated N/A - Complied Electric Field Strength of Fundamental Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.231 (b) Radiated N/A 21.3dB (Horizontal, PK) Complied Electric Field Strength of Spurious Emission ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.205 Section 15.209 Section 15.231 (b) Radiated N/A 12.5dB (629.70MHz, Horizontal, QP) Complied -20dB Bandwidth ANSI C63.4: 2003 13. Measurement of intentional radiators Section 15.231(c) Radiated N/A - Complied *1) The test is not applicable since the EUT has no AC mains. Note: UL Apex’s EMI Work Procedures No.QPM05. * Other than mentioned in 3.3, no addition, exclusion nor deviation has been made from the standard. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators RSS-Gen 4.4.1 RSS-Gen 4.4.1 Conducted *See data. Complied FCC ID : CWTWB1J667 Test report No. : 27FE0157-YK Page : 5 of 20 Issued date : March 9, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 3.4 Uncertainty Radiated emission test The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.5dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±4.3dB. The measurement uncertainty (with 95% confidence level) for this test using Horn antenna is ±5.2dB. The data listed in this test report has enough margin, more than site margin. 3.5 Test Location UL Apex Co., Ltd. Yamakita EMC Lab. 907, Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken 258-0124 JAPAN Telephone number : +81 465 77 1011 Facsimile number : +81 465 77 2112 NVLAP Lab. code : 200441-0 No. 1 test site has been fully described in a report submitted to FCC office, and accepted on August 26, 2005 (Registration No.: 95486). IC Registration No. : IC3489A No. 2 test site has been fully described in a report submitted to FCC office, and accepted on April 4, 2005 (Registration No.: 466226). IC Registration No. : IC3489A-2 No. 1 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on November 2, 2005 (Registration No.: 95967). IC Registration No. : IC3489A-B Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 shielded room 8.0 x 5.0 x 2.5 10.0 x 7.5 x 5.7 No.2 shielded room 5.0 x 4.0 x 2.5 No.1 Semi-anechoic chamber No.3 shielded room 4.0…

Text truncated - open the document above for the full version.

FCC ID : CWTWB1J667 Test report No. : 27FE0157-YK Page : 11 of 20 Issued date : March 9, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Radiated emission FCC ID : CWTWB1J667 Test report No. : 27FE0157-YK Page : 12 of 20 Issued date : March 9, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Pre-check of the worst position X-axis Y-axis Z-axis
