CWTWB1U0009Radio Identification Device

ALPS ELECTRIC (NORTH AMERICA), INC. 1500 Atlantic Boulevard Auburn Hills, MI 48326 Phone (248) 391-9950 Fax (248) 391-2500 Users Manual

ALPS ELECTRIC (NORTH AMERICA), INC. 1500 Atlantic Boulevard Auburn Hills, MI 48326 Phone (248) 391-9950 Fax (248) 391-2500

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: ALPS Electric (North America), Inc. Address: 7100 International Parkway Suite 100 / Dock 1-16 McAllen City: 78503, Texas Country: U.S.A. To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: CWTWB1U0009 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 05-02-2015 Name and signature of applicant: Ahmed Gatri on behalf of ALPS Electric Inc. Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

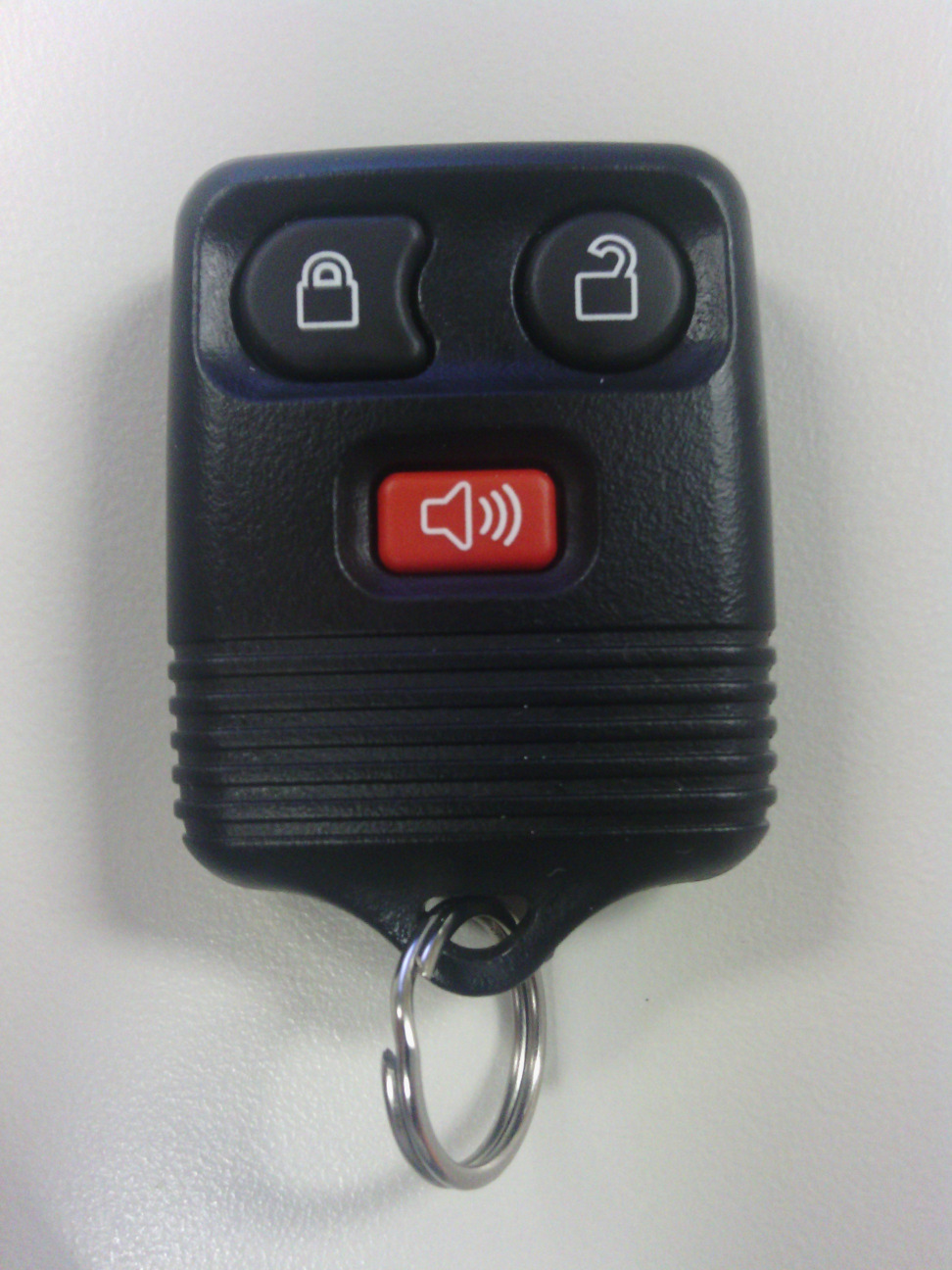

ALPS ELECTRIC (NORTH AMERICA), INC. 1500 Atlantic Boulevard Auburn Hills, MI 48326 Phone (248) 391-9950 Fax (248) 391-2500 External Photos (Model type 386)

ALPS ELECTRIC (NORTH AMERICA), INC. 1500 Atlantic Boulevard Auburn Hills, MI 48326 Phone (248) 391-9950 Fax (248) 391-2500 Internal Photos (Model type 386)

Test Laboratory: 7Layers AG Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Peter Mertel USt-IdNr  VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H. Ansorge TAX No. 147/5869/0385 www.7Layers.com A Bureau Veritas Group Company FCC Measurement/Technical Report on TRANSMITTER ASSY-LOCK SYSTEM REMOTE CONTROL Model: 386 (Ford “GB5T-15K601-A”) Report Reference: MDE_ALPS_1402_FCCa FCC ID: CWTWB1U0009 IC ID: 1788A-FWB1U0009 Test report Reference: MDE_ALPS_1402_FCCa Page 2 of 36 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 2 Test object Data 6 2.1 General EUT Description 6 2.2 EUT Main components 7 2.3 Ancillary Equipment 7 2.4 Auxiliary Equipment 7 2.5 EUT Setups 7 2.6 Operating Modes 7 2.7 Product labeling 8 3 Test Results 9 3.1 Duty cycle measurement (based on dwell time measurement) 9 3.2 Spurious radiated emissions 11 3.3 Peak power output 17 3.4 Occupied bandwidth 18 4 Test Equipment 19 5 Photo Report 25 6 Setup Drawings 25 7 Correlation table FCC-IC 26 8 Annex measurement plots 27 8.1 Duty cycle measurement (based on dwell time measurement) 27 8.2 Radiated emissions 30 8.3 Occupation bandwidth 35 Test report Reference: MDE_ALPS_1402_FCCa Page 3 of 36 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Periodic operation in the band above 70 MHz) Applicable FCC Rules Edition of FCC Rules: 10-1-13 Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 and 15. The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.231 Periodic operation in the band 40.66-40.70 MHz, above 70 MHz Note: none Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report Reference: MDE_ALPS_1402_FCCa Page 5 of 36 1 Administrative Data 1.1 Testing Laboratory Company Name: 7Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. This facility has been fully described in a report submitted to the IC and accepted under the registration number 3699A. The test facility is also accredited by the following accreditation organisation: Laboratory accreditation no.: DAkkS D-PL-12140-01-01 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Andreas Petz Dipl.-Ing. Marco Kullik Report Template Version: 2012-03-14 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Dobrin Dobrinov Date of Test(s): 2014-10-08 to 2014-11-04 Date of Report: 2015-01-16 1.3 Applicant Data Company Name: ALPS Electric (North America), Inc. Address: 7100 International Parkway Suite 100 / Dock 1-16 McAllen, Texas 78503 U.S.A. Contact Person: Abner Garza Manufacturer Data Company Name: Alcom Electronicos de Mexico, S.A. de C.V. Address: Av. Industrial Del Norte Lote 5-1 Parque Industrial Del Norte Cuidad Reynosa, Tamaulipas Mexico A. Postal 1028 CP 88730 Contact Person: Luis Guerrero Test report Reference: MDE_ALPS_1402_FCCa Page 6 of 36 2 Test object Data 2.1 General EUT Description Equipment under Test TRANSMITTER ASSY-LOCK SYSTEM REMOTE CONTROL Type Designation: Model type: 386, Ford “GB5T-15K601-A” Kind of Device: (optional) 315 MHz transmitter Voltage Type: DC internal battery Voltage level: 3.0 V Repeated Operation: Manually The EUT is part of a security or safety system: No General product description: The Equipment Under Test (EUT) is a is a wireless handheld remote control transmitter, for non-periodic operation in the band above 70 MHz. Specific product description for the EUT: The EUT is a hand-held transmitter, ASK modulated with Rolling/Manchester code, working at 314,95 MHz. The EUT provides the following ports: Ports - Enclosure The main components of the EUT are listed and described in Chapter2.2. Test report Reference: MDE_ALPS_1402_FCCa Page 7 of 36 2.2 EUT Main components Type, S/N, Short Descriptions etc. used in this Test Report Short Description Equipment under Test Type Designation Serial No. HW Status SW Status Date of Receipt EUT A (Code: DE10 83000bb01) Hand-held transmitter Ford “GB5T- 15K601-A” Model: 386 - 1AD-TF00058 5AB-00190A ‒ Remark: EUT A is equipped with an integral antenna. EUT B (Code: DE10 83000be01) Hand-held transmitter Ford “GB5T- 15K601-A” Model: 386 - 1AD-TF00058 5AB-00190A Continuous Modulated (for test purpose only) ‒ Remark: EUT B is equipped with an integral antenna. EUT C (Code: DE10 83000bg01) Hand-held transmitter Ford “GB5T- 15K601-A” Model: 386 - 1AD-TF00058 5AB-00190A Continuous Wave (for test purpose only) ‒ Remark: EUT B is equipped with an integral antenna. NOTE: The short description is used to simplify the identification of the EUT in this test report. 2.3 Ancillary Equipment For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But nevertheless Ancillary Equipment can influence the test results. Short Description Equipment under Test Type Designation HW Status…

Text truncated - open the document above for the full version.

Picture 3Setup for the test "ESD" (Indirect and direct ESD) : Page 20 of 20Test Report Reference: MDE_ALPS_1402_EMCa TEST REPORT REFERENCE: MDE_ALPS_1402_RADa Test report reference: MDE_ALPS_1402_RADa page 22 of 22 PHOTO REPORT: Photo 1: Test setup for radiated measurements 5. Photo Report Picture 1Setup for the test "RF-electromagnetic field" : Picture 2Setup for the test "ESD" (Air discharge) : Page 19 of 20Test Report Reference: MDE_ALPS_1402_EMCa
