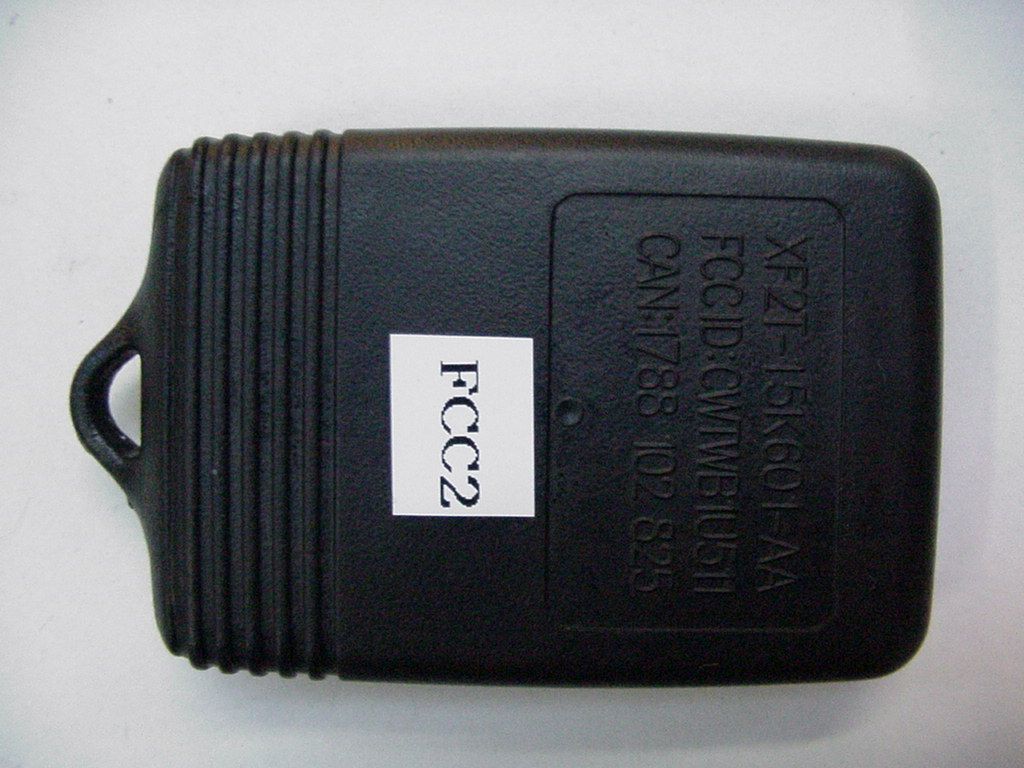

CWTWB1U551Vehicle remote keyless entry transmitter

Users Manual

Insert Information

EMC Measurement/Technical Report 2_ALPS_1502_TAS_FCCa on 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. vehicle remote keyless entry transmitter 4F2T-15K601-A Registergericht - registered in: Ratingen, HRB 3264 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99 Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Measurement Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 5 5 5 5 5 7 7 8 8 8 9 10 15 16 19 21 22 Spurious RF Radiated Emissions10 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 6 6 6 Dwell Time Power Density Channel Separation Processing Gain 14 4.3 4.1 4.2 8. Annex measurement plots4 Pages Page 2 of 25Testreport Reference: 2_ALPS_1502_TAS_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization: Certification for an Intentional Radiator (Periodic operation in the band above 70 MHZ) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits (not applicable for battery powered equipment) § 15.209 Radiated emission limits; general requirements § 15.231 Periodic operation in the band 40.66-40.70 MHz, above 70 MHZ Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: none Page 3 of 25Testreport Reference: 2_ALPS_1502_TAS_FCCa 0.2 Measurement Summary § 15.231(b)FCC Part 15, Subpart C,231 ANSI C63.41992The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result setup 1op-mode 2enclosurepassed FCC Part 15, Subpart C,231 FCC §15.3110-1-1998The measurement was performed according to Dwell Time measurement to determine the duty cycle OP-ModeSetupPortFinal Result setup 1op-mode 1enclosure § 15.231(a)FCC Part 15, Subpart C,231 ANSI C63.41992The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result setup 1op-mode 1enclosurepassed Responsible for Accreditation Scope: Responsible for Test Report: Page 4 of 25Testreport Reference: 2_ALPS_1502_TAS_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker This facility has been fully described in a report submitted to the FCC and accepted in a letter dated February 07, 2000 under the registration number 96716. - Deutscher Akkreditierungs Rat 05.09.2002 Robert Machulec 17.09.2002 12.09.2002-16.09.2002 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data ALPS Automotive Inc. Mr. Don Clark 1500 Atlantic Boulevard 48326 Auburn, Michigan USA please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 5 of 25Testreport Reference: 2_ALPS_1502_TAS_FCCa 2.0 Product Labeling 2.1 FCC ID Label: At the time of the test report there was no FCC lable avaliable 2.2 Location of Label on the EUT: see above Page 6 of 25Testreport Reference: 2_ALPS_1502_TAS_FCCa 3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: 4F2T-15K601-A 315 MHz transmiter vehicle remote keyless entry transmitter DC 3.0 V Ports 3.1 General EUT Description General product description: The vehicle remote keyless entry transmitter 4F2T-15K601-A is a wireless handheld remote control unit. (Transmiter only, periodic operation in the band above 70 MHz) the operating frequency is 315 MHz. The transmiter is activated manualy by a switch and is deactivated automaticly within 5 secunds after relase of the switch. The vehicle remote keyless entry transmitter 3L7T-15K601-A and 3F2T-15K601-A are identical built except of the push butom configuration. The EUT provides the following ports: enclosure The main components of EUT are listed and described in Chapter 3.2 Page 7 of 25Testreport Reference: 2_ALPS_1502_TAS_FCCa Short Description Equipment under Test Type Designation 3.2 EUT Main components: Type, S/N, Short Descriptions etc. used in this Test Report HW StatusSW StatusSerial No.Date of Receipt ---05.09.20024F2T-15K601-Avehicle remote keyless entry transmitter EUT A wireless handheld remote control unit, transmitter only NOTE: The short description is used to simplify the identification of the EUT in this test report 3.3 Ancillary Equipment Short Description Equipment under TestType DesignationHW StatusSW StatusSerial No.FCC Id For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But never the less Anc…

Text truncated - open the document above for the full version.
