CWTWB1U761Keyless Transmitter

Keyless Entry Operation Manual （１）Lock button When this button is operated, all doors in the state of an open lock are close lock. （２）Unlock button When this button is operated, all doors in the state of an close lock are open lock. Lock button Unlock button FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

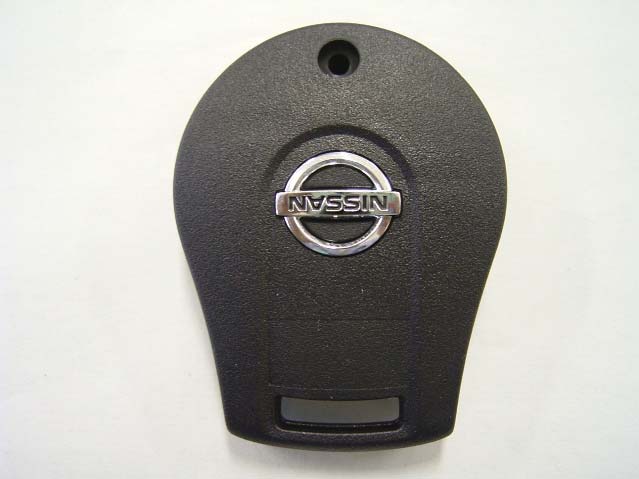

External Photo Alps Electric Co., Ltd Keyless Transmitter FCC ID: CWTWB1U761 Front Rear External Photo Alps Electric Co., Ltd Keyless Transmitter FCC ID: CWTWB1U761 Top Bottom External Photo Alps Electric Co., Ltd Keyless Transmitter FCC ID: CWTWB1U761 Right Left

Label

Internal Photo Alps Electric Co., Ltd Keyless Transmitter FCC ID: CWTWB1U761 Antenna Front Rear

Test report No. : 29JE0126-HO-01-A Page : 2 of 18 Issued date : April 13, 2010 FCC ID : CWTWB1U761 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information··········································································································· 3 SECTION 2: Equipment under test (E.U.T.) ···························································································· 3 SECTION 3: Test specification, procedures & results ············································································· 4 SECTION 4: Operation of E.U.T. during testing······················································································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)· 8 SECTION 6: Automatically deactivate ······································································································ 9 SECTION 7: -20dB and 99% Occupied Bandwidth················································································· 9 APPENDIX 1: Photographs of test setup ································································································· 10 Radiated emission .............................................................................................................................10 Worst case position ...........................................................................................................................11 APPENDIX 2: Data of EMI test ················································································································· 12 Automatically deactivate...................................................................................................................12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) .....................13 -20dB and 99% Occupied Bandwidth...............................................................................................14 Duty Cycle ........................................................................................................................................15 APPENDIX 3:Test Instruments ················································································································· 18 Test report No. : 29JE0126-HO-01-A Page : 3 of 18 Issued date : April 13, 2010 FCC ID : CWTWB1U761 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa, Osaki-city, Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Yoshiaki Hayashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Keyless Transmitter Model No. : TWB1U761 Serial No. : Refer to Clause 4.2 Rating : DC3.0V (CR1620 x 1) Receipt Date of Sample : February 17, 2010 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description This transmitter transmit RF signal to tuner. General Specification Clock frequency(ies) in the system : 4MHz (CPU Clock) Radio Specification Radio Type : Transmitter Frequency of Operation : 433.92MHz Modulation : ASK Power Supply (radio part input) : DC2.5-DC3.3V Antenna type : PCB pattern antenna Test report No. : 29JE0126-HO-01-A Page : 4 of 18 Issued date : April 13, 2010 FCC ID : CWTWB1U761 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 Conducted emission IC: RSS-Gen 7.2.2 IC: RSS-Gen 7.2.2 N/A N/A*1) - FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) Automatically Deactivate IC: - IC: RSS-210 A1.1.1 N/A Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) Electric Field Strength of Fundamental Emission IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 15.1dB 433.920MHz Vertical, PK with Duty factor Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) Electric Field Strength of Spurious Emission IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.6, 2.7 3.0dB 1301.760MHz Vertical, PK with Duty factor Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) -20dB Bandwidth IC: - IC: Reference data N/A Complied Radiated Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 29JE0126-HO-01-A Page : 5 of 18 Issued date : April 13, 2010 FCC ID : CWTWB1U761 UL Japan, Inc. Head Office EMC Lab. 4383-326 As…
