CWTWB1U808Passive Entry System (Hand Unit)

CONTENTS 1. PREFACE 2. PASSSIVE ACCSESS ENTRY FUNCTIONALITY 2.1. Door Unlocking 2.2. Engine Start 2.3. Engine Stop 2.4. Door Locking (Push switch) 3. ACTIVE ACCESS ENTRY FUNCTIONALITY 3.1. Door Unlocking 3.2. Engine Start 3.3. Engine Stop 3.4. Door Locking 3.5. Trunk Open 4. ENTRY SYSTEM OPTIONS 4.1. System Schematic 4.2. Modules 4.2.1. FOB ECU 4.2.2. Entry System ECU 5. SYSTEM CHARACTERISTICS 5.1. Antenna Areas 5.2. Exciter Locations 5.3. Switch Input Locations (Door handle) 6. ELECTRICAL CHARACTERISTICS 6.1. FOB 6.2. Entry System ECU FCC WARNING NOTICE 1.Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • Door unlocking / locking (however, only for request by means of switch operation) • Trunk open (however, only for request by means of switch operation) • LF decoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: • Door unlocking / locking • Trunk open • Engine start (/ stop) • LF encoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) • LF antenna unit control • Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: • Learning mode for programming the manufacturing data and stuff • Data locking and password protection • Diagnostic (based upon ISO9141 if required) 2.Passsive Accsess Entry Functionality A handle sw located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Figure 1 2.1.Door Unlocking • User pushes door handle sw. • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door unlocking status is engaged. • Doors are opened. Figure 2 Door Handle SW LF RF FOB 2.2.Engine Start • User operates the engine start knob. • ECU sends LF-challenge via interior antenna. • FOB sends RF-response to the ECU. • Immobilizer ECU receives and authorize the response. • Engine controller ECU receives the authorization for engine strat. • Start the engine. Figure 3 2.3.Engine Stop • User operates the engine stop knob. • ECU communicates with the other ECU for engine start request. • Engine controller ECU receives the request. • Stop the engine Figure 4 LF RF FOB 2.4.Door Locking (Push switch) • User closes the door and pushes the switch (sensing of door locking switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door locking status is engaged. • Doors are locked. • (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5 3.Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influence on the active entry system. 3.4.Door Locking Same functionality as the current one. 3.5.Trunk Open Same functionality as the current one. 4.Entry System Options 4.1.System Schematic 4.2.Modules 4.2.1.FOB ECU 4.2.2.Entry System ECU OTHER ECUS LF (>2Kbps) Local Bus ECUECUECU Body Bus ENTRY SYSTEM ECU FOB 125kHz RF (>2Kbps) 314.975MHz FOB RF Amp LF Amp ASIC Z X Y Lock Unlock Panic Emergency key (Transponder) 125kHz 314.975 MHz ENTRY SYSTEM ECU MCU Dr Door handle As Door handle Trunk Push knob (Engine start knob) Body Bus Local Bus LF Exciter LF Exciter LF Exciter LF Exciter Room1 Dr As Trunk 125kHz Dr : Driver Door Antenna As : Assist Door Antenna Trunk : Bumper Antenna Exterior Antenna Room1: Console Antenna Room2: Inst. Antenna Room3: Trunk Antenna Interior Antenna LF Exciter LF Exciter Room2 Room3 Tuner signal RF Tuner Tuner signal 5.System Characteristics 5.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters : typ.3, however, it is depending on the type of the vehicle. Number of the interior exciters: max.4 (min.2) Figure 6 Exterior antenna functionality: • Unlock / lock doors. • Open trunk. • Activate / deactivate alarm system. • Activate immobilizer Interior antenna functionality: • Deactivate immobilizer • Engine start Exterior Interior Dr As Back 5.2.Exciter Locations Exterior exciters: 3 doors Interior exciters: 1 Center Console 2 Inst panel 3 Trunk Figure 7 Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Exterior Interior Dr As Bumper 5.3.Switch Input Locations (Door handle) There are some switches, for instance the door handle contact switch will be used as a triggering for unlocking and open the door. Switch inputs: 3 doors Figure 8 Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Dr As Trunk 6.Electrical Characteristics 6.1.FOB • ASK / FSK modulation Transmission：FSK Reception：ASK • Operating supply voltage 2.5V ~ 3.3V (3.0V Battery) • Operating supply current < 35mA • Stand-by current < 10.0uA • Operating ambient temperature -10 o C to +60 o C • Antenna direction 3-Dimension (X, Y, Z), to be considered • Battery life 2 Years (Low battery indication is considered) 6.2.Entry System ECU • Operating supply voltage 9.0V ~ 16.0V • Operating supply current < 55mA • Stand-by current < 4.0mA • Operating ambient temperature -30 o C to +80 o C • FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is s…

Text truncated - open the document above for the full version.

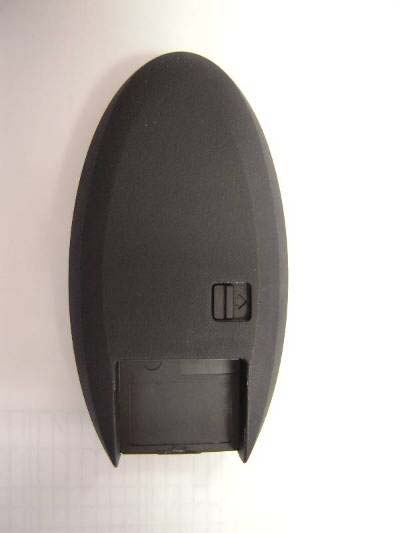

External Photo ALPS ELECTRIC CO., LTD. Passive Entry System (Hand Unit) [Model: TWB1U808] Front Rear External Photo ALPS ELECTRIC CO., LTD. Passive Entry System (Hand Unit) [Model: TWB1U808] Top Bottom External Photo ALPS ELECTRIC CO., LTD. Passive Entry System (Hand Unit) [Model: TWB1U808] Right Left

Label Drawing &Location for TWB1U808 FCC ID：CWTWB1U808 IC ： 1788D-FWB1U808 MODEL NAME : TWB1U808 ALPS ELECTRIC CO.,LTD. Location 16mm 10mm

Internal Photo ALPS ELECTRIC CO.,LTD. Passive Entry System (Hand Unit) [Model: TWB1U808] Front Front without shiled RF Circuit Part Internal Photo ALPS ELECTRIC CO.,LTD. Passive Entry System (Hand Unit) [Model: TWB1U808] Rear Inside of a case Pattern Antenna Internal Photo ALPS ELECTRIC CO.,LTD. Passive Entry System (Hand Unit) [Model: TWB1U808] Loop Coil Bar Antenna

Test report No. : 30CE0169-HO-01-A-R1 Page : 2 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information··········································································································· 3 SECTION 2: Equipment under test (E.U.T.) ···························································································· 3 SECTION 3: Test specification, procedures & results ············································································· 4 SECTION 4: Operation of E.U.T. during testing······················································································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)· 8 SECTION 6: Automatically deactivate ···································································································· 11 SECTION 7: -20dB and 99% Occupied Bandwidth··············································································· 11 APPENDIX 1: Photographs of test setup ································································································· 12 Radiated emission .............................................................................................................................12 Worst case position ...........................................................................................................................13 APPENDIX 2: Data of EMI test ················································································································· 15 Automatically deactivate...................................................................................................................15 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) .....................16 -20dB and 99% Occupied Bandwidth...............................................................................................17 Duty Cycle ........................................................................................................................................18 Receiver Spurious Emission .............................................................................................................20 APPENDIX 3:Test Instruments ················································································································· 22 Test report No. : 30CE0169-HO-01-A-R1 Page : 3 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa, Osaki-city, Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Tomosuke Takata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Passive Entry System (Hand Unit) Model No. : TWB1U808 Serial No. : Refer to Clause 4.2 Rating : DC3.0V (CR2025) Receipt Date of Sample : January 21, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab 2.2 Product Description Passive Entry System (Hand Unit), model: TWB1U808 is carried by the owner of the vehicle. It performs transmission through RF antenna to tuner (I-KEY unit), processes LF signal from I-KEY unit, and performs actions according to the signal. General Specification Radio Type : Transceiver Clock frequency(ies) in the system : 2MHz (CPU Clock) Radio Specification [Transmitter] Frequency of Operation : 314.975MHz Modulation : FSK Method of Frequency Generation : SAW Resonator Antenna type : PCB Pattern antenna [Receiver] Frequency of Operation : 125kHz Antenna type : Loop Coil and Bar Antenna Test report No. : 30CE0169-HO-01-A-R1 Page : 4 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2009, final revised on December 2, 2009 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 Conducted emission IC: RSS-Gen 7.2.2 IC: RSS-Gen 7.2.2 N/A N/A*1) - FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) Automatically Deactivate IC: - IC: RSS-210 A1.1.1 N/A Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) Electric Field Strength of Fundamental Emission IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 2.3dB 314.975MHz Horizontal, PK with Duty Factor Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) Electric Field Strength of Spurious Emission IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.6, 2.7 5.4dB 1889.850MHz Horizontal, PK with Duty Factor Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) -20dB Bandwidth IC: - IC: Reference data N/A Complied Radiated FCC: ANSI C63.4:2003 12. Measurement of unintentional radiators other than ITE FCC: Section 15.109(a) Section 15.209 Receiver Spurious Emissions IC: RSS-Gen 4.10…

Text truncated - open the document above for the full version.

Test report No. : 30CE0169-HO-01-A-R1 Page : 15 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 30CE0169-HO-01 Date 01/21/2010 Temperature/ Humidity 23 deg.C./ 36% Engineer Tomotaka Sasagawa Mode Normal use mode Time of Transmitting [sec] Limit [sec] Result 0.30 5.00 Pass Test report No. : 30CE0169-HO-01-A-R1 Page : 16 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 30CE0169-HO-01 Date 01/21/2010 01/22/2010 Temperature/ Humidity 23 deg.C./ 36% 20 deg.C./ 35% Engineer Tomotaka Sasagawa Katsunori Okai (30-1000MHz) (1-10GHz) Mode Transmitting mode PK FrequencyDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 314.975 PK82.578.815.38.927.9-78.875.195.616.820.5 Carrier 629.950 PK30.633.820.410.328.7-32.635.875.643.039.8 Outside 944.925 PK30.528.923.411.527.9-37.535.975.638.139.7 Outside 1259.900 PK56.257.525.12.133.3-50.151.475.625.524.2 Outside 1574.875 PK54.754.025.72.332.9-49.849.173.924.124.8 Inside 1889.850 PK59.659.426.12.532.5-55.755.575.619.920.1 Outside 2204.825 PK50.950.026.72.632.4-47.846.973.926.127.0 Inside 2519.800 PK44.143.527.42.832.4-41.941.375.633.734.3 Outside 2834.775 PK47.546.828.13.032.3-46.345.673.927.628.3 Inside 3149.750 PK45.845.228.53.132.1-45.344.775.630.330.9 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor FrequencyDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 314.975 PK82.578.815.38.927.9-5.573.369.675.62.36.0 Carrier 629.950 PK30.633.820.410.328.7-5.527.130.355.628.525.3 Outside 944.925 PK30.528.923.411.527.9-5.532.030.455.623.625.2 Outside 1259.900 PK56.257.525.12.133.3-5.544.645.955.611.09.7 Outside 1574.875 PK54.754.025.72.332.9-5.544.343.653.99.610.3 Inside 1889.850 PK59.659.426.12.532.5-5.550.250.055.65.45.6 Outside 2204.825 PK50.950.026.72.632.4-5.542.341.453.911.612.5 Inside 2519.800 PK44.143.527.42.832.4-5.536.435.855.619.219.8 Outside 2834.775 PK47.546.828.13.032.3-5.540.840.153.913.113.8 Inside 3149.750 PK45.845.228.53.132.1-5.539.839.255.615.816.4 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). Margin [dB] Margin [dB] ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] * The test was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * All the measured noise was pulse emission. Test report No. : 30CE0169-HO-01-A-R1 Page : 17 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB and 99% Occupied Bandwidth Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 30CE0169-HO-01 Date 01/21/2010 Temperature/ Humidity 23 deg.C./ 36% Engineer Tomotaka Sasagawa Mode Transmitting mode Bandwidth Limit : Fundamental Frequency 314.975MHz x 0.25% = 787.44kHz -20dB BandwidthResult [kHz] 157.676Pass 99% Occupied BandwidthResult [kHz] 157.32Pass [kHz] 787.44 Bandwidth Limit [kHz] 787.44 Bandwidth Limit Test report No. : 30CE0169-HO-01-A-R1 Page : 18 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle Test place Head Office EMC Lab. No.6 Shielded room Report No. 30CE0169-HO-01 Date 01/24/2010 Temperature/ Humidity 20 deg.C./ 39% Engineer Hironobu Ohnishi Mode Transmitting mode ON time(One pulse)ON time(in 51.5ms)ON Time(in 100ms) TypeTimes[ms][ms][ms] A10.5120.5120.994 B840.26222.00842.734 C340.1384.6929.111 *1)ON time(in 51.5ms) = Times * ON time(One pulse) *2)ON time(in 100ms) = On time(in 51.5ms) * 100 / 51.5 *3)The train of pulses was exceeding 100msec, and that sampled 100msec was the worst case against the pulse train. (Total) ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 52.84100.000.53-5.5 *4)Duty = 20log 10 (ON time/Cycle) Type A Type B Type C Test report No. : 30CE0169-HO-01-A-R1 Page : 19 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle 0.000 0.002 0.004 0.006 0.008 0.010 0.012 0.014 0.016 0.000 0.002 0.004 0.006 0.008 0.010 0.012 0.014 0.016 0.018 0.020 time [s] Voltage [V] 0.000 0.002 0.004 0.006 0.008 0.010 0.012 0.014 0.016 0.020 0.022 0.024 0.026 0.028 0.030 0.032 0.034 0.036 0.038 0.040 time [s] Voltage [V] 0.000 0.002 0.004 0.006 0.008 0.010 0.012 0.014 0.016 0.040 0.042 0.044 0.046 0.048 0.050 0.052 0.054 0.056 0.058 0.060 time [s] Voltage [V] 0.000 0.002 0.004 0.006 0.008 0.010 0.012 0.014 0.016 0.060 0.065 0.070 0.075 0.080 0.085 0.090 0.095 0.100 time [s] Voltage [V] Type B Type A Type C Test report No. : 30CE0169-HO-01-A-R1 Page : 20 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 F…

Text truncated - open the document above for the full version.

Test report No. : 30CE0169-HO-01-A-R1 Page : 12 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Photo 1 Photo 2 Test report No. : 30CE0169-HO-01-A-R1 Page : 13 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis Test report No. : 30CE0169-HO-01-A-R1 Page : 14 of 22 Issued date : February 2, 2010 Revised date : February 24, 2010 FCC ID : CWTWB1U808 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Not Inserted) Worst Mechanical Key (Inserted)
