CWTWB1U811Part 15 Security/Remote control Transmitter

ADVERTISING LITERATURE (BROCHURE) Keyless Entry System (Hand unit) Model No.: TWB1U811 There is no Advertising Literature or Brochure because this equipment will not be sold to end-user directly.

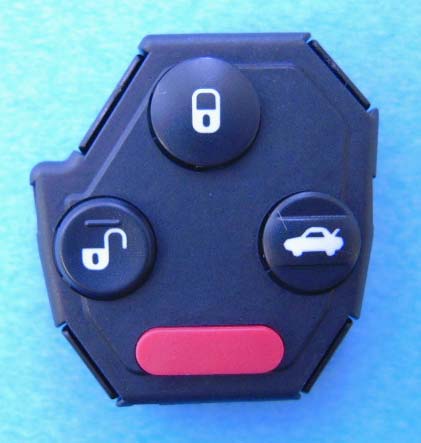

External Photo ALPS ELECTRIC CO.,LTD. Keyless Entry System(Hand unit) [Model: TWB1U811] Front Rear External Photo ALPS ELECTRIC CO.,LTD. Keyless Entry System(Hand unit) [Model: TWB1U811] Top Bottom External Photo ALPS ELECTRIC CO.,LTD. Keyless Entry System(Hand unit) [Model: TWB1U811] Right Left

■LABEL LAYOUT(Model name: TWB1U811) LABEL Position of the label

Internal Photo ALPS ELECTRIC CO.,LTD. Keyless Entry System(Hand unit) [Model: TWB1U811] Front Rear

Test report No. : 30CE0078-HO-01-A Page : 12 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Automatically deactivate Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30CE0078-HO-01 Date 12/14/2009 Temperature/ Humidity 25 deg.C./ 32% Engineer Norihisa Hashimoto Mode Normal use mode Time of Transmitting [sec] Limit [sec] Result 0.2333 5.00 Pass Test report No. : 30CE0078-HO-01-A Page : 13 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30CE0078-HO-01 Date 12/14/2009 Temperature/ Humidity 25 deg.C./ 32% Engineer Norihisa Hashimoto Mode Continuous transmitting mode PK Frequenc yDetectorAntLossGainDutyLimitRemark FactorFactorInside or Outside [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVerof Restricted Bands 315.000 PK86.381.315.110.132.0-79.574.595.616.121.1 Carrier 630.000 PK51.251.720.410.328.7-53.253.775.622.421.9 Outside 945.000 PK43.842.923.411.527.9-50.849.975.624.825.7 Outside 1260.000 PK46.355.525.02.134.2-39.248.475.636.427.2 Outside 1575.000 PK47.552.325.72.333.4-42.146.973.931.827.0 Inside 1890.000 PK49.749.426.72.532.8-46.145.875.629.529.8 Outside 2205.000 PK48.452.527.12.632.4-45.749.873.928.224.1 Inside 2520.000 PK50.652.627.32.832.2-48.550.575.627.125.1 Outside 2835.000 PK57.756.927.73.032.1-56.355.573.917.618.4 Inside 3150.000 PK52.759.328.33.131.9-52.258.875.623.416.8 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) PK with Duty factor Frequenc yDetectorAntLossGainDutyLimitRemark FactorFactor [MHz]HorVer[dB/m][dB][dB][dB]HorVer[dBuV/m ]HorVer 315.000 PK86.381.315.110.132.0-5.773.868.875.61.86.8 Carrier 630.000 PK51.251.720.410.328.7-5.747.548.055.68.17.6 Outside 945.000 PK43.842.923.411.527.9-5.745.144.255.610.511.4 Outside 1260.000 PK46.355.525.02.134.2-5.733.542.755.622.112.9 Outside 1575.000 PK47.552.325.72.333.4-5.736.441.253.917.512.7 Inside 1890.000 PK49.749.426.72.532.8-5.740.440.155.615.215.5 Outside 2205.000 PK48.452.527.12.632.4-5.740.044.153.913.99.8 Inside 2520.000 PK50.652.627.32.832.2-5.742.844.855.612.810.8 Outside 2835.000 PK57.756.927.73.032.1-5.750.649.853.93.34.1 Inside 3150.000 PK52.759.328.33.131.9-5.746.553.155.69.12.5 Outside Result = Reading + Ant Factor + Loss (Cable+Attenuator+Filter) - Gain(Amprifier) + Duty factor (Refer to Duty factor data sheet) *Other frequency noises omitted in this report were not seen or had enough margin (more than 20dB). ReadingResult Reading [dBuV] Result [dBuV/m] [dBuV][dBuV/m] Margin [dB] Margin [dB] * The test above 1GHz was performed with PK detect. Average emission measurements were calculated with PK detect and Duty cycle factor. * Duty Factor was calculated with the assumption of the worst condition in 100msec. * All the measured noise was pulse emission. Test report No. : 30CE0078-HO-01-A Page : 14 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 -20dB and 99% Occupied Bandwidth Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30CE0078-HO-01 Date 12/14/2009 Temperature/ Humidity 25 deg.C./ 32% Engineer Norihisa Hashimoto Mode Normal use mode Bandwidth Limit : Fundamental Frequency 315 MHz x 0.25% = 787.50kHz -20dB BandwidthResult [kHz] 55.57Pass 99% Occupied BandwidthResult [kHz] 364.59Pass [kHz] 787.50 Bandwidth Limit [kHz] 787.50 Bandwidth Limit Test report No. : 30CE0078-HO-01-A Page : 15 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Duty Cycle Test place Head Office EMC Lab. No.3 Semi Anechoic Chamber Report No. 30CE0078-HO-01 Date 12/14/2009 Temperature/ Humidity 25 deg.C./ 32% Engineer Norihisa Hashimoto Mode Normal use mode ON time(5ms)ON time(in 100ms) Times[us][ms][ms] 10258.32.58351.66 *1)ON time(in 100ms) = Times * ON time(One pulse) *2)The train of pulses was exceeding 100msec, and that sampled 100msec was the worst case against the pul s (Total) ON timeCycleDutyDuty [ms][ms](On time/Cycle)[dB] 51.66100.000.52-5.7 *3)ON time = Type A's ON time (in 100ms) + Type B's ON time (in 100ms) ON Time one pulse Test report No. : 30CE0078-HO-01-A Page : 16 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3:Test Instruments EMI test equipment Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MAEC-03 Semi Anechoic Chamber(NSA) TDK Semi Anechoic Chamber 3m DA-10005 RE 2009/02/02 * 12 MOS-13 Thermo-Hygrometer Custom CTH-180 - RE 2009/02/06 * 12 MJM-06 Measure PROMART SEN1955 - RE - COTS-MEMI EMI measurement program TSJ TEPTO-DV - RE - MSA-04 Spectrum Analyzer Agilent E4448A US44300523 RE 2009/08/25 * 12 MTR-08 Test Receiver Rohde & Schwarz ESCI 100767 RE 2009/06/30 * 12 MBA-03 Biconical Antenna Schwarzbeck BBA9106 1915 RE 2009/01/19 * 12 MLA-03 Logperiodic Antenna Schwarzbeck USLP9143 174 RE 2009/01/10 * 12 MCC-51 Coaxial cable UL Japan - - RE 2009/07/02 * 12 MAT-09 Attenuator(6dB) Weinschel Corp 2 BK7973 RE 2009/11/12 * 12 MPA-13 Pre Amplifier SONOMA INSTRUMENT 310 260834 RE 2009/03/18 * 12 MHA-20 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D 258 RE 2009/04/30 * 12 MCC-56 Microwave Cable 1G- 26.5GHz Suhner SUCOFLEX104 174410(1m) / 284655(5m) R…

Text truncated - open the document above for the full version.

Test report No. : 30CE0078-HO-01-A Page : 2 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information··········································································································· 3 SECTION 2: Equipment under test (E.U.T.) ···························································································· 3 SECTION 3: Test specification, procedures & results ············································································· 4 SECTION 4: Operation of E.U.T. during testing······················································································ 7 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission)· 8 SECTION 6: Automatically deactivate ······································································································ 9 SECTION 7: -20dB and 99% Occupied Bandwidth················································································· 9 APPENDIX 1: Photographs of test setup ································································································· 10 Radiated emission .............................................................................................................................10 Worst case position ...........................................................................................................................11 APPENDIX 2: Data of EMI test ················································································································· 12 Automatically deactivate...................................................................................................................12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) .....................13 -20dB and 99% Occupied Bandwidth...............................................................................................14 Duty Cycle ........................................................................................................................................15 APPENDIX 3:Test Instruments ················································································································· 16 Test report No. : 30CE0078-HO-01-A Page : 3 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa, Osaki-city, Miyagi-pref., Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Tomosuke Takata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Keyless Entry System (Hand unit) Model No. : TWB1U811 Serial No. : Refer to Clause 4.2 Rating : DC3.0V (CR1620 x1) Receipt Date of Sample : December 14, 2009 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: TWB1U811 (referred to as the EUT in this report) is the Keyless Entry System (Hand unit). General Specification Clock frequency(ies) in the system : CPU: 8MHz Resonator(Crystal): 9.84375MHz Radio Specification Radio Type : Transmitter Frequency of Operation : 315MHz Modulation : ASK Antenna type : PCB Pattern Antenna Test report No. : 30CE0078-HO-01-A Page : 4 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2009, final revised on December 2, 2009 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.66 - 40.70MHz and above 70MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 Conducted emission IC: RSS-Gen 7.2.2 IC: RSS-Gen 7.2.2 N/A N/A*1) - FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(a)(1) Automatically Deactivate IC: - IC: RSS-210 A1.1.1 N/A Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(b) Electric Field Strength of Fundamental Emission IC: RSS-Gen 4.8 IC: RSS-210 A1.1.2 1.8dB 315MHz Horizontal PK with Duty Factor Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.205 Section 15.209 Section 15.231(b) Electric Field Strength of Spurious Emission IC: RSS-Gen 4.9 IC: RSS-210 A1.1.2, 2.6, 2.7 2.5dB 3150MHz Vertical PK with Duty Factor Complied Radiated FCC: ANSI C63.4:2003 13. Measurement of intentional radiators FCC: Section 15.231(c) -20dB Bandwidth IC: - IC: Reference data N/A Complied Radiated Note: UL Japan, Inc.’s EMI Work Procedures No.QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. FCC 15.31 (e) This test was performed with the New Battery (DC 3.0V) and the constant voltage was supplied to the EUT during the tests. Therefore, the EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 30CE0078-HO-01-A Page : 5 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-3…

Text truncated - open the document above for the full version.

Test report No. : 30CE0078-HO-01-A Page : 10 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Front Rear Test report No. : 30CE0078-HO-01-A Page : 11 of 16 Issued date : December 17, 2009 FCC ID : CWTWB1U811 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position (Horizontal: X-axis/Vertical : Y-axis) X-axis Y-axis Z-axis
