CWTWBU729Automotive Key FOB Security Transmitter

CONTENTS 1. PREFACE 2. PASSSIVE ACCSESS ENTRY FUNCTIONALITY 2.1. Door Unlocking 2.2. Engine Start 2.3. Engine Stop 2.4. Door Locking (Push switch) 3. ACTIVE ACCESS ENTRY FUNCTIONALITY 3.1. Door Unlocking 3.2. Engine Start 3.3. Engine Stop 3.4. Door Locking 4. ENTRY SYSTEM OPTIONS 4.1. System Schematic 4.2. Modules 4.2.1. FOB ECU 4.2.2. Entry System ECU 5. SYSTEM CHARACTERISTICS 5.1. Antenna Areas 5.2. Exciter Locations 5.3. Switch Input Locations (Door handle) 6. ELECTRICAL CHARACTERISTICS 6.1. FOB 6.2. Entry System ECU FCC WARNING NOTICE 1.Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • Door unlocking / locking (however, only for request by means of switch operation) • Trunk unlocking / locking (however, only for request by means of switch operation) • LF decoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: • Door unlocking / locking • Trunk unlocking / locking • Engine start (/ stop) • LF encoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) • LF antenna unit control • Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: • Learning mode for programming the manufacturing data and stuff • Data locking and password protection • Diagnostic (based upon ISO9141 if required) 2.Passsive Accsess Entry Functionality A handle sw located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Figure 1 2.1.Door Unlocking • User pushes door handle sw. • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door unlocking status is engaged. • Doors are opened. Figure 2 Door Handle SW LF RF FOB 2.2.Engine Start • User operates the engine start knob. • ECU sends LF-challenge via interior antenna. • FOB sends RF-response to the ECU. • Immobilizer ECU receives and authorize the response. • Engine controller ECU receives the authorization for engine strat. • Start the engine. Figure 3 2.3.Engine Stop • User operates the engine stop knob. • ECU communicates with the other ECU for engine start request. • Engine controller ECU receives the request. • Stop the engine Figure 4 LF RF FOB 2.4.Door Locking (Push switch) • User closes the door and pushes the switch (sensing of door locking switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door locking status is engaged. • Doors are locked. • (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5 3.Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influence on the active entry system. 3.4.Door Locking Same functionality as the current one. 4.Entry System Options 4.1.System Schematic 4.2.Modules 4.2.1.FOB ECU 4.2.2.Entry System ECU OTHER ECUS LF (>2Kbps) RF (>4Kbps) Local Bus ECUECUECU Body Bus ENTRY SYSTEM ECU FOB 125kHz 315MHz FOB RF Amp LF Amp ASIC Z X Y Lock Unlock Panic Emergency key (Transponder) 125kHz 315MHz ENTRY SYSTEM ECU MCU Dr Door handle As Door handle Back Door handle Push knob (Engine start knob) Body Bus Local Bus RF Amp LF Exciter LF Exciter LF Exciter LF Exciter Room1 Dr As Back 315MHz 125kHz Dr : Driver Door Antenna As : Assist Door Antenna Back : Backdoor Antenna (Trunk Antenna) Exterior Antenna Room1: Console Antenna Room2: Inst. Antenna Room3: Luggage Antenna Interior Antenna LF Exciter LF Exciter Room2 Room3 5.System Characteristics 5.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters : typ.3, however, it is depending on the type of the vehicle. Number of the interior exciters: max.4 (min.2) Figure 6 Exterior antenna functionality: • Unlock / lock doors and trunk. • Activate / deactivate alarm system. • Activate immobilizer Interior antenna functionality: • Deactivate immobilizer • Engine start Exterior Interior Dr As Back 5.2.Exciter Locations Exterior exciters: 3 doors Interior exciters: 1 Center Console 2 Inst panel 3 Luggage Figure 7 Antenna location can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Exterior Interior Dr As Back 5.3.Switch Input Locations (Door handle) There are some switches, for instance the door handle contact switch will be used as a triggering for unlocking and open the door. Switch inputs: 3 doors Figure 8 Switch inputs can be different among of type of the vehicle (e.g. coupe, sedan, mini and stuff). Dr As Back 6.Electrical Characteristics 6.1.FOB • ASK / FSK modulation • Operating supply voltage 2.5V ~ 3.3V (3.0V Battery) • Operating supply current < 35mA • Stand-by current < 10.0uA • Operating ambient temperature -10 o C to +60 o C • Antenna direction 3-Dimension (X, Y, Z), to be considered • Battery life 1.5 Years (Low battery indication is considered) 6.2.Entry System ECU • Operating supply voltage 9.0V ~ 16.0V • Operating supply current < 55mA • Stand-by current < 4.0mA • Operating ambient temperature -30 o C to +80 o C • FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTICE This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmf…

Text truncated - open the document above for the full version.

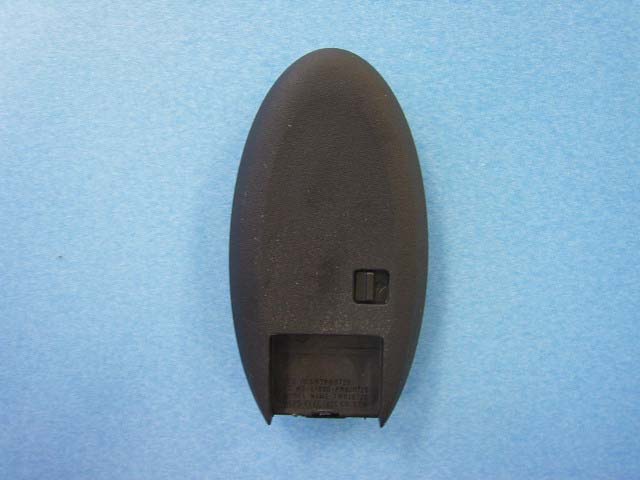

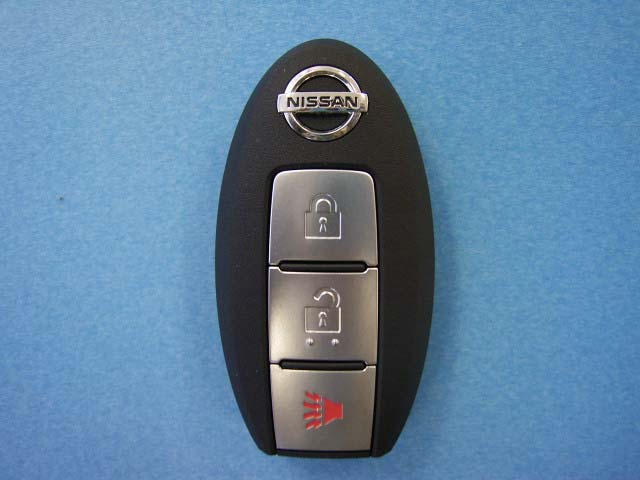

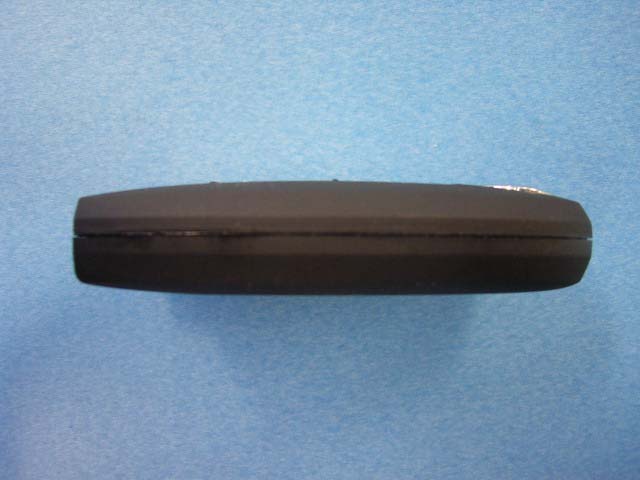

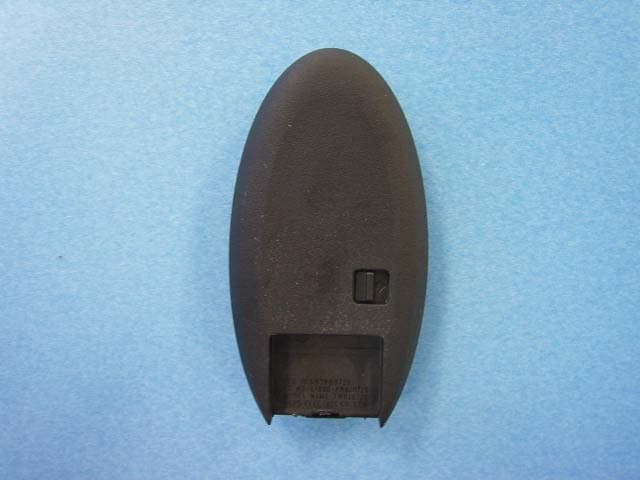

Passive Entry System, Hand Unit Model : TWBU729 FCC ID : CWTWBU729 IC Number : 1788D-FWB1U729 ALPS Electric Co., Ltd. External Photo Front Back Passive Entry System, Hand Unit Model : TWBU729 FCC ID : CWTWBU729 IC Number : 1788D-FWB1U729 ALPS Electric Co., Ltd. Left Right Passive Entry System, Hand Unit Model : TWBU729 FCC ID : CWTWBU729 IC Number : 1788D-FWB1U729 ALPS Electric Co., Ltd. Top Bottom

Label Hand Unit (TWB1U729) *The way of attaching FCC ID is “Carving”

Passive Entry System, Hand Unit Model : TWBU729 FCC ID : CWTWBU729 IC Number : 1788D-FWB1U729 ALPS Electric Co., Ltd. Internal Photo Internal Top Internal Bottom Passive Entry System, Hand Unit Model : TWBU729 FCC ID : CWTWBU729 IC Number : 1788D-FWB1U729 ALPS Electric Co., Ltd. PCB Top PCB Bottom Passive Entry System, Hand Unit Model : TWBU729 FCC ID : CWTWBU729 IC Number : 1788D-FWB1U729 ALPS Electric Co., Ltd. Top Bottom

Test report No. : 26FE0028-HO-1 Page : 2 of 14 Issued date : February 17, 2006 FCC ID : CWTWBU729 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ................................... 7 APPENDIX 1: Photographs of test setup........................................................................................ 8 Radiated emission(Worst case position)......................................................................... 8 Worst Case Position (Horizontal : X-axis/ Vertical: Z-axis) ........................................ 9 APPENDIX 2:Test Instruments...................................................................................................... 10 APPENDIX 3: Data of EMI test ..................................................................................................... 11 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission)................... 11 -20dB Bandwidth ............................................................................................................ 12 Automatically deactivate ............................................................................................... 13 99%Occupied Bandwidth .............................................................................................. 14 Test report No. : 26FE0028-HO-1 Page : 3 of 14 Issued date : February 17, 2006 FCC ID : CWTWBU729 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa-city, Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Katsuhiro Seino SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Passive Entry System (Hand Unit) Model No. : TWB1U729 Serial No. : 1 Country of Manufacture : Japan Rating : DC3.0V Receipt Date of Sample : February 1, 2006 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: TWB1U729 is the Passive Entry System (Hand Unit). The Passive Entry System is a system which locks, unlocks, and can start engine only with the intelligent-key of the vehicle. The clock frequency of EUT is 8MHz (CPU), 315.04MHz (SAW Resonator). Equipment Type : Transceiver Frequency of operation : Tx: 315MHz Type of modulation : FSK Mode of operation : Simplex Antenna Type : Tx: Internal/PCB Pattern (Loop) Method of Frequency Generation : SAW RESONATOR Operating voltage : DC3V (Button Battery CR2025) Temperature of operation : -10 to +60 degree Test report No. : 26FE0028-HO-1 Page : 4 of 14 Issued date : February 17, 2006 FCC ID : CWTWBU729 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.231 Periodic operation in the band 40.6640.70MHz and above 70MHz FCC 15.31 (e) This EUT provides stable voltage(DC3.0V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement Type of Equipment and its antenna comply with this requirement since they are built in host device (TWB1U729). When they are put up for sale and they are used with a particular antenna connector for this EUT. 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin Results 1 Automatically Deactivate ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(a)(1) N/A - Complied 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.231(b) N/A 6.3dB 315.00MHz Horizontal Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.205 Section 15.209 Section 15.231(b) N/A 4.5dB 630.00MHz Horizontal Complied 4 -20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Reference data N/A - - 5 Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 - N/A*1) N/A Note: UL Apex’s EMI Work procedures No. QPM05 and QPM15. *1) The test is not applicable since the EUT does not have AC Mains. 3.3 Addition to standards No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 99 ％ Occupied Band Width RSS-Gen 4.4.1 - Radiated N/A N/A N/A Test report No. : 26FE0028-HO-1 Page : 5 of 14 Issued date : February 17, 2006 FCC ID : CWTWBU729 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) 3.4 Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is + 4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is + 5.2dB. The measurement uncertainty (with a 95% confi…

Text truncated - open the document above for the full version.

Test report No. : 26FE0028-HO-1 Page : 8 of 14 Issued date : February 17, 2006 FCC ID : CWTWBU729 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Radiated emission(Worst case position) Front Rear Test report No. : 26FE0028-HO-1 Page : 9 of 14 Issued date : February 17, 2006 FCC ID : CWTWBU729 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (Horizontal : X-axis/ Vertical: Z-axis) X-axis Y-axis Z-axis
