CWTWCU11Part 15, Communications Receiver for use w/ Pt 15

User’s Manual MODEL No.: 28595EA The radio frequency keyless entry-TPMS system has the following functions. 1. Locking and unlocking the doors without mechanical key. 2. Sounding a panic alarm during vehicle is not running. 3. Tire-pressure data monitor by receiving RF signal from RF transmitter in tires during vehicle is running. This system consists of RF Tuner, transmitter, and BCM. The RF Tuner (EUT) is powered 5V from BCM. It is designed to operate on a single fixed frequency RF 315MHz by amplitude modulation. It receives unique identification code and function code transmitted from transmitter by pressing the button of the transmitter. After receiving RF signal, demodulation IC in Tuner demodulates RF signal from transmitter. And then driving circuit in Tuner outputs the demodulated signal to BCM.

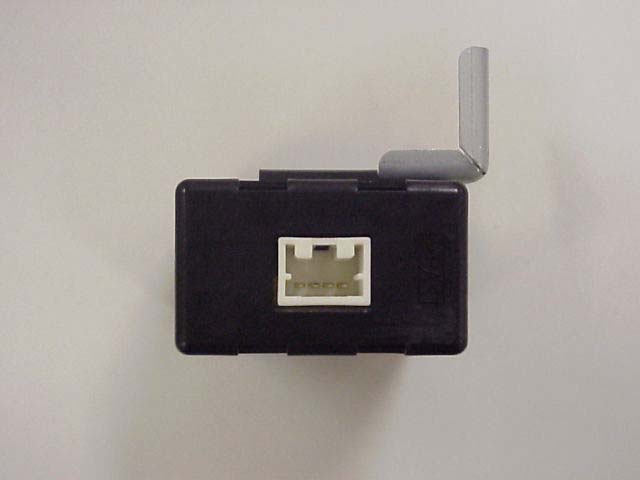

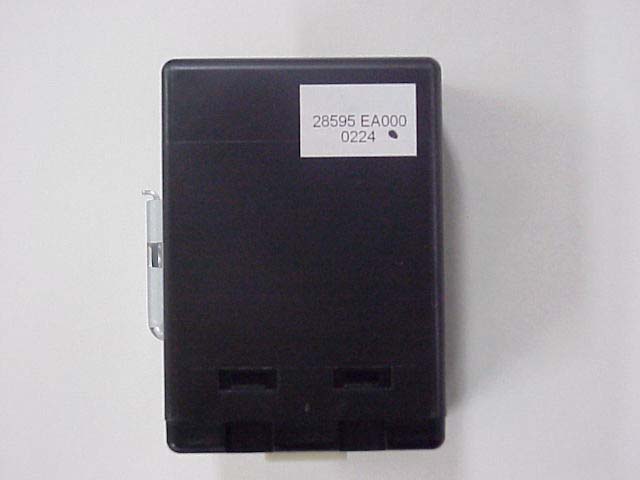

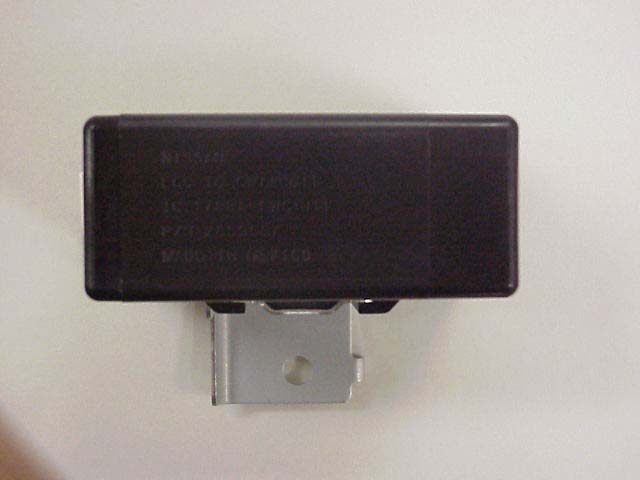

Alps Electric Co., Ltd. FCC ID: CWTWCU11 External Photo Top Bottom Alps Electric Co., Ltd. FCC ID: CWTWCU11 Front Rear Alps Electric Co., Ltd. FCC ID: CWTWCU11 Right Left

Alps Electric Co., Ltd. FCC ID: CWTWB1U617 Internal Photo Front with Shield Front without Shield Alps Electric Co., Ltd. FCC ID: CWTWB1U617 Rear

Test report No. : 24BE0043-HO-1 Page : 1 of 11 Issued date : January 13, 2004 Revised date : February 23,2004 FCC ID : CWTWCU11 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 24BE0043-HO-1 Applicant : Alps Electric Co., Ltd. Type of Equipment : TUNER UNIT Model No. : 28595EA FCC ID : CWTWCU11 Test standard : FCC Part 15 Subpart B : 2003 Class B Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. 5. This test report does not constitute an endorsement by NIST/NVLAP or U.S. Government. Date of test : January 6, 2004 Tested by : Kenichi Adachi EMC Service Approved by : Naoki Sakamoto Group Leader of EMC Service This laboratory is accredited by the NIST/NVLAP, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. Lab code: 200572-0 Test report No. : 24BE0043-HO-1 Page : 2 of 11 Issued date : January 13, 2004 Revised date : February 23,2004 FCC ID : CWTWCU11 UL Apex Co., Ltd. CONTENTS PAGE SECTION 1: Client information................................................................................................3 SECTION 2: Equipment under test (E.U.T.)...........................................................................3 SECTION 3: Test specification, procedures & results............................................................4 SECTION 4: Operation of E.U.T. during testing.....................................................................5 SECTION 5: Radiated Emission...............................................................................................6 APPENDIX 1: Photographs of test setup..................................................................................7 Radiated Emission............................................................................................................7 Worst Case Position (Horizontal : Z-axis/ Vertical: Z-axis)........................................8 APPENDIX 2:Test instruments..................................................................................................9 APPENDIX 3: Data of EMI test...............................................................................................10 Radiated Emission..........................................................................................................10 Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Test report No. : 24BE0043-HO-1 Page : 3 of 11 Issued date : January 13, 2004 Revised date : February 23,2004 FCC ID : CWTWCU11 UL Apex Co., Ltd. SECTION 1: Client information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato Furukawa-city, Miyagi-pref., 989-6181, Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Katsuhiro Seino SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : TUNER UNIT Model No. : 28595EA Serial No. : Dec/10/2003 283 Country of Manufacture : Mexico Receipt Date of Sample : December 10, 2003 Condition of EUT : Production prototype 2.2 Product Description Alps Electric Co., Ltd., Model No: 28595EA is the receiver. To receive ASK RF signal(315MHz), and to output demodurated signal to Body Control Module(BCM). The clock frequency of EUT is 65.13833MHz. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Test report No. : 24BE0043-HO-1 Page : 4 of 14 Issued date : January 13, 2004 Revised date : February 23,2004 Revised date : February 27, 2004 FCC ID : CWTWCU11 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B : 2003 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2001 Class B N/A N/A*1) N/A Radiated emission ANSI C63.4: 2001 Class B N/A 9.7dB 911.923MHz, Horizontal Complied *Note: UL Apex’s EMI Work Procedure QPM05. *1) The test is not applicable since the EUT does not have AC Mains. *These tests were performed without any deviations from test procedure except for additions or exclusions. *The local oscillator frequency of EUT is processed with IC chip. But this frequency is used only in order for a mixer to generate the intermediate frequency of 10.7MHz. This digital part of EUT is operating in 65.13833MHz that is less than 108MHz. Therefore, the Spurious emission measurement for the upper frequency was up to 1GHz based on Section 15.33(b)(1). 3.3 Additions or deviations to standards No addition, deviation nor exclusion has been made from standards. 3.4 Confirmation UL Apex Co., Ltd. hereby confirms that E.U.T., in the configuration tested, complies with the specifications, FCC Part15 Subpart B : 2003. 3.5 Uncertainty Radiated Emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB(3m). The data listed in this test report has enough margin. 3.6 Test Location UL Apex Co., Ltd. Head Office EMC Lab. No.2 semi anechoic chamber. 4383-326 Asama-cho, Ise-sh…

Text truncated - open the document above for the full version.

Test report No. : 24BE0043-HO-1 Page : 7 of 11 Issued date : January 13, 2004 Revised date : February 23,2004 FCC ID : CWTWCU11 UL Apex Co., Ltd. APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Test report No. : 24BE0043-HO-1 Page : 8 of 11 Issued date : January 13, 2004 Revised date : February 23,2004 FCC ID : CWTWCU11 UL Apex Co., Ltd. Worst Case Position (Horizontal : Z-axis/ Vertical: Z-axis) X-axis Y-axis Z-axis Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03)
