CWTWCU119Low Power Com Device Receiver

FORMAT NO. FIRMWARE_A(VER 0.01) CONTENTS 1. PREFACE ....................................................................................................................................2 2. PASSIVE ACCESS ENTRY FUNCTIONALITY............................................................................3 2.1. Door Unlocking........................................................................................................................................... 3 2.2. Engine Start................................................................................................................................................ 4 2.3. Engine Stop................................................................................................................................................ 4 2.4. Door Locking (Push switch) ....................................................................................................................... 5 3. ACTIVE ACCESS ENTRY FUNCTIONALITY ..............................................................................6 3.1. Door Unlocking........................................................................................................................................... 6 3.2. Engine Start................................................................................................................................................ 6 3.3. Engine Stop................................................................................................................................................ 6 3.4. Door Locking .............................................................................................................................................. 6 4. SYSTEM CHARACTERISTICS ....................................................................................................7 4.1. Antenna Areas ........................................................................................................................................... 7 4.2. Exciter Locations........................................................................................................................................ 8 4.3. Switch Input Locations (Door handle, Touch sensor) ............................................................................... 9 FCC WARNING NOTICE FORMAT NO. FIRMWARE_A(VER 0.01) 1. Preface This document describes the requirements and operation of the Passive Entry System. However, this document is especially for the Entry system ECU (acronym for Electric Control Unit) and the FOB. The FOB consists the following functionality for passive access and active access: • Door unlocking / locking (however, only for request by means of switch operation) • Trunk unlocking / locking (however, only for request by means of switch operation) • LF decoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) And the entry system ECU consists of the following functionality: • Door unlocking / locking • Trunk unlocking / locking • Engine start (/ stop) • LF encoding • RF encoding • Communication data encryption (cryptograph, anti-collision, rolling code and stuff) • LF antenna unit control • Communication with the node ECUs connected to the body bus (e.g. CAN, J1850, customer dependent bus) As a further function, both the FOB and the entry system ECU provides the following function: • Learning mode for programming the manufacturing data and stuff • Data locking and password protection • Diagnostic (based upon ISO9141 if required) FORMAT NO. FIRMWARE_A(VER 0.01) 2. Passive Accsess Entry Functionality A proximity sensor located on, for example the door handles, mirrors and trunk lid will be used for proximity check if user is in neighborhood of the vehicle. The switch input will trigger for unlocking and open the doors and trunk. Figure 1 2.1.Door Unlocking • User pull / touch the door handle (sensing of door handle switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door unlocking status is engaged. • Doors are opened. Figure 2 Proximity sensor Switch input (door handle) LF RF FOB FORMAT NO. FIRMWARE_A(VER 0.01) 2.2.Engine Start • User pushes / operate the engine start button / knob. • ECU sends LF-challenge via interior antenna. • FOB sends RF-response to the ECU. • Immobilizer ECU receives and authorizes the response. • Engine controller ECU receives the authorization for engine start. • Start the engine. Figure 3 2.3.Engine Stop • User pushes / operate the engine stop button / knob. • ECU communicates with the other ECU for engine start request. • Engine controller ECU receives the request. • Stop the engine Figure 4 LF RF FOB FORMAT NO. FIRMWARE_A(VER 0.01) 2.4.Door Locking (Push switch) • User closes the door and pushes the switch (sensing of door locking switch). • ECU sends LF-challenge via exterior antenna. • FOB sends RF-response to the ECU. • Door locking status is engaged. • Doors are locked. • (Indicates the door locking status by means of Flasher / Buzzer or stuff) Figure 5 FORMAT NO. FIRMWARE_A(VER 0.01) 3. Active Access Entry Functionality 3.1.Door Unlocking Same functionality as the current one. 3.2.Engine Start This function does not effect on the active entry system. 3.3.Engine Stop This function does not have influence on the active entry system. 3.4.Door Locking Same functionality as the current one. FORMAT NO. FIRMWARE_A(VER 0.01) 4. System Characteristics 4.1.Antenna Areas Exterior operating range: 0.8m to 1.5m Interior operating range: Only inside the car Number of the exterior exciters: max. 5 (min. 2), however, it is depending on the type of the vehicle. Number of the interior exciters: 1 (1-Dimmension) or 2 (2-Dimension required) Figure 6 Exterior antenna functionality: • Unlock / lock doors and trunk. • Activate / deactivate alarm system. • Activate immobilizer Interior antenna functionality: • Deactivate immobilizer • Engine start Exterior Interior FT BT FORMAT…

Text truncated - open the document above for the full version.

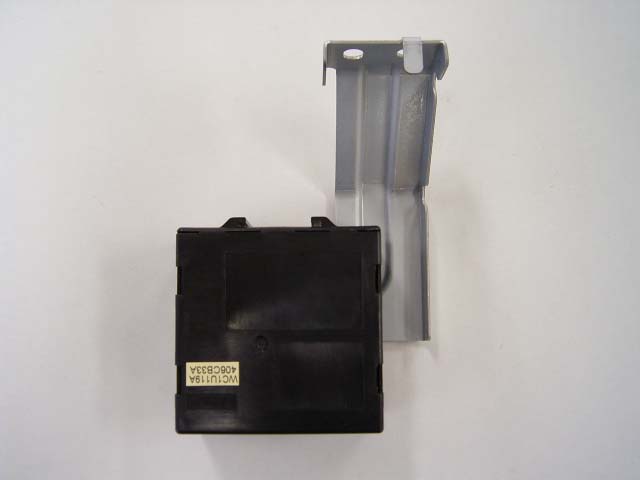

Alps Electric Co., Ltd. FCC ID: CWTWCU119 External Photo Top Bottom Alps Electric Co., Ltd. FCC ID: CWTWCU119 Front Rear Alps Electric Co., Ltd. FCC ID: CWTWCU119 Side A Side B

Alps Electric Co., Ltd. FCC ID: CWTWCU119 Internal Photo Side A with Cover Side A without Cover Alps Electric Co., Ltd. FCC ID: CWTWCU119 Side B

Test report No. : 24KE0135-HO-4 Page : 2 of 13 Issued date : September 10, 2004 FCC ID : CWTWCU119 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information.......................................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................3 SECTION 3: Test specification, procedures & results ...................................................................4 SECTION 4: Operation of E.U.T. during testing............................................................................6 SECTION 5: Radiated emission (Fundamental and Spurious Emission) ....................................8 APPENDIX 1: Photographs of test setup.........................................................................................9 Radiated emission...................................................................................................................9 Worst Case Position (Horizontal : X-axis / Vertical: X-axis) ...........................................10 APPENDIX 2: Test Instruments.....................................................................................................11 APPENDIX 3: Data of EMI test .....................................................................................................12 Radiated emission.................................................................................................................12 Test report No. : 24KE0135-HO-4 Page : 3 of 13 Issued date : September 10, 2004 FCC ID : CWTWCU119 Revised date : September 30, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa-city Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Tomosuke Takata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Passive Entry System (Tuner) Model No. : TFWC1U119 Serial No. : 4 Country of Manufacture : Japan Receipt Date of Sample : July 15, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: TFWC1U119 is the Passive Entry System (Tuner). The clock frequency of EUT is 65.13833MHz. Rx section Rating DC 12V Receiving Frequency 315MHz Modulation FSK Temperature of operation -40 deg. C. -+80 deg. C. *The antenna for the receiver is built-in antenna in EUT so that it is permanently installed. (Therefore, this EUT complied with the requirement in Section 15.109 (f). ) Test report No. : 24KE0135-HO-4 Page : 4 of 13 Issued date : September 10, 2004 FCC ID : CWTWCU119 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart B : 2004 Section 15.109 Radiated emission limits Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results No. Item Test Procedure Specification Remarks Worst margin Result 1 Radiated emission ANSI C63.4:2003 FCC Section 15.109(a) Radiated 3.8dB QP 69.774MHz Horizontal Complied 2 Conducted Emission ANSI C63.4:2003 FCC Section 15.107(a) AC Mains only*1) N/A N/A Note: UL Apex’s EMI Work procedures No. QPM05 *1) This test is not applicable since the EUT does not have AC power port. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Addition to standards No addition, deviation, nor exclusion has been made from standards. 3.4 Uncertainty Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Loop antenna is + 1.8dB. The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is + 4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is + 5.2dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn Antenna is + 6.6dB. The data listed in this report meets the limits unless the uncertainty is taken into consideration. Test report No. : 24KE0135-HO-4 Page : 5 of 13 Issued date : September 10, 2004 FCC ID : CWTWCU119 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) 3.5 Test Location UL Apex Co., Ltd. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Listed date (for FCC) FCC Registration Number IC Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber February 01, 2002 313583 IC4247 19.2 x 11.2 x 7.7m 7.0 x 6.0m Preparation room No.2 semi-anechoic chamber June 05, 2002 846015 IC4247-2 7.5 x 5.8 x 5.2m 4.0 x 4.0m - No.3 shielded room - - - 4.7 x 7.5 x 2.7m 4.7 x 7.5m - No.4 measurement room - - - 3.1 x 5.0 x 2.7m N/A - *Size of vertical conducting plane (for Conducted Emission test) : 2.0 x 2.0m for No.1 and No.2 semi-anechoic and No.3 shielded room. 3.6 Test set up, Test instruments and Data of EMI Refer to APPENDIX 1 to 3. Test report No. : 24KE0135-HO-4 Page : 6 of 13 Issued date : September 10, 2004 FCC ID : CWTWCU119 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SE…
