CWTWD1U718Vehicle Keyless Entry Unit Receiver

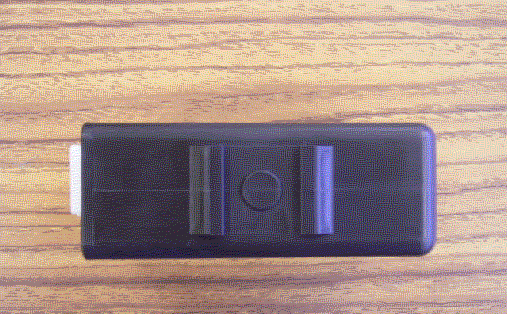

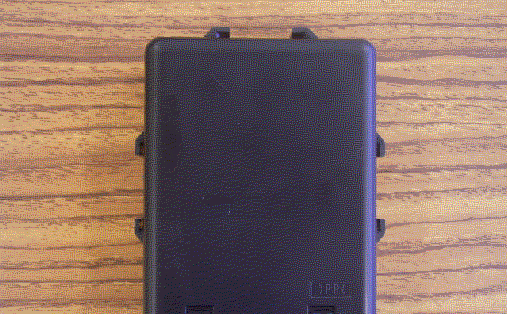

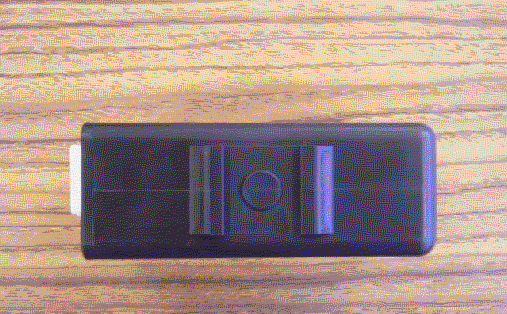

External PhotoFCC ID: CWTWD1U718 IC No.: 1788D-FWD1U718 Top Bottom sideA sideB Front Back

Test report No. : 25DE0287-HO-1 Page : 2 of 12 Issued date : December 27, 2004 FCC ID : CWTWD1U718 Revised date : January 12, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 3 SECTION 4: Operation of E.U.T. during testing........................................................................... 4 SECTION 5: Radiated Emission ..................................................................................................... 5 APPENDIX 1: Photographs of test setup........................................................................................ 6 Radiated Emission.............................................................................................................................................. 7 Worst Case Position (Horizontal : X-axis/ Vertical: X-axis) .......................................................................... 8 APPENDIX 2:Test instruments ........................................................................................................ 9 APPENDIX 3: Data of EMI test ..................................................................................................... 10 Radiated Emission............................................................................................................................................ 10 Test report No. : 25DE0287-HO-1 Page : 3 of 12 Issued date : December 27, 2004 FCC ID : CWTWD1U718 Revised date : January 12, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Alps Electric Co., Ltd. Address : 6-3-36 Nakazato, Furukawa-City Miyagi-pref., 989-6181 Japan Telephone Number : +81-229-23-5111 Facsimile Number : +81-229-22-3755 Contact Person : Saori Mukai SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : KEYLESS ENTRY UNIT (Receiver) Model No. : TFWD1U718 Sample No. : 1 Country of Manufacture : Japan Rating : DC12V Receipt Date of Sample : December 13, 2004 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No. TFWD1U718 is the KEYLESS ENTRY UNIT (Receiver). Type of receiver : Super Heterodyne Receiving Frequency : 433.92MHz Operating temperature range : -30 to +80 deg.C. The receiving antenna (of this EUT) is installed on the KEYLESS ENTRY UNIT, which is unremovable. Therefore, this EUT complies with the requirement in section 15.111(b). Test report No. : 25DE0287-HO-1 Page : 4 of 12 Issued date : December 27, 2004 FCC ID : CWTWD1U718 Revised date : January 12, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification FCC Part15 Subpart B : 2004 Class B FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin *0) Result Conducted emission ANSI C63.4: 2003 Class B N/A N/A*1) N/A Radiated emission ANSI C63.4: 2003 Class B N/A 1.0dB 84.65MHz, QP Horizontal Complied *Note: UL Apex’s EMI Work Procedure QPM05. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. *1) The test is not applicable since the EUT does not have AC Mains. *These tests were performed without any deviations from test procedure except for additions or exclusions. 3.3 Uncertainty Radiated Emission The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB(3m). The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB(3m). The data listed in this report meets the limits unless the uncertainty is taken into consideration. 3.4 Test Location UL Apex Co., Ltd. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Listed date (for FCC) FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber February 01, 2002 313583 IC4247 19.2 x 11.2 x 7.7m 7.0 x 6.0m Preparation room No.2 semi-anechoic chamber June 05, 2002 846015 IC4247-2 7.5 x 5.8 x 5.2m 4.0 x 4.0m - No.3 shielded room - - - 4.7 x 7.5 x 2.7m 4.7 x 7.5m - No.4 measurement room - - - 3.1 x 5.0 x 2.7m N/A - * Size of vertical conducting plane (for Conducted Emission test) : 2.0 x 2.0m for No.1 and No.2 semi-anechoic and No.3 shielded room. 3.5 Test set up, Test instruments and Data of EMI Refer to APPENDIX 1 to 3. Test report No. : 25DE0287-HO-1 Page : 5 of 12 Issued date : December 27, 2004 FCC ID : CWTWD1U718 Revised date : January 12, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 4: Operation of E.U.T. during testing 4.1 Operating modes Test sequence is used : Receiving Mode (Continuous Receiving of the conventional signals from the keyless transmitter.) The signal of Keyless remote control is received. *The test …

Text truncated - open the document above for the full version.

Test report No. : 25DE0287-HO-1 Page : 7 of 12 Issued date : December 27, 2004 FCC ID : CWTWD1U718 Revised date : January 12, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Radiated Emission Front Rear Test report No. : 25DE0287-HO-1 Page : 8 of 12 Issued date : December 27, 2004 FCC ID : CWTWD1U718 Revised date : January 12, 2005 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Horizontal : X-axis/ Vertical: X-axis) X-axis Y-axis Z-axis
